UMSP005 1800 mL/h Medical Syringe Pump

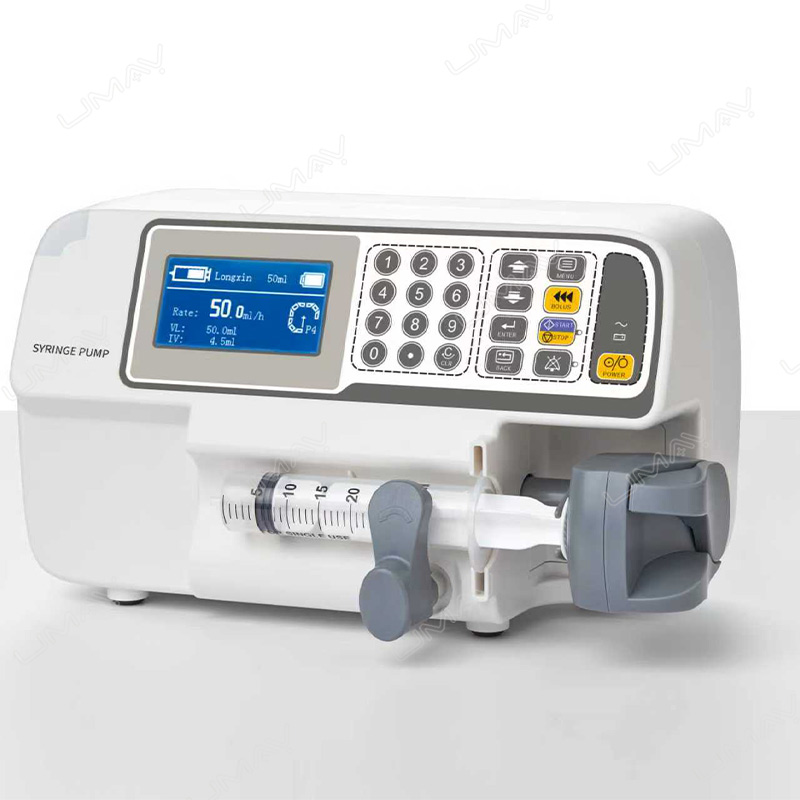

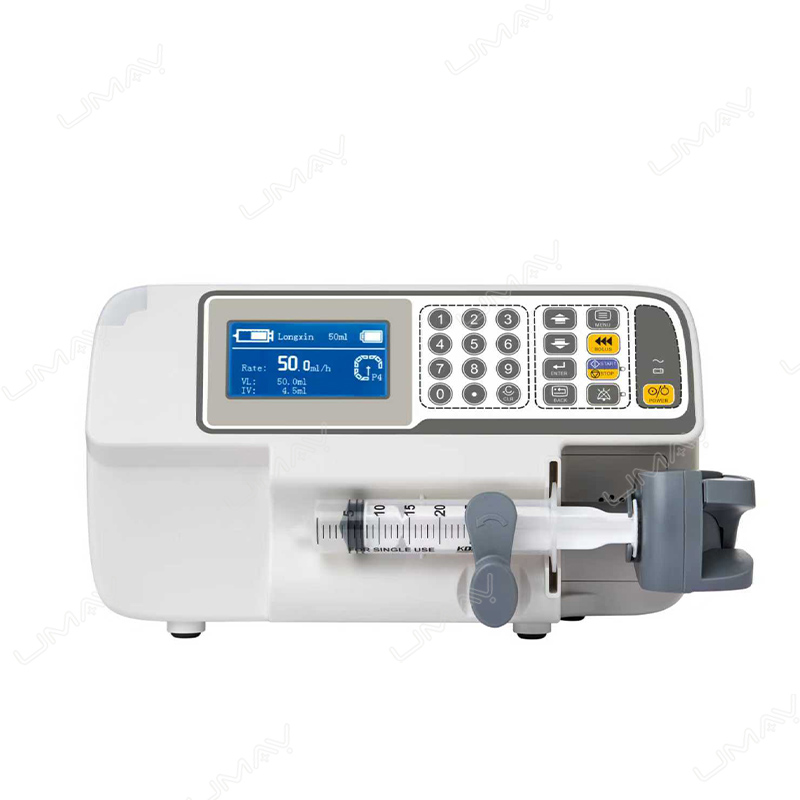

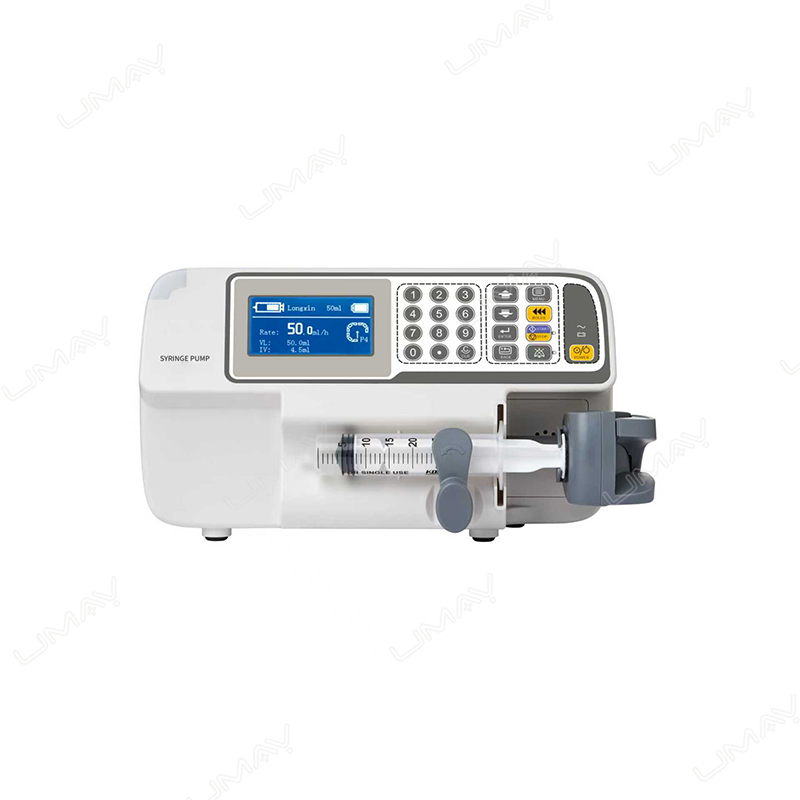

UMSP005 Medical Syringe Pump

The UMSP005 is a single-channel medical syringe pump designed for controlled intravenous drug
and fluid delivery in hospitals, intensive care units, emergency departments, operating rooms,
and other clinical environments.

The system supports common syringe sizes from 5 mL to 50/60 mL, with automatic syringe-size
recognition and configurable syringe-brand calibration. Multiple infusion modes, dynamic
occlusion-pressure monitoring, a double-CPU safety architecture, and rechargeable battery
operation support routine and higher-flow syringe infusion workflows.

Key Features

• Flow Rate up to 1800 mL/h:
  Supports a wide adjustable flow range from 0.1 mL/h up to 1800.0 mL/h depending on the installed syringe size.
• ±2% Delivery Accuracy:
  Designed for infusion accuracy within ±2% after correct syringe calibration and setup.
• Multiple Syringe Sizes:
  Automatically recognizes compatible 5 mL, 10 mL, 20 mL, 30 mL, and 50/60 mL syringes.
• Configurable Syringe Management:
  Supports preset syringe brands and allows compatible syringe parameters to be calibrated and edited.
• Multiple Injection Modes:
  Supports constant-rate, time/volume, drug-weight, and bolus operating modes.
• 8-Level Occlusion Pressure:
  Adjustable occlusion-pressure settings from approximately 10 kPa to 150 kPa with dynamic pressure display.
• Double-CPU Safety Architecture:
  Dual-processor monitoring is designed to provide additional supervision of syringe-pump operation and alarms.
• 3-Inch Display and Numeric Keypad:
  Provides direct parameter entry and operating-status display for routine clinical use.
• Rechargeable Battery:
  An 11.1 V, 2200 mAh lithium battery supports more than 7 hours of operation at 5 mL/h under the specified test condition.
• IPX4 Protection:
  Designed with IPX4 fluid-ingress protection for use in clinical environments.

Typical Applications

The UMSP005 is intended for controlled syringe-based infusion where precise adjustment of delivery
rate, volume, and pressure monitoring is required.

• Intensive care units
• Emergency departments
• Operating rooms
• General hospital wards
• Postoperative care
• Internal medicine departments
• Infusion and treatment rooms
• Other clinical syringe-infusion applications

Injection Modes

Multiple operating modes allow the syringe pump to be configured for different infusion workflows.
Available functions should be selected according to the prescribed infusion plan and clinical protocol.

• Constant Rate Mode:
  Delivers fluid according to a selected continuous flow rate.
• Time / Volume Mode:
  Allows the operator to configure infusion according to target volume and infusion time.
• Drug Weight Mode:
  Supports dose-related infusion calculations based on the configured drug and patient parameters.
• Bolus Mode:
  Provides controlled bolus delivery according to the selected operating parameters.

Syringe Compatibility and Calibration

The UMSP005 supports commonly used 5 mL, 10 mL, 20 mL, 30 mL, and 50/60 mL syringe sizes.
Automatic syringe-size recognition assists the operator in identifying the installed syringe format.

Syringes from different manufacturers can have dimensional differences that affect delivery accuracy.
The system therefore supports syringe-brand calibration and parameter editing for compatible syringe types.
The syringe actually used in clinical operation should be correctly selected and calibrated before infusion.

Up to six syringe-brand configurations can be preset according to the specified product configuration.

Occlusion Pressure and Safety Monitoring

The syringe pump provides 8 adjustable occlusion-pressure levels across an approximately
10 kPa to 150 kPa range. Dynamic pressure information can be displayed during operation to help
the user monitor changes in infusion-line pressure.

The double-CPU architecture is designed to provide redundant monitoring of key operating functions.
The pump also incorporates audible and visual alarms for abnormal operating conditions.

Exact alarm types and trigger conditions should be confirmed from the supplied operating manual and
software version before clinical deployment.

Technical Specifications

Power and Battery Operation

The UMSP005 supports AC 100–240 V, 50/60 Hz mains operation and includes a rechargeable
11.1 V, 2200 mAh lithium battery.

Under the specified test condition of 5 mL/h, the stated battery configuration supports more
than 7 hours of operation. Actual runtime can vary according to battery condition, flow rate,
alarm activity, operating environment, and battery age.

Before Ordering

Syringe-pump performance depends on correct syringe selection, calibration, software configuration,
and accessory setup. To prepare the appropriate configuration and quotation, please confirm the
following information before ordering:

• Required quantity
• Destination country
• Local voltage and plug type
• Required syringe sizes
• Syringe brands used by the hospital or clinic
• Required flow-rate range
• Required infusion modes
• Required occlusion-pressure settings
• Battery-operation requirements
• Required mounting accessories or IV-pole installation
• Required regulatory and import documentation

Because syringe dimensions vary between manufacturers, buyers should confirm the syringe brands
and sizes intended for routine use so that calibration and compatibility can be checked before shipment.

Request a Quote for the UMSP005 Syringe Pump

Send UMY Medical your required quantity, destination country, syringe sizes, syringe brands,
power requirements, and intended clinical application. Our team can confirm the available
configuration, accessories, documentation, lead time, and quotation.

Email:
[email protected]
WhatsApp / Tel:
+86 199 2588 4840

Contact UMY Medical

UMSP005 Syringe Pump FAQ

What syringe sizes can the UMSP005 use?

The UMSP005 supports compatible 5 mL, 10 mL, 20 mL, 30 mL, and 50/60 mL syringes.
Because syringe dimensions differ between manufacturers, the selected syringe brand should be
correctly configured and calibrated before clinical use.

What is the maximum flow rate of the UMSP005?

The specified flow range extends from 0.1 mL/h up to 1800.0 mL/h. The available maximum flow rate
depends on the installed syringe size and operating configuration.

Does the syringe pump support adjustable occlusion pressure?

Yes. The specified configuration provides eight adjustable occlusion-pressure levels across an
approximately 10 kPa to 150 kPa range, together with dynamic pressure monitoring.

What information should I provide before ordering?

Please provide the required quantity, destination country, voltage, syringe sizes and brands,
required infusion modes, battery requirements, mounting accessories, and any required regulatory
or import documentation.
