Multiparameter Patient Monitor for Comprehensive Vital Signs Monitoring
The UMPM020 Multiparameter Patient Monitor is engineered to provide clinicians with accurate, real-time monitoring and high-definition vital signs display for continuous patient observation. Designed for adult, pediatric and neonatal patients (with optional Nellcor SpO2 and Suntch NIBP), the monitor delivers reliable performance across ICU, CCU, operating room and general ward environments.
Equipped with a 12.1-inch TFT color LCD, intuitive knob operation, a rechargeable lithium-ion battery supporting approximately 4 hours of operation, and support for drug concentration titration analysis, the system streamlines workflow and ensures patient safety.
Supported by optional WiFi integration with central monitoring stations, the UMPM020 connects seamlessly into modern hospital IT networks.
Key Features
High-Definition 12.1″ TFT Display
Delivers clear, real-time waveforms and vital signs parameters on a 12.1-inch color TFT LCD with wide viewing angle and adjustable brightness.
Multi-Parameter Standard & Optional Modules
Standard configuration covers ECG, SpO2, NIBP, RESP and dual-channel TEMP, with optional EtCO2 and dual IBP (ART, PA, CVP, RAP, LAP, ICP) for expanded clinical applications.
Long-Life Rechargeable Battery
Built-in 11.1V 24Wh lithium-ion battery provides approximately 4 hours of continuous operation after a full charge, with 5 minutes of backup after a low battery alarm.
Comprehensive Data Storage & Review
Stores up to 720 hours of trend data, 10,000 NIBP review events, 12 hours of waveform review and 200 alarm events, with drug concentration titration analysis support.
Intelligent Alarm System
Features a prominent alarm light, adjustable alarm limits and apnea alarm (10–40s) to ensure timely clinical response for adult, pediatric and neonatal patients.
Central Monitoring Connectivity
Optional WiFi integration with central monitoring stations, supporting up to 64 beds in real time on one platform with dynamic trends up to 240 hours for review.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMPM020 Multiparameter Patient Monitor |
| Quality Standards | CE, ISO13485 | SFDA: Class IIb | Anti-electroshock: Class I equipment (internal power supply) | TEMP/SpO2/NIBP: BF type | ECG/Resp: CF type |
| Display | 12.1-inch TFT color LCD screen |
| Application Range | Adult / Pediatric / Neonatal (optional Nellcor SpO2 & Suntch NIBP) | Surgery / Operating Room / ICU / CCU |
| ECG | 5 leads: RA, LA, LL, RL, V | Lead mode: I, II, III, aVR, aVL, aVF, V | Sweep speed: 6.25 / 12.5 / 25 / 50 mm/s | Bandwidth: Surgery 1–25Hz, Monitor 0.5–40Hz, Diagnostic 0.05–130Hz | CMRR ≥112dB |
| SpO2 | Measurement range: 0–100% | Resolution: 1% | Accuracy: 70–100% ±2% |
| Pulse Rate | Measurement/Alarm range: 20–300 bpm | Resolution: 1 bpm | Accuracy: ±3 bpm |
| NIBP | Method: Oscillometry | Modes: Manual, Auto, STAT | Adult: SYS 40–280 / DIA 10–220 / MEAN 20–240 mmHg | Pediatric: SYS 40–220 / DIA 10–160 / MEAN 20–170 mmHg | Neonatal: SYS 40–135 / DIA 10–100 / MEAN 20–110 mmHg |
| ST Segment | Range: -2.0 to +2.0 mV | Accuracy: measuring error ±0.02 mV or ±10% (the larger prevails) |
| RESP | Method: Impedance between RA-LL | Rate range: Adult 0–120 BrPM, Pediatric/Neonatal 0–150 BrPM | Accuracy: ±2 BrPM (7–150 BrPM) | Apnea alarm: 10–40s |
| TEMP | 2 channels | Measurement/Alarm range: 0–50°C | Resolution: 0.1°C | Accuracy: ±0.1°C (excluding sensor error) |
| Power Requirements | AC: 100–240V, 50Hz/60Hz | DC: Built-in 11.1V 24Wh lithium-ion battery (approx. 4h operation after full charge) |
| Operating Environment | Temperature: 0–40°C | Humidity: 15%–80% | Pressure: 86.0kPa and above |
| Transport & Storage | Temperature: -20–55°C | Humidity: 10%–90% | Pressure: 86.0kPa and above |
| Data Storage | Trend diagram/table: 720h | NIBP review: 10,000 events | Wave review: 12h | Alarm review: 200 events | Drug concentration titration analysis supported |
| Dimension and Weight | Equipment: 305 × 162 × 290mm (approx.), about 4kg | Package: 380 × 350 × 300mm (approx.) |
- Specifications are based on the official technical datasheets for the UMPM020 Multiparameter Patient Monitor.
- Standard configuration includes ECG cable & electrodes, SpO2 sensor, TEMP probe, NIBP cuff & tube, power cord, lithium-ion battery and user manual.
- Optional EtCO2, dual IBP, Nellcor SpO2, Suntch NIBP, thermal recorder and touch screen are available depending on the selected configuration.
Applications
ICU & CCU Critical Care
Provides continuous multi-parameter monitoring for critically ill patients with comprehensive trend review and alarm management.
Operating Room & Surgery
Surgery-mode ECG bandwidth and real-time waveform display support patient monitoring throughout surgical procedures.
Emergency & Ward Monitoring
Compact and lightweight design with battery backup makes it ideal for bedside monitoring in emergency departments and general wards.
Ambulance & Pre-Hospital Care
Portable design and long battery life support vital signs monitoring during patient transport and pre-hospital emergency care.
Central Monitoring Networks
WiFi integration with central stations enables review and management of up to 64 beds in real time on a single platform.
System Configuration

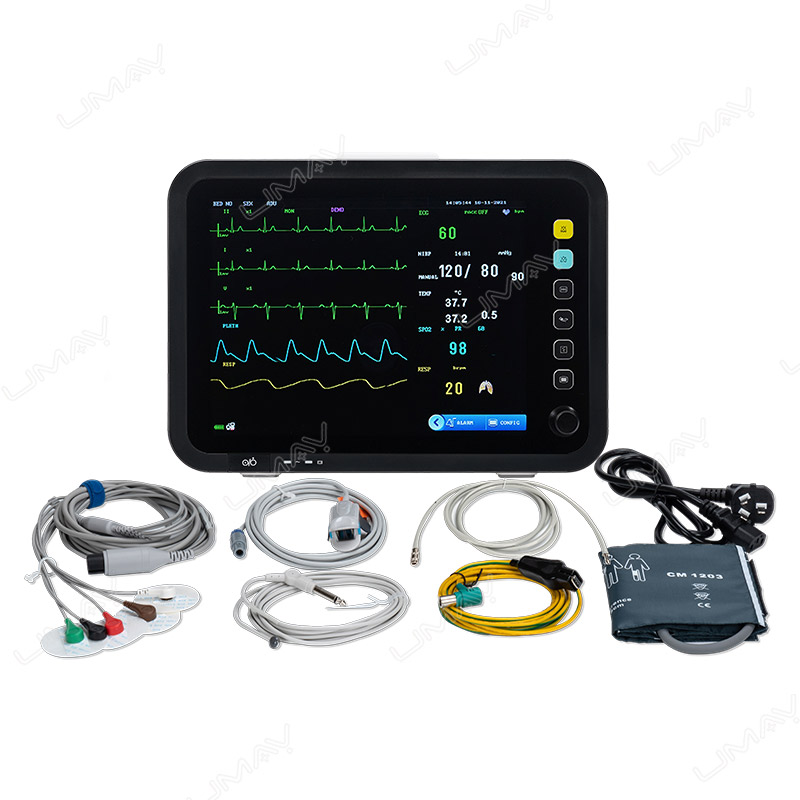

The UMPM020 Multiparameter Patient Monitor is supplied complete with the main monitor unit, ECG cable & electrodes, SpO2 sensor, TEMP probe, NIBP cuff & tube, power cord, rechargeable lithium-ion battery and user manual.
Optional configurations include EtCO2 module, dual IBP module, Nellcor SpO2, Suntch NIBP, thermal recorder, touch screen, rolling stand and wall mount. Please confirm your required parameter configuration and mounting solution prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Parameter selection: standard configuration or optional EtCO2 / dual IBP modules.
- Mounting preference: rolling stand, wall mount or desktop use.
- Local electrical power requirements (AC 100–240V, 50Hz/60Hz).
Request a Multiparameter Patient Monitor Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your hospital, clinic or emergency service.
