The UMH-HN Series Manual & Electric Hospital Beds provides
multiple configurations for routine hospital wards, clinics and intensive
patient-care environments.
The series includes the UMH-HN06 manual 3-function hospital bed,
UMH-HN09 electric 3-function hospital bed and
UMH-HN11 electric 5-function ICU hospital bed.
All three models support adjustable backrest, leg-rest and bed height.
The UMH-HN11 additionally provides Trendelenburg and reverse
Trendelenburg positioning for more flexible ICU and nursing workflows.
UMH-HN Series Model Options
| Model | Type | Functions | Dimensions |
|---|---|---|---|
| UMH-HN06 | Manual Hospital Bed | 3-Function | 2120 × 1050 × 420–680 mm |
| UMH-HN09 | Electric Hospital Bed | 3-Function | 2120 × 1050 × 420–680 mm |
| UMH-HN11 | Electric ICU Hospital Bed | 5-Function | 2120 × 1050 × 420–680 mm |
Key Features
- Manual and electric configurations available
- 3-function and 5-function bed options
- Backrest adjustment up to 75°
- Leg-rest adjustment up to 35°
- Height adjustment from 420 to 680 mm
- Trendelenburg and reverse Trendelenburg on UMH-HN11
- Detachable ABS head and footboards
- Side rail configurations according to model
- 125 mm medical castors
- Mattress supplied according to model configuration
- Designed for hospital ward, nursing and ICU applications

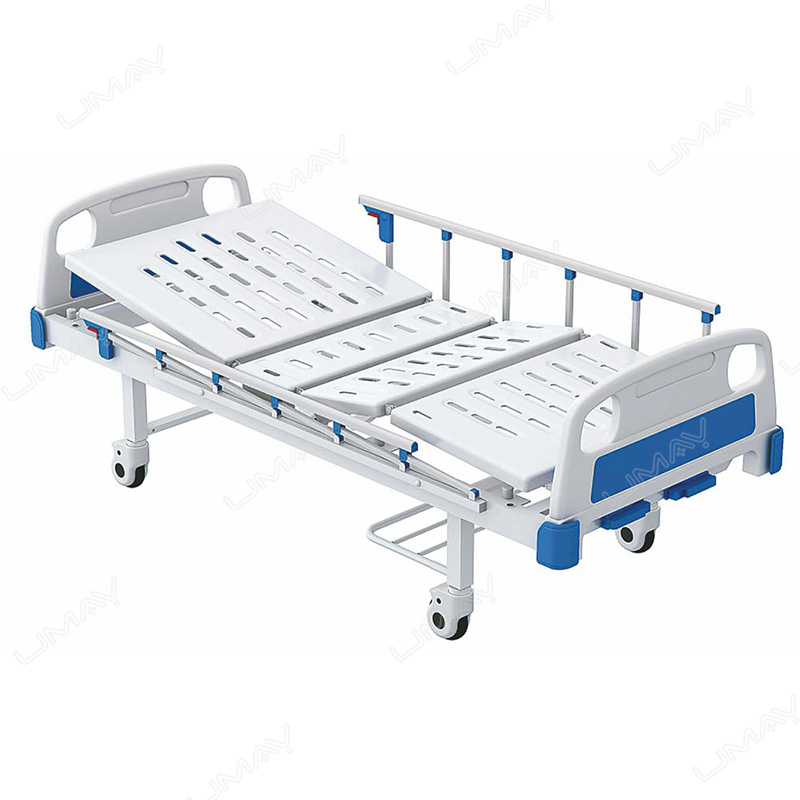

UMH-HN06 Manual 3-Function Hospital Bed
The UMH-HN06 is a manual 3-function hospital bed designed
for routine ward and nursing applications where mechanical adjustment is preferred.
The bed supports adjustment of the backrest, leg-rest and overall bed height.
| Model | UMH-HN06 |
|---|---|
| Operation | Manual |
| Number of Functions | 3 |
| Overall Dimensions | 2120 × 1050 × 420–680 mm |
| Backrest Adjustment | 0–75° |
| Leg-Rest Adjustment | 0–35° |
| Height Adjustment | 420–680 mm |
| Side Rails | PP side rails with hydraulic damping |
| Head / Foot Boards | ABS |
| Castors | 125 mm braking castors |
| Mattress | 6 cm |
UMH-HN09 Electric 3-Function Hospital Bed
The UMH-HN09 provides the same three primary positioning
functions using an electric adjustment system for convenient patient positioning
and nursing operation.
| Model | UMH-HN09 |
|---|---|
| Operation | Electric |
| Number of Functions | 3 |
| Overall Dimensions | 2120 × 1050 × 420–680 mm |
| Backrest Adjustment | 0–75° |
| Leg-Rest Adjustment | 0–35° |
| Height Adjustment | 420–680 mm |
| Side Rails | 5-stage aluminum alloy foldable side rails |
| Head / Foot Boards | ABS |
| Castors | 125 mm |
| Mattress | 8 cm |
UMH-HN11 Electric 5-Function ICU Hospital Bed
The UMH-HN11 is the most functionally complete model in this
series. In addition to backrest, leg-rest and height adjustment, it provides
Trendelenburg and reverse Trendelenburg positioning from 0–12°.
This configuration is intended for patient-care environments requiring a wider
range of positioning functions.
| Model | UMH-HN11 |
|---|---|
| Operation | Electric |
| Number of Functions | 5 |
| Overall Dimensions | 2120 × 1050 × 420–680 mm |
| Backrest Adjustment | 0–75° |
| Leg-Rest Adjustment | 0–35° |
| Height Adjustment | 420–680 mm |
| Trendelenburg | 0–12° |
| Reverse Trendelenburg | 0–12° |
| Side Rails | 5-stage aluminum alloy side rails |
| Castors | 125 mm central-locking castors |
| Mattress | 8 cm |
Function Comparison
| Function | UMH-HN06 | UMH-HN09 | UMH-HN11 |
|---|---|---|---|
| Backrest | 0–75° | 0–75° | 0–75° |
| Leg-rest | 0–35° | 0–35° | 0–35° |
| Height | 420–680 mm | 420–680 mm | 420–680 mm |
| Trendelenburg | — | — | 0–12° |
| Reverse Trendelenburg | — | — | 0–12° |
Patient Positioning
Backrest and leg-rest adjustment allows the patient’s upper and lower body
position to be changed according to nursing, resting and routine care requirements.
The adjustable bed height from 420 to 680 mm also allows the
working height to be changed according to patient access and nursing workflow.
Side Rail Options
Side rail construction varies according to model:
- UMH-HN06: PP side rails with hydraulic damping
- UMH-HN09: 5-stage aluminum alloy foldable side rails
- UMH-HN11: 5-stage aluminum alloy side rails
Please confirm the required side rail configuration when requesting a quotation.
ABS Head and Footboards
The bed series uses detachable ABS head and footboard components for routine
hospital patient-care environments.
Detachable components also provide convenient access during cleaning and
routine bed maintenance.
Medical Castors and Braking
The UMH-HN Series uses 125 mm medical castors for bed movement
within wards and patient-care areas.
Braking configuration varies by model. The UMH-HN11 is equipped with
central-locking castors, while other models use their specified
individual braking configurations.
Typical Applications
- General hospital wards
- Patient rooms
- Clinics
- Nursing facilities
- Long-term care facilities
- ICU and higher-acuity patient care with the UMH-HN11 configuration
How to Select the Correct Hospital Bed
Choose the model according to the required adjustment method and patient-care workflow:
- UMH-HN06: suitable when a manual 3-function configuration is required.
- UMH-HN09: suitable when electric operation is preferred for the
three primary bed-positioning functions. - UMH-HN11: suitable when electric 5-function positioning including
Trendelenburg and reverse Trendelenburg is required.
Before Ordering
For model selection and quotation, please provide:
- Required model or number of bed functions
- Manual or electric operation requirement
- Required quantity
- Required side rail configuration
- Required mattress configuration
- Local voltage requirement for electric models
- Required accessories
- Destination country
For hospital or institutional projects, please provide the required quantity
and technical specification sheet so the configuration can be reviewed before quotation.
Request UMH-HN Series Hospital Bed Quotation
Contact UMY Medical with your required bed functions, quantity and
destination country for configuration confirmation and quotation.
FAQ
What models are included in the UMH-HN Series?
The series includes UMH-HN06 manual 3-function, UMH-HN09 electric 3-function
and UMH-HN11 electric 5-function hospital beds.
What is the height adjustment range?
All three listed models have a specified height range of 420–680 mm.
Which model supports Trendelenburg positioning?
The UMH-HN11 supports both Trendelenburg and reverse Trendelenburg adjustment
from 0–12°.
What is the difference between UMH-HN06 and UMH-HN09?
Both are 3-function beds, but UMH-HN06 uses manual adjustment while
UMH-HN09 provides electric adjustment.
Which model is intended for ICU applications?
The UMH-HN11 is the 5-function electric ICU bed in this series.
