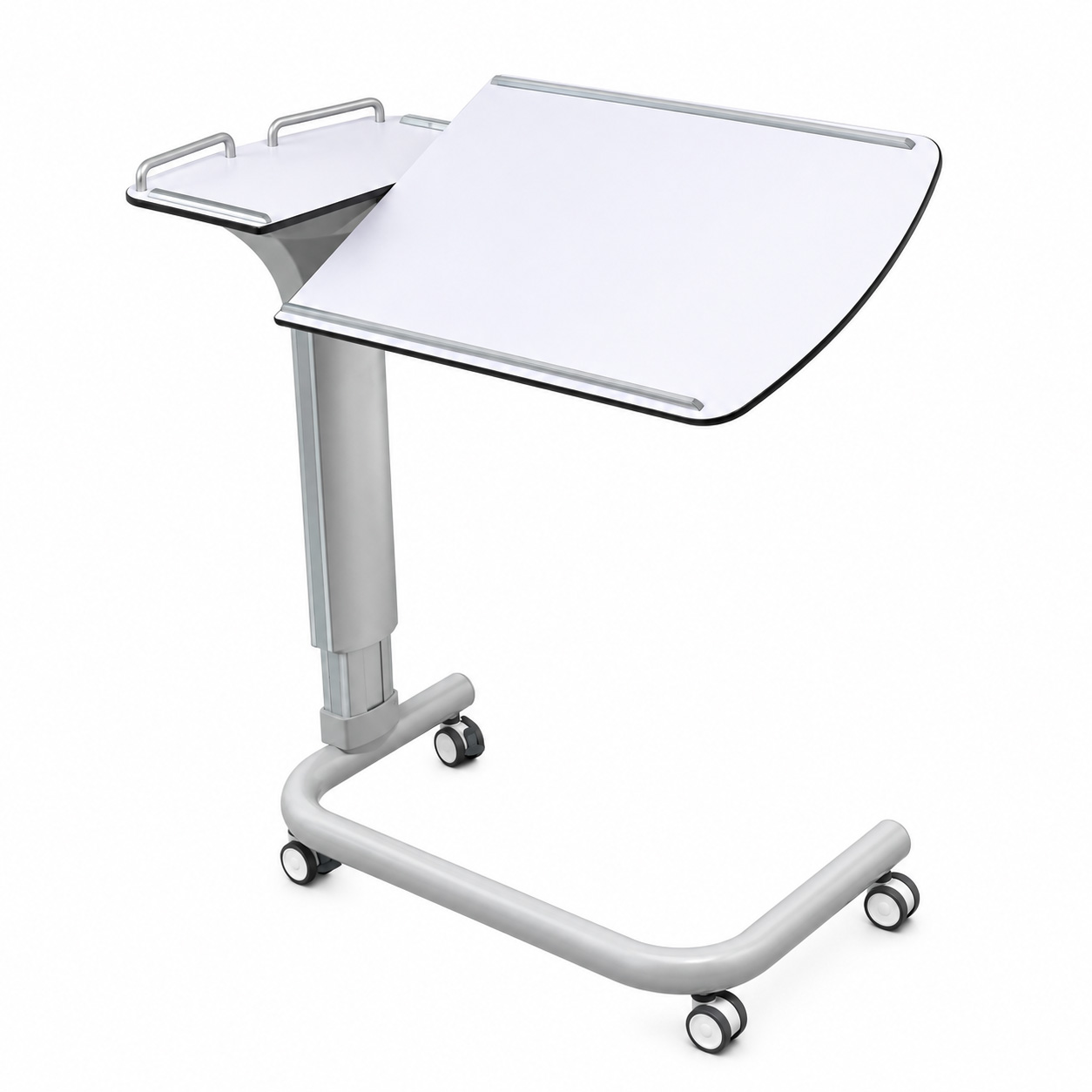

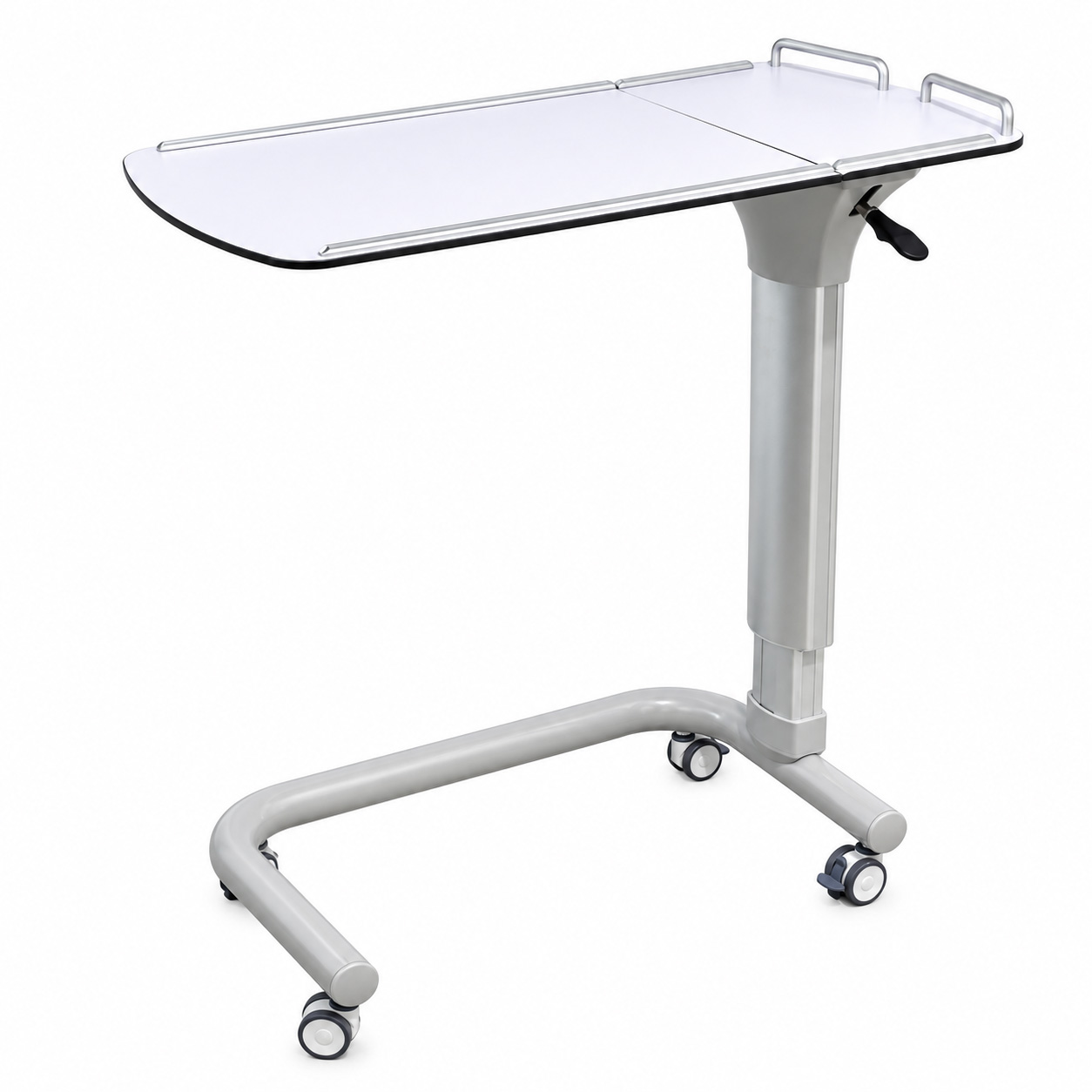

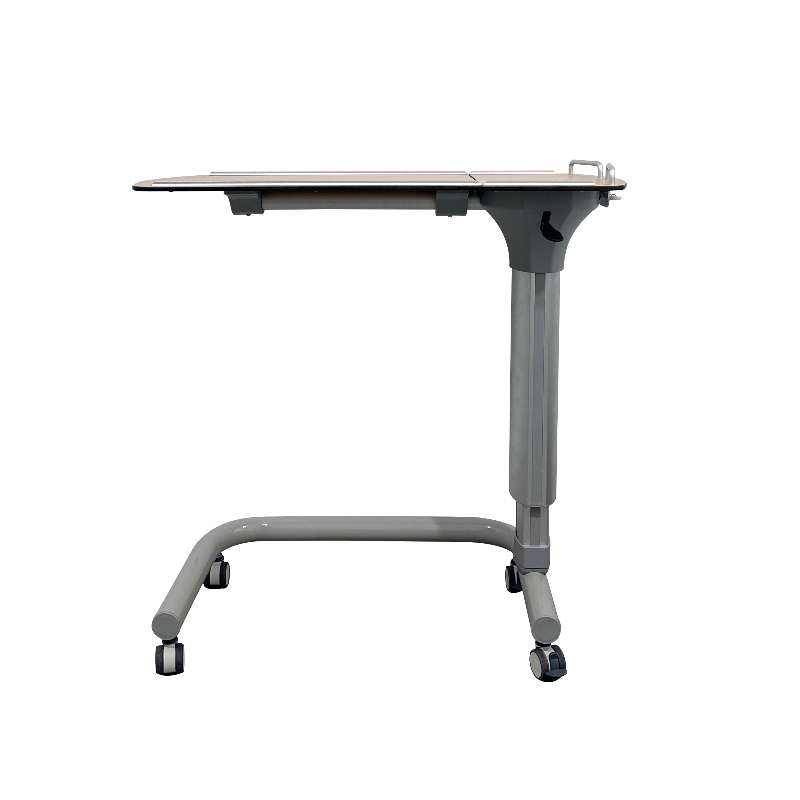

The UMH-F6 Height-Adjustable Overbed Table is designed for
hospital, clinic, nursing and home-care environments where patients require
a stable movable surface beside a bed or wheelchair.
The table combines a pneumatic height-adjustment system,
a large HPL tabletop, a 620 × 440 mm flip section,
aluminum alloy guardrails and a stable U-shaped cast-iron base.
Its height can be adjusted from 785 to 1105 mm, allowing
the tabletop to be positioned according to different bed heights and user needs.
Key Features
- Height-adjustable overbed table for medical and care environments
- Overall tabletop size: 880 × 440 mm
- Flip tabletop section: 620 × 440 mm
- Pneumatic height adjustment: 785–1105 mm
- Flip section can rotate clockwise or counterclockwise
- HPL tabletop with water-resistant and easy-clean surface
- Aluminum alloy guardrails help prevent items from sliding off
- Stable U-shaped cast-iron base
- Four 2-inch casters for convenient movement
- Two casters equipped with brakes
- Optional wood-grain tabletop finish
- Optional left/right column position configuration
Flip Tabletop Design
The UMH-F6 includes a 620 × 440 mm adjustable flip section.
The tabletop can flip clockwise or counterclockwise, allowing the surface angle
to be changed according to the user’s activity and position.
The flip section provides a convenient surface for activities such as reading,
writing, eating or placing personal items while the user remains in bed.
Pneumatic Height Adjustment
The table uses an aluminum pneumatic lift column to provide
smooth height adjustment from 785 mm to 1105 mm.
This adjustment range allows the table to be positioned beside different
hospital beds, nursing beds, wheelchairs and other care furniture.
HPL Medical Tabletop
The tabletop is manufactured from HPL material, providing
a durable, water-resistant and easy-to-clean working surface suitable for
routine medical and care environments.
The complete tabletop measures 880 × 440 mm, providing
sufficient space for meals, books, tablets, personal belongings and other
daily-use items.
Aluminum Alloy Safety Guardrails
Aluminum alloy guardrails are installed around the tabletop to help prevent
items from sliding off during use or while the table is being moved.
The raised guardrail design is particularly useful when the tabletop is adjusted
or used beside a hospital or nursing bed.
U-Shaped Cast-Iron Base
The UMH-F6 uses a 710 × 410 mm U-shaped cast-iron base.
The open-sided structure allows the base to move close to compatible beds
and wheelchairs while maintaining stable support.
The U-shaped design also reduces obstruction underneath the tabletop,
making patient-side positioning more convenient.
Four Casters with Brakes
The table is equipped with four 2-inch casters for easy movement
between beds, rooms or care areas.
Two casters include locking brakes so the table can be secured in position
during use.
Technical Specifications
| Model | UMH-F6 |
|---|---|
| Product Type | Height-adjustable movable overbed table |
| Tabletop Size | 880 × 440 mm |
| Flip Section Size | 620 × 440 mm |
| Height Adjustment | 785–1105 mm |
| Lift Mechanism | Pneumatic lift column |
| Base Size | 710 × 410 mm |
| Base Type | U-shaped cast iron |
| Tabletop Material | HPL |
| Guardrail | Aluminum alloy |
| Casters | 4 × 2-inch casters |
| Brake Casters | 2 |
Standard Configuration
| Component | Quantity |
|---|---|
| Tabletop | 1 pc |
| Aluminum alloy guardrail | 1 set |
| Pneumatic lift column | 1 pc |
| U-shaped cast-iron base | 1 pc |
| Casters | 4 pcs |
Optional Configurations
- Wood-grain tabletop color
- Left or right column position configuration
Typical Applications
The UMH-F6 is suitable for patient-side use in:
- Hospitals
- Clinics
- Nursing homes
- Rehabilitation facilities
- Long-term care facilities
- Home-care environments
- Patient rooms
- Bedside meal, reading and personal-care activities
Before Ordering
For configuration confirmation and quotation, please provide:
- Required quantity
- Preferred tabletop color
- Required left or right column position
- Intended bed or wheelchair application
- Destination country
For projects involving specific hospital beds or wheelchairs, please provide
the relevant furniture dimensions so the base clearance and working height
can be reviewed before ordering.
Request UMH-F6 Overbed Table Quotation
Contact UMY Medical with your required quantity, tabletop configuration
and destination country for quotation and delivery information.
FAQ
What is the height adjustment range of the UMH-F6?
The tabletop height can be adjusted from 785 mm to 1105 mm using the pneumatic lift column.
Can the tabletop be tilted?
Yes. The 620 × 440 mm flip section can be adjusted clockwise or counterclockwise.
What material is used for the tabletop?
The tabletop is made from HPL material with a durable, water-resistant and easy-to-clean surface.
Does the UMH-F6 have brakes?
Yes. The table has four 2-inch casters, two of which are equipped with brakes.
Can the column position be customized?
Yes. Left or right column positioning is available as an optional configuration.
