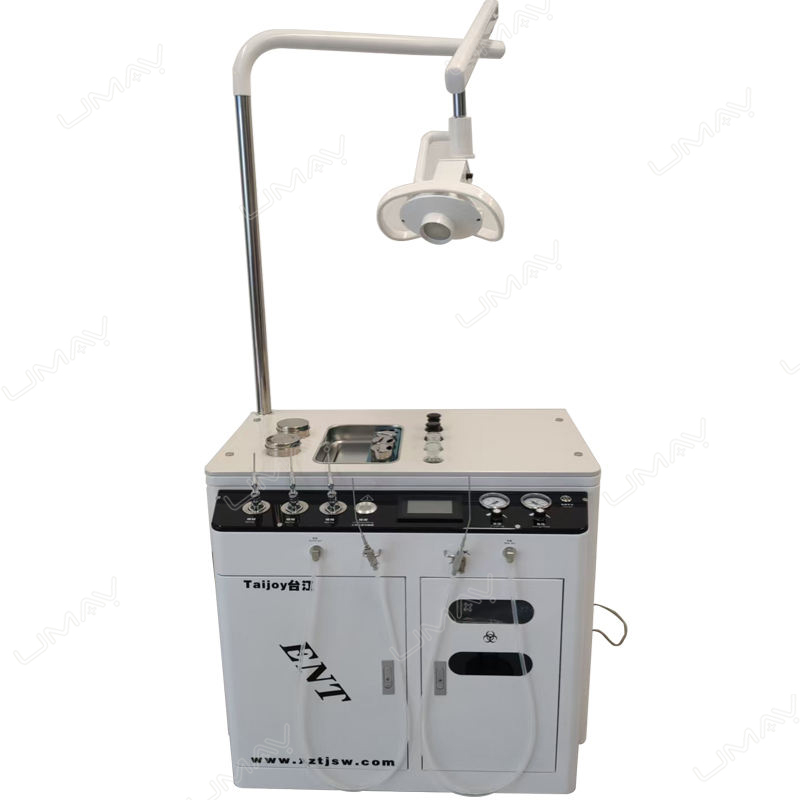

ENT Treatment Unit & Workstation
This ENT treatment unit is designed as an integrated clinical workstation for routine ear, nose and throat examination and treatment. It combines suction, spraying, blowing, instrument preparation, examination lighting and defogging functions within a compact working platform.
The system is equipped with an oil-free positive-pressure compressor and negative-pressure suction pump, together with adjustable pneumatic controls for spray, blowing and suction procedures.
A tempered-glass worktop, adjustable examination light, medicine bottles, cotton-ball containers and organized accessory positions support efficient daily workflows in hospital ENT departments and specialist clinics.
Key Features
Integrated ENT Workstation
Combines commonly used suction, spray, blowing, illumination and instrument-preparation functions in one clinical workstation.
Adjustable Positive Pressure
The oil-free compressor provides positive pressure for spray and blowing functions, with output pressure adjustable from 0 to 0.15 MPa.
Adjustable Suction System
The negative-pressure system provides suction up to 740 mmHg, with working pressure adjustable from 0 to 0.07 MPa.
Three Spray Guns
The standard configuration includes one elbow spray gun and two straight spray guns for different ENT treatment procedures.
High-Illuminance Examination Light
The examination spotlight provides illumination of at least 10,000 Lux. Its support bracket can rotate through 180° and is height-adjustable for flexible positioning.
Integrated Defogging Device
A heated-air defogging system with temperature-control protection assists with preparation of examination instruments and optical devices.
Tempered Glass Worktop
The workstation uses a tempered-glass countertop to provide a durable and easy-to-maintain clinical working surface.
Organized Instrument Storage
Cotton-ball cylinders, medicine bottles and an integrated tray help keep frequently used ENT supplies accessible during examination and treatment.
Applications
The ENT treatment unit is intended for routine examination and treatment workflows in otolaryngology departments and specialist clinical environments.
- Hospital ENT departments.
- ENT outpatient clinics.
- Specialist ear, nose and throat clinics.
- Routine ENT examination.
- Ear and nasal suction procedures.
- Medication spraying and insufflation.
- Instrument preparation and defogging.
- Minor ENT treatment procedures.
Standard Configuration
| Component | Quantity |
|---|---|
| Main Treatment Unit | 1 unit |
| Elbow Spray Gun | 1 pc |
| Straight Spray Gun | 2 pcs |
| Suction Gun | 1 pc |
| Blowing Gun | 1 pc |
| Defogging Device | 1 set |
| Spotlight with Bracket | 1 set |
| Cotton-Ball Cylinder | 2 pcs |
| Medicine Bottle | 6 pcs |
Pneumatic System
| Positive Pressure Pump | 2.5 kg/cm² |
|---|---|
| Compressor Type | Oil-free, compact, low-noise compressor |
| Maximum Negative Pressure | 740 mmHg |
| Spray / Blowing Pressure | 0–0.15 MPa adjustable |
| Spray Pressure Accuracy | ±0.025 MPa |
| Suction Pressure | 0–0.07 MPa adjustable |
| Suction Pressure Accuracy | ±0.025 MPa |
Technical Specifications
| Product Type | ENT Treatment Unit / ENT Workstation |
|---|---|
| Power Supply | AC 220 V ±22 V, 50 Hz ±1 Hz |
| Operating Temperature | 10°C–40°C |
| Relative Humidity | 30%–75% |
| Atmospheric Pressure | 700–1060 hPa |
| Examination Light | ≥10,000 Lux |
| Light Bracket Rotation | 180° |
| Light Height Adjustment | Adjustable |
| Worktop Material | Tempered glass |
| Main Unit Dimensions | 880 × 660 × 620 mm |
| Tray Volume | ≥1500 cm³ |
| Cotton-Ball Cylinder Material | Stainless steel |
| Cotton-Ball Cylinder Diameter | ≥Φ70 mm |
Examination Light and Defogging System
The integrated examination spotlight provides focused illumination for routine ENT examination. The support bracket can rotate through 180° and can be adjusted in height to suit different examination positions.
The defogging device incorporates temperature-control protection. When the hot-air function is activated, heated airflow can be used to assist with preparation of examination instruments and optical surfaces.
ENT Clinical Workflow
The workstation places frequently used pneumatic and treatment functions within the clinician’s immediate working area. Suction, spray and blowing controls can be selected according to the examination or treatment procedure.
Integrated storage for medicine bottles, cotton containers and treatment accessories helps reduce unnecessary movement between separate equipment during routine ENT workflows.
Before Ordering
Please provide the following information so the required configuration and quotation can be confirmed.
- Required quantity.
- Intended hospital department or clinic application.
- Required suction and spray functions.
- Required examination-light configuration.
- Required instrument and storage accessories.
- Required medicine bottles and containers.
- Need for additional endoscopy or imaging equipment.
- Destination country.
- Local voltage and power frequency.
- Installation requirements.
- Required operator training or technical documentation.
Frequently Asked Questions
What functions are integrated into this ENT treatment unit?
The workstation integrates suction, spraying, blowing, examination lighting, instrument defogging and storage functions for routine ENT clinical workflows.
How many spray guns are included?
The standard configuration includes three spray guns: one elbow spray gun and two straight spray guns.
What is the maximum suction pressure?
The negative-pressure pump can reach up to 740 mmHg, while the working suction pressure is adjustable from 0 to 0.07 MPa.
Does the workstation include an examination light?
Yes. It includes an adjustable examination spotlight providing illumination of at least 10,000 Lux with a height-adjustable, 180° rotating support bracket.
Does the unit include a defogging device?
Yes. An integrated heated-air defogging device with temperature-control protection is included.
What information should be provided before quotation?
Please provide the required quantity, intended clinical use, required accessories, destination country, local power supply and any installation or additional equipment requirements.
