Precision Surgical Microscope UMH-ZC01 for Advanced Clinical Diagnostics
The UMH-ZC01 Surgical Microscope is engineered to provide surgeons, physicians, and clinical practitioners with high-resolution visualization and flexible positioning for intricate medical procedures. Equipped with advanced LED illumination, multi-step magnification, and a durable spring-arm floor stand, the system ensures precision and clarity during clinical evaluations.
Supported by versatile optical properties, adjustable pupillary and diopter ranges, and a 0 to 180-degree foldable eyepiece, the UMH-ZC01 streamlines workflow and enhances practitioner comfort.

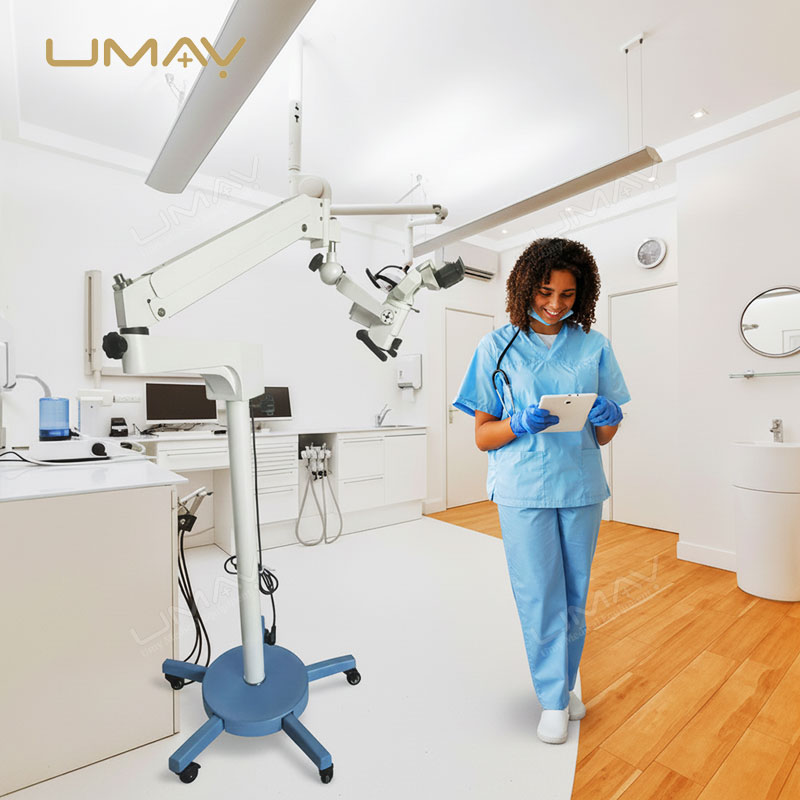

Designed with robust electrical performance and mobile caster wheels, the system integrates seamlessly into modern operating rooms, outpatient clinics, and specialty medical centers.
Key Features
High-Resolution Optical System
Delivers multi-step magnification options (4X, 6X, 10X, 16X, 25X) paired with 12.5X eyepieces for exceptional clarity and detail.

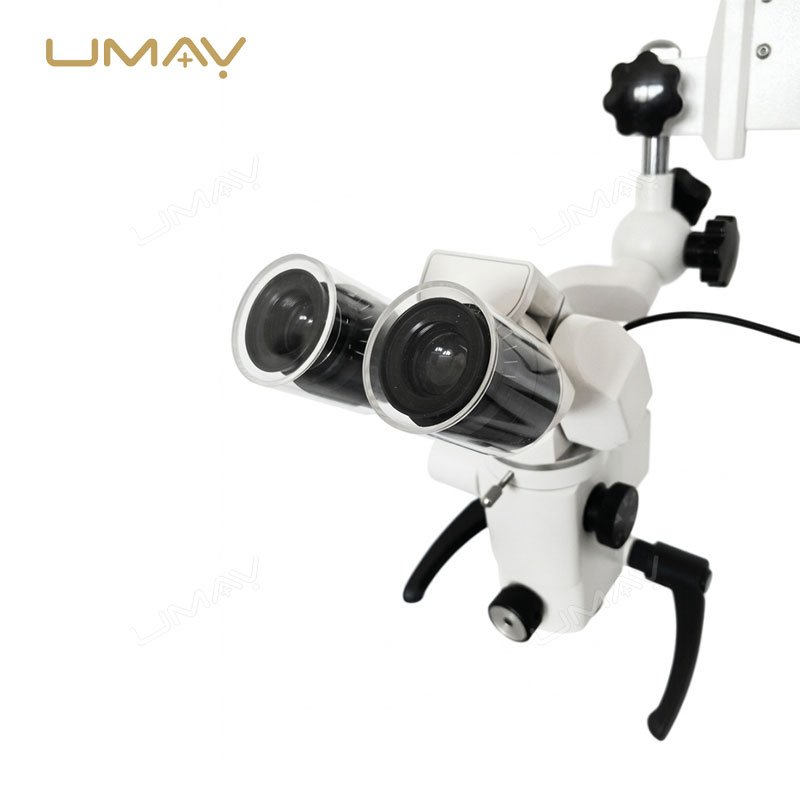

0° to 180° Foldable Eyepiece
Features an ergonomic foldable binocular eyepiece and adjustable pupillary distance to accommodate various viewing angles and user comfort.

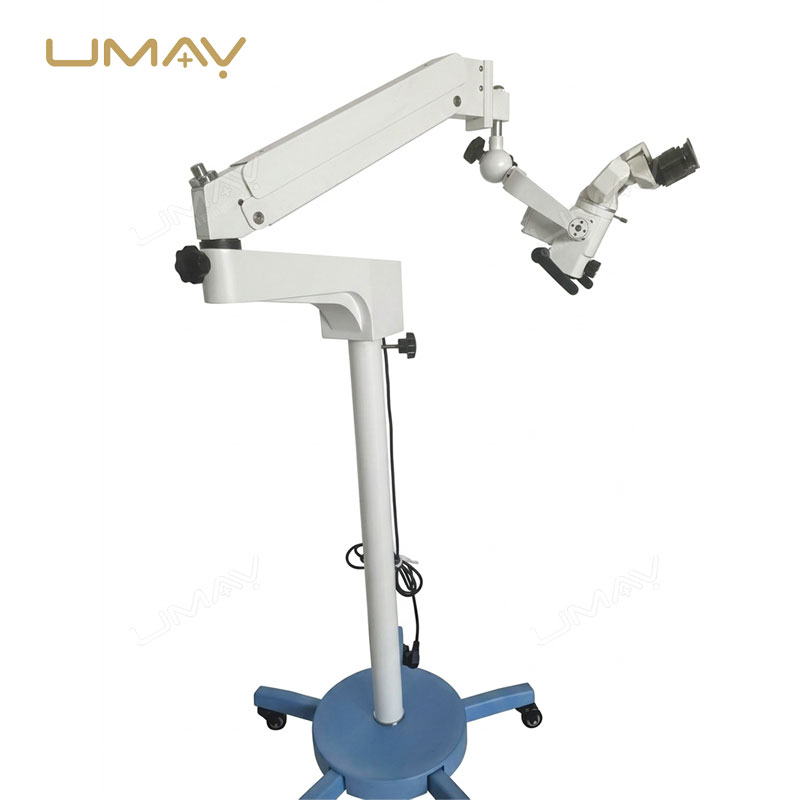

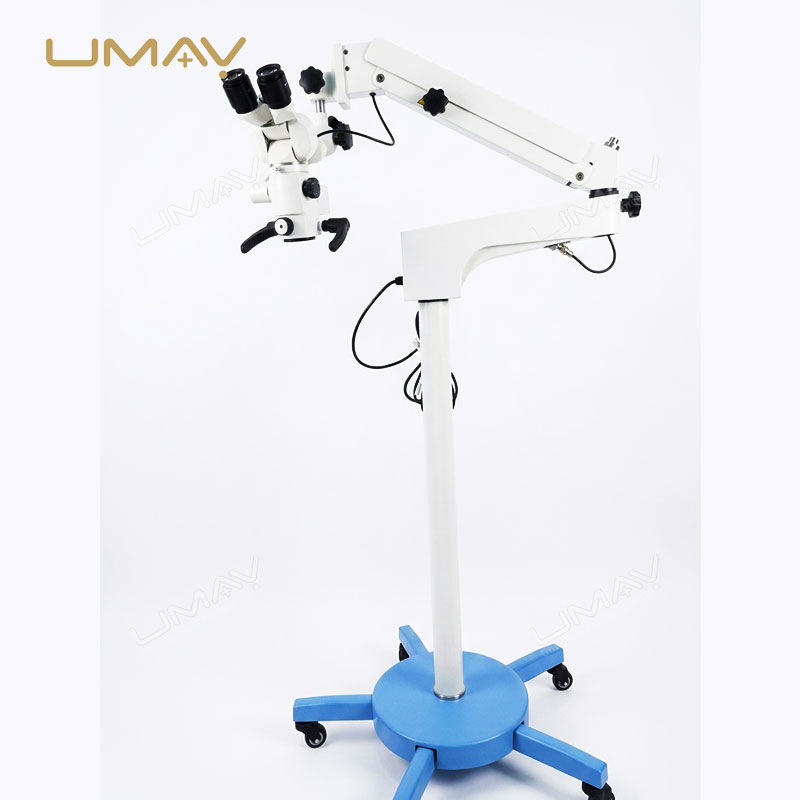

Flexible Spring Arm Stand
Includes an up-and-down adjustment range of ≥250 mm and a maximum cross arm turning radius of 800 mm ±10 mm for effortless positioning.
Advanced LED Lighting Source
Equipped with a bright, energy-efficient LED lighting system powered by standard AC220V 50Hz supply for optimal illumination.
Variable Objective Focus
Supports a variable objective focal range from 200 mm to 350 mm to suit diverse surgical and examination requirements.
Diopter & Pupillary Adjustment
Provides a diopter adjustment range from -7D to +7D and pupillary distance adjustment from 52 mm to 78 mm for customized vision correction.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-ZC01 |
| Spring Arm Adjustment | Up-and-down adjustment range ≥250 mm |
| Cross Arm Turning Radius | 800 mm ±10 mm |
| Lighting Type & Power | LED light source | AC220V 50Hz power supply (Fuse: F2 AL250V, F10 AL250V) |
| Magnification Levels | 4X, 6X, 10X, 16X, 25X |
| Eyepiece & Binoculars | 12.5X eyepiece magnification, 0° to 180° foldable eyepiece |
| Pupillary & Diopter Range | Pupillary distance: 52 mm – 78 mm | Diopter adjustment: -7D to +7D |
| Objective Focal Range | Variable objective lens: 200 mm – 350 mm |
- Specifications are based on official technical datasheets for the UMH-ZC01 Surgical Microscope[cite: 5].
- Standard configuration includes the main microscope optical head, spring arm stand, mobile base with castors, and power cable.
- Manufactured by Guangzhou UMY Medical Equipment Co., Ltd[cite: 5].
Applications
Surgical & Operating Rooms
Provides precision magnification and stable illumination required for microsurgery and specialized clinical operations.
ENT & Ophthalmology Examinations
Supports detailed diagnostic viewing of ear, nose, throat, and ophthalmic structures.
Outpatient Clinic Diagnostics
Enables high-magnification routine examinations in specialized medical and surgical outpatient departments.
System Configuration
The UMH-ZC01 Surgical Microscope is supplied complete with the microscope optical body, foldable binocular tube, adjustable spring arm stand, heavy-duty mobile floor base, LED power supply unit, and user manual.
Please confirm your local electrical supply standards (AC220V 50Hz) prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Clinic room spatial layout and electrical power requirements (AC220V 50Hz).
- Any specialized accessory requirements.
Request a Surgical Microscope Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your hospital or surgical center.
Frequently Asked Questions
What magnification levels does the UMH-ZC01 support?[cite: 5]
The microscope supports multi-step magnification levels including 4X, 6X, 10X, 16X, and 25X[cite: 5].
What is the adjustment range of the spring arm stand?[cite: 5]
The up-and-down adjustment range of the spring arm is ≥250 mm, with a maximum cross arm turning radius of 800 mm ±10 mm[cite: 5].
What type of illumination light source is used?[cite: 5]
It utilizes an advanced energy-efficient LED light source[cite: 5] powered by an AC220V 50Hz supply[cite: 5].
What is the diopter and pupillary adjustment range?[cite: 5]
The diopter adjustment range is -7D to +7D[cite: 5], and the pupillary distance adjustment range is 52 mm to 78 mm[cite: 5].
