UMDRXY004 Mobile Digital X-Ray Machine
The UMDRXY004 is a mobile digital radiography system developed for bedside X-ray examinations in hospitals and other point-of-care imaging environments. Its compact mobile structure, adjustable tube arm, wireless detector workflow and digital image-processing workstation support flexible radiographic examinations when transporting a patient to a fixed X-ray room is impractical.
The system can be configured with 32 kW or 50 kW high-voltage generator options and integrates digital image acquisition, DICOM connectivity and mobile positioning functions into a bedside DR platform.
Key Features
Mobile Bedside Digital Radiography

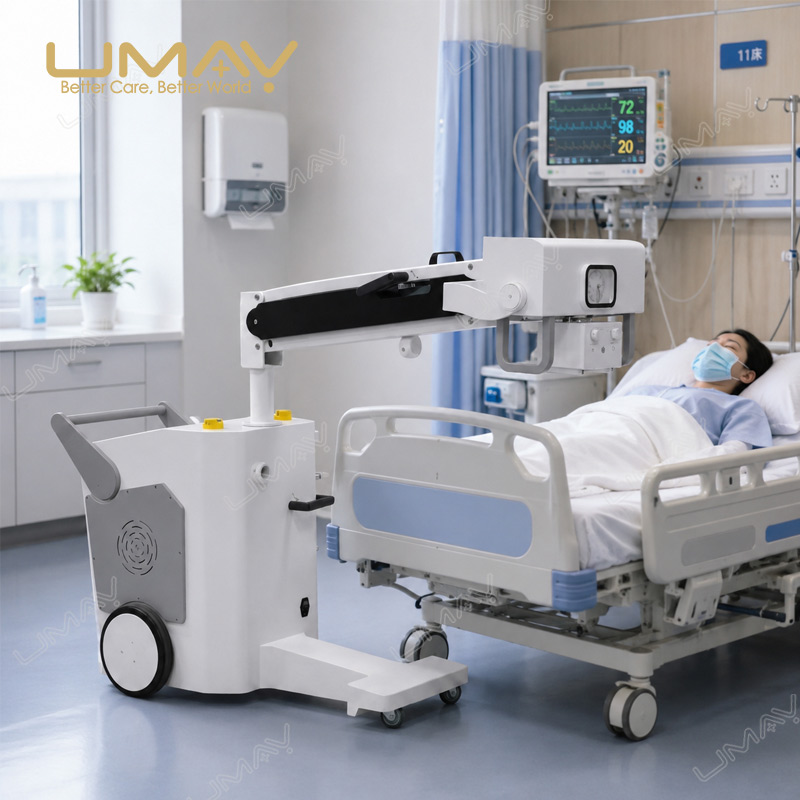

Designed for mobile X-ray imaging in hospital wards, emergency areas and other clinical environments where bedside radiography is required.

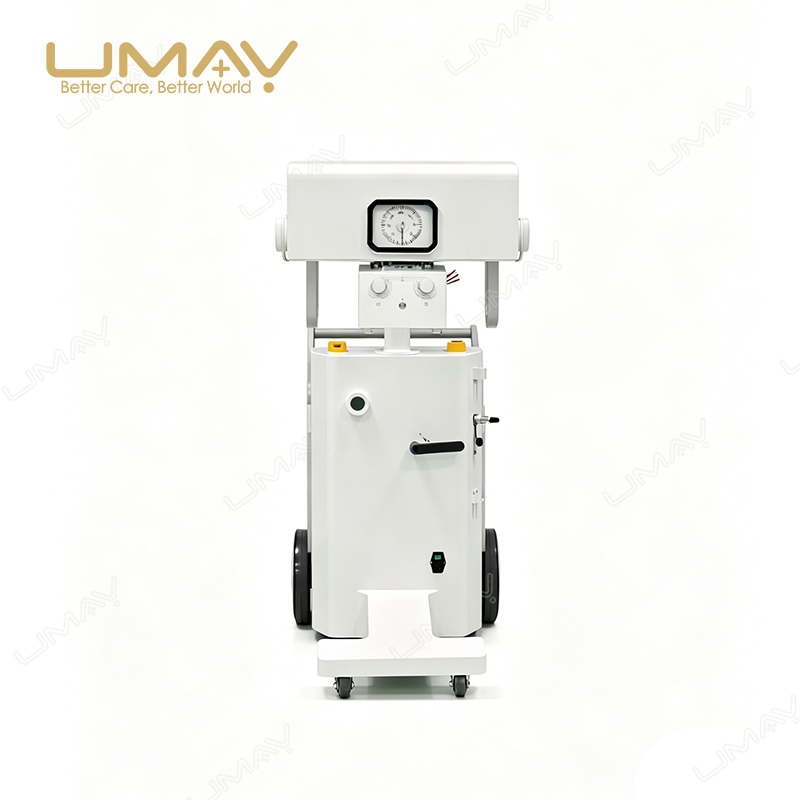

Compact 62 cm Body Width
The machine body is approximately 62 cm wide, helping the unit move through narrow corridors and around patient-care areas.
32 kW / 50 kW Generator Options
The system can be configured with 32 kW or 50 kW high-voltage generator options according to the required radiographic workload.
Wireless Flat Panel Detector
A portable wireless digital detector supports flexible positioning during bedside examinations and reduces dependence on fixed detector cabling.
Self-Balancing Tube Arm
The support arm can remain at different positions, helping the operator adjust the X-ray tube for varied bedside projections.
DICOM Digital Workflow
The DR workstation supports DICOM-based image storage, transfer and printing for integration with compatible hospital imaging networks.

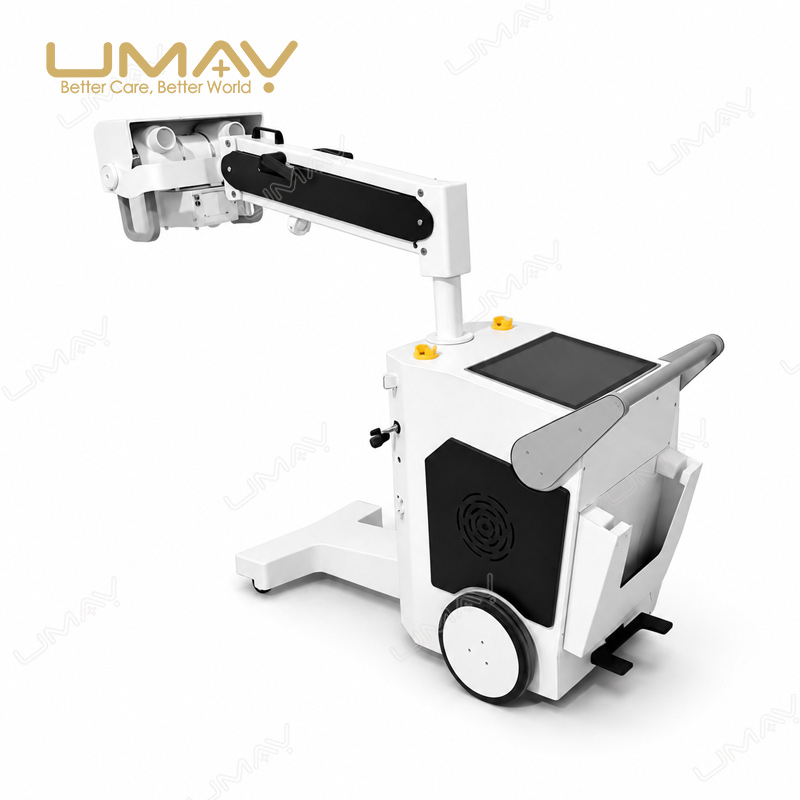

Compact Mobile DR Design

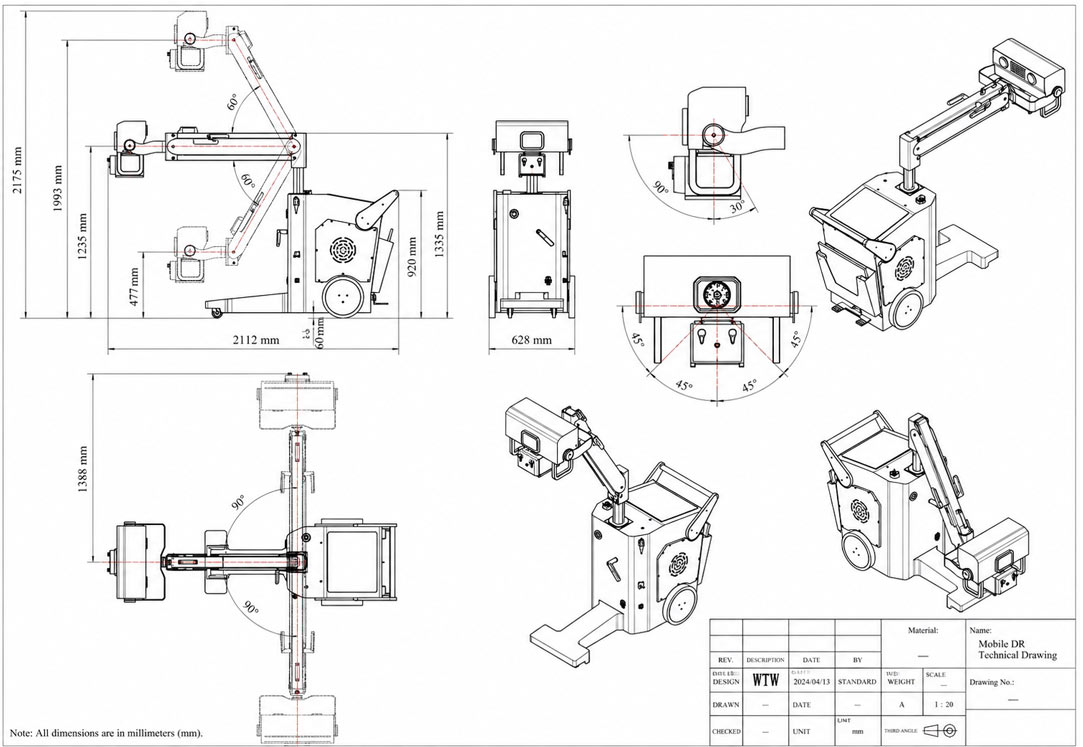

The UMDRXY004 uses a compact wheeled chassis intended for movement between wards and examination locations. The rocker arm can move vertically, while the tube assembly can rotate through multiple angles for flexible positioning around the patient.
The supplied product information specifies a machine width of approximately 62 cm and an overall machine weight below 150 kg, supporting maneuverability through hospital corridors and around bedside equipment.

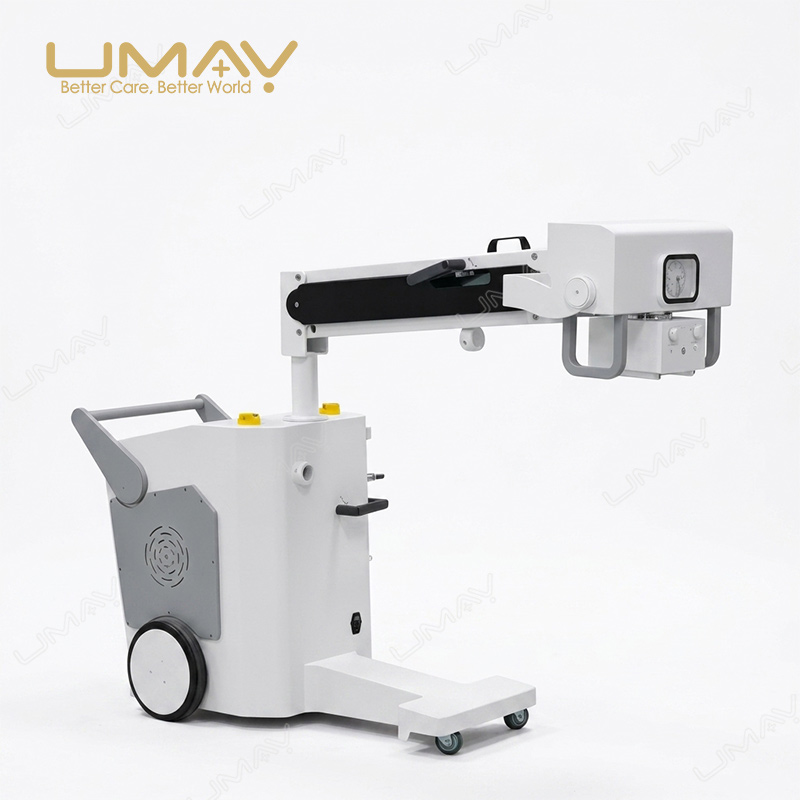

Flexible X-Ray Tube Positioning
The articulated support arm provides multiple positioning directions for bedside radiography. The tube head and column structure allow the operator to adjust the source position according to the examination projection and patient position.
- Vertically adjustable support arm.
- Multi-angle tube-head rotation.
- Self-balancing arm design.
- Mobile chassis for bedside positioning.
- Brake system for stable positioning during exposure.
High-Voltage Generator
The current UMDRXY004 parameter sheet lists 32 kW and 50 kW generator configurations with a radiographic voltage range up to 150 kV.
| Generator Configuration | 32 kW / 50 kW |
|---|---|
| Working Frequency | 25 kHz ±10% |
| Power Supply | 3-Phase / 380 VAC |
| Power Frequency | 50 Hz ±10% |
| kV Range | 40–150 kV |
| mA Range — 32 kW | 10–400 mA |
| mA Range — 50 kW | 10–630 mA |
| mAs Range — 32 kW | 0.1–400 mAs |
| mAs Range — 50 kW | 0.1–630 mAs |
| Exposure Time Range | 1–6300 ms |
| kV Accuracy | ±5% |
X-Ray Tube Configuration
The supplied parameter sheet provides the following X-ray tube specifications for the lower-power configuration. The final tube configuration should be confirmed together with the selected generator before ordering.
| Working Voltage | 40–125 kV |
|---|---|
| Focal Spot | Large 2.0 mm / Small 1.0 mm |
| Anode Speed | 2800 rpm at 50 Hz |
| Inherent Filtration | 1.0 mm Al / 75 kV |
| Tube Housing Heat Capacity | 900 kJ / 1300 kHU |
| Maximum Power at 0.1 s | 20 kW Small Focus / 40 kW Large Focus |
| Anode Angle | 12° |
| Anode Heat Content | 110 kJ / 150 kHU |
Wireless Flat Panel Detector
The mobile DR system can be used with a portable wireless flat panel detector to simplify detector placement around patients during bedside radiography.
| Detector Type | Digital Flat Panel Detector |
|---|---|
| Detector Technology | Amorphous Silicon |
| Scintillator | CsI |
| Detector Size | Approx. 14 × 17 inch |
| Pixel Size | 150 μm |
| Spatial Resolution | 3.3 lp/mm |
| Gray Scale | 16 bit |
DR Workstation and DICOM Connectivity
The mobile X-ray workstation provides digital image acquisition, viewing and image-processing functions. The system supports DICOM-based workflows for connection with compatible PACS and hospital imaging infrastructure.
- Digital X-ray image acquisition.
- Image review and processing.
- DICOM storage.
- DICOM image transfer.
- DICOM film printing.
- Connection with compatible PACS environments.
Workstation Configuration
| Processor | Intel Core i5 |
|---|---|
| Memory | 8 GB |
| Graphics | 2 GB Dedicated Graphics |
| Storage | 128 GB SSD + 1 TB HDD |
| Network Interface | Dual Gigabit Ethernet |
| Display | 22.5-inch Professional Monitor |
| Operating System | Windows 10 |
Typical Bedside X-Ray Applications
The UMDRXY004 mobile DR system is intended for general digital radiography where mobile imaging is required.
- Hospital ward bedside chest radiography.
- Emergency department imaging.
- ICU and critical-care bedside X-ray examinations.
- Orthopedic and extremity radiography.
- Spine radiography.
- Post-operative bedside imaging.
- Other general mobile radiography workflows.
Product Configuration Notes
The UMDRXY004 is available in different generator, detector and workstation configurations. Final specifications should be confirmed according to the intended clinical workflow and local electrical conditions.
- 32 kW or 50 kW generator configuration.
- Wireless flat panel detector configuration.
- DR acquisition and image-processing workstation.
- DICOM networking requirements.
- Final X-ray tube configuration matched to generator power.
The supplied brochure also contains a separate 5 kW / 220 V specification set that differs from the current 32/50 kW parameter table. If a 5 kW version is required, its exact configuration should be confirmed separately before quotation.
Before Ordering
Please provide the following information so UMY Medical can confirm the appropriate mobile digital X-ray configuration and prepare an accurate quotation.
- Required quantity.
- Destination country.
- Primary clinical applications.
- Preferred 32 kW or 50 kW generator.
- Required flat panel detector configuration.
- Local voltage and electrical supply.
- DICOM / PACS integration requirements.
- Required workstation configuration.
- Installation and training requirements.
- Local registration, tender or documentation requirements.
Frequently Asked Questions
What is a mobile digital X-ray machine used for?
A mobile digital X-ray machine allows radiographic examinations to be performed near the patient, making it suitable for wards, emergency departments, intensive-care areas and other bedside imaging environments.
What generator power options are available for the UMDRXY004?
The current parameter sheet lists 32 kW and 50 kW generator configurations.
Does the system support wireless digital radiography?
Yes. The mobile DR system can be configured with a portable wireless flat panel detector for flexible bedside positioning.
Can the X-ray tube be repositioned around the patient?
Yes. The articulated support arm and rotatable tube assembly provide multiple positioning directions for different radiographic projections.
Does the mobile X-ray system support DICOM?
Yes. The supplied DR workflow supports DICOM image storage, transfer and film-printing functions for integration with compatible hospital imaging systems.
Can the UMDRXY004 be used for bedside chest X-rays?
Yes. Bedside chest radiography is one of the typical applications for this type of mobile digital radiography system.
