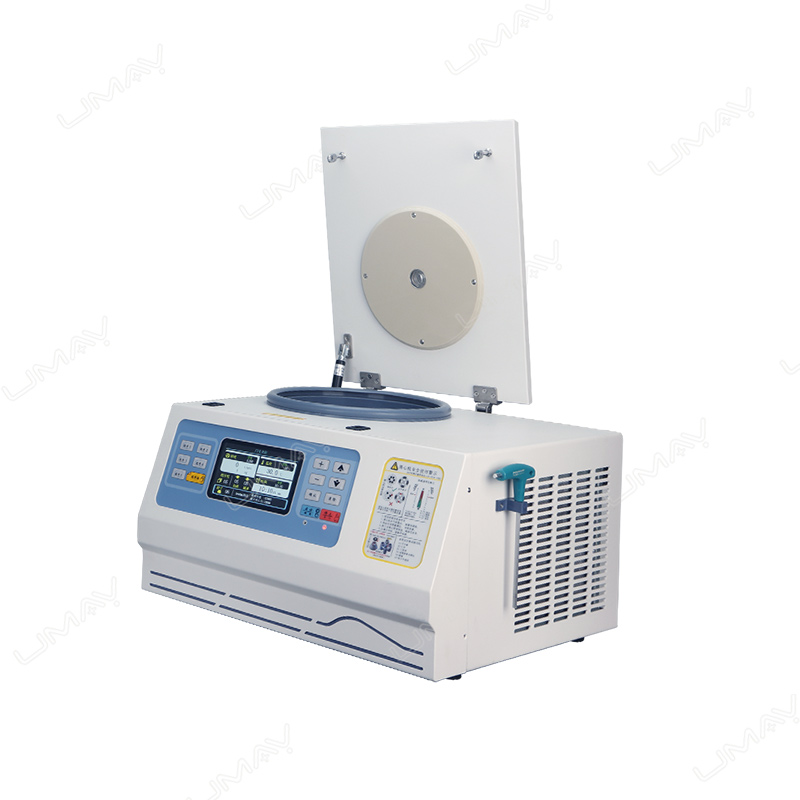

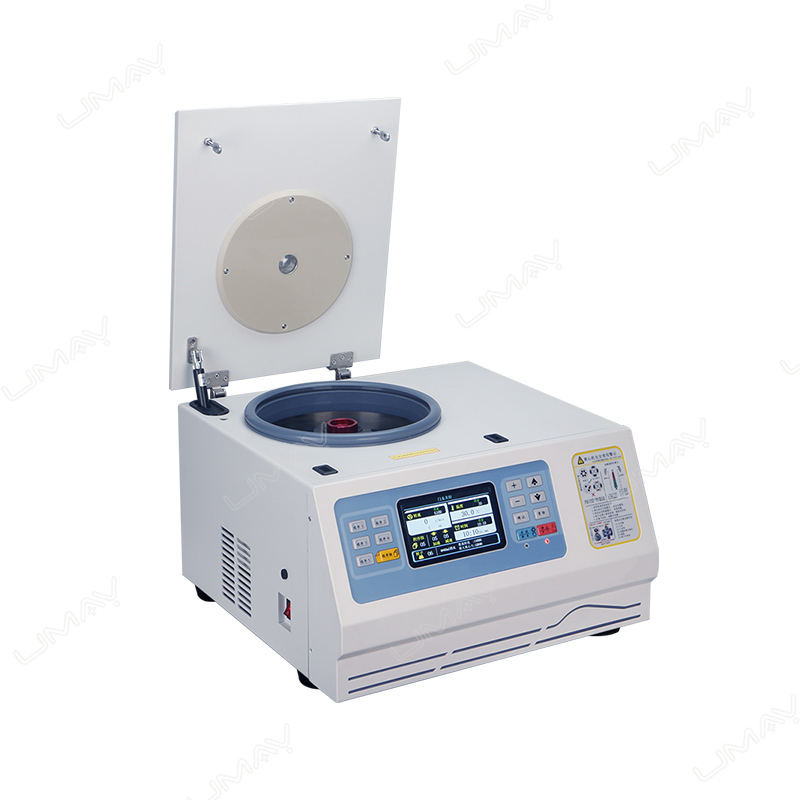

The UMBBC002 Low-Speed Refrigerated Centrifuge is a high-capacity
benchtop centrifuge designed for routine refrigerated sample separation in laboratory
environments.
It provides a maximum speed of 5500 rpm, maximum RCF of
5952 × g and maximum capacity of 4 × 750 mL.
A temperature range of -20°C to 40°C, automatic rotor identification
and multiple compatible rotor configurations support a wide range of laboratory workflows.
Key Features
- Maximum speed: 5500 rpm
- Maximum RCF: 5952 × g
- Maximum capacity: 4 × 750 mL
- Temperature range: -20°C to 40°C
- Temperature accuracy: ±1.0°C
- Automatic rotor identification
- HD large LCD display
- Parameters can be adjusted during operation without stopping
- Microcomputer control system
- AC variable-frequency brushless motor
- 10-step acceleration and deceleration
- Five groups of preset programs with storage for up to 99 programs
- Automatic electronic lid lock
- One-key short-time centrifugation
- Two timing modes: start timing and speed-arrival timing
- Over-speed, over-temperature and imbalance protection
Intelligent Control System
UMBBC002 is equipped with a microcomputer-based control system and a large HD LCD display.
Operating parameters can be reviewed and adjusted during centrifugation without shutting
down the unit.
The controller supports five groups of preset programs and can store up to
99 program groups for repeated laboratory procedures.
A one-key short-time centrifugation function is also provided for rapid short-run operation.
Refrigerated Operation from -20°C to 40°C
The centrifuge provides an adjustable temperature range from
-20°C to 40°C with a specified temperature accuracy of
±1.0°C.
This refrigerated configuration is suitable for workflows where sample temperature
needs to be controlled during centrifugation.
Automatic Rotor Identification
UMBBC002 includes an automatic rotor identification system.
The centrifuge can recognize the installed compatible rotor configuration and support
safer parameter selection during operation.
Different rotors have different maximum speed and RCF limits, so the operating parameters
should always match the installed rotor.
AC Variable-Frequency Brushless Motor
The centrifuge uses an AC variable-frequency brushless motor designed
for stable operation, fast acceleration and reduced routine maintenance.
Ten acceleration and deceleration levels are available to help users select a suitable
start and stop profile according to the sample and rotor configuration.
Safety Protection
Multiple safety functions are integrated into the system, including:
- Automatic electronic lid lock
- Over-speed protection
- Over-temperature protection
- Imbalance protection
- Automatic rotor identification
The centrifuge chamber is made from stainless steel, while the cabinet uses a steel
structure with anti-corrosion surface treatment.
Technical Specifications
| Model | UMBBC002 |
|---|---|
| Product Type | Low-speed benchtop refrigerated centrifuge |
| Maximum Speed | 5500 rpm |
| Maximum RCF | 5952 × g |
| Maximum Capacity | 4 × 750 mL |
| Timer | 1 s–99 h 59 min 59 s |
| Speed Accuracy | ±10 rpm |
| Temperature Range | -20°C to 40°C |
| Temperature Accuracy | ±1.0°C |
| Rotor Identification | Automatic |
| Motor | AC variable-frequency brushless motor |
| Display | HD LCD display |
| Acceleration / Deceleration | 10 selectable levels |
| Program Storage | Up to 99 program groups |
| Power Supply | AC 220 ±22V, 50Hz, 15A |
| Power | 1.5 kW |
| Noise Level | ≤60 dB(A) |
| Dimensions | 730 × 660 × 400 mm |
| Net Weight | 118 kg |

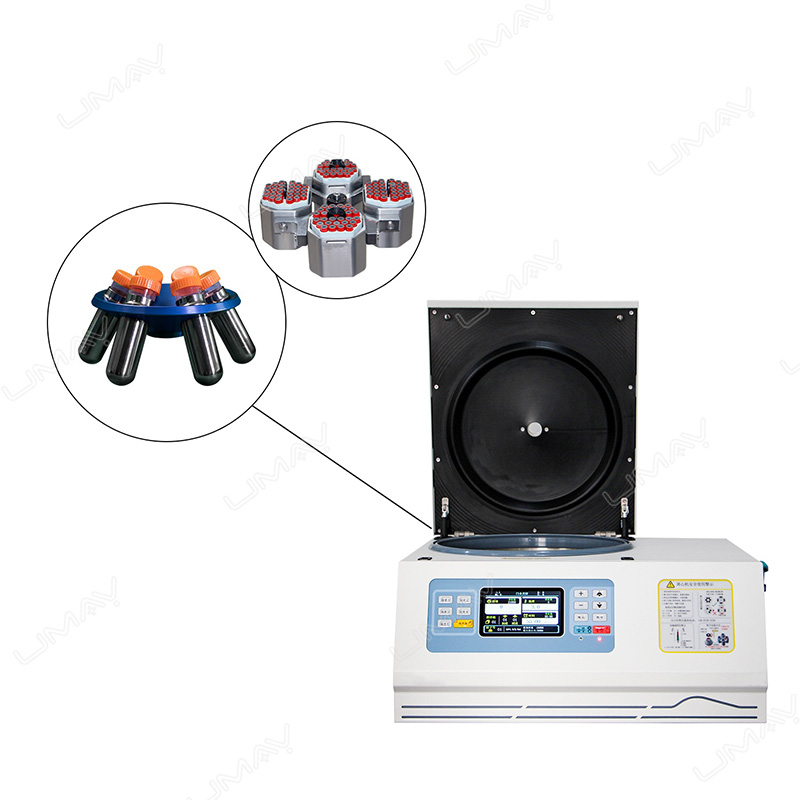

Rotor Options
UMBBC002 supports multiple angle and swing-out rotor configurations.
The appropriate rotor should be selected according to tube type, capacity,
sample volume and required centrifugal force.
Angle Rotors
| Capacity | Max Speed | Max RCF |
|---|---|---|
| 40 × 15 mL | 5500 rpm | 5952 × g |
| 6 × 50 mL | 5500 rpm | 3645 × g |
Swing-Out Rotor Options
| Configuration | Max Speed | Max RCF |
|---|---|---|
| Auto uncap 120 × 2–7 mL blood collection tubes | 4000 rpm | 3309 × g |
| 4 × 750 mL round bucket | 4000 rpm | 3309 × g |
| 4 × 750 mL round bucket with biosafety lid | 4000 rpm | 3309 × g |
| 4 × 750 mL square bucket | 4000 rpm | 3309 × g |
| Auto uncap 104 × 2–7 mL blood collection tubes | 4000 rpm | 3184 × g |
| 4 × 500 mL round bucket / square bucket | 4000 rpm | 3184 × g |
| Auto uncap 64 × 2–7 mL blood collection tubes | 4000 rpm | 3040 × g |
| 4 × 250 mL / 6 × 250 mL bucket options | 4000 rpm | 3040 × g |
Microplate Rotor Options
The UMBBC002 can also be configured for microplate centrifugation.
- 4 × 2 × 96-well microplates: 4000 rpm, 3309 × g
- 2 × 2 × 96-well microplates: 4000 rpm, 2057 × g
Adapters and Biosafety Options
A range of adapters is available for centrifugation of different laboratory
tubes and containers from approximately 0.2 mL to 750 mL.
Available configurations include:
- Adapters for 15 mL conical tubes
- Adapters for 50 mL conical tubes
- Blood collection tube configurations
- Standard microplate baskets
- Deep-well plate baskets
- Optional airtight bucket lids
The supplied documentation states that compatible bucket lids and adapters can
be sterilized under high temperature and pressure where applicable.
Before Ordering
The correct rotor and adapter configuration should be confirmed before quotation.
Please provide:
- Required quantity
- Tube or bottle volume
- Number of samples per run
- Required RCF or speed
- Whether refrigeration is required throughout the run
- Whether automatic blood-tube uncapping is required
- Whether biosafety lids are required
- Whether microplate centrifugation is required
- Local power supply
- Destination country
Request UMBBC002 Centrifuge Quotation
Contact UMY Medical with your sample capacity, required rotor,
temperature requirement and delivery country for configuration confirmation
and quotation.
FAQ
What is the maximum speed of the UMBBC002?
The maximum specified speed is 5500 rpm with a maximum RCF of 5952 × g,
depending on the installed rotor.
What is the maximum capacity?
The maximum specified capacity is 4 × 750 mL with a compatible swing-out rotor.
What is the temperature range?
The UMBBC002 provides a specified temperature range from -20°C to 40°C with
temperature accuracy of ±1.0°C.
Does the centrifuge automatically recognize the rotor?
Yes. The UMBBC002 includes an automatic rotor identification system.
Can the centrifuge handle blood collection tubes?
Yes. Compatible swing-out rotor configurations are available for automatic uncapping
of 2–7 mL blood collection tubes, with different capacities depending on the selected rotor.
