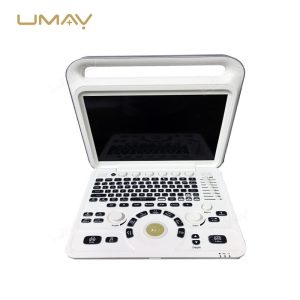

This cost-effective full digital color Doppler ultrasound system offers advanced imaging capabilities with a 160GB SSD storage for efficient data management. Ideal for a variety of diagnostic applications, it provides high-resolution images for accurate assessments in cardiology, obstetrics, and vascular imaging. The 160GB SSD ensures fast data access, allowing healthcare providers to store and retrieve patient information with ease. With its compact design and reliable performance, this system delivers the perfect balance of affordability and advanced technology for medical professionals. Perfect for clinics and hospitals looking to enhance their diagnostic capabilities without compromising on quality.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Display | 15″ High Definition LED Monitor |
| Connectivity | |
| Activated Transducer Connectors | Two |
| USB Ports | 4 |
| HDMI Output | One |
| Audio Out | One |
| DICOM Version | 3 |
| Storage | 160GB SSD |
| Power | 120 min (actual battery life may vary depending on scan mode) |
| Imaging Modes | |
| Available Modes | B / B+B / 4B / B+M / B-Steer / Color Doppler (CFM) / |
| Power Doppler (PDI) / Pulsed Wave Doppler (PWD) / B+PWD (Duplex) / | Included |
| B+CFM+PWD (Triplex) / Tissue Harmonic Imaging (THI) | Included |
| Advanced Features | |
| Speckle Reduction Imaging (SRI) | Yes |
| One Click Restoration of O/S | Yes |
| Panoramic Zoom | Yes |
| Triplex | Yes |
| Measurement & Calculation Software | Included |
| Measurement & Calculation | |
| B-Mode | Distance, Circumference, Area, Volume, Angle, Residual Urine Volume, Histogram, Profile |
| M-Mode | Distance, Time, Velocity, Heart Rate |
| D-Mode | Doppler Blood Flow Measurement, Velocity, Acceleration, Pressure Gradient, Time, VI, PI, RI, etc. |
| Software Packages | |
| GYN | Uterus, Endometrium, Ovary, Cervix, Ovarian Follicle |
| OB | GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD, APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc. |
| Cardiac | M. Simpson, B-EF, M-EF (Pombo, Gibson, Teichholz), Diameter Function, PV Flow, AV-Area, B-LV/Ao, M-LV/Ao, MV Regurg, etc. |
| Urology | Volume of Prostate, Volume of Bladder, Volume of Urine, Volume of Trans Zone, Hip J.Angle (Hip Joint Dislocation in Neonatal and Babies), Slice V, etc. |
| Small Parts & Peripheral Vessels | Vascular Cross-Sectional Area, Heart Rate, Stroke Volume, Flow Per Unit Time, Ejection Time, % Stenosis, Mean Velocity of Flow, RI, PI, etc. |
| Transducers (Standard) | |
| Electronic Convex Array Transducer | CA3.5MHz/R50 (2.0-5.0MHz) |
| Electronic Linear Array Transducer | LA7.5MHz/L40 (5.0-12.0MHz) |
| Transducers (Optional) | |
| Electronic Convex Array Transducer | CA3.5MHz/R60 (2.0-5.0MHz) |
| Electronic Transvaginal Transducer | EV6.5MHz/R10 (4.0-9.0MHz) |
| Electronic Micro Convex Array Transducer | MC3.5MHz/R20 (2.0-5.0MHz) |
| Accessories (Optional) | |
| 3D/4D Package | Available |
| Needle-Guided Brackets | Available |
| Footswitch | Available |
Product Details
Detail Gallery
