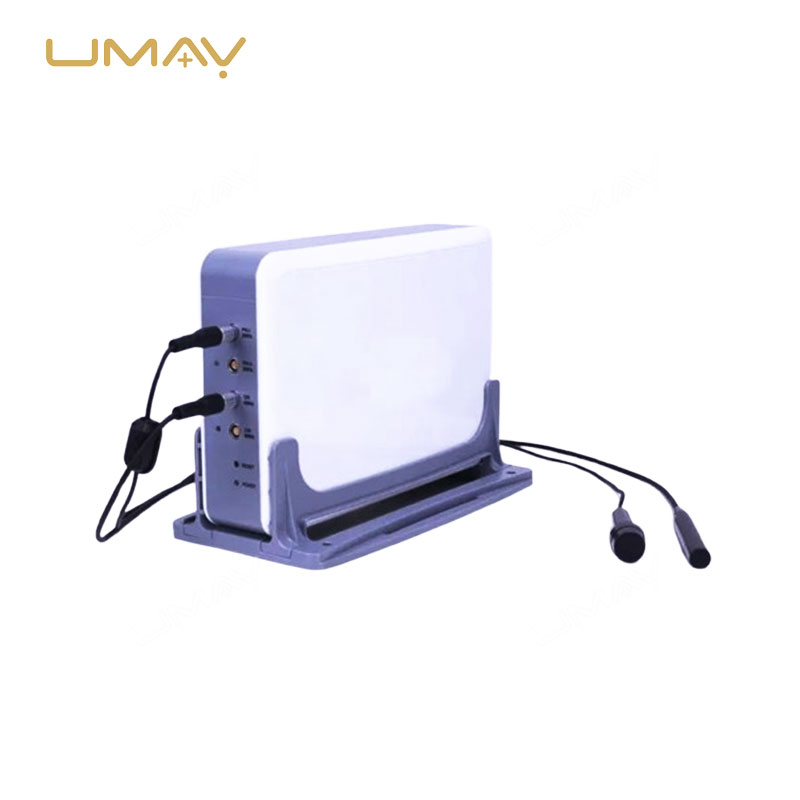

Transcranial Doppler Ultrasound System for Blood Flow Velocity Measurement
The Single-Channel Transcranial Doppler (TCD) Ultrasound System is designed to support clinical cerebrovascular examination in neurology departments, stroke centers, and neurovascular laboratories. The system combines multi-probe compatibility and advanced digital processing to provide accurate assessment of blood flow velocity in cerebral vessels.
The manufacturer describes the system as supporting 1 to 4 probe options operating at multiple frequencies (such as 2MHz, 4MHz, and 8MHz) to accommodate diverse diagnostic requirements. Together with specialized analytical software and digital reporting capabilities, the system supports routine evaluation, documentation, and follow-up review of cerebrovascular hemodynamics. The current software version and applicable clinical reporting standards should be confirmed before ordering.
Examination records and spectral displays can be stored, reviewed, and printed, supporting routine diagnostic documentation and clinical workflow management.
Key Features
Multi-Probe Compatibility
Supports flexible connection of 1 to 4 probes, allowing tailored examination protocols for diverse neurological assessments.
Multiple Probe Frequencies
Equipped with probe options including 2MHz, 4MHz, and 8MHz frequencies for deep intracranial and peripheral vessel insonation.
Single-Channel Architecture
Reliable single-channel processing unit designed for stable and accurate blood flow velocity signal acquisition.
Cerebrovascular Analysis
Provides comprehensive parameters for evaluating blood flow velocity, pulsatility index, and resistance index in cerebral arteries.
Digital Data and Reports
Examination waveforms and test records can be stored, retrieved, and printed for clinical documentation and patient tracking.
Cerebral Blood Flow Analysis
The system uses specialized Doppler ultrasound technology to detect and analyze blood flow patterns across major intracranial and extracranial vessels.
Velocity Measurements
Measures peak systolic velocity, end-diastolic velocity, and mean flow velocity parameters described in the technical documentation.
Spectrum Display and Tracking
Supports real-time spectral envelope tracking and automatic parameter calculations for efficient clinical evaluation.
Vascular Assessment
Aids in examining major cerebral arteries including the middle cerebral artery, anterior cerebral artery, and posterior cerebral artery.
Diagnostic Support
Provides objective data to assist clinicians in evaluating conditions such as vasospasm, stenosis, and circulatory disorders.
Technical Specifications
| Specification | Transcranial Doppler System |
|---|---|
| Model | Single-Channel TCD System |
| Product Type | Transcranial Doppler Ultrasound System |
| Channel Count | 1 Channel |
| Probe Quantity | 1 to 4 Probes |
| Probe Frequencies | 2 MHz / 4 MHz / 8 MHz |
| Application Material | Metal and Plastic housing |
| Data Management | Digital storage, review, and report printing |
- Specifications are based on the supplied technical documentation.
- Some measurement definitions and acquisition limits require confirmation against the current software version.
- The exact delivered system configuration and included accessories must be confirmed before quotation.
- Medical facilities should evaluate applicable clinical protocols and destination-market regulatory requirements.
Applications
Neurology Departments
Supports routine blood flow velocity evaluation and cerebrovascular disease screening.
Stroke and Emergency Centers
Provides rapid assessment of cerebral hemodynamics in acute cerebrovascular events.
Neurosurgery Monitoring
Assists in perioperative monitoring of cerebral blood flow changes and vasospasm detection.
Research and Teaching
Stored spectral data and examination records support clinical research and educational training in neurosonology.
System Configuration
The system is supplied as a single-channel transcranial Doppler diagnostic unit with selectable probe configurations ranging from 1 to 4 probes.
Please confirm the full scope of supply before ordering. In particular, confirm whether specific probe frequencies (2MHz, 4MHz, 8MHz), computer workstations, isolation transformers, and software licenses are included in the selected quotation.
Buyers requiring specific reporting formats or network integration should request the current software specification sheet.
Before Ordering
To confirm the appropriate TCD configuration and prepare an accurate quotation, please provide the following information:
- Required quantity and destination country.
- Intended application: clinical neurology, stroke monitoring, or research.
- Required probe quantity (1 to 4 probes) and frequencies (2MHz, 4MHz, 8MHz).
- Whether a computer, medical cart, or printer is needed.
- Software language and data-management requirements.
- Power supply and plug type requirements.
- Required training, technical support, and warranty information.
- Any local regulatory or tender documentation requirements.
Request a Transcranial Doppler System Quote
Contact UMY Medical to discuss the TCD system configuration, probe options, software functions, and export quotation for your facility.
Please include your required quantity, destination country, and intended application. If you have specific technical or reporting requirements, our team can review them before preparing a quotation.
Frequently Asked Questions
What does the Transcranial Doppler system measure?
It measures cerebral blood flow velocity, peak systolic velocity, mean velocity, and vascular indices to assist in evaluating intracranial vessel status.
How many probes can be connected to the system?
The system supports flexible configurations with 1 to 4 probes.
What probe frequencies are available?
Available probe frequencies include 2MHz for intracranial examinations, as well as 4MHz and 8MHz options.
What clinical departments use this TCD system?
It is primarily used in neurology departments, stroke units, neurosurgery, and vascular diagnostic laboratories.
