UMUS028 Portable B/W Ultrasound Scanner

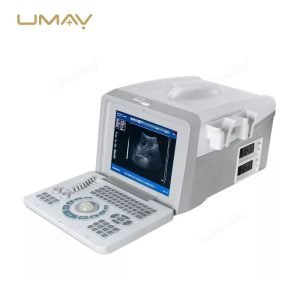

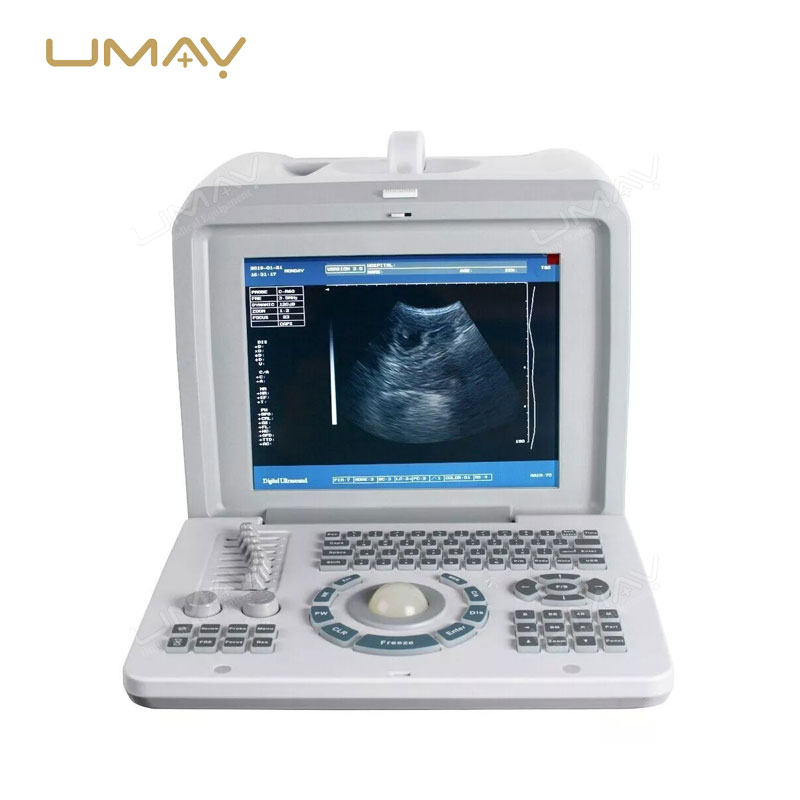

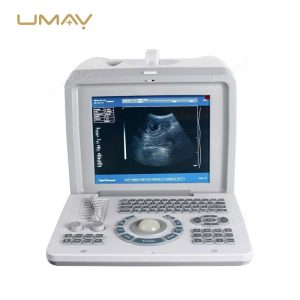

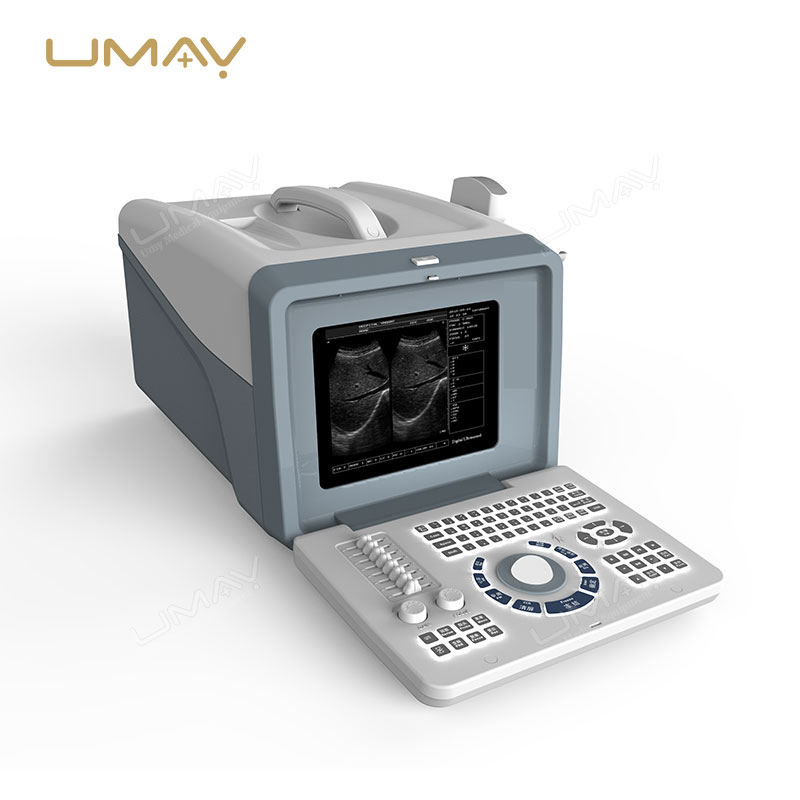

The UMUS028 Portable B/W Ultrasound Scanner provides grayscale ultrasound imaging in a compact workstation with a 10-inch LED display. It is suitable for facilities seeking a portable ultrasound configuration with a standard convex probe, digital image processing, basic measurements and image review functions.
The system supports five selectable imaging frequencies for the supplied convex probe, adjustable gain controls, image storage and cine-loop playback. Probe and accessory choices can be specified to suit the examination requirements of a hospital or clinic.
Imaging and Examination Features
- Convex probe imaging: An 80-element R60 convex array probe with 3.5 MHz nominal frequency is included in the listed standard configuration.
- Multi-frequency selection: 2.5, 3.0, 3.5, 4.0 and 5.0 MHz selections are listed for the imaging system.
- Electronic focusing: Four-stage dynamic electronic focusing and variable-aperture processing are described in the product literature.
- Image adjustment: Dynamic filtering, dynamic apodization, edge enhancement, spatial-temporal filtering, gamma correction and pseudo-color display options.
- Gain control: Eight-segment time gain compensation (TGC), with separate overall gain adjustment.
- Image review: Still-image storage and cine-loop review support comparison of captured scans during the examination workflow.
Measurement and Reporting Functions
The system provides measurement functions for distance, circumference and area (ellipse and tracing methods), as well as heart-rate calculation. Its obstetric measurement functions include BPD, GS, CRL, FL, HC, OFD, TTD and AC, with gestational-age and estimated delivery information described in the supplied literature.
On-screen annotations and a report page help organize the examination findings. The available calculations and clinical applications depend on the selected probe, examination protocol and operator training.
Technical Specifications
| Product / website model | UMUS028 — portable black-and-white ultrasound scanner |
|---|---|

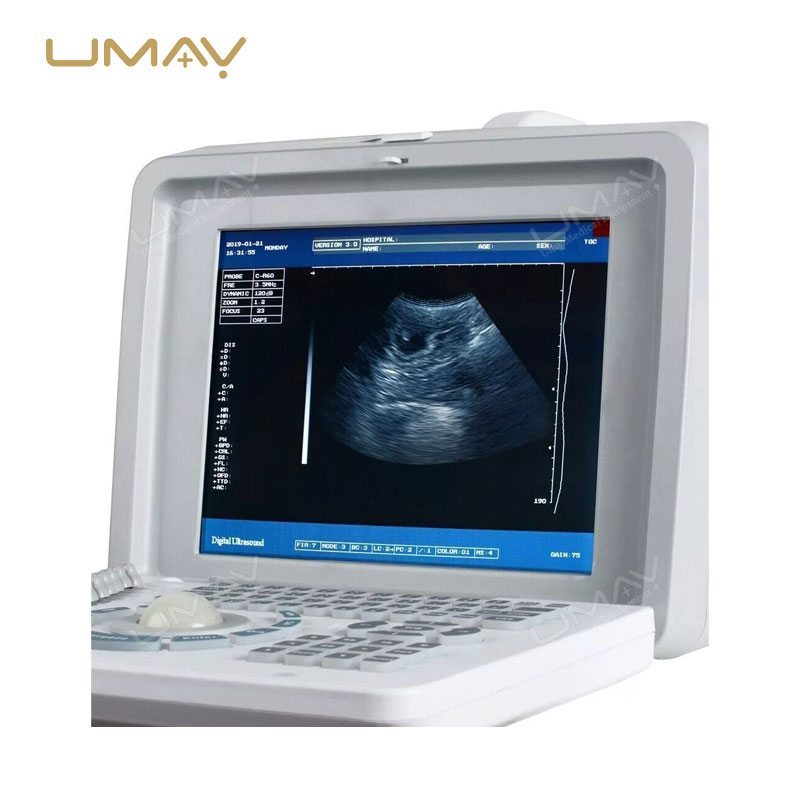

| Display | 10-inch LED display |
| Standard probe | 80-element R60 convex array probe |
| Nominal probe frequency | 3.5 MHz |
| Selectable frequencies | 2.5 / 3.0 / 3.5 / 4.0 / 5.0 MHz |
| Focusing | Four-stage dynamic electronic focusing |
| Grayscale display | 256 levels |
| TGC | Eight-segment TGC and overall gain adjustment |
| Image processing | Variable aperture, dynamic apodization, dynamic filter, edge enhancement, digital spatial-temporal filter and image correlation processing |
| Image color settings | 8 gamma correction settings and 16 pseudo-color options |
| Still-image storage | 128 images |
| Cine-loop memory | 256 frames |

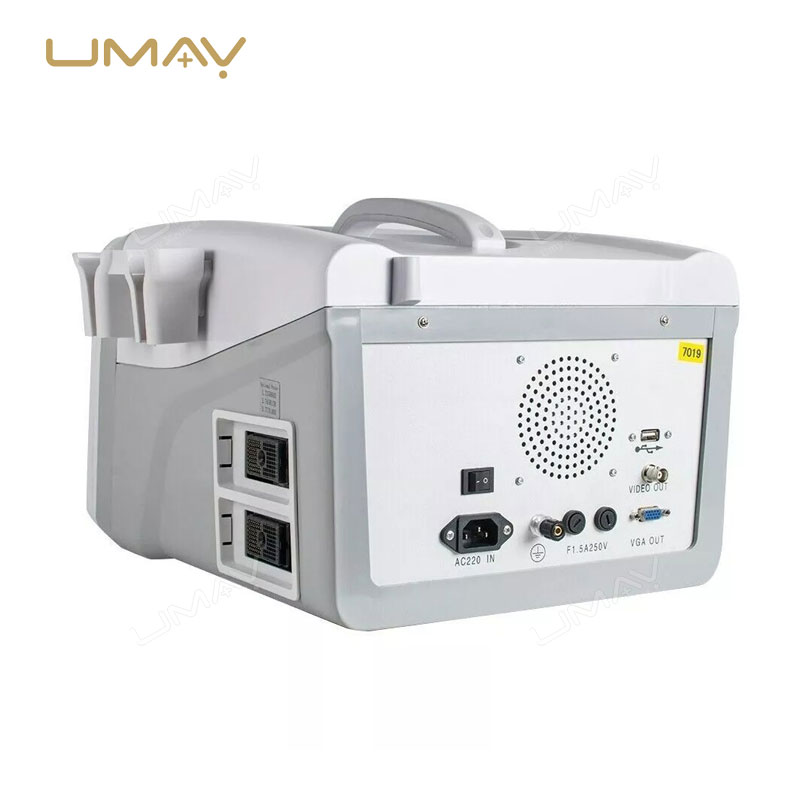

| Video outputs | 2 SVGA and 2 PAL video outputs (listed in the supplied catalogue) |
| USB | USB port listed in standard configuration |
| Packing dimensions | 480 × 380 × 410 mm |
| Net / gross weight | 10 kg / 13 kg |
Standard Configuration
- One main ultrasound scanner unit with 10-inch LED display
- One R60 convex array probe, nominal frequency 3.5 MHz
- USB port on the system
Optional Probes and Accessories
The product literature shows additional probe choices and supporting accessories, including a linear-array probe, rectal probe, transvaginal probe, mobile trolley, video printer and ultrasound image workstation. These items are not part of the standard package unless included in a quotation.
The listed linear and rectal probe options are 7.5 MHz. The frequency notation for the optional transvaginal probe is unclear in the supplied brochure; buyers should refer to the confirmed probe specification in the final offer.
Selecting the Right Configuration
For hospital and clinic procurement, the first decision is the intended examination mix. The standard convex probe provides a starting configuration for general grayscale scanning, while other examinations may require a different probe type, preset or accessory. Consider the available room space, output and reporting requirements, image storage workflow and after-sales service when comparing portable ultrasound systems.
For multi-unit orders, specify the proposed department, expected examinations, probe requirements, destination country, quantity and any local documentation needed. This helps the UMY Medical team prepare a configuration-matched quotation rather than a generic equipment list.
Frequently Asked Questions
Is the UMUS028 a color Doppler ultrasound machine?
No. The supplied catalogue describes a black-and-white (grayscale) ultrasound scanner. Its pseudo-color image display options should not be confused with color Doppler blood-flow imaging.
What probe is included as standard?
One 80-element R60 convex array probe with a nominal 3.5 MHz frequency is listed as standard. Additional probes are optional.
Can images be reviewed on the machine?
Yes. The supplied specifications list storage for 128 still images and cine-loop memory for 256 frames.
What should a hospital include in its quotation request?
Please provide the required quantity, country of use, intended examinations, preferred probe set and any printing, trolley or workstation requirements.
