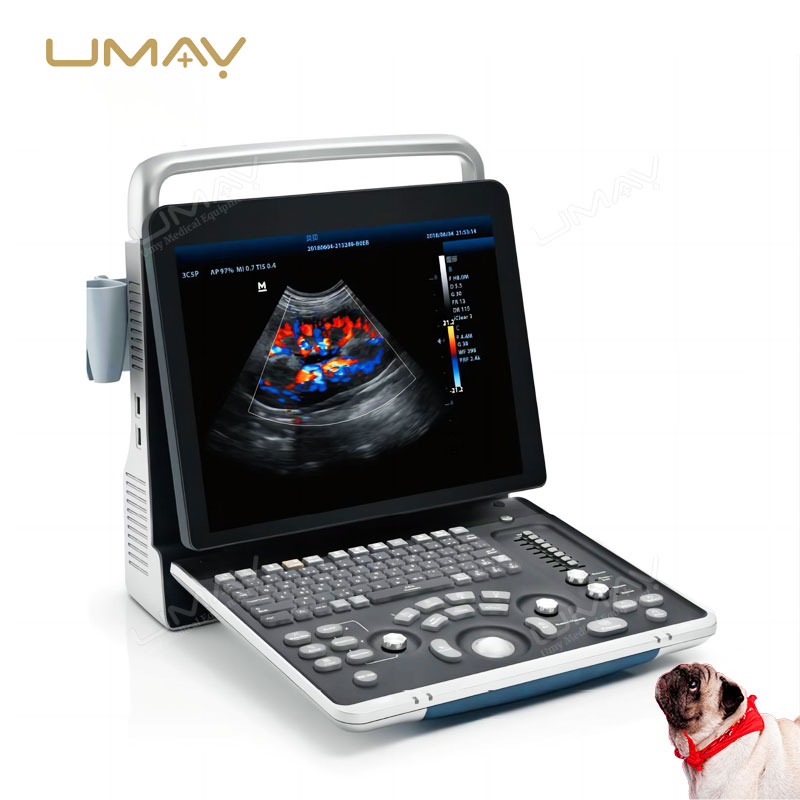

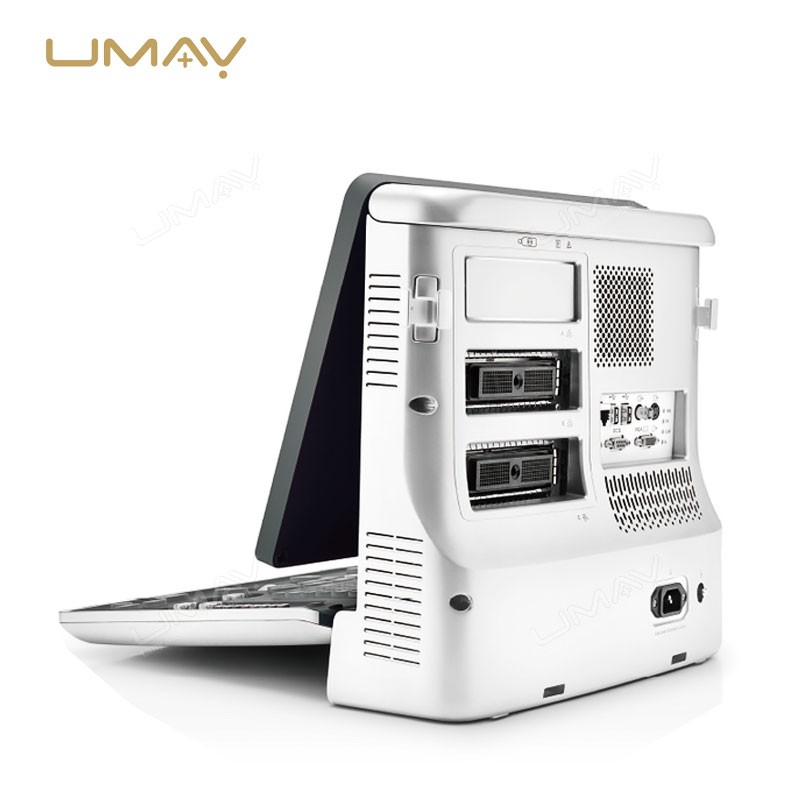

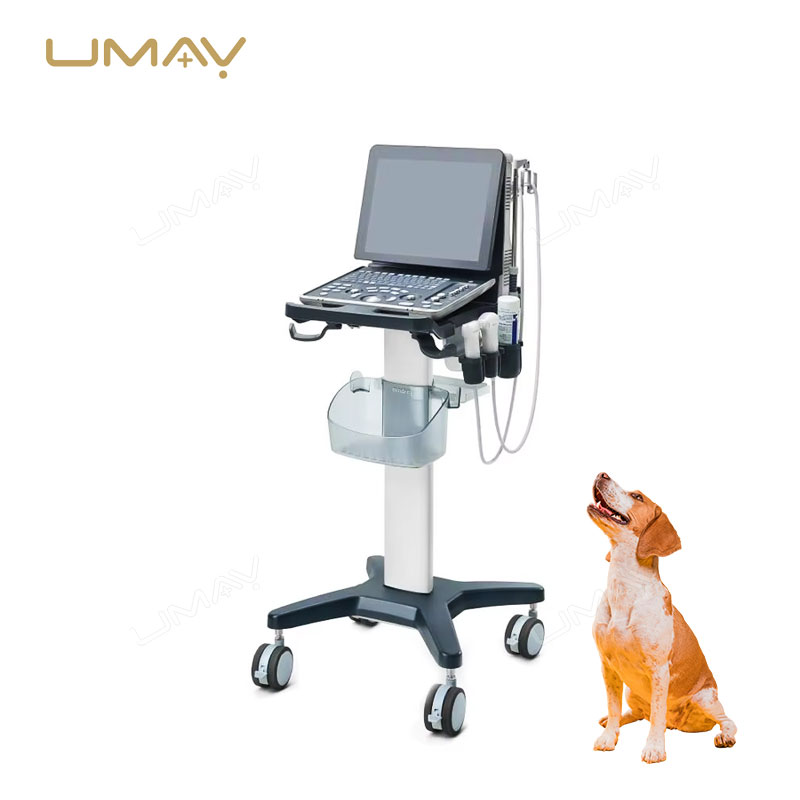

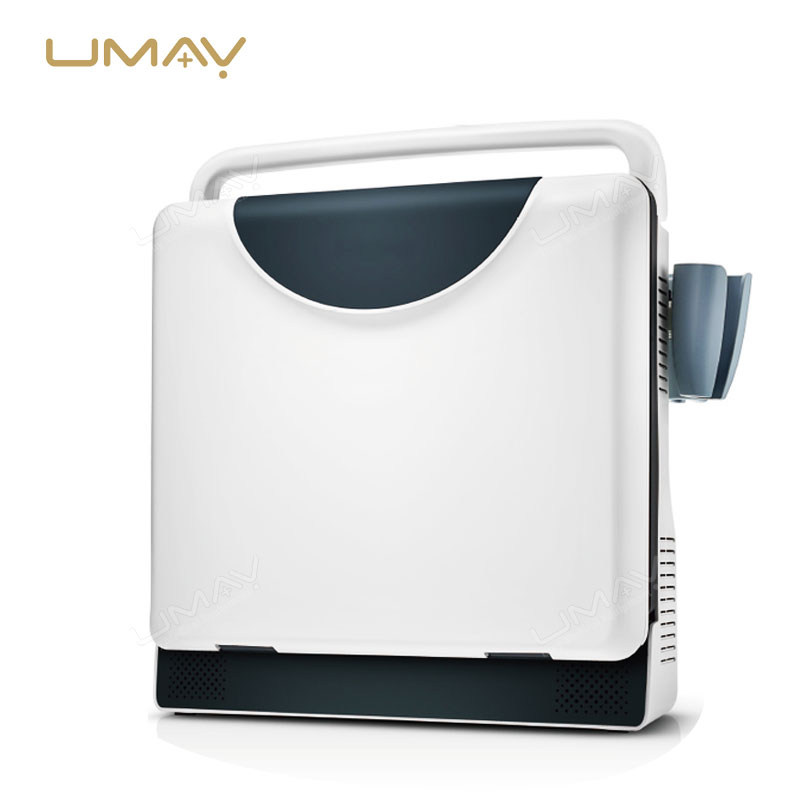

The Z70 Vet is a portable veterinary ultrasound scanner equipped with advanced color Doppler imaging, designed to provide high-resolution diagnostics across various animal species. Its 15-inch full-screen LCD monitor offers a wide viewing angle, enhancing image clarity for accurate assessments. The device supports multiple imaging modes, including B-mode, M-mode, Color Doppler, and Power Doppler, facilitating comprehensive evaluations of abdominal, reproductive, vascular, and musculoskeletal systems. With dual probe ports and a rechargeable battery supporting up to 1.5 hours of continuous scanning, the Z70 Vet ensures flexibility and efficiency in both clinical and field settings. Its ergonomic design and intuitive interface streamline workflow, making it an essential tool for modern veterinary practices.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application Scene | |
| Veterinary Examination Modes | Abdomen, Reproductive, Vascular, Small Organs, Musculoskeletal |
| Professional Application Toolkit | Veterinary measurement, veterinary annotation library, animal position map, veterinary report template |
| Special Imaging Function | iScape real-time wide-view imaging |
| Doppler Imaging | PW pulse Doppler imaging with automatic spectrum tracking, automatic measurement |
| HPRF Support | Supports larger spectrum measurement range |
| Anatomical M Mode | Free Xros M: up to 3 sampling lines |
| Veterinary Probe Types | Abdominal convex array, linear array, reproductive, etc. |
| Applicable Species | Dogs, Cats, Horses, Cattle, Sheep |
| Veterinary Data Management Systems | iStation professional animal examination management system, DICOM 3.0, iStorage convenient data transfer to computer |
| Configuration | |
| Complete Imaging Modes | B Mode, Color Mode, M Mode, Power Mode |
| Professional Veterinary Application Software | Applicable to abdominal, reproductive, vascular, small organ, muscle, and bone examinations |
| Transducers | |
| Convex 65EL60EA Transducer | 3.5 MHz |
| Convex 35C50EA | 3.5 MHz |
| Micro-Convex 65C15EA | 6.5 MHz |
| Convex 35C20EA | 3.5 MHz |
| Endocavity 75L50EAV | 7.5 MHz |
| Endocavity 75L38EA | 7.5 MHz |
| Endocavity 50L60EAV | 5 MHz |
| Endocavity 65EC10ED | 6.5 MHz |
| Linear 75L53EA | 7.5 MHz |
| Linear 65EB10EA | 6.5 MHz |
| Linear 10L24EA | 7.5 MHz |
| Intra-Operative 75LT38EA | 7.5 MHz |
| Bi-Plane | Not specified |
