SP-Series Portable HD Video Gastroenteroscope and Colonoscope System
The SP-Series Portable HD Video Endoscope System is engineered to provide medical practitioners with high-definition imaging, flexible portability, and robust clinical performance for gastrointestinal examinations. Available in multiple outer diameter configurations (7.0mm, 8.0mm, and 9.5mm), the system ensures accurate diagnostics and therapeutic capabilities across various clinical environments.
Equipped with a 12.1-inch portable image processor (Model: SP-GP12.1), built-in air/water pumps, and proprietary software-driven image optimization, the system streamlines clinical workflow and enhances visualization.
Supported by waterproof immersion disinfection capabilities, water nozzle clearing functions, and real-time DVI screen output, the SP-Series integrates seamlessly into modern hospitals and outpatient endoscopy suites.
Key Features

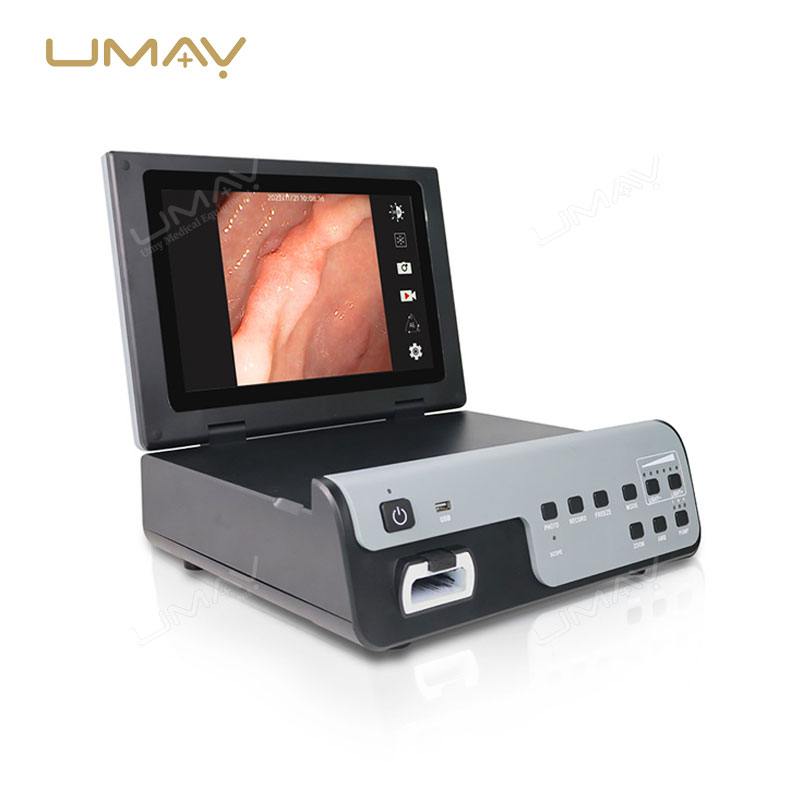

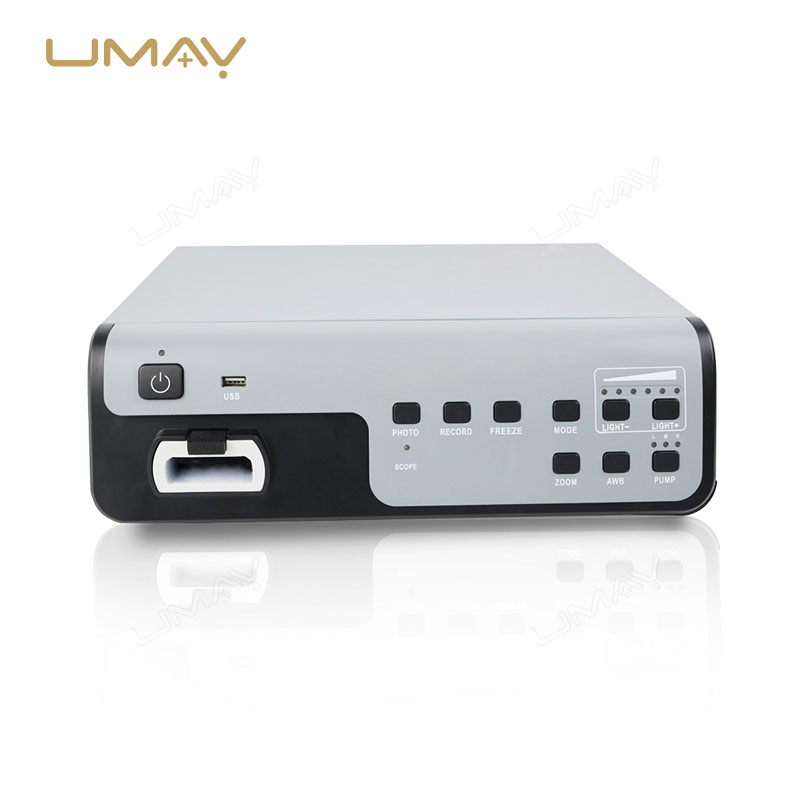

12.1″ Portable Image Processor

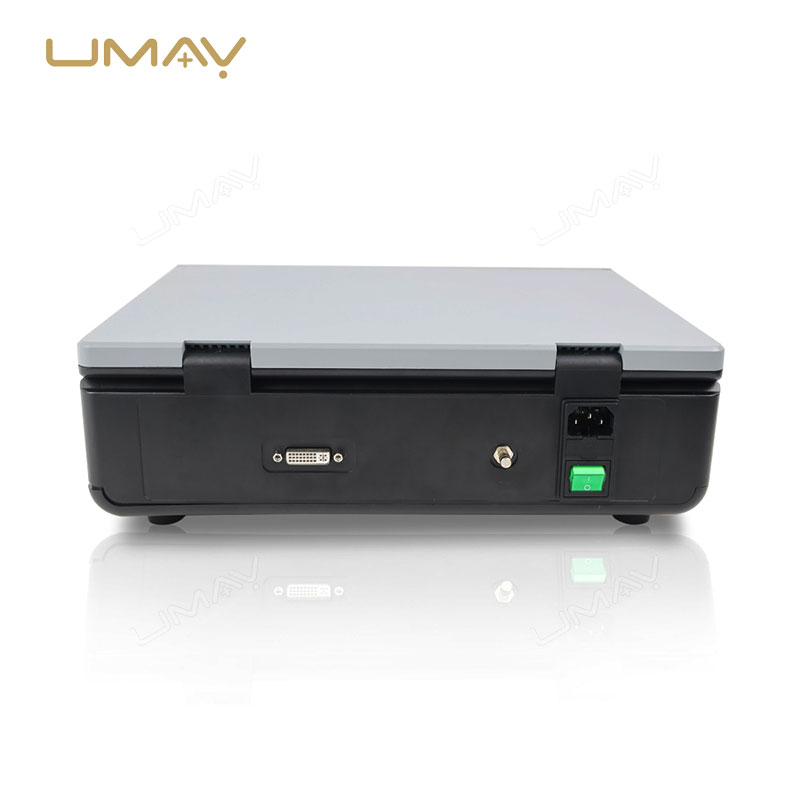

Features model SP-GP12.1 with white balance, photo/video capture, brightness adjustment, and DVI port for real-time big screen output.
Multiple Diameter Options
Offers flexible choices including 7.0mm, 8.0mm, and 9.5mm outer diameter insertion tubes to suit diverse clinical requirements.
Clear Vision Water Nozzle
Equipped with an integrated water nozzle to help keep the lens clean and vision clear during observation and treatment.
Waterproof Immersion Design
Fully waterproof structure suitable for safe immersion, cleaning, and disinfection procedures.
Self-Developed Software Optimization
Leverages advanced proprietary software algorithms to optimize image quality and clinical clarity.
Flexible Bending Control
Provides precise deflection angles (Up 180°, Down 90°, Left 90°, Right 90°) for smooth anatomical navigation.
Technical Specifications
| Technical Parameter | UMGES001 | UMGES002 | UMGES003 |
|---|---|---|---|
| Insert Tube Outer Diameter | 9.5 mm | 8.0 mm | 7.0 mm |
| Working Channel Inner Diameter | 3.0 mm | 2.6 mm | 2.0 mm |
| Resolution | 1280 x 720 | ||
| Working Length | 1050 mm / 1500 mm / 3000 mm / 3500 mm | ||
| Bending Deflection Angle | Up 180° / Down 90° / Left 90° / Right 90° | ||
| Image Processor | Model: SP-GP12.1 (12.1-inch portable display unit) | ||
- Specifications are based on the technical datasheets for the SP-Series Portable Video Endoscopes.
- Standard configuration includes the endoscope insertion tube, SP-GP12.1 portable processor, and standard connection cables.
- Built-in pump supports automated air and water delivery during clinical procedures.
Applications
Gastrointestinal Diagnostics
Provides high-definition visualization for routine upper and lower gastrointestinal tract evaluations.
Interventional Endoscopy
Optimized working channels support endoscopic accessories for biopsy and minor therapeutic interventions.
Mobile & Outpatient Procedures
12.1-inch portable processor design allows rapid deployment in clinic rooms, emergency settings, and mobile units.
System Configuration

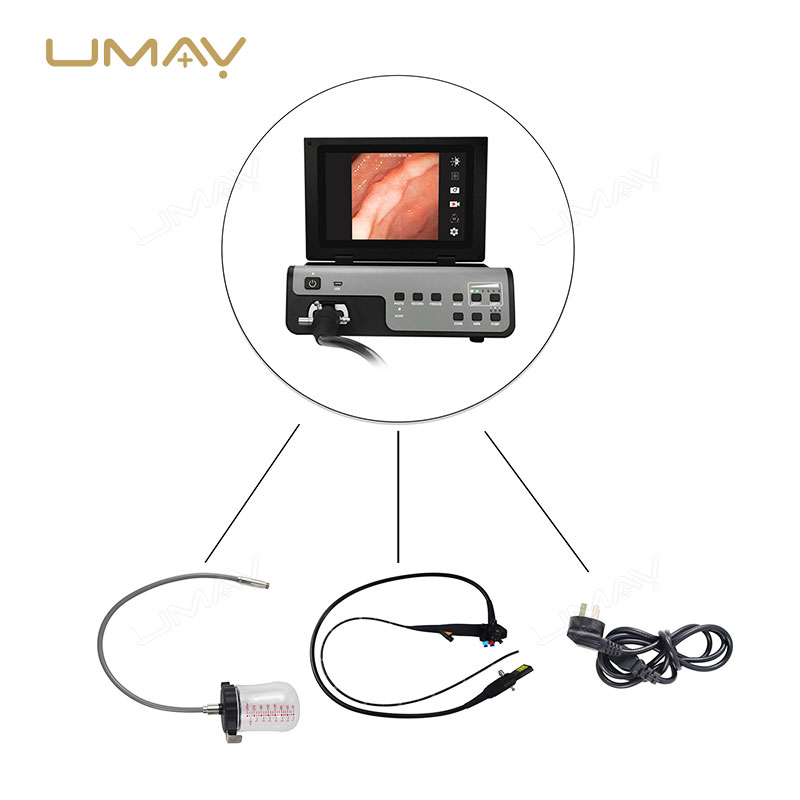

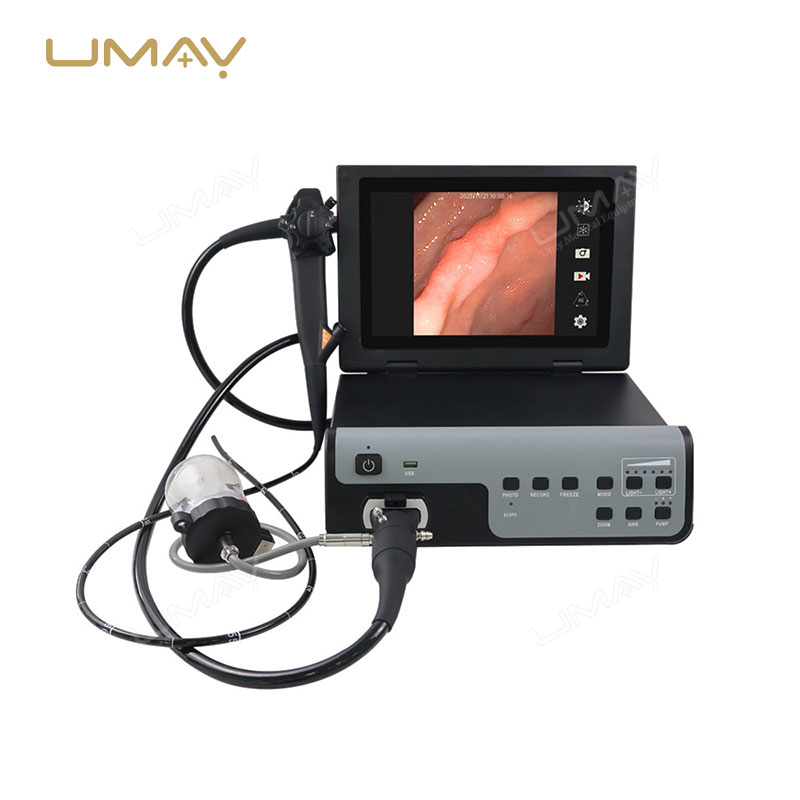

The UMGES001-Series Endoscope System is supplied complete with the selected insertion tube model, 12.1-inch portable image processor (SP-GP12.1), built-in air/water pump, and standard accessories.
Please confirm your required working length and model specifications prior to placing an order.
Before Ordering
- Required order quantity and export destination country.
- Model selection: SP-WJA9530 (9.5mm), SP-WJA8026 (8.0mm), or SP-WJA7020 (7.0mm).
- Working length requirements (1050mm, 1500mm, 3000mm, or 3500mm).
Request a Portable Endoscope System Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
What models and outer diameters are available in the SP-Series?
The series offers three main models: UMGES001
What are the features of the SP-GP12.1 image processor?
It features a 12.1-inch portable screen, white balance control, photo/video recording functions, brightness adjustment, built-in air/water pump, and a DVI port for real-time external big screen display.
What are the bending deflection angles of the scopes?
The distal tip supports deflection of Up 180°, Down 90°, Left 90°, and Right 90°.
Is the endoscope waterproof for disinfection?
Yes, the unit features a waterproof insertion tube suitable for complete immersion and sterilization.
