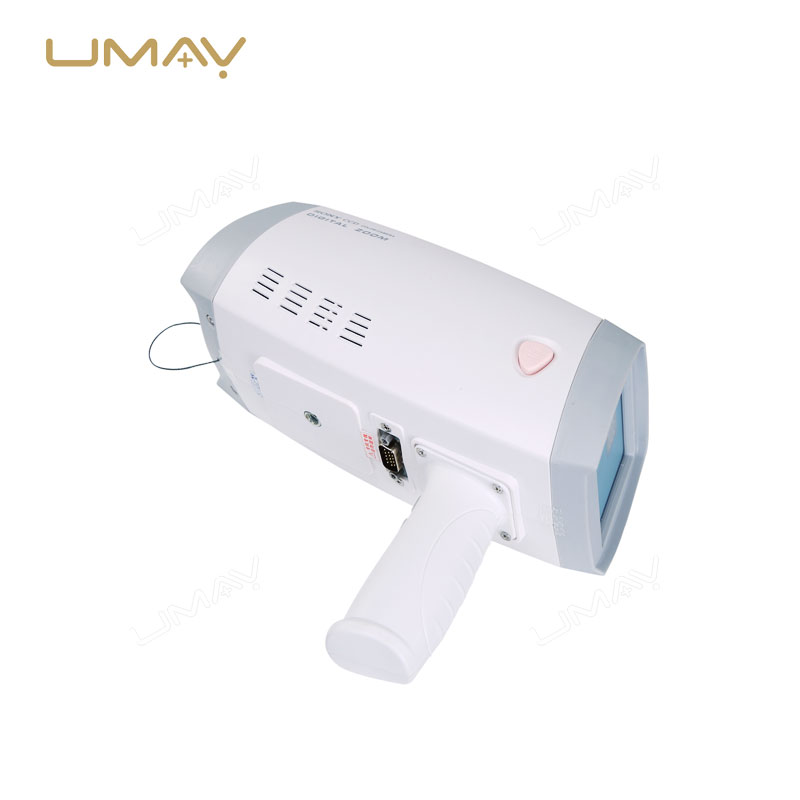

UMECOPE001 Digital Electronic Colposcope for Advanced Cervical Diagnostics
The UMECOPE001 Digital Electronic Colposcope is engineered to provide clinicians and gynecologists with high-resolution imaging and superior diagnostic capabilities for routine examinations and cervical cancer screenings. Combining advanced lighting, power, and video into a direct-to-screen platform, the system delivers crystal-clear visualization without the need for external computers or complex software.
Equipped with a high-brightness LED ring light source, unique polarization filters to eliminate glare, and an electronic green filter for enhanced vascular contrast, the UMECOPE001 streamlines clinical workflows and ensures precise tissue assessment.
Supported by versatile configuration options and direct monitor connectivity, the system integrates seamlessly into modern clinics, hospitals, and point-of-care women’s health environments.
Key Features
Direct-to-Screen High-Resolution Imaging
Provides full-screen, high-resolution images directly on a monitor without couplers, beam splitters, or external computers.
Advanced Optical & CCD Performance
Features a 1/4″ super HAD color CCD sensor with 80,000 pixels and 470 lines of axial resolution for dependable clarity.
Glare-Free Polarization Filter
Unique polarization filter removes glare and reflection to ensure accurate and reliable tissue assessment.
Electronic Green Filter
Removes red from the image without light loss to enhance visualization of blood vessels and vascular patterns.

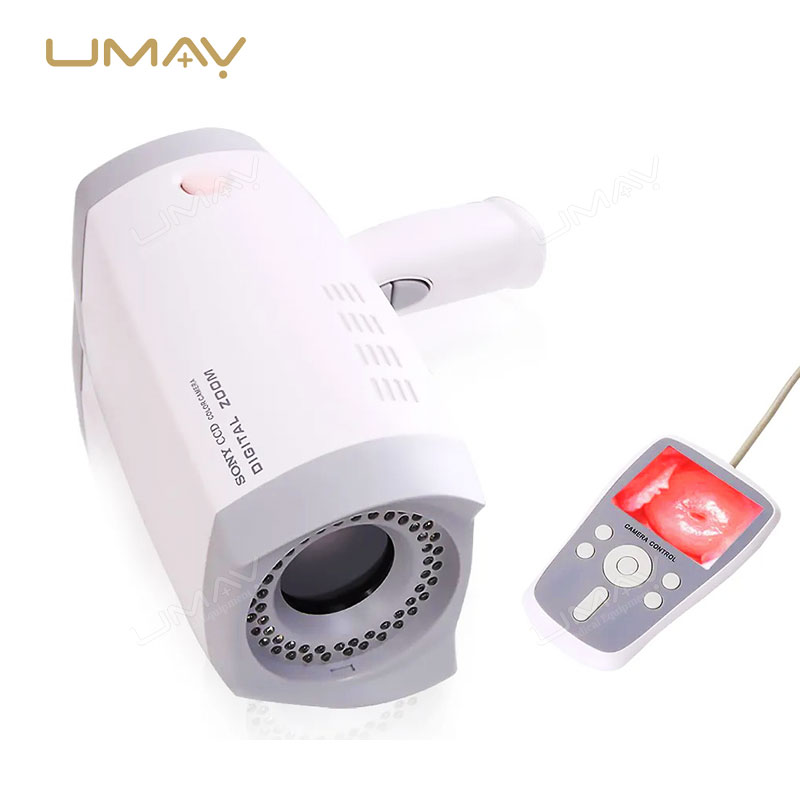

High-Brightness Longevity LED Ring
Utilizes a phosphorus gallium arsenide high-brightness LED ring with an average lifespan of 100,000 hours for true tissue color rendering.

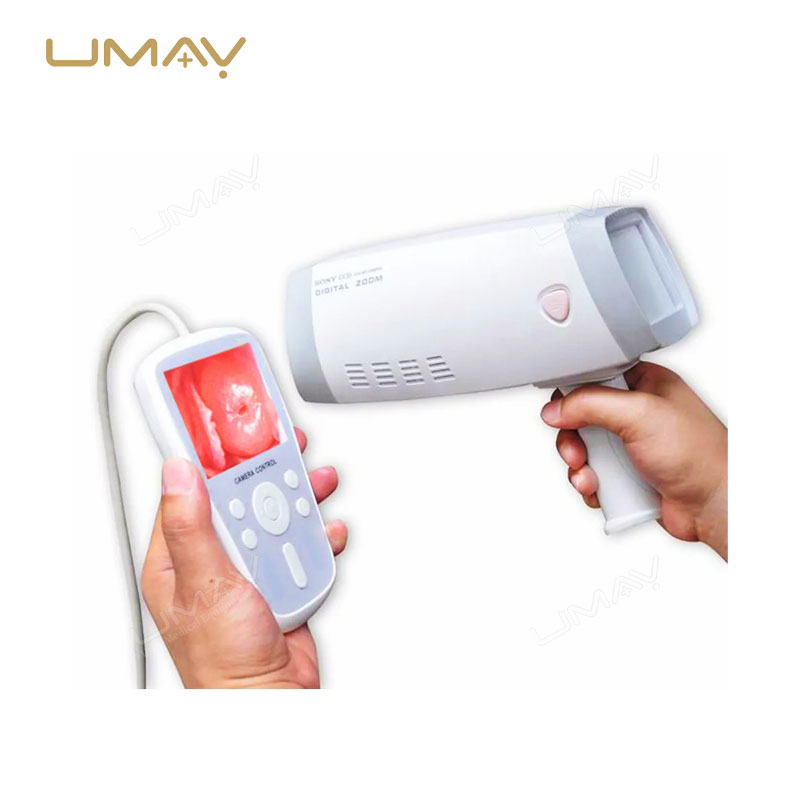

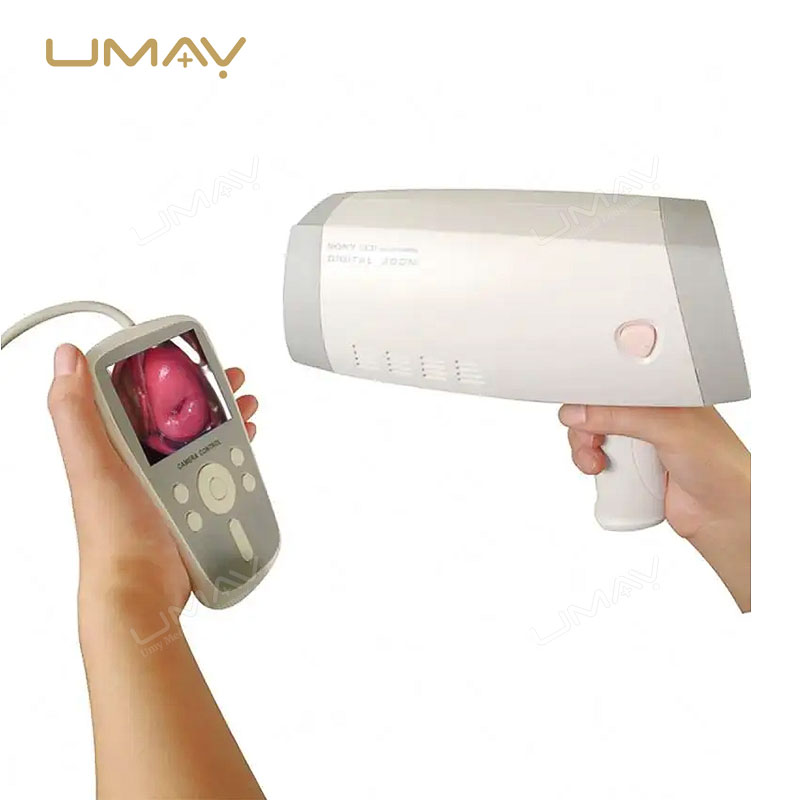

Convenient Handheld Control
Features push-button on-screen magnification indexing and direct camera control for efficient one-handed operation.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMECOPE001 |
| Lens Resolution | 1/4″ super HAD color CCD, 80,000 pixels |
| Lens Axial Resolution | 470 lines |
| Lens S/N Ratio | 50dB |
| Lens Focus Distance | Standard: 100 – 400 mm; Support: 10 – 1000 mm |
| Field of View | 2.5 mm – 20 mm to 320 mm |
| Depth of Field | 15 mm – 40 mm / 15 mm – 480 mm |
| Lens Zoom | 1 ~ 128 |
| Lens Focus Mode | Auto Focus / Manual Focus (AF/MF) |
| Power Requirements | AC 220V ±10%, 500W |
- Specifications are based on the official technical datasheets for the UMECOPE001 Digital Electronic Colposcope.
- Standard configuration includes the main colposcope unit and camera control screen.

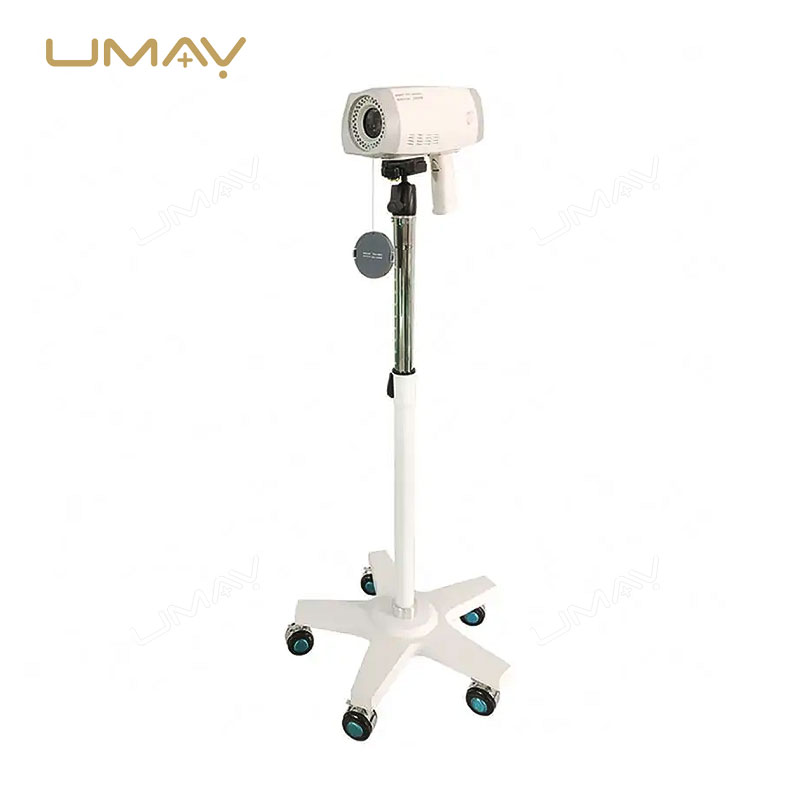

- Optional accessories include a dedicated monitor, SONY UP-897MD thermal printer, mobile trolley, and diagnostic software.
Applications
Cervical Cancer Screening
Provides high-resolution visualization and image capture of the cervix for early detection and routine screening programs.
Vaginal & Vulvar Examinations
Delivers comprehensive care and detailed inspection for various women’s health and gynecological evaluations.
Accurate Tissue Assessment
Assists clinicians in identifying suspicious lesions using polarized lighting and electronic green filters for precise biopsy targeting.
System Configuration

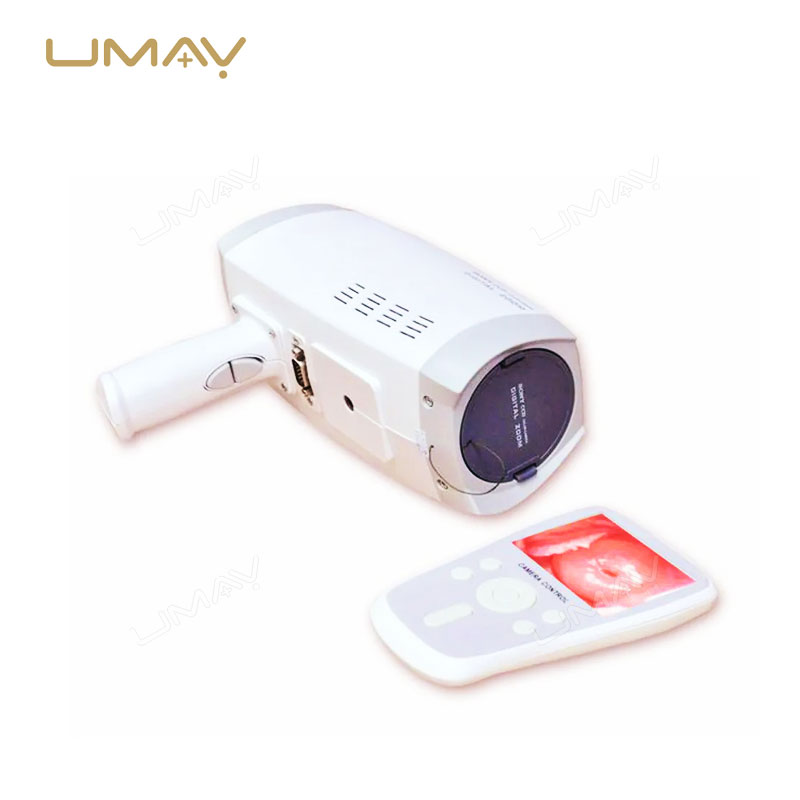

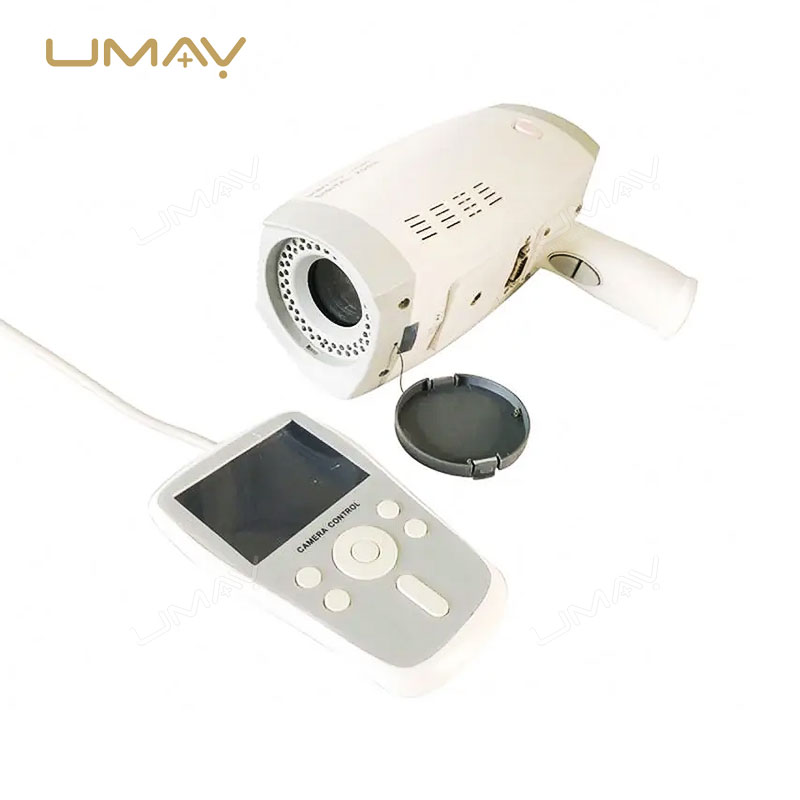

The UMECOPE001 Digital Electronic Colposcope is supplied complete with the handheld colposcope unit and camera control screen.
Please confirm your required optional accessories (such as a medical monitor, thermal printer, mobile trolley, or software) and local electrical power standards prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Optional accessory selection (Monitor, SONY UP-897MD Thermal Printer, Trolley, or Software).
- Clinic room spatial layout and electrical power requirements (AC 220V ±10%).
Request a Colposcope System Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
Does the colposcope require a computer to operate?
No, the direct-to-screen colposcope connects directly to a monitor (such as a TV or PC monitor) without needing a laptop, desktop computer, or external software.
What sensor and resolution does the system use?
It features a 1/4″ super HAD color CCD sensor with 80,000 pixels and an axial resolution of 470 lines.
How does the polarization filter assist examinations?
The unique polarization filter removes surface glare and reflection, allowing for a much more accurate tissue and vascular assessment.
What are the power requirements for the colposcope?
The system operates on AC 220V ±10% with a power rating of 500W.
