Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Standard Configuration | |
| Manual defibrillation | 3/5 ECG, ECG Monitoring, Defibrillation Paddles, One Battery (3000mAh), Built-in printer |
| Optional | AED, Non-invasive Cardiac Pacing, NIBP(Comen/Suntech), 6-lead ECG, 12-lead ECG, SpO2, EtCO2, DC Power, Wireless Connection |
| Defibrillation | |
| Operating mode | Manual Mode, AED Mode, Synchronous Defibrillation |
| Waveform | Biphasic truncated exponential waveform, with impedance compensation |
| Defibrillation pathway | External defibrillation |
| Electrode type | External defibrillation paddles, multifunctional electrode |
| External defibrillation electrode paddles | Supports charging, discharging and energy selection; Charging completion indicator |
| Charge Time (Battery power) | Less than 3 seconds to 200 Joules with a new, fully charged battery |
| Charge Time (AC power) | Less than 4 seconds to 200 Joules |
| Energy accuracy | ±1.5J or ±10% of setting, whichever is greater, while 50Ω impedance |
| Patient Impedance Range | ±2Ω or 15% of setting, whichever is greater, while 250Ω, 750Ω, 1000Ω, 1250Ω, 1500Ω impedance |
| Defibrillation proof | Type CF: ECG, RESP, SpO₂, NIBP, PR; Type BF: EtCO₂ |
| Defibrillation range | 20–300J (External defibrillation) |
| Manual Mode | |
| External defibrillators | 1J~360J, 25 types |
| Synchronous Cardioversion | Energy transfer begins within 60ms of the R wave from internal Sync signal; Energy transfer begins within 25ms of the External Sync signal |
| AED | |
| Output Energy | Adjustable: 100-360J |
| Number of electric shocks | Adjustable: once, twice, 3 times |
| Types can be AED | VF & VT |
| AED maximum time required for cardiac rhythm analysis to be ready for discharge | 18s (Battery power supply), 21s (AC power supply) |
| ECG (Leads) | |
| Lead Type | 3 leads ECG, 5 leads ECG, 6 leads ECG, 12 leads ECG, AUTO |
| Lead selection | 5-lead: I, II, III; aVR, aVL, aVF; V |
| Multi-lead synchronization analysis | Available |
| ECG wave gain | Auto, 1.25 mm/mV (×0.125) |
| Accuracy | ±2.5 mm/mV (×0.25), 5 mm/mV (×0.5), 10 mm/mV (×1), 20 mm/mV (×2), 40 mm/mV (×4) |
| Accuracy (sweep speed) | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Heart Rate | Adult: 15-300bpm, Pediatric: 15-350bpm |
| ECG Accuracy | ±1 bpm or ±1% whichever is greater |
| ECG (Paddle) | |
| Lead Type | Single lead ECG |
| Heart Rate measurement & alarm range | Adult: 15-300bpm, Pediatric: 15-350bpm |
| Accuracy | ±1 bpm or ±1% whichever is greater |
| Bandwidth | Defib: 1~20Hz (-3dB=-0.4dB) |
| CMRR | >106dB |
| Input Impedance | ≥5MΩ |
| Input signal range | ±8mV |
| HR trigger value | 200μV |
| Arrhythmia Analysis | 5 Types, ASY, VF, VT, PNC, PNP |
| Respiration | |
| Method | Thoracic Impedance Method |
| RR measurement range | 0 rpm-200 rpm |
| Accuracy | 0 rpm–120 rpm: ±1 rpm, 121 rpm–200 rpm: ±2 rpm |
| Apnea Alarm | Adult: 10s~60s Ped: 10s~40s |
| Accuracy | ±5% |
| Resolution | 1 rpm |
| Alarm | Audible and visual alarm; alarm events reviewable |
| Step Size | 1 rpm |
| Alarm RR setup range | High Limit: (Low limit + Step size) ~200 rpm |
| Physical Characteristics | |
| Dimension | 288mm×220mm×193mm (L×W×H) |
| Weight | <4.5kg (Including Battery and Paddles) |
| Screen Size | 7” TFT screen |
| Resolution | 800 × 480 pixels |
| Waveforms Display | Max 4 waveforms |
| Continuous Waveform Storage | 16.6 hours |
Product Details

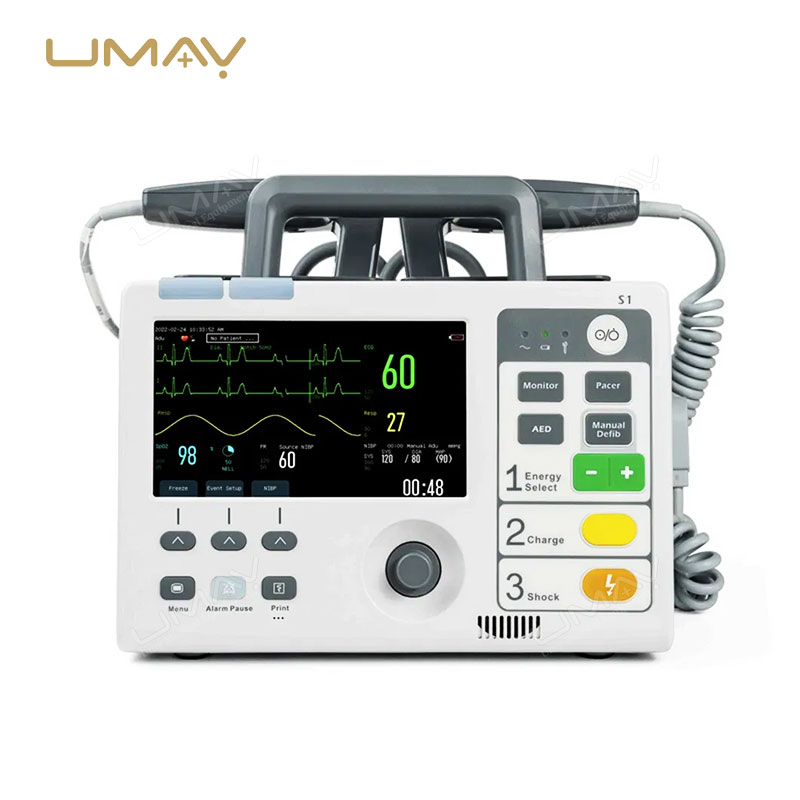

Feature list for UMY-ED-005
* 7-inch display with real-time ECG and 800×480 resolution
* Adjustable energy levels for child and adult modes
* Bluetooth connectivity for ECG data transfer
* Self-test function with daily, weekly, or monthly options
* Compact and lightweight design (under 4.5kg)
Application

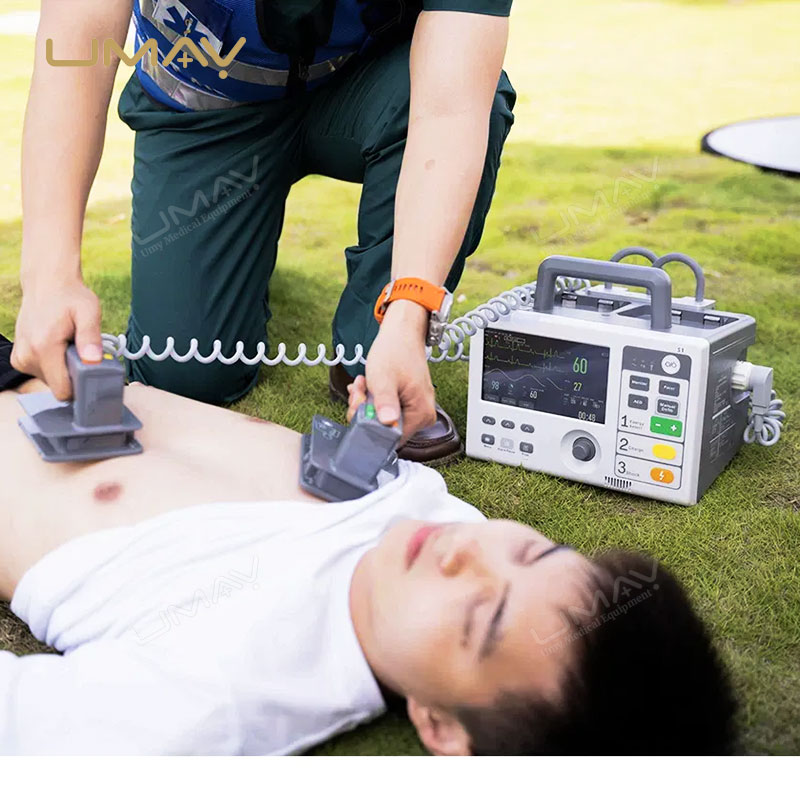

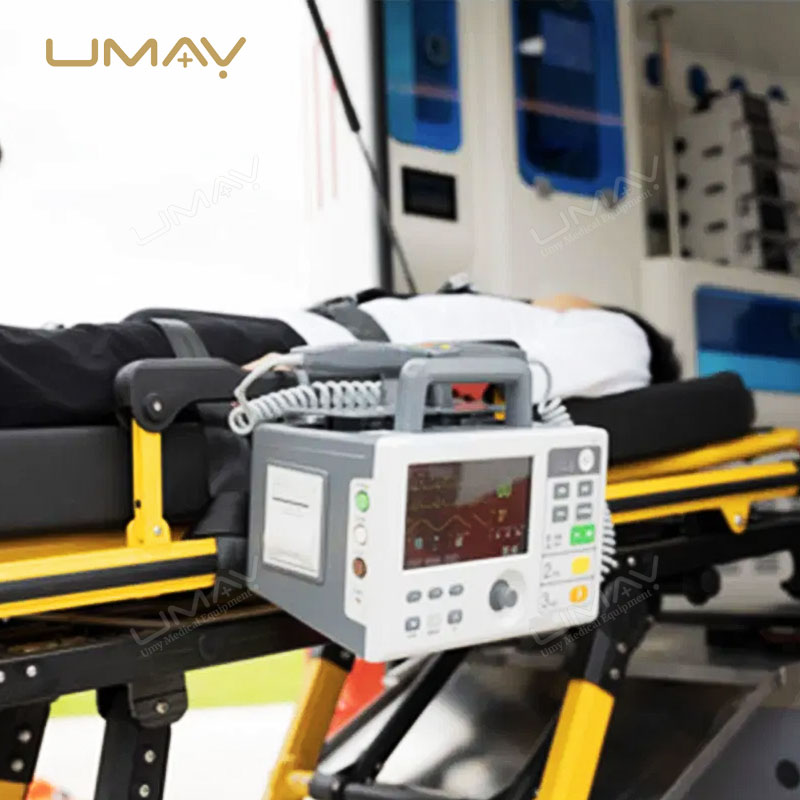

Perfect for use in hospitals, ambulances, and public health facilities, this AED provides a quick, reliable response during cardiac emergencies, offering peace of mind for healthcare providers and bystanders.
Q1: Does this AED support integration with hospital patient management systems or network-based data archiving beyond Bluetooth transfer?
A1: For network-level integration beyond Bluetooth, we recommend consulting our technical team to confirm compatibility with your facility’s existing data infrastructure.
Q2: Is the internal battery designed for extended standby periods, and what safety mechanisms protect the device during electrical discharge?
A2: The AED incorporates protective discharge circuitry to ensure operator safety during defibrillation, with the battery supporting extended standby to maintain readiness between uses.
Q3: What is the typical lead time for orders, and is technical training or installation support available upon delivery?
A3: Lead time and support options vary by order volume; for purchasing details and to explore complementary resuscitation devices, visit our Biphasic Defibrillator Monitor with Voice Prompts ECG and Optional Advanced Features for Human Medical Use page.
