Advanced Fetal and Maternal Monitor UMFMR004 for Comprehensive Obstetric Care
The UMFMR004 Fetal & Maternal Monitor is engineered to provide obstetricians, nurses, and clinical practitioners with high-precision monitoring performance and clear waveform imaging for daily clinical evaluations. Equipped with advanced digital signal processing (DSP) technology, a 12.1-inch folding TFT color screen, and a shuttle knob operation interface, the system streamlines workflow and ensures patient safety.
Supported by multi-crystal high-sensitivity ultrasound transducers and extensive data storage capabilities exceeding 39 hours, the UMFMR004 ensures accurate diagnosis and continuous tracking of maternal and fetal health parameters.
Designed with wide power supply compatibility, AC/DC dual-use capability, and network connectivity options, the system integrates seamlessly into modern hospital wards and central monitoring stations.
Key Features

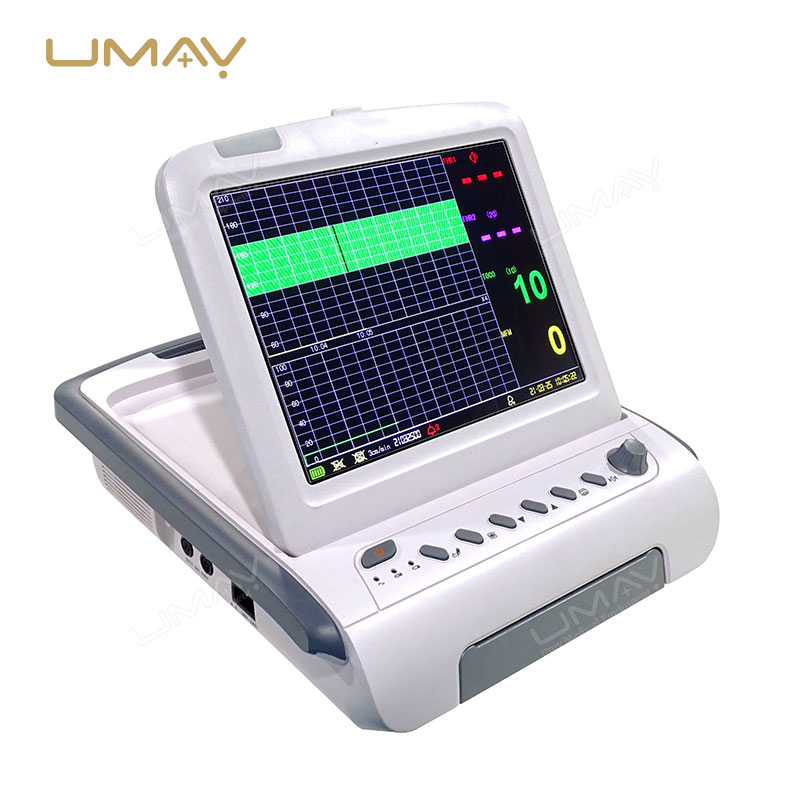

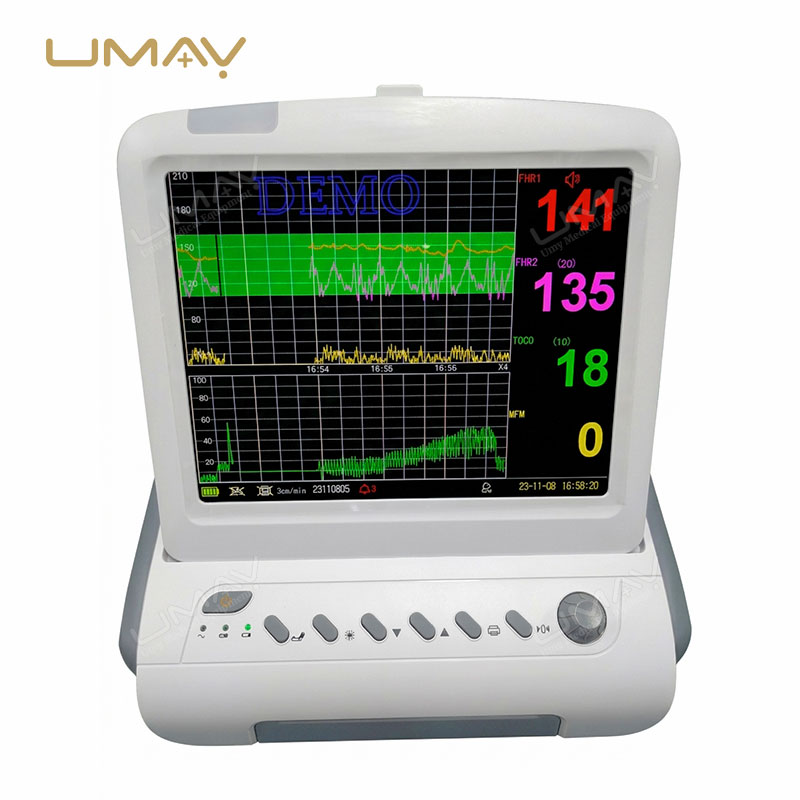

12.1-Inch Folding TFT Screen
Features a high-resolution color display with 90-degree folding capability to meet the viewing needs of different clinical perspectives.

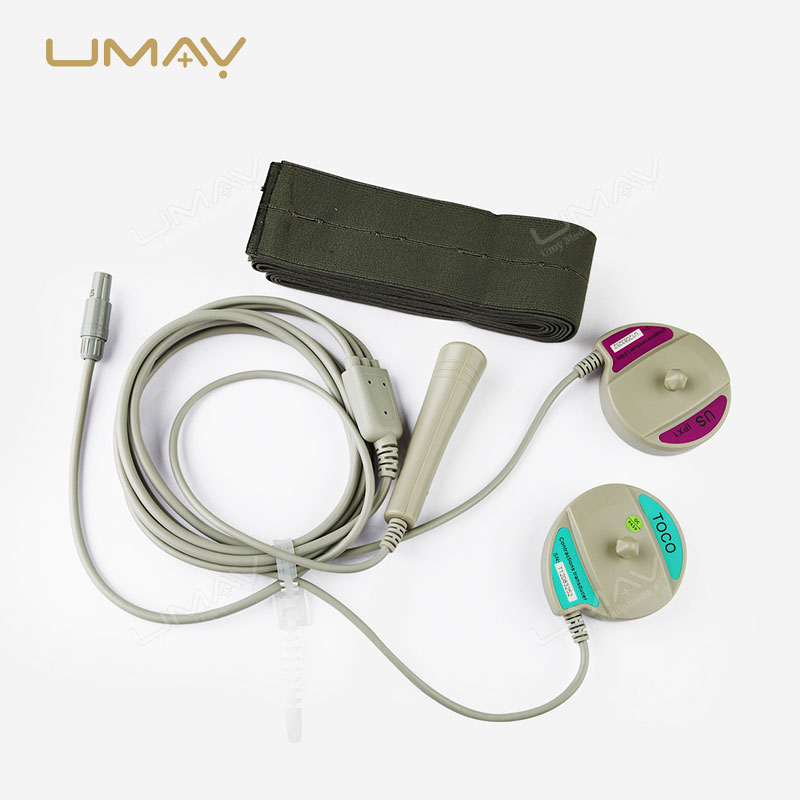

High-Sensitivity Ultrasound Transducer
Equipped with multi-crystals and wide beam form for strong anti-interference capability, low ultrasound power, and high safety for the fetus.
Advanced DSP Technology
Leverages advanced digital signal processing technology to deliver more accurate and reliable parameter display results.
Extensive Data Storage & Playback
Supports continuous monitoring and over 39 hours of data storage, allowing historical curves to be reviewed and reprinted.
Built-in Thermal Printer
Features a 152mm imported hot array printer for long service life, printing FHR curves, TOCO curves, and parameter values.

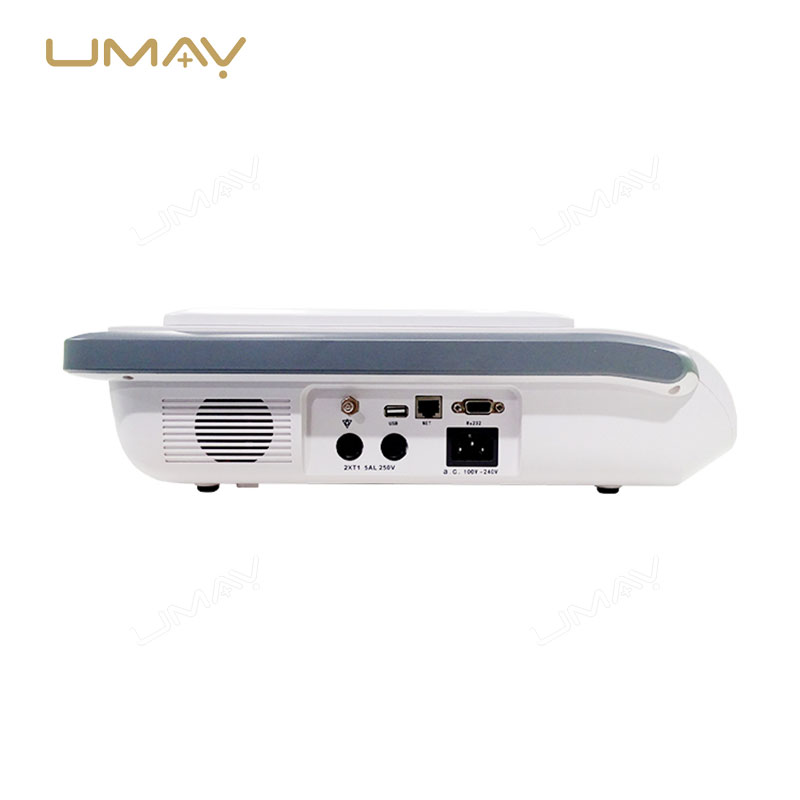

Comprehensive Network Support
Supports wired and wireless network connections to integrate with central monitoring systems for dynamic and timely observation.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMFMR004 |
| Display Screen | 12.1-inch TFT color screen, folding 90° |
| HR Measurement | 40bpm ~ 240bpm (Accuracy: ±2bpm or 5% of results, taking the bigger one) |
| SpO2 Measurement Range | 70% ~ 99% |
| NIBP Measurement | Manual mode (single measurement) or Auto mode (intervals: 3, 5, 10, 20, 30, 60, 90, 120, 240 min) |
| ECG & RESP | ECG scanning speed: 12.5, 25, 50 mm/s; RESP measured via thoracic impedance of two electrodes |
| Temperature | Range: 0 ~ 50°C | Resolution: 0.1 | Accuracy: ±0.1°C |
| Printer Paper Size | 152mm * 90mm – 150P |
| Standard Configuration | SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, Fetal heart rate (FHR), Fetal movement (FM) |
- Specifications are based on official technical datasheets for the UMFMR004 Fetal & Maternal Monitor.
- Standard configuration includes main unit, transducers, cuffs, probes, and thermal printing paper.
- Optional configurations include Twin Monitoring, FAS (Fetal Acoustic Simulator), CMS, trolley, and network modules.
Applications
Antepartum & Intrapartum Monitoring
Provides essential continuous monitoring of fetal heart rate and uterine contractions during pregnancy and labor.
Maternal Vital Signs Assessment
Enables simultaneous tracking of maternal ECG, NIBP, SpO2, respiration, and temperature in clinical settings.
Central Hospital Networking
Connects with hospital networks and central monitoring systems for comprehensive multi-bed patient observation.
System Configuration
The UMFMR004 Fetal and Maternal Monitor is supplied complete with the main monitor unit, ultrasound transducers, TOCO transducer, maternal SpO2 probe, NIBP cuff, ECG cable, temperature probe, power cord, and thermal paper.
Please confirm your required optional features (Twin monitoring, trolley, or network setup) prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Optional configuration requirements (Twin Monitoring, FAS, CMS, Trolley, or Network).
- Local electrical power requirements and plug standards.
Request a Fetal & Maternal Monitor Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your hospital or clinic.
Frequently Asked Questions
What parameters are included in the standard configuration?
The standard configuration includes SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, Fetal Heart Rate (FHR), and Fetal Movement (FM).
How long can monitoring data be stored in the system?
The system supports more than 39 hours of continuous data storage, allowing data to be replayed and reprinted.
What power supply options does the monitor support?
It features a wide power supply design with AC and DC dual-use capability to ensure high environmental adaptability.
Is network connectivity supported for central stations?
Yes, it supports both wired and wireless network connections to interface with central monitoring systems.
