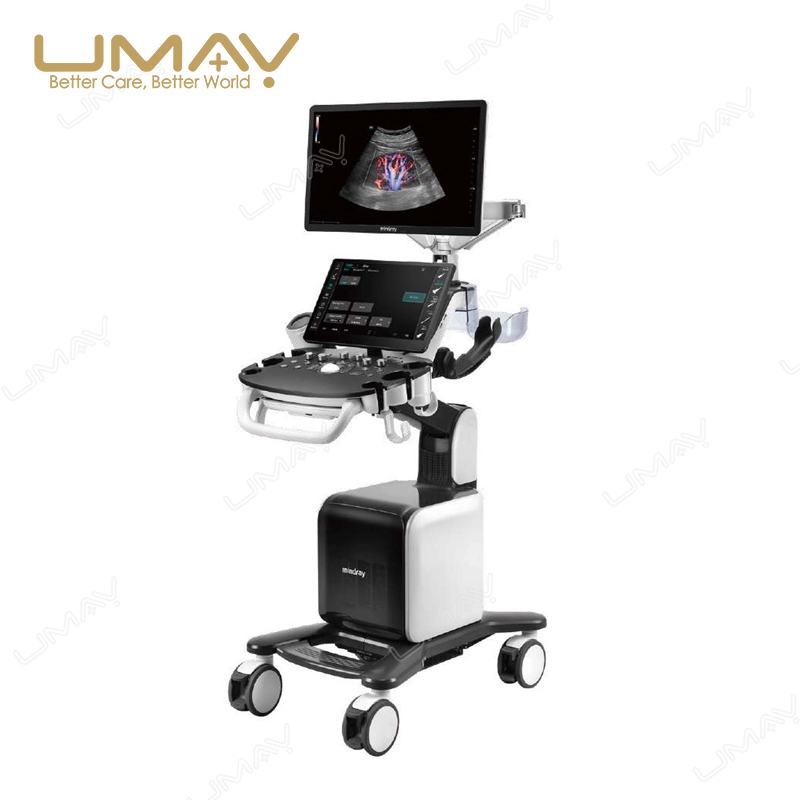

The Mindray Consona N8 Diagnostic Ultrasound System is a trolley-based color Doppler ultrasound platform designed for multi-specialty clinical imaging. Powered by Mindray’s ZST+ imaging platform, it combines advanced ultrasound technologies, intelligent examination tools and a flexible workstation design.
The Consona N8 supports a broad range of clinical workflows, including general imaging, obstetrics and gynecology, cardiovascular examinations, vascular assessment and small-parts imaging. Its available transducers, software functions and advanced imaging options depend on the selected system configuration.
Key Features of the Mindray Consona N8
ZST+ Imaging Platform
Channel-data-based ultrasound processing technology designed to support detailed imaging and advanced clinical applications.
Advanced Imaging Technologies
The manufacturer brochure lists iClear, iBeam, HD-Scope, Glazing Flow, HR Flow, NTE, STE/STQ and other imaging functions.
Multi-Specialty Clinical Tools
Intelligent examination tools are available for general imaging, OB/GYN, cardiovascular, vascular, breast, thyroid and hip assessment workflows.
Transducer Technologies
Single-Crystal and ComboWave transducer technologies are highlighted in the manufacturer brochure for imaging performance and clinical versatility.
Ergonomic Workstation
A 21.5-inch FHD monitor, touchscreen up to 15.6 inches, rotatable control panel and adjustable system height support flexible operation.
Intelligent Workflow Support
Manufacturer-listed workflow tools include iScanHelper, iWorks and Smart Vue for scanning guidance, examination protocols and plane recognition.
ZST+ Ultrasound Imaging Platform
The Consona N8 is powered by Mindray’s ZST+ platform, which uses channel-data-based processing instead of relying exclusively on conventional beamforming. This imaging architecture provides a foundation for the advanced ultrasound technologies described in the Consona N8 brochure.
| Technology | Function or Application |
|---|---|
| ZST+ | Channel-data-based ultrasound imaging platform. |
| iClear | Image optimization technology. |
| iBeam | Ultrasound image processing technology. |
| HD-Scope | Advanced imaging function listed in the manufacturer brochure. |
| Glazing Flow | Flow visualization technology. |
| HR Flow | Blood-flow imaging technology. |
| NTE | Manufacturer-listed advanced imaging function. |
| STE/STQ | Manufacturer-listed advanced assessment technologies. |
| PSH | Additional imaging technology identified in the brochure. |
Configuration note: The technologies above are identified in the manufacturer brochure. Availability on an individual Consona N8 system may depend on software licenses, hardware configuration and selected options.
Clinical Applications and Smart Examination Tools
The Mindray Consona N8 provides configurable examination tools for multiple clinical departments. The following applications and functions are described in the supplied manufacturer brochure.
| Clinical Application | Available Tools and Functions |
|---|---|
| General Imaging | iTouch+ for real-time image optimization, Smart HRI for liver-to-renal cortex brightness ratio assessment and Smart Calc for measurement workflows. |
| Breast Imaging | Smart Breast supports structured breast lesion assessment based on ACR BI-RADS. |
| Thyroid Imaging | Smart Thyroid supports thyroid nodule assessment and examination workflows. |
| Hip Assessment | Smart Hip provides automated alpha and beta angle measurements to assist with Graf classification. |
| Obstetrics and Gynecology | Smart Scene 3D, Smart Face, Smart OB, Smart Planes CNS and Smart FLC 2D/3D. |
| Cardiovascular Imaging | Auto EF for cardiac function measurements and TTQA for tissue-tracking assessment. |
| Vascular Assessment | RIMT for intima-media thickness measurement and R-VQS for vascular stiffness-related evaluation. |
Obstetrics and Gynecology Imaging Solutions
The Consona N8 brochure introduces Smart Scene 3D as part of its obstetric imaging solution. Associated smart tools are designed to support fetal examination, measurements and visualization workflows.
Smart Face
Supports fetal-face visualization by reducing occlusions in 3D imaging.
Smart OB
Provides automated measurements of commonly examined obstetric parameters.
Smart Planes CNS
Supports examination of fetal central nervous system structures.
Smart FLC 2D/3D
Supports automated follicle detection, counting and volume calculation.
These advanced OB/GYN functions should be confirmed against the selected system software configuration before purchase.
Cardiovascular and Vascular Imaging
For cardiovascular and vascular examinations, the manufacturer brochure highlights intelligent measurement and assessment functions intended to support clinical workflow efficiency.
- Auto EF: Supports measurements related to cardiac function.
- TTQA: Provides angle-independent tissue tracking for myocardial movement assessment.
- RIMT: Supports automated intima-media thickness measurement.
- R-VQS: Provides vascular stiffness-related measurements, including pulse wave velocity assessment.
Required cardiac and vascular probes, software packages and measurement functions should be specified when requesting a quotation.
Ergonomic Design and System Specifications
The Consona N8 features a trolley-based workstation with adjustable operating components and integrated storage. Its design supports routine scanning workflows and movement between examination areas.
| Specification | Manufacturer Brochure Information |
|---|---|
| Model | Mindray Consona N8 |
| Product Type | Diagnostic ultrasound system |
| System Design | Trolley-based ultrasound workstation |
| Imaging Platform | ZST+ |
| Main Monitor | 21.5-inch FHD monitor |
| Touchscreen | Up to 15.6 inches |
| Monitor Arm | Dual-wing floating arm |
| Control Panel | Rotatable control panel |
| Height Adjustment | Adjustable system height |
| Storage | Integrated storage space |
| Operating Noise | Low-noise design highlighted in the brochure |
| Panel Protection | Water- and dust-protected panel described by the manufacturer |
| Mobility | Trolley design for transportation |
| Battery | Built-in battery listed in the brochure |
| Transducer Technologies | Single-Crystal and ComboWave transducer families described in the brochure |
Important: The supplied brochure does not specify complete dimensions, system weight, battery runtime, electrical ratings or an exact included probe package. Please request a configuration sheet for these details.
Intelligent Scanning Workflow
The Consona N8 brochure also introduces tools designed to support scanning guidance, examination standardization and image review.
iScanHelper
Provides step-by-step scanning guidance to support ultrasound examination practice and learning.
iWorks
Supports standardized examination protocols and structured scanning steps.
Smart Vue
Supports automatic recognition and restoration of standard imaging planes as described in the manufacturer brochure.
Transducer Options and System Configuration
The manufacturer brochure highlights Single-Crystal and ComboWave transducer technologies and illustrates a family of ultrasound probes intended for different clinical examinations.
The exact transducer models, connector compatibility, probe quantities and supported software functions must be confirmed for the requested Consona N8 configuration. Buyers should specify the intended examination types before selecting the system package.
- General abdominal and small-parts imaging requirements
- Obstetrics and gynecology examination requirements
- Cardiac and vascular examination requirements
- Required imaging modes and advanced software options
- Transducer quantities and accessory requirements
Configuration and Procurement Information
UMY Medical can review inquiries for the Mindray Consona N8 from hospitals, imaging centers, clinics and medical equipment distributors. System selection should be based on the intended clinical applications, required transducers, software functions and destination-market requirements.
To prepare a suitable quotation, please provide the required clinical departments, preferred probe types, software options, purchase quantity and destination country. Product availability, included accessories, delivery arrangements and applicable regulatory requirements must be confirmed before purchase.
Request a Mindray Consona N8 Quotation
Contact UMY Medical to discuss the Consona N8 ultrasound system, required transducers, software options and delivery destination. Our sales team can review your requirements and provide configuration and quotation information.
Frequently Asked Questions
What clinical applications does the Mindray Consona N8 support?
The manufacturer brochure describes general imaging, obstetrics and gynecology, cardiovascular, vascular, breast, thyroid and hip assessment tools. Available applications depend on the selected system configuration.
Does the Consona N8 support 3D obstetric imaging?
The brochure lists Smart Scene 3D and associated obstetric tools, including Smart Face and Smart Planes CNS. Please confirm the required software options before ordering.
What display configuration does the Consona N8 offer?
The manufacturer brochure specifies a 21.5-inch FHD monitor and a touchscreen of up to 15.6 inches, together with a dual-wing floating arm.
Are ultrasound transducers included with the system?
The supplied brochure illustrates the Consona N series transducer family but does not establish a standard included probe package. Please confirm the required transducers and accessories when requesting a quotation.
