Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Clinical Applications | Abdomen, Obstetrics, Gynecology, Urology, Cardiology, Pediatric, Small Parts, Blood Vessel, Superficial, Orthopedic, MSK, Nerve, Custom |
| Technical Specifications | |

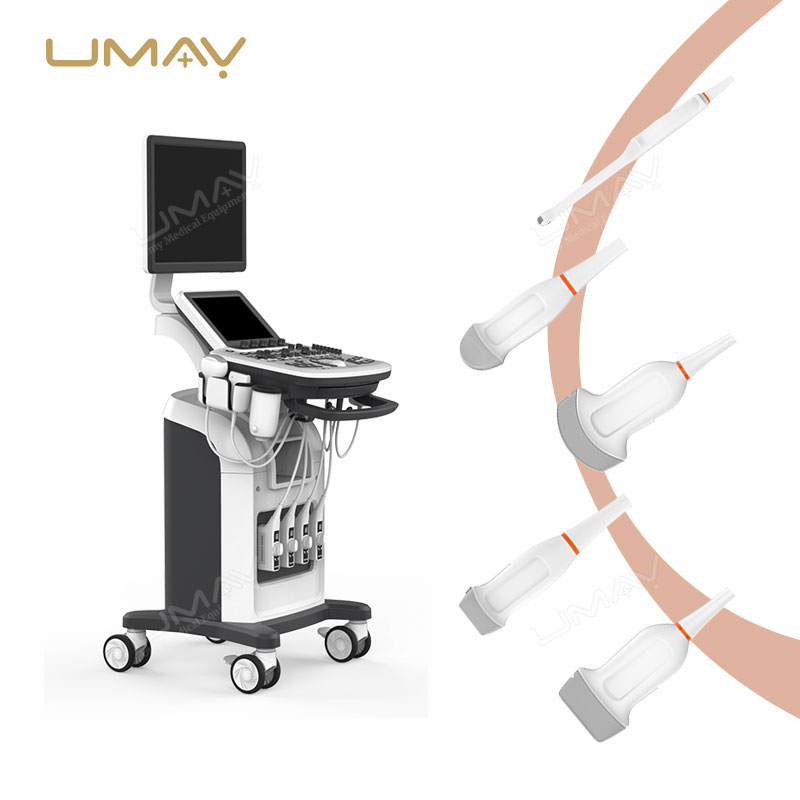

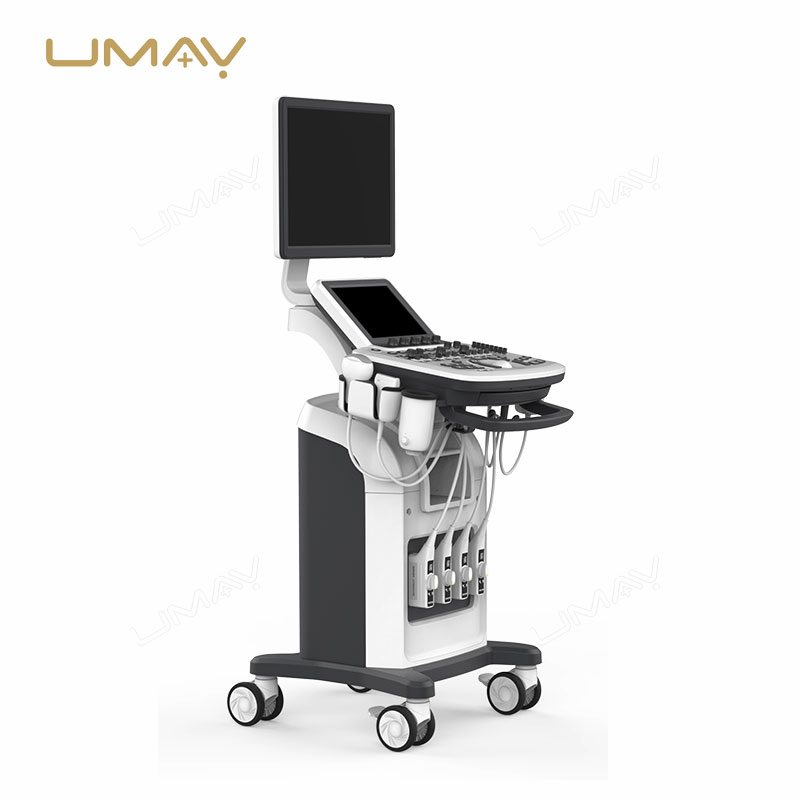

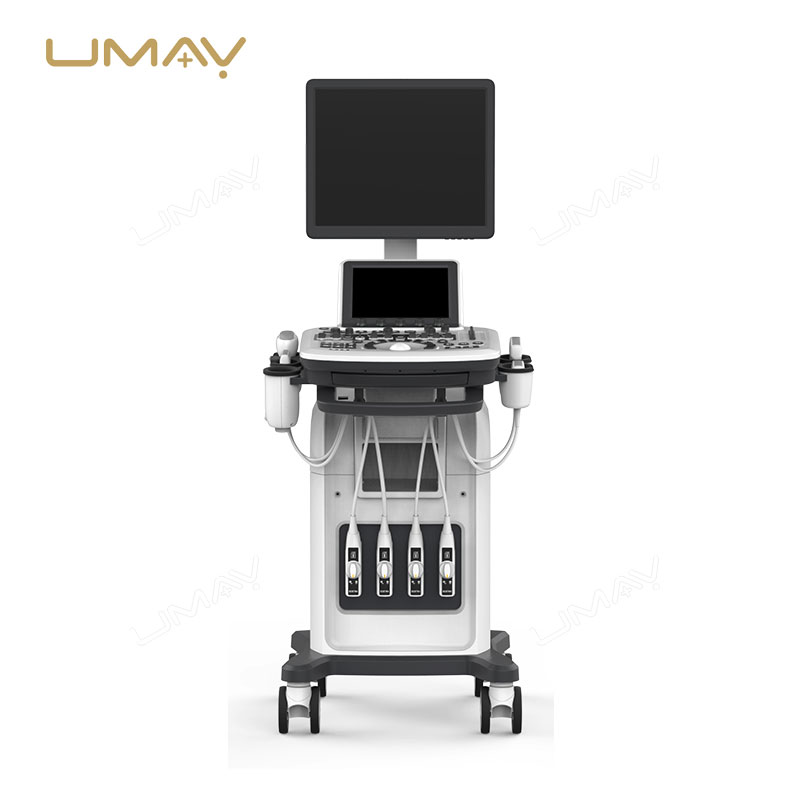

| Type | Color trolley ultrasound machine |
| Display Modes | 2D, M, PW, CW, TDI, Elastic, AMM, CMM, 4D |
| Display Features | 19-inch high-resolution color display screen |
| Display Resolution | 1024×768 |
| Display Rotation | Rotate angle range 90°(L/R) |
| Display Tilt | Tilt angle range 0-90°(U/D) |

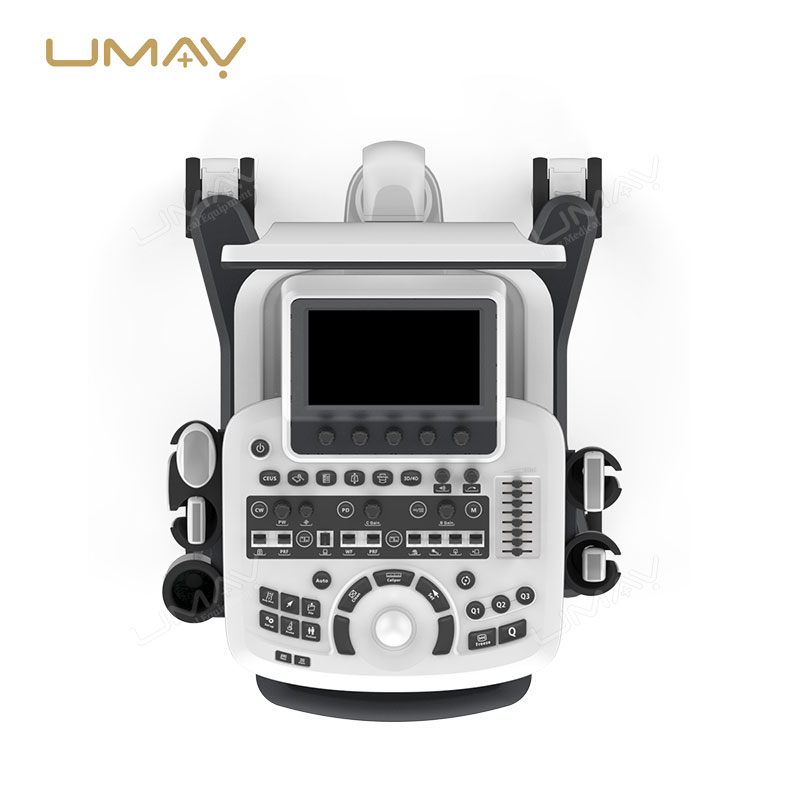

| Touch Screen | 10.4-inch touch screen, 1024×768 resolution |

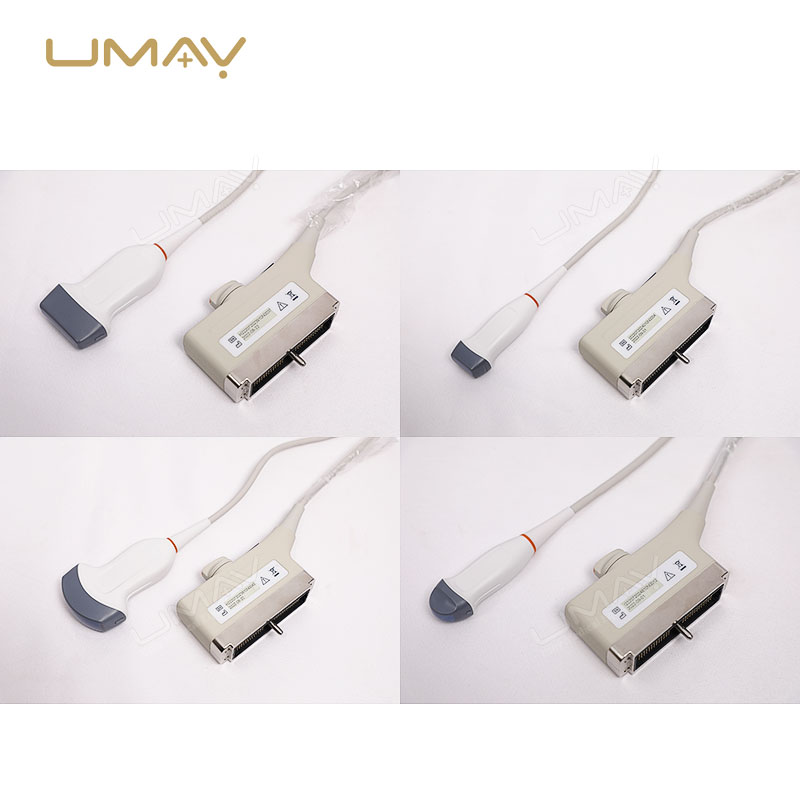

| Transducer Ports | 4 activated transducer ports |
| Transducer Holders | 4 removable transducer holders |
| Probe Wire Hook | 4 probe wire hooks |
| Electrical Specifications | |
| Voltage | AC 100V ~ 240V |
| Power | 320VA |
| Frequency | 50/60Hz |
| Input Fuse | φ5×20 mm, F3.15AL250V AC |
| Output Fuse | φ5×20 mm, F2AL250V AC |
| Physical Specifications | |
| Dimensions | 565×845×1455mm |
| Weight | Approx. 70kg |
| Certificates | CE, ISO |
| Product Features | |

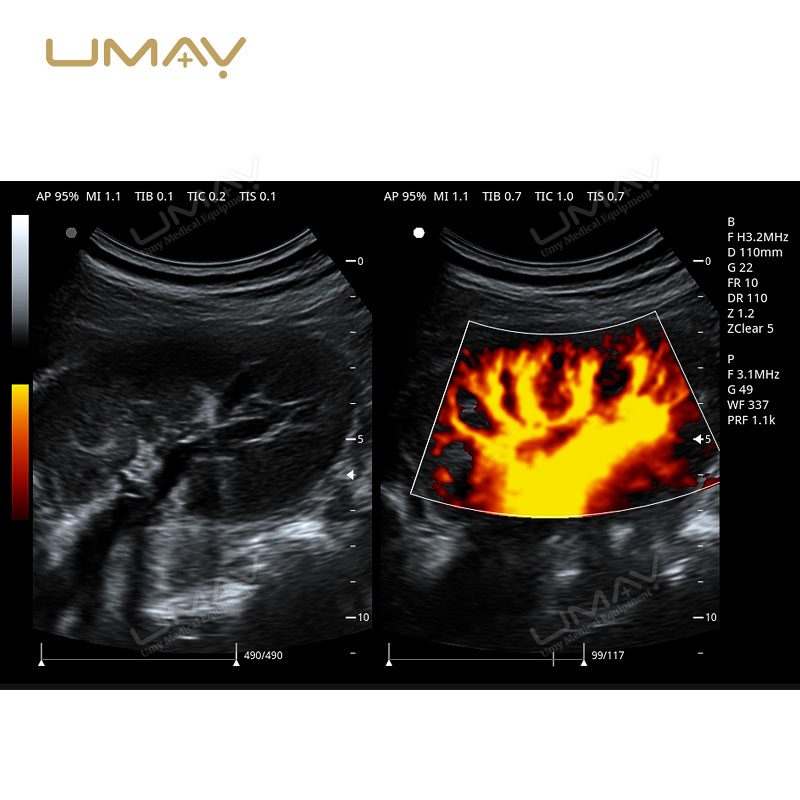

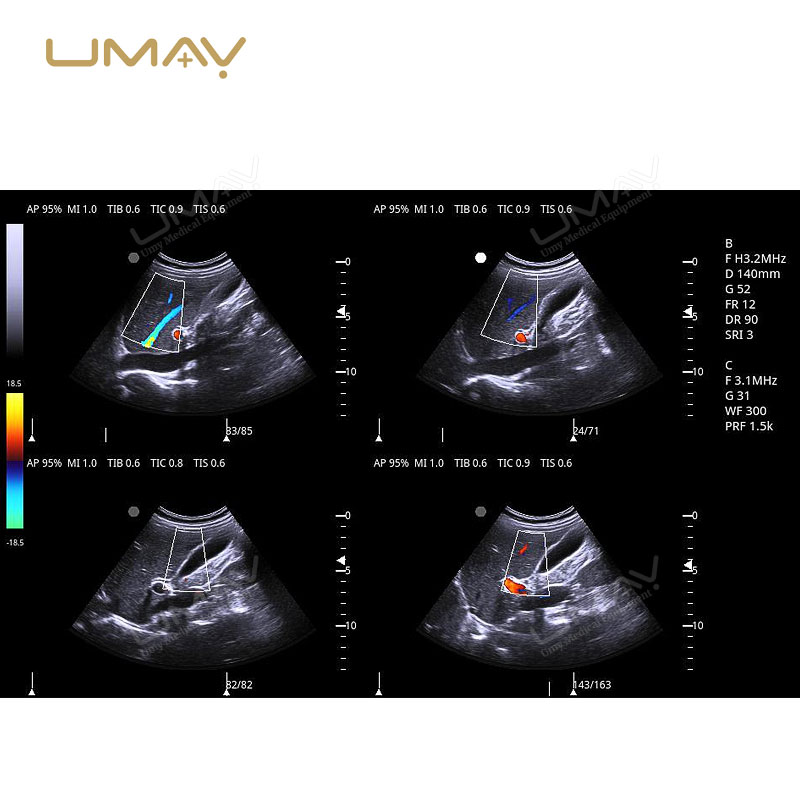

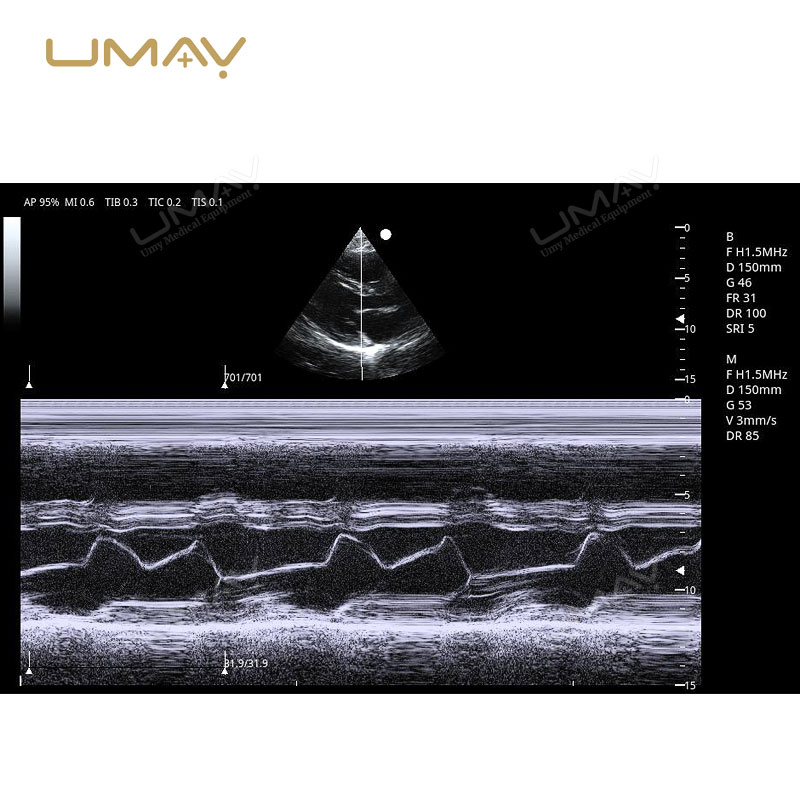

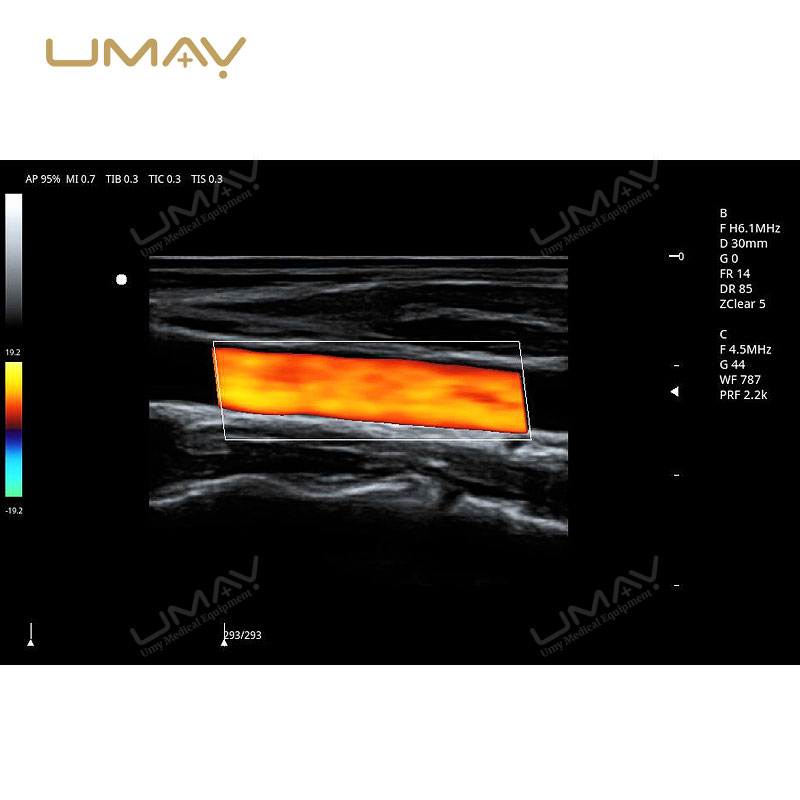

| Supported Imaging Modes | 2D, CFM, M, PW, CW, CMM, DPDI, AMM, 3D/4D, ZPage |
| Advanced Imaging | ZLive, TDI, Elastic Imaging, Panoramic Imaging |
| Imaging Enhancements | THI, SRI, SCI, TSI, FCI, EFOV, HR flow, B-steer |
| Measurement Tools | Standard Auto IMT measurement, PW auto trace and auto calculation |
| Amplification Support | Local and global amplification |
| Connectivity | Preposed USB ports, supporting multi-data transmission |
| User Interface | One-Key Q Save – parameter saving/presetting by one key |
| Customization | Four user-defined buttons |
| Functionality | Biopsy function |
Product Details

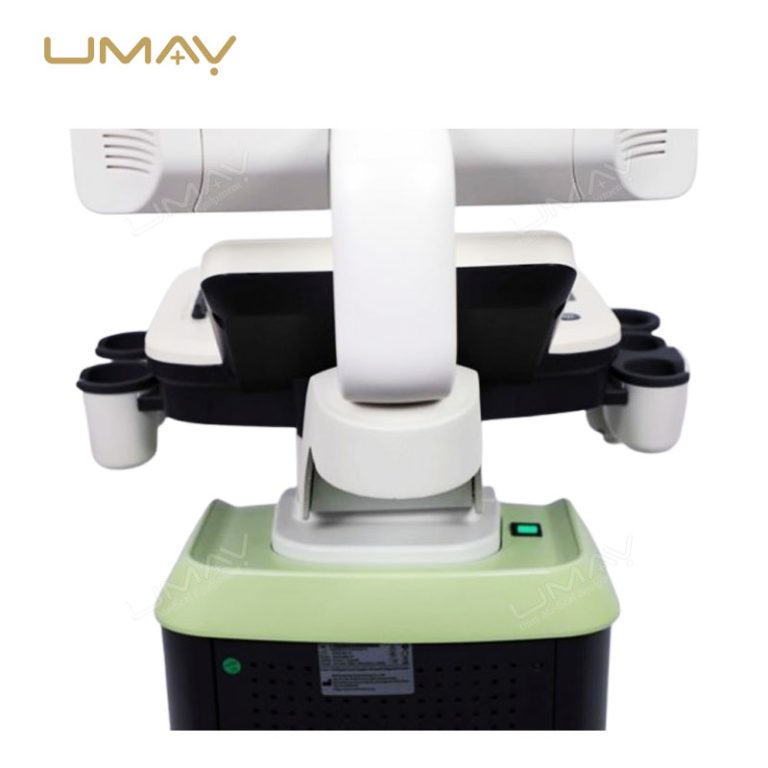

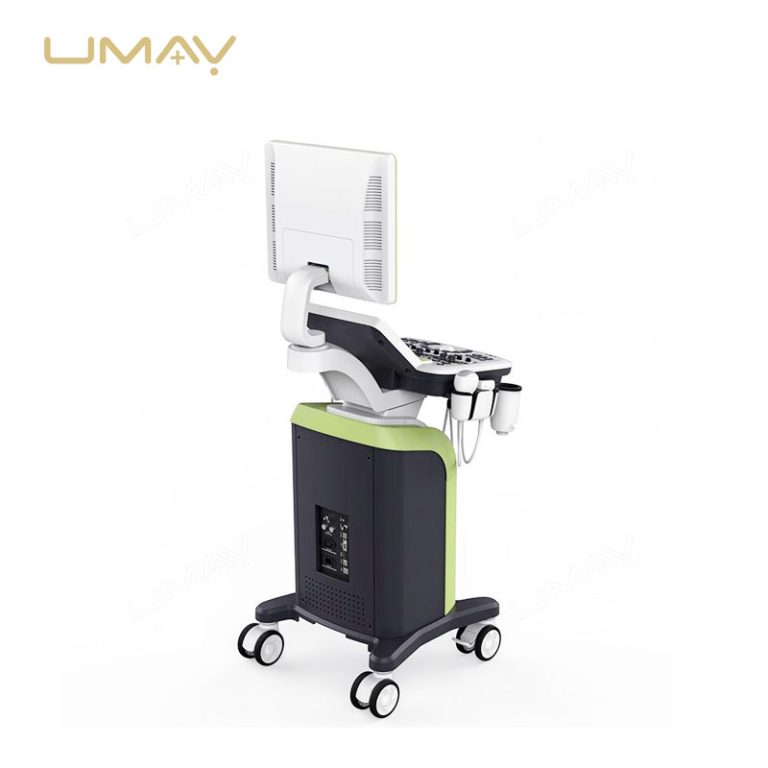

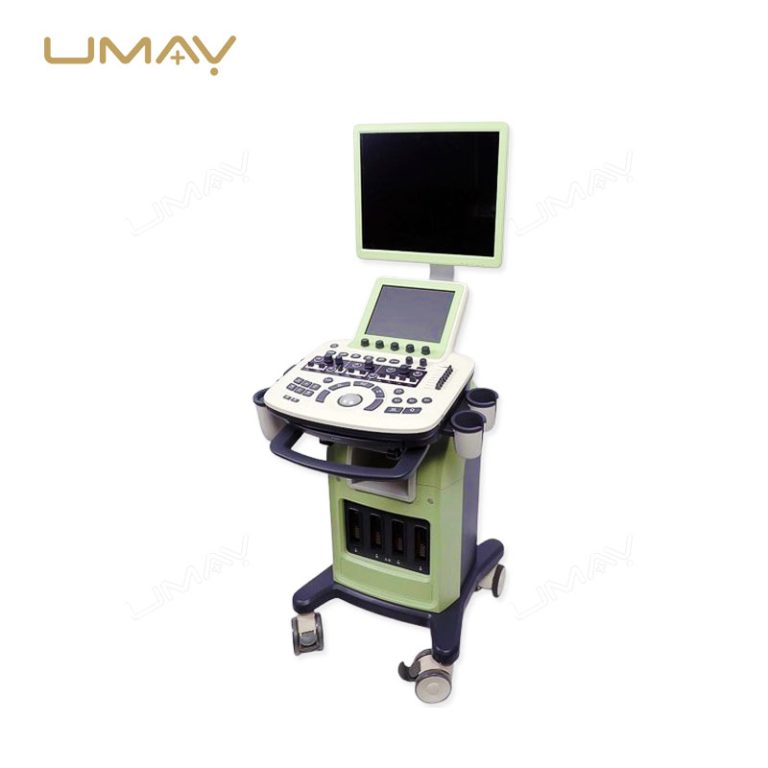

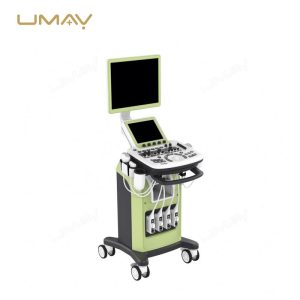

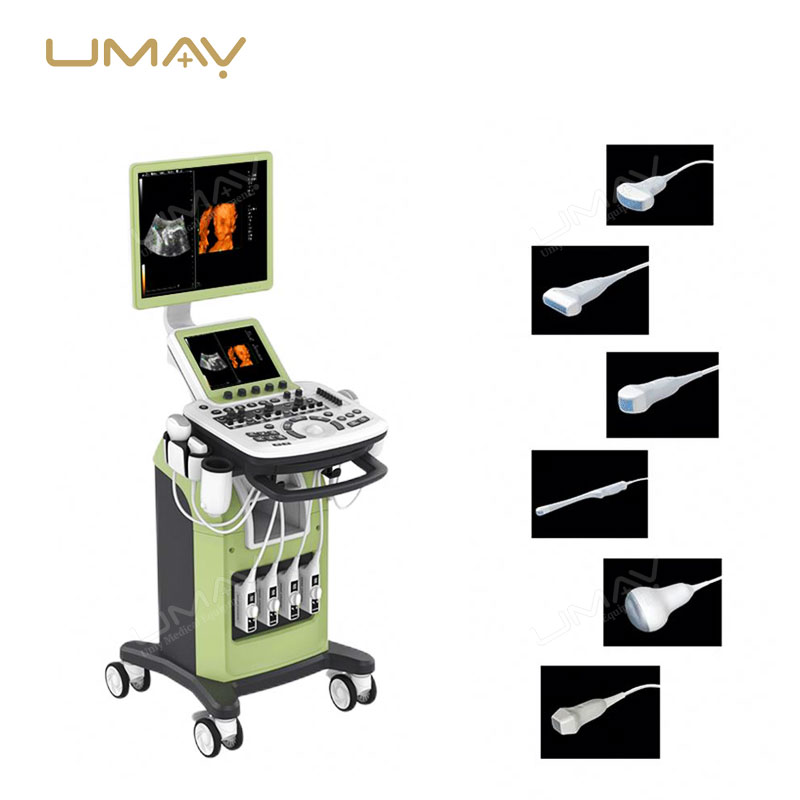

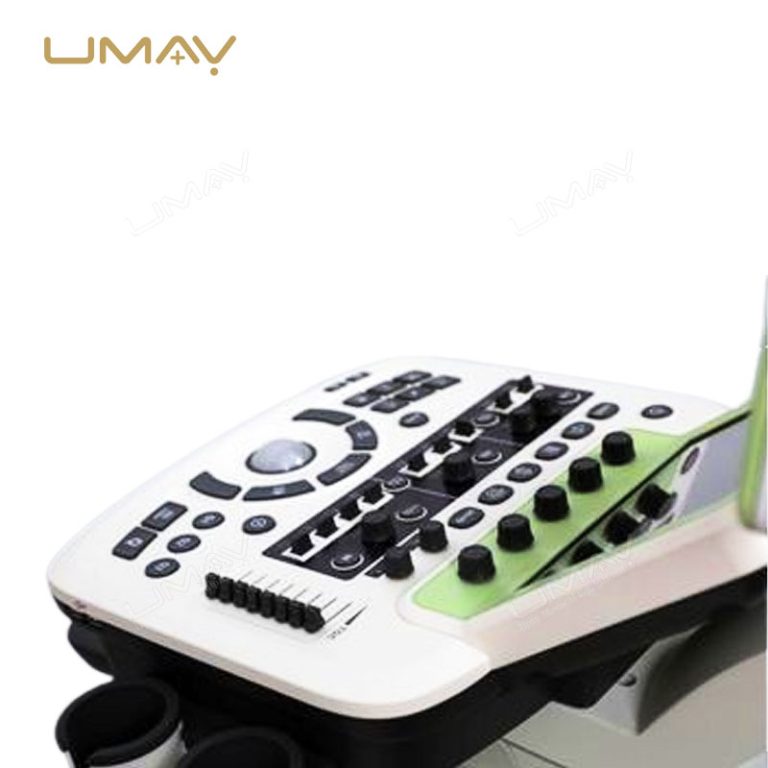

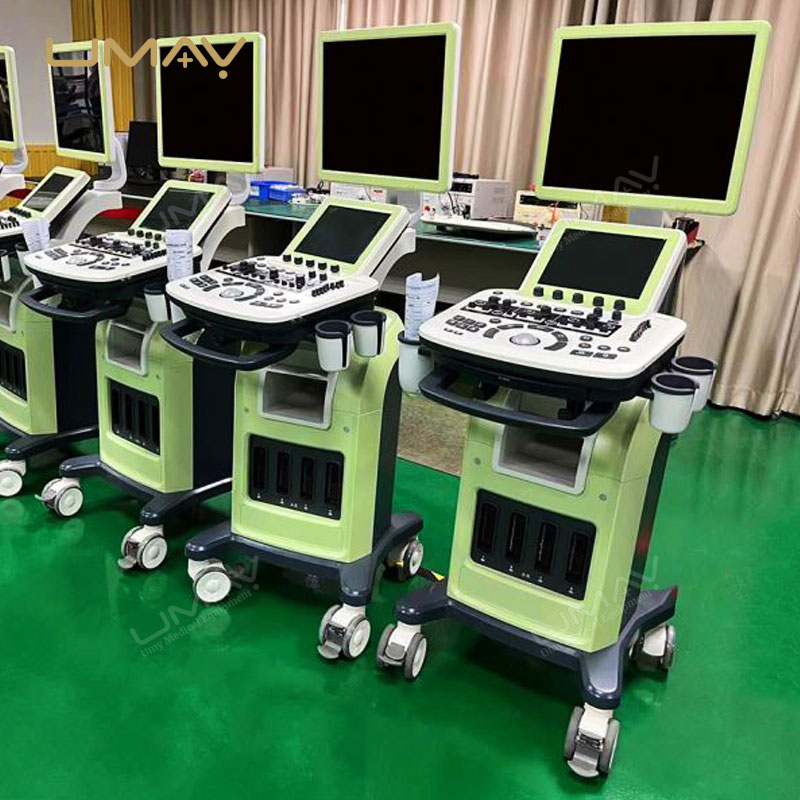

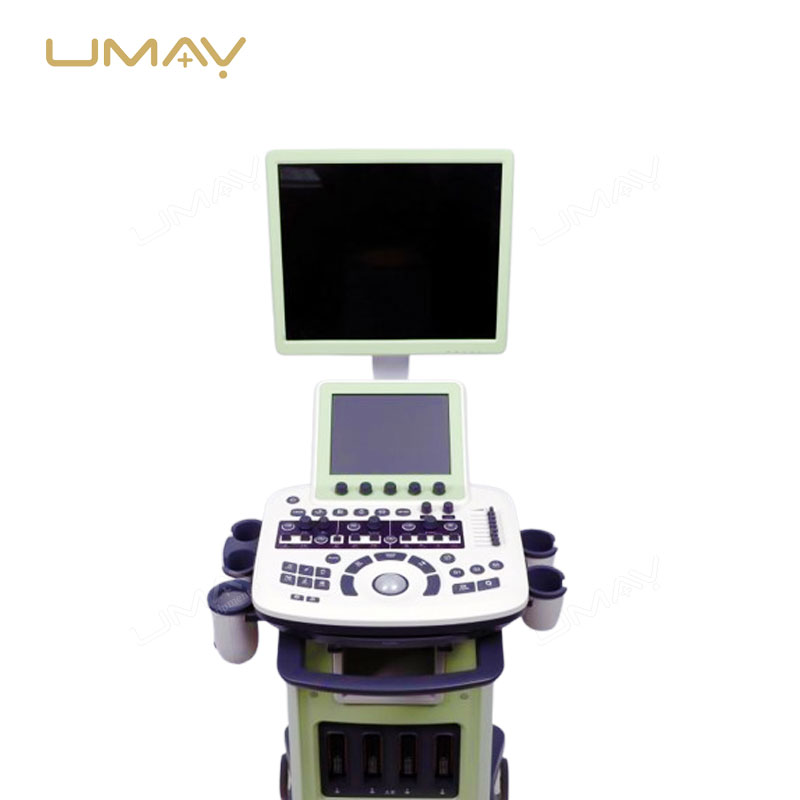

Detail Gallery
