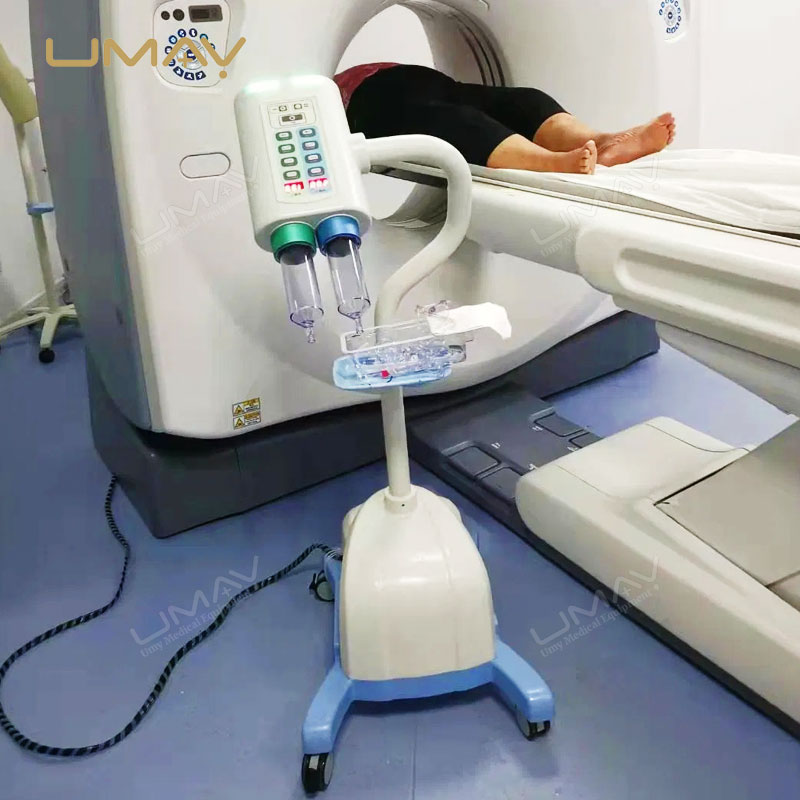

The Injector System for MRI, DSA, and CT, equipped with a single/dual syringe kit, is designed for precision contrast media delivery in advanced imaging procedures. It allows for the simultaneous or independent injection of contrast agents, ensuring accurate and consistent results during MRI, DSA, and CT scans. This system is essential for providing high-quality images in complex diagnostic areas such as neurology, cardiology, and oncology. With its user-friendly interface and reliable performance, it supports healthcare professionals in achieving optimal imaging and enhancing patient care. Ideal for imaging centers and hospitals, this injector system elevates diagnostic accuracy and workflow efficiency.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Voltage | 220VAC / 110VAC, 50 or 60Hz, 200VA |
| Operation Interface Languages | Available in English, French, Spanish, German, and Chinese |
| Flow Rate | 0.1-10 ml/sec in increments of 0.1 ml/sec |
| Syringe Capacity | 200ml |
| Volume Range | 0.1ml to syringe capacity in 0.1ml increments |
| Pressure | |
| Preset Limit | 300 psi default, user settable from 50 to 350 psi in 1 psi increments |
| Display | Real-time pressure curve |
| Change Threshold | Stop injection if pressure changes suddenly |
| Alarm | Voice alarm and stop injection when over preset limit |
| Injection or Scan Delay | 0 to 3599 seconds in 1 sec increments |
| Autofill Flow Rate | Settable flow rate from 3-8 ml/sec; volume from 10ml to syringe capacity |
| Injection Capabilities | Programmable up to 8 phases |
| Pause Phase | 0-999 seconds in 1 sec increments |
| Hold Capability | 30 minutes max |
| Storage Capabilities | 1000 protocols |
| Expel Air Locked | Unable to inject unless expelling air |
| Test Injection | Settable flow rate from 0.1-5 ml/sec; volume from 0.1ml to 10ml |
| Heat Maintenance | 35-38°C (optional) |
| Hand Switch | Hand switch control to pause and continue injection (optional) |
| Emergency Stop Function | When the system is injecting, click on any point of the touch screen or any button on the injector arm to stop injection |
| Dual Flow | Settable in a ratio of saline and contrast |
| KVO | Independent KVO program |
| Dimensions | |
| Injector Arm and Pedestal | L: 22.8″ (58.0cm), W: 12.5″ (20.1cm), H: 50.2″ (127.4cm) |
| Console | L: 4.55″ (11.55cm), W: 12.68″ (31.8cm), H: 9.77″ (24.81cm) |
| Weight | |
| Injector Arm and Pedestal | 19.5kg |
| Console | 4.1kg |
Product Details
- Injector System for MRI, DSA, and CT: Designed for precise and reliable contrast media delivery during advanced imaging procedures.
- Single/Dual Syringe Configuration: Supports both simultaneous and independent injection modes to meet diverse clinical imaging requirements.
- Accurate Contrast Media Injection: Ensures stable and consistent delivery of contrast agents for enhanced diagnostic imaging quality.
- Optimized for MRI Applications: Provides precise contrast administration for high-resolution magnetic resonance imaging examinations.
- Ideal for DSA Procedures: Supports angiography and vascular imaging with accurate high-pressure contrast delivery.
- Compatible with CT Imaging: Enhances CT scan clarity through controlled contrast injection for detailed diagnostic evaluation.
- High-Precision Injection Performance: Advanced control technology maintains accurate flow rates and injection volumes during procedures.
- User-Friendly Interface: Intuitive operation system simplifies setup, protocol selection, and workflow management for healthcare professionals.
- Reliable Clinical Performance: Engineered for stable and dependable operation in demanding hospital and imaging center environments.
- Supports Neurological Imaging: Ideal for brain and nervous system diagnostic studies requiring precise contrast enhancement.
- Suitable for Cardiology Applications: Provides effective contrast delivery for cardiovascular imaging and angiographic examinations.
- Optimized for Oncology Diagnostics: Assists in tumor detection and cancer evaluation through enhanced imaging quality.
- Programmable Injection Protocols: Allows customized injection settings for different imaging procedures and patient requirements.
