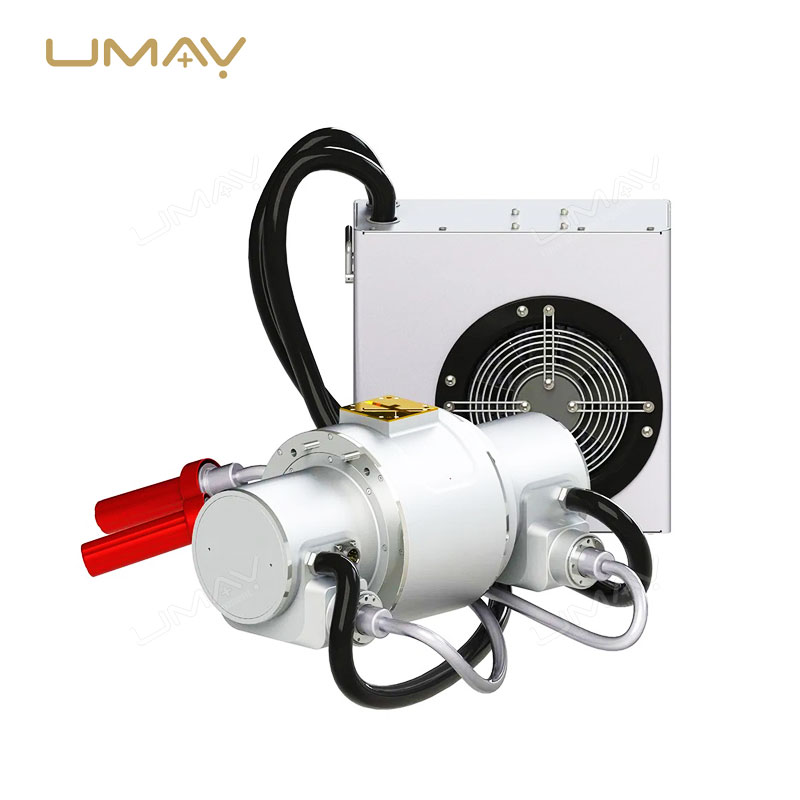

The Diagnostic X-ray Tube for CT Scanners is a crucial component in high-resolution medical imaging, providing the precise X-ray beam necessary for detailed scans. Designed for use with CT scanners, this tube ensures reliable and consistent performance, supporting accurate diagnostics for a wide range of conditions, from tumors to fractures. Its advanced technology enhances image clarity, which is vital for effective treatment planning and patient care. As a key accessory in radiology equipment, it contributes to the overall efficiency and quality of diagnostic imaging, making it an indispensable tool for healthcare professionals. This X-ray tube is engineered for long-lasting durability and high performance in demanding medical environments.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Radiation Field Size (1 Meter from Focal Point) | 1129mm × 152mm |
| Tube Filtration | 1.8mm Al / 70kV |
| High Voltage Plug | Complies with GB/T 10151-2008 |
| Heat Capacity | 4.0 MHU (3.7MJ) |
| Cooling Method | Forced Fan Oil Cooling |
| Temperature Control Switch | Closed at 45~65ºC, Opened at 75~85ºC |
| Leakage Radiation in Loading State | ≤0.88mGy/h @ 140kV, 42mA |
| Nominal Anode Input Power (Small Focal Length Filament) | 28kW |
| Nominal Anode Input Power (Large Focal Length Filament) | 48kW |
| Maximum Continuous Heat Dissipation | 6kW |
| Weight | About 67kg |
| Product Model Specifications | XRT02 |
| Rotating Anode Rate | ≥6800 r/min @(120Hz) |
| Maximum Anode Heat Capacity | 4000KHU (2840kJ) |
| Anode Nominal Input Power | 28kW / 48kW |
| Focus Nominal Value f (YY/T0063) | 0.4 × 0.7, 0.6 × 1.3 |
| Exposure Rate | ≥0.03mC/kg·s |
| Anode Heating and Cooling Curve | Refer to Figure 4 |
| Nominal X-Ray Tube Voltage | 140kV |
| Target Disk Material | Rhenium Tungsten Molybdenum-Based Graphite Target |
| Target Angle | 7° |
| Inherent Filtration (IEC60522/1999) | <1.1mm Al / 70kV |
| Continuous Anode Input Power | 7kW |
| Filament Voltage | 3.0~12.5V / 6.0~16.5V |
| Filament Current | 3.0~5.5A |
Product Details
- Diagnostic X-Ray Tube for CT Scanners: Designed to generate precise and stable X-ray beams for high-resolution computed tomography imaging applications.
- High-Resolution Imaging Performance: Provides detailed image quality essential for accurate diagnosis of tumors, fractures, vascular conditions, and other medical abnormalities.
- Optimized for CT Scanner Systems: Specifically engineered for compatibility with modern CT imaging equipment and advanced radiology systems.
- Reliable and Consistent X-Ray Output: Ensures stable radiation generation for dependable imaging performance during continuous clinical operation.
- Advanced Imaging Technology: Enhances image clarity and contrast to support accurate diagnostic evaluation and treatment planning.
- Seamless System Integration: Designed for efficient compatibility with CT scanner assemblies and imaging system configurations.
- Precision Beam Control: Delivers accurate X-ray beam focus for improved scan quality and detailed anatomical visualization.
- Supports Accurate Clinical Diagnosis: Assists healthcare professionals in evaluating complex medical conditions with greater confidence and precision.
- Durable High-Performance Construction: Manufactured with premium materials for long-term reliability in demanding medical environments.
- Efficient Heat Dissipation System: Advanced thermal management design supports stable operation during high-frequency imaging procedures.
- Optimized for Continuous Operation: Engineered to maintain reliable performance during extended CT scanning workflows in busy radiology departments.
- Improved Diagnostic Workflow Efficiency: Stable imaging output helps reduce rescanning and improves examination efficiency for healthcare facilities.
- High-Speed Imaging Compatibility: Supports rapid CT scan procedures while maintaining image accuracy and consistency.
- Low Noise and Stable Performance: Precision engineering minimizes operational instability and supports smooth imaging functionality.
- Reliable Component for Radiology Equipment: Essential accessory for maintaining high imaging quality and system efficiency in CT scanners.
- Supports Advanced Medical Applications: Suitable for neurological, cardiovascular, orthopedic, oncological, and general diagnostic imaging studies.
- Enhanced Patient Care Support: High-quality imaging contributes to more accurate diagnosis and effective clinical treatment planning.
- Robust Medical-Grade Design: Built to withstand intensive use in hospitals, imaging centers, and diagnostic facilities.
- Long Service Life: Durable internal components ensure stable long-term performance and reduced maintenance requirements.
- Ideal for Professional Medical Imaging Environments: Perfect for hospitals, radiology departments, diagnostic imaging centers, and advanced healthcare institutions requiring dependable CT imaging performance.

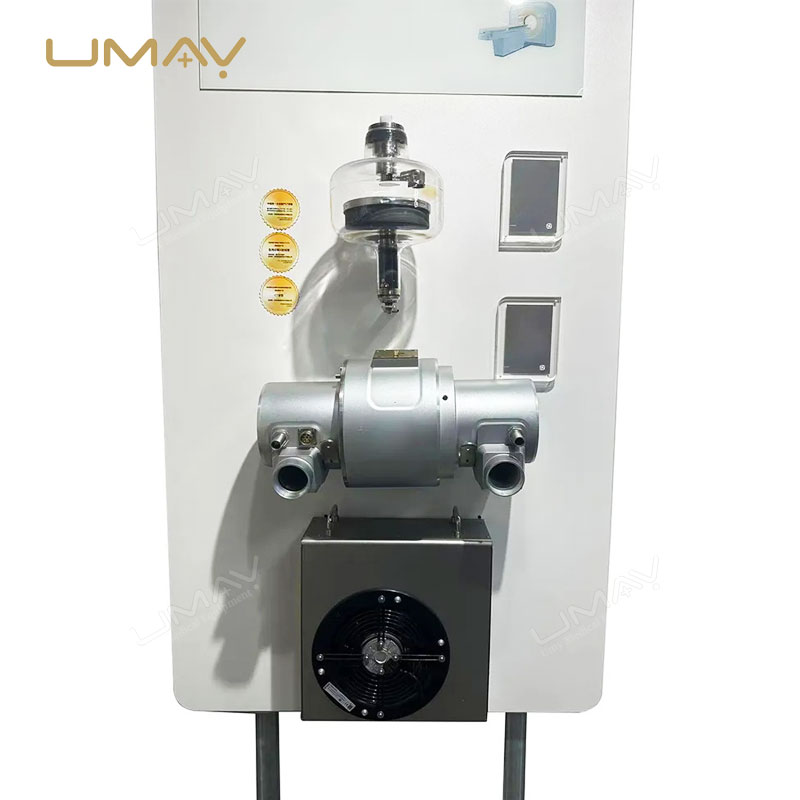

Detail Gallery
