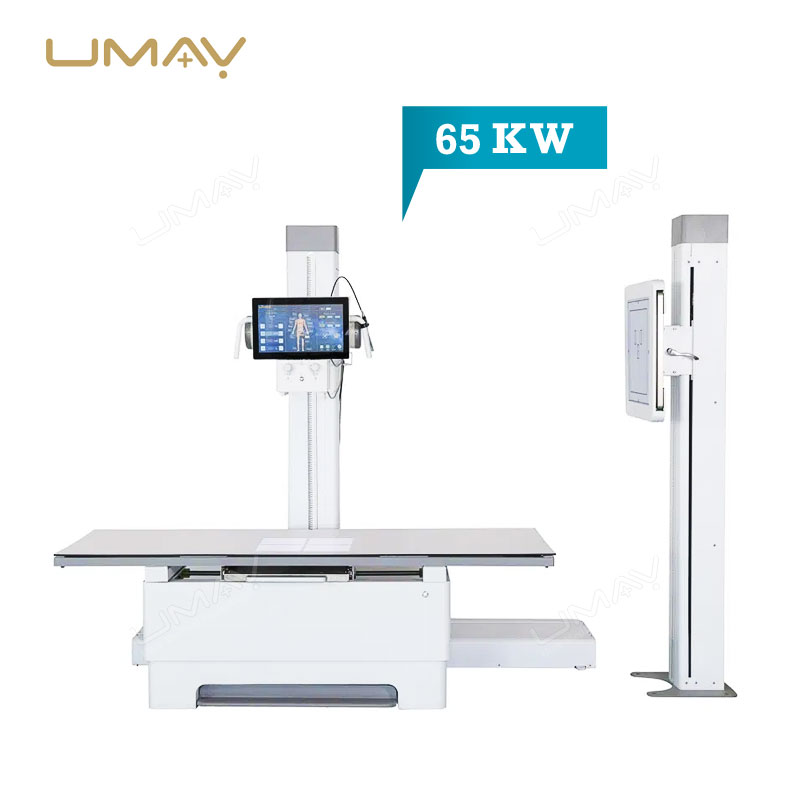

This 65kW high frequency digital radiography system is built for hospitals requiring high-throughput and crystal-clear image quality for comprehensive diagnostics. With its precision-tuned imaging capabilities, it supports full-body radiography, trauma exams, and musculoskeletal assessments with excellent dose efficiency. Its stationary structure ensures stable operation and seamless integration into radiology departments. For clinics seeking portability without compromising image quality, we recommend our 5kW portable X ray machine for hospital use. The 65kW unit meets the latest clinical imaging standards while optimizing workflow and patient throughput.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| X-ray Generator Specifications | |
| Power Output | 65KW / 800mA |
| Generator Frequency | 30kHz / 200kHz (optional) |
| Power Supply | 50Hz or 60Hz, wire diameter >4mm², internal resistance <0.50; supports 65kW (only 380V) |
| Exposure Control | |
| Tube Current (mA) | 10–800 |
| Tube Current-Time Product (mAs) | 0.4–1000 |
| Tube Voltage (kV) | 40–150kV (1kV step) |
| Exposure Time | 1ms–10000ms |
| X-ray Tube and Heat Capacity | |
| Focus Size | Default 0.6×0.6mm / 1.2×1.2mm dual focus (Toshiba option) |
| Anode Rotating Speed | 8400rpm |
| Anode Heat Capacity | 1300kHU |
| Radiography Table | |
| Table Dimensions | 73cm (W) × 200cm (L) |
| Table Movement | 74cm left/right, 20cm back/front |
| Flat Panel Detector | |
| Image Size | 17×17 inch (14×17 inch option available) |
| Pixel Matrix | 140μm |
| A/D Conversion | 16 bits |
| Spatial Resolution | 3.6 Lp/mm |
| Software | Professional Imaging Software |
| Computer Configuration | CPU: 15, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |
Product Details
- Advanced Digital Radiography Control System: Equipped with an intelligent touchscreen workstation that enables efficient imaging control, exposure adjustment, and streamlined diagnostic workflow management.
- High-Resolution Medical Display: Large HD monitor provides clear visualization of patient positioning, imaging parameters, and radiographic data for improved operational accuracy.
- Integrated User-Friendly Interface: Intuitive touchscreen operation simplifies system control, examination setup, and workflow navigation for enhanced clinical efficiency.
- Ergonomic Vertical Stand Design: Adjustable vertical structure supports flexible positioning for chest, orthopedic, and general radiographic examinations in diverse clinical environments.
- Efficient Digital Imaging Workflow: Supports rapid image acquisition, real-time system monitoring, and seamless integration with digital radiography systems to improve productivity.
- Ideal for Modern Diagnostic Applications: Suitable for hospitals, imaging centers, outpatient clinics, orthopedic departments, and veterinary facilities requiring professional DR imaging control solutions.
- 50kW High-Power Digital Radiography System: Equipped with a powerful 50kW generator to deliver stable, high-efficiency X-ray output for professional diagnostic imaging applications.
- Integrated DR Imaging Solution: Combines an advanced radiographic table, digital imaging workstation, and vertical stand system for comprehensive and streamlined diagnostic workflow management.
- High-Resolution Digital Imaging Performance: Advanced DR technology provides clear, detailed, and accurate radiographic images to support reliable clinical diagnosis and treatment planning.
- Ergonomic and User-Friendly Design: Adjustable imaging components and intuitive control interface improve operational convenience and enhance examination efficiency for medical professionals.
- Stable and Durable Construction: Built with a robust medical-grade structure to ensure smooth operation, long-term reliability, and dependable performance in busy clinical environments.
- Ideal for Comprehensive Clinical Applications: Suitable for hospitals, imaging centers, orthopedic clinics, emergency departments, and veterinary facilities requiring high-quality digital radiography solutions.
