Color Doppler Trolley Ultrasound Diagnosis System for Multi-Specialty Clinical Environments
The UMUS070 Color Doppler Trolley Ultrasound Diagnosis System is designed to support clinical examinations and diagnostics across abdomen, gynecology, obstetrics, pediatrics, urology, transvaginal, superficial, vascular, and small organ applications.

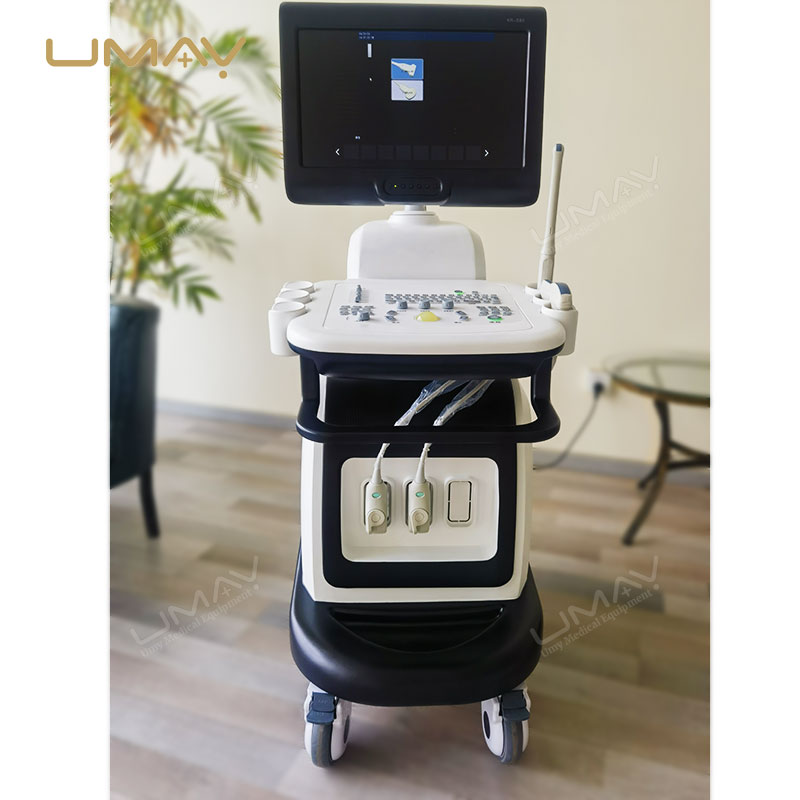

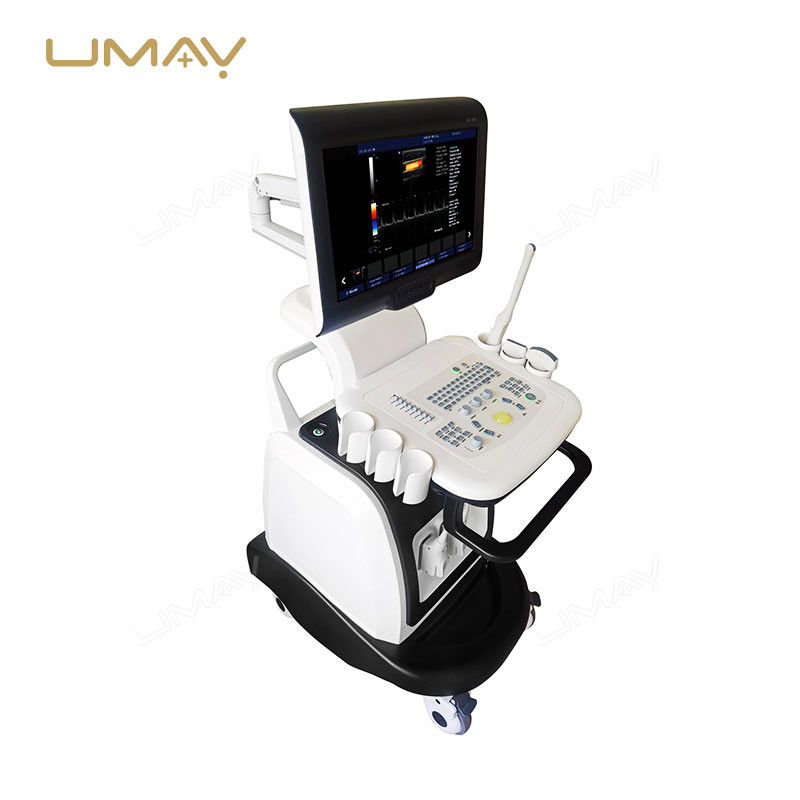

The system features a 15-inch high-resolution color LCD monitor mounted on a 360-degree rotating arm (up, down, left, and right) for optimal viewing flexibility. With 4 active interchangeable probe interfaces, multi-beam parallel processing, and advanced harmonic imaging capabilities, the UMUS070 ensures high-definition diagnostic performance.
Equipped with robust digital storage, USB/LAN connectivity, DICOM 3.0 support, and comprehensive measurement software packages for various clinical needs, it offers an efficient workflow for hospital wards and diagnostic centers.
Key Features
15-Inch High-Resolution Display
Features a 15-inch color LCD monitor paired with a flexible 360-degree rotating arm to accommodate various clinical positioning requirements.

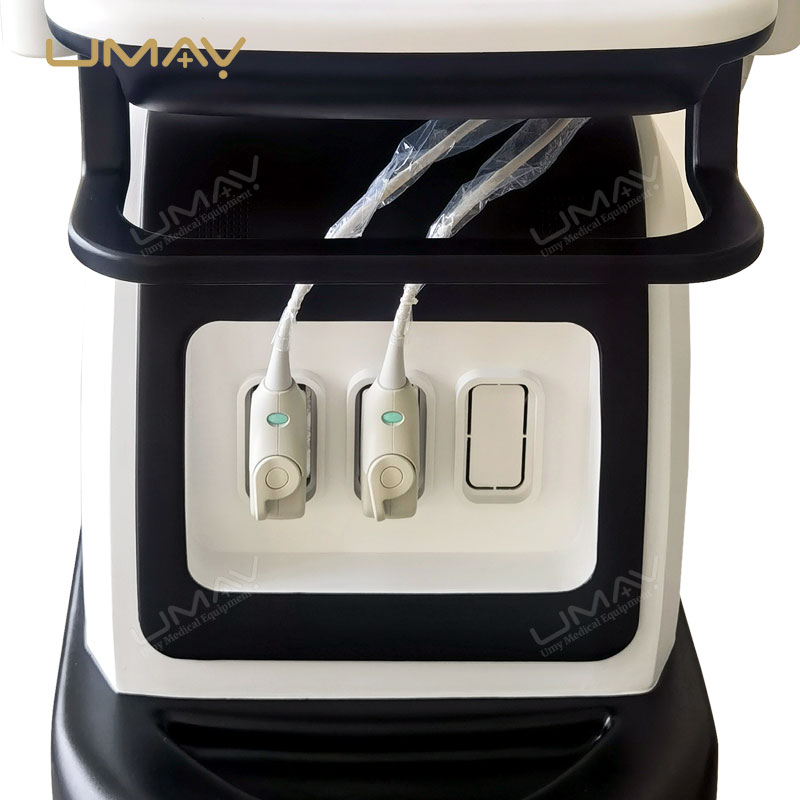

Four Active Probe Interfaces
Includes 4 active probe ports that support all system probes with full interchangibility and no reserved or dead expansion ports.
Advanced Harmonic Imaging
Supports harmonic imaging across convex, linear, micro-convex, and intracavity probes, with 8 groups of fundamental and harmonic frequencies.
Comprehensive Doppler Modes
Provides multi-synchronous display of 2D images, spectrum Doppler (PWD), and color blood flow imaging (CFM) with adjustable PRF and wall filters.
Multi-Language Environment
Supports Chinese, English, and Spanish operating systems with full-screen Chinese and English annotation inputs including five-stroke input methods.
DICOM 3.0 Connectivity
Features standard USB, S-Video, LAN outputs, and DICOM 3.0 interface capabilities for direct integration into hospital PACS networks.

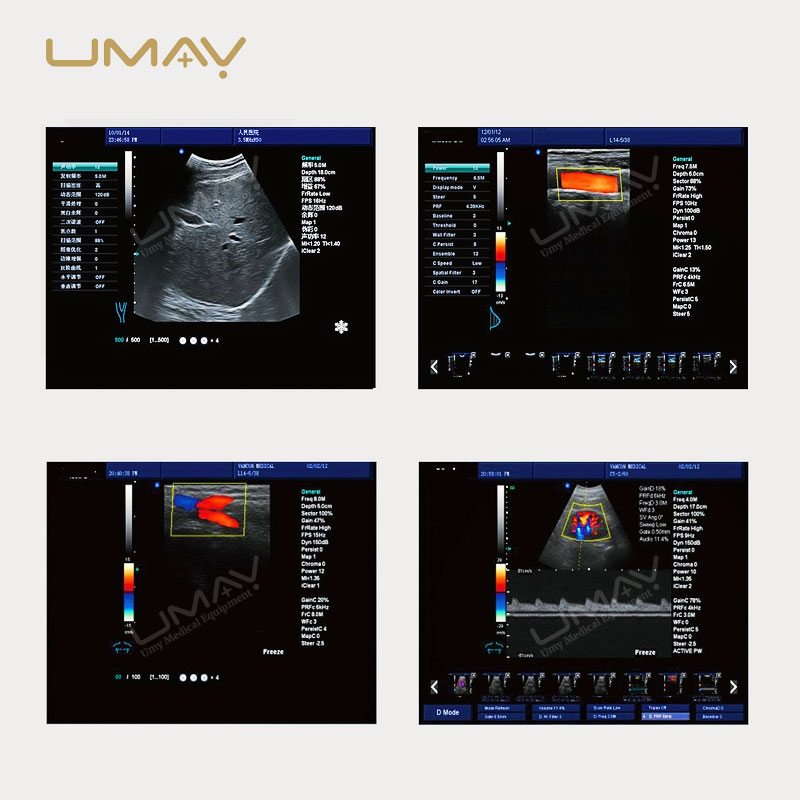

Imaging Modes and Performance
The UMUS070 incorporates advanced digital signal processing and parallel multi-beam signal processing to deliver detailed anatomical and blood flow visualization.
2D Gray-Scale Imaging
Offers 8-section STC adjustment, 7 false colors, continuous 150dB image gain adjustment range, 4 focal points, and a maximum scanning depth of 300mm.
Color Flow Imaging (CFM)
Features adjustable Doppler gain, 16+ PRF gears, velocity variance and energy display modes, and simultaneous B/C split-screen synchronization.
Spectrum Doppler (PWD)
Includes pulse wave Doppler mode with real-time automatic spectrum envelope analysis and automatic calculation of PSV, EDV, RI, PI, S/D, and HR.
Image Post-Processing
Equipped with composite imaging (iClear function) which can be used across all probes and adjusted independently.
Technical Specifications
| Specification | UMUS070 Details |
|---|---|
| Model | UMUS070 |
| Product Type | Color Doppler Trolley Ultrasound Diagnosis System |
| Monitor | 15-inch high-resolution color LCD monitor |
| Probe Interfaces | 4 active, interchangeable probe ports |
| Operating Frequency | 2.0 MHz – 10.0 MHz working frequency range |
| Maximum Scanning Depth | Up to 300 mm |
| Image Magnification | Greater than or equal to 10 times |
| Display Modes | B, B/M, Color, PDI, PWD, and triple synchronization |
| Data Storage & Management | Hard disk and USB flash disk storage for static/dynamic images with complete patient archive management |
| Input / Output Ports | S-Video, USB, LAN, and DICOM 3.0 interface |
- Specifications are based on the supplied UMUS070 technical parameters document.
- Standard configuration includes the main host, 15-inch LCD monitor, convex array probe (3.5MHz), linear array probe (7.5MHz), and cavity probe (6.5MHz).
- Accessories include a power cord and grounding wire.
Applications
Abdominal & General Imaging
Supports deep tissue and abdominal organ assessments with wide-frequency convex probes.
Obstetrics & Gynecology
Provides specialized obstetric database versions (Asia, Europe, America) for gestational age calculations, growth curves, and fetal scoring.
Cardiology & Vascular
Enables peripheral blood vessel measurements, cardiac function analysis, and professional spectral Doppler evaluations.
Small Parts & Urology
Delivers high-resolution superficial and urological examinations using dedicated linear and cavity probes.
System Configuration
The UMUS070 is supplied as a standard trolley ultrasound system complete with multi-specialty probes and advanced software packages.
Please confirm your required probe selections, peripheral options, and local regulatory requirements prior to ordering.
Before Ordering
- Required quantity and destination country.
- Intended clinical applications and specialized software reporting requirements.
- Language environment and keyboard annotation preferences (Chinese, English, Spanish).
- Destination market regulatory and tender documentation requirements.
Request a UMUS070 Trolley Ultrasound System Quote
Contact UMY Medical to discuss the UMUS070 system configuration, probe options, and export quotation for your medical facility.
Frequently Asked Questions
What clinical applications does the UMUS070 support?
The UMUS070 supports examinations in abdomen, gynecology, obstetrics, pediatrics, urology, transvaginal, superficial, and vascular applications.
How many probe ports does the UMUS070 have?
The system features 4 active probe interfaces that can be connected to all probes and interchanged freely.
Does the UMUS070 support DICOM connectivity?
Yes, it includes a standard DICOM 3.0 interface for direct connection to hospital PACS networks.
What probes are included in the standard configuration?
The standard configuration includes a 3.5MHz convex array probe, a 7.5MHz linear array probe, and a 6.5MHz cavity probe.
