Properties: Diagnosis & Injection

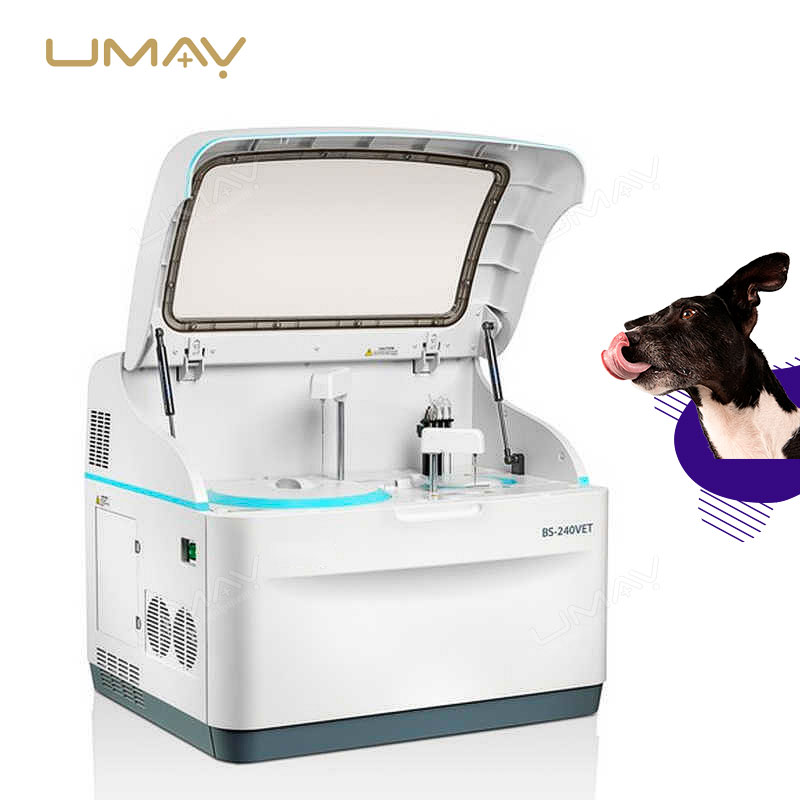

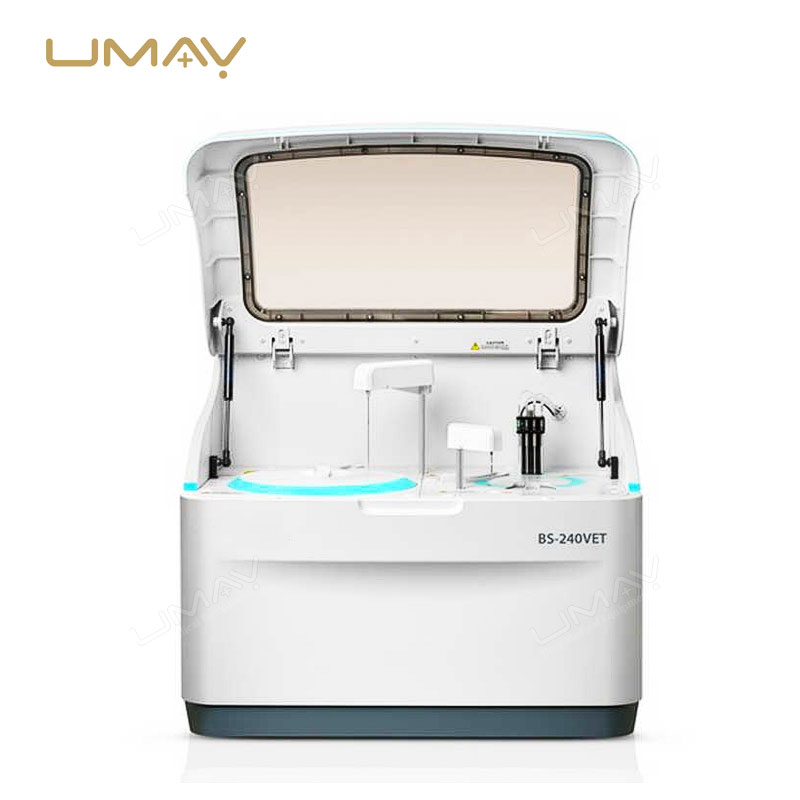

Product name: Veterinary Blood Biochemistry Analyzer
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| System Info | |
| System function | Automatic, Discrete, Random Access, Bench-top |
| STAT priority | Yes |
| Throughput | Up to 200 T/H, up to 400 T/H with ISE |
| Principles | Absorbance photometry, Turbidimetry, Ion Selective Electrode technology |
| Methodology | End-point, Fixed-time, Kinetic, optional ISE, Single/Dual reagent chemistries, Monochromatic/Bichromatic |
| Reagent/Sample Handling | |
| Tray | 80 reagent positions and 40 sample positions in refrigerated (2–12°C) compartment |
| Reagent volume | 10–250µl, step by 0.5µl |
| Sample volume | 2–45µl, step by 0.1µl |
| Probe | Liquid level detection, vertical collision protection, inventory checking, and reagent pre-warming |
| Probe cleaning | Interior and exterior automatic probe washing |
| Sample dilution | Automatic pre-dilution and post-dilution |
| Optical System | |
| Light Source | Halogen-tungsten lamp |
| Wavelength | 8 wavelengths: 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm, 670nm |
| Absorption range | 0–4.0 Abs (10mm conversion), resolution 0.0001Abs |
| Stray Light | 5.6Abs |
| Control and Calibration | |
| Calibration modes | Linear (one point, two points and multi-points), Logit-Log 4P, Logit-Log 5P, Spline, Exponential, Polynomial, and Parabola |
| Control rules | X-R, L-J, Westgard multi-rule, Cumulative sum check, twin plot |
| Operation Unit | |
| Operation system | Windows 8 and Windows 10 |
| Interface | RS-232 |
| Working Conditions | |
| Power supply | 200~240V, 50/60Hz, ≤1000VA or 100~130V, 60Hz, ≤1000VA |
| Dimension | 690 mm (L) × 580 mm (D) × 595 mm (H) |
| Weight | 79 kg |
| Alarm | |
| Alarm types | Audible and visual alarm |
| Levels | 2 levels (High: Occlusion/ Air in line/ Door opened/ VTI Done/ KVO Finished/ Battery Empty/ System Error/ Drop error/ Empty bottle) |
| Reminder | 1–5 minutes selectable, ON/OFF switchable |
| Battery | |
| Operating time | ≥ 4.5 hours at 25ml/h |
| Charging time | ≤ 5 hours to full capacity |
| Power supply | 100~240 V~, frequency 50/60 Hz, current 0.3–0.13A |
Product Details
- High-capacity automated sample handling for efficient laboratory workflows
- Precision-engineered rotating tray ensures accurate and stable tube positioning
- Supports continuous batch processing to improve testing efficiency
- Compatible with multiple sample tube sizes for flexible operation
- Intelligent loading system minimizes manual intervention and reduces errors
- Smooth and low-noise operation suitable for modern laboratory environments
- Durable construction designed for long-term, high-frequency use
- Ideal for clinical laboratories, diagnostic centers, and research facilities requiring reliable automated sample management
- High-Capacity Automated Sample Processing: Designed with a large-volume rotary sample tray, this system enables continuous loading and handling of numerous sample tubes simultaneously, significantly improving laboratory efficiency and reducing turnaround time.
- Precision Rotating Mechanism: Equipped with an advanced precision-engineered circular rotor that ensures accurate tube positioning and smooth movement during operation, helping maintain reliable and consistent analytical performance.
- Efficient Workflow Optimization: The automated loading and transfer system minimizes manual handling, streamlines laboratory procedures, and supports high-throughput diagnostic testing in busy clinical environments.
- Wide Tube Compatibility: Compatible with multiple sample tube sizes and configurations, allowing flexible integration into different laboratory testing requirements and workflows.
- Stable and Reliable Operation: Built with high-quality internal components to provide stable sample transportation, reduced vibration, and dependable long-term performance even during continuous operation.
- User-Friendly Automated Design: The intelligent sample arrangement structure simplifies operation, reduces technician workload, and helps minimize the risk of human error during sample preparation and processing.
- Low-Noise Performance: Engineered for smooth and quiet operation, creating a more comfortable and professional laboratory working environment.
- Durable Construction for Long-Term Use: Manufactured with robust materials and precision components to withstand intensive daily laboratory use while maintaining operational accuracy and reliability.
- Enhanced Laboratory Productivity: Ideal for hospitals, diagnostic laboratories, research institutes, and medical testing centers requiring efficient automated sample management and high-volume processing capabilities.

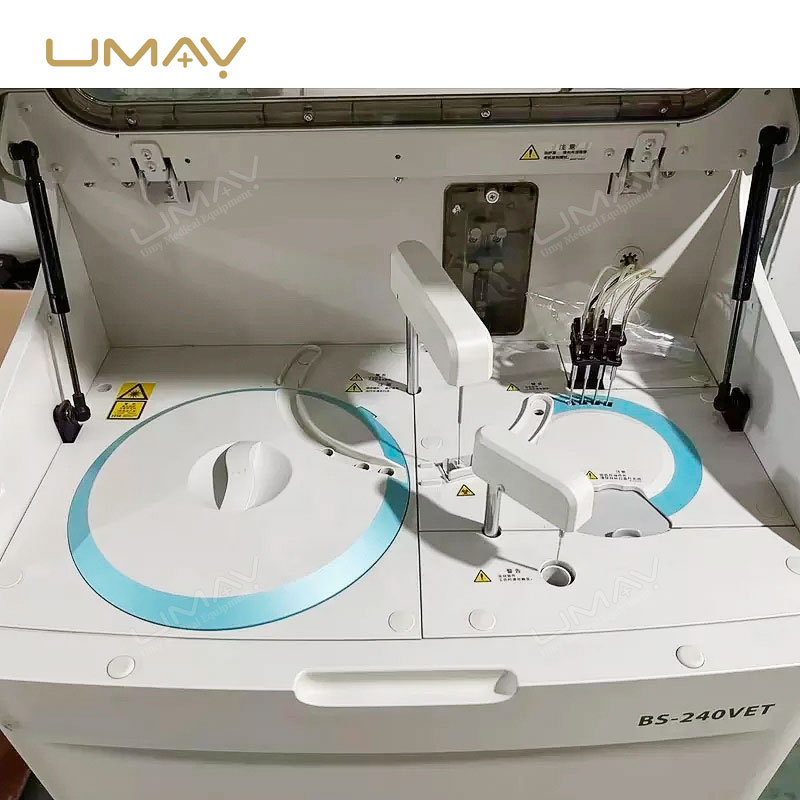

- Advanced Automated Sampling System: Designed with a high-precision robotic sampling arm, this system enables accurate and efficient sample handling, improving laboratory automation and reducing manual intervention.
- Precision Needle Positioning: Equipped with intelligent positioning technology to ensure stable and accurate sample aspiration, helping maintain reliable testing performance and minimizing sampling errors.
- High-Efficiency Workflow Integration: The automated movement system supports fast and continuous sample processing, optimizing laboratory productivity and increasing testing throughput for busy diagnostic environments.
- Smooth and Stable Operation: Built with precision mechanical components that provide smooth arm movement and consistent operation, ensuring dependable performance during long-term use.
- User-Friendly Automated Design: The intuitive structure simplifies daily operation and maintenance, allowing laboratory personnel to manage testing procedures more efficiently and with less training time.
- Enhanced Sample Safety: The enclosed operational design helps reduce contamination risks while protecting sample integrity throughout the testing process.
- Durable and Reliable Construction: Manufactured with high-quality materials and advanced engineering to ensure long-lasting durability and stable performance in demanding laboratory conditions.
- Low-Noise Performance: Optimized mechanical design minimizes operational noise, creating a quieter and more comfortable laboratory working environment.
- Ideal for Modern Diagnostic Laboratories: Suitable for hospitals, research institutes, clinical laboratories, and diagnostic centers requiring accurate automated sample handling and efficient laboratory workflow management.
