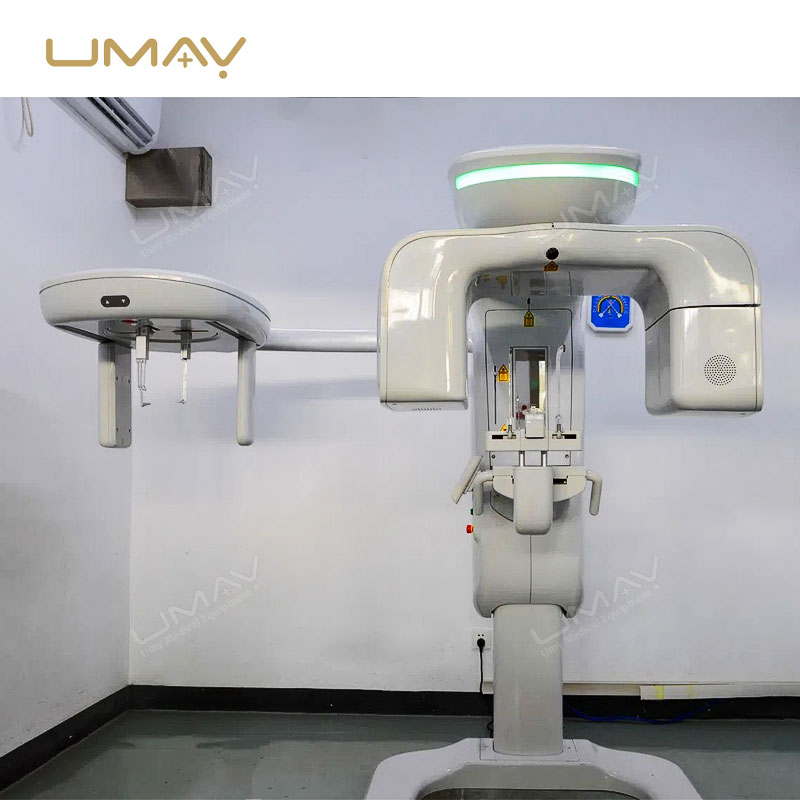

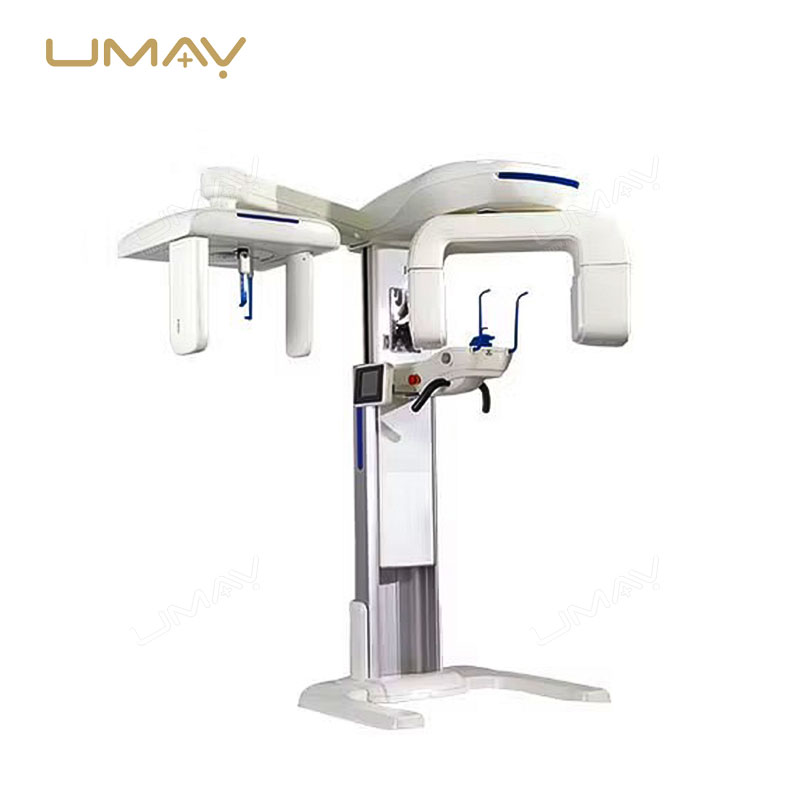

CBCT 3D Pro Series Dental CBCT 3D Imaging System for Advanced Clinical Dentistry
The CBCT 3D Pro Series Dental CBCT 3D Imaging System is engineered to deliver unmatched efficiency, precision, and reliability across all dental and maxillofacial clinical applications. Available in multiple configurations—Smart, Wise, Honor, and Dream—the series offers diverse Field of View (FOV) options ranging from 3.4 x 3.4 cm up to 17 x 11 cm to accommodate every diagnostic requirement.
Equipped with cutting-edge AI solutions, 5-point patient positioning, oil-cooling X-ray sources for continuous shooting, and 360-degree full-circle scanning, the system significantly reduces motion artifacts and noise while ensuring superior image quality.

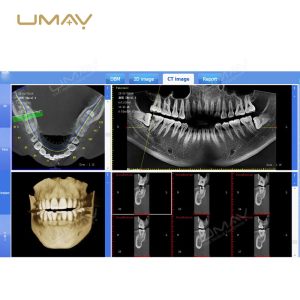

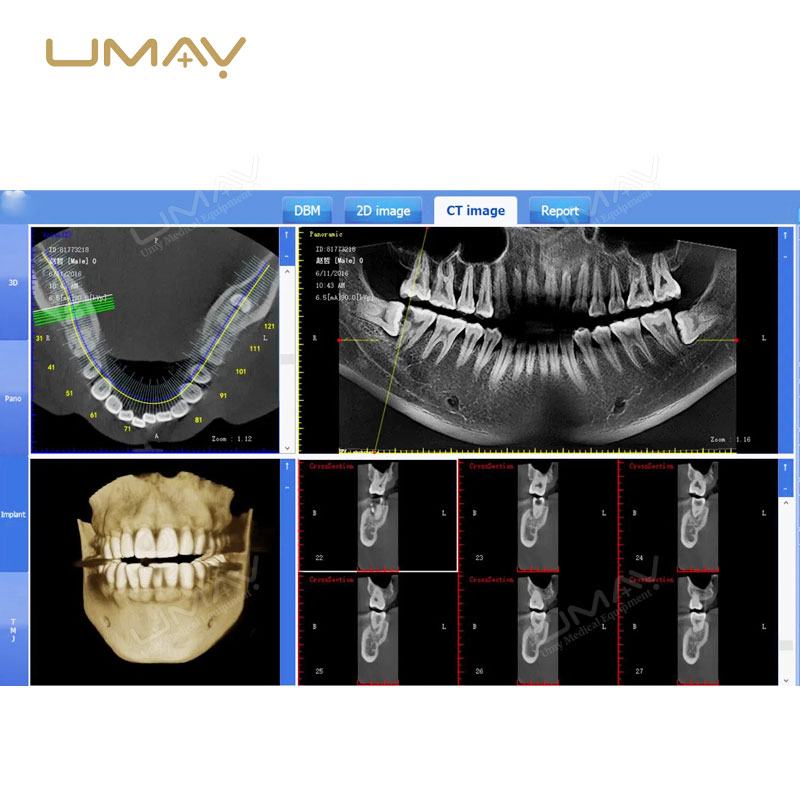

Powered by the intelligent MyDentViewer 3D software, the system streamlines complex workflows such as automated nerve tube annotation, root canal detection, airway analysis, and implant simulation, elevating patient care and diagnostic confidence.
Key Features
Multiple FOV Configurations
Offers tailored field-of-view options including Smart (12 x 8 cm), Wise (12 x 10 cm), Honor (15 x 10.5 cm), and Dream (17 x 11 cm) to meet diverse clinical needs.
Cutting-Edge AI Imaging Technology
Features next-generation PD (Pure Detail) imaging, A.I. Noise Reduction (ANR), and A.I. Artefact Reduction (AAR) to eliminate metal crown/implant scattering and preserve true anatomical texture.

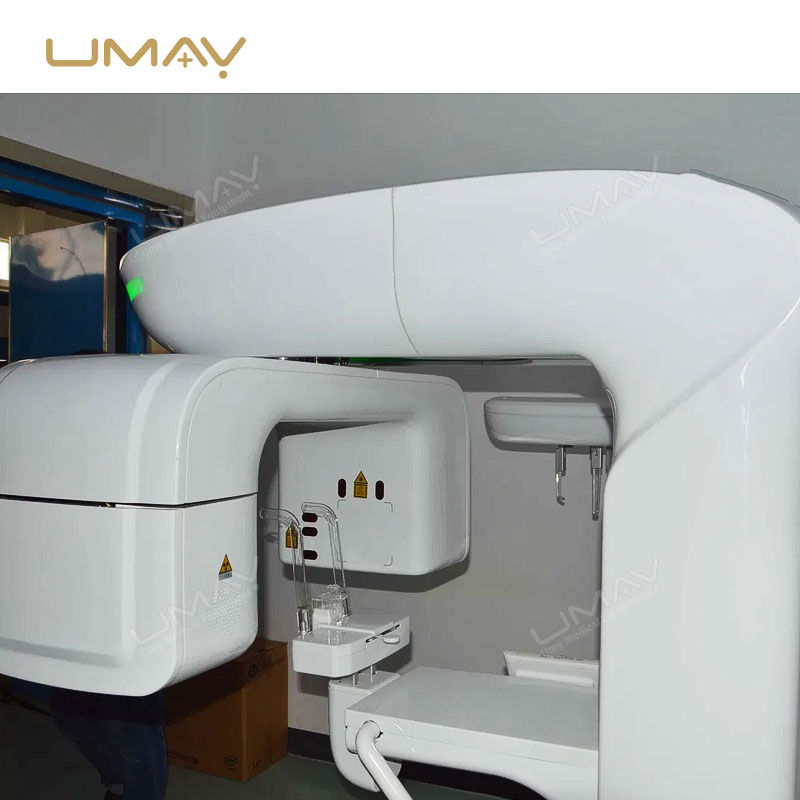

5-Point Patient Positioning
Easy setup with secure patient positioning and countdown features to minimize motion artifacts during scanning.
X-Ray Source Oil Cooling
Advanced oil-cooling technology supports continuous daily shooting without interruptions, ensuring an efficient clinical routine.
360-Degree Full-Circle Scanning
Significantly reduces image artifacts and noise, delivering the highest possible image clarity and diagnostic reliability.
Wheelchair Accessible Design
Ergonomic open structure supports standing and seated positioning with flexible adaptation for patients with reduced mobility.
Advanced Imaging and Endo Performance
The CBCT 3D Pro Series incorporates dedicated high-resolution modes and AI-driven panorama post-processing algorithms for specialized dental workflows.

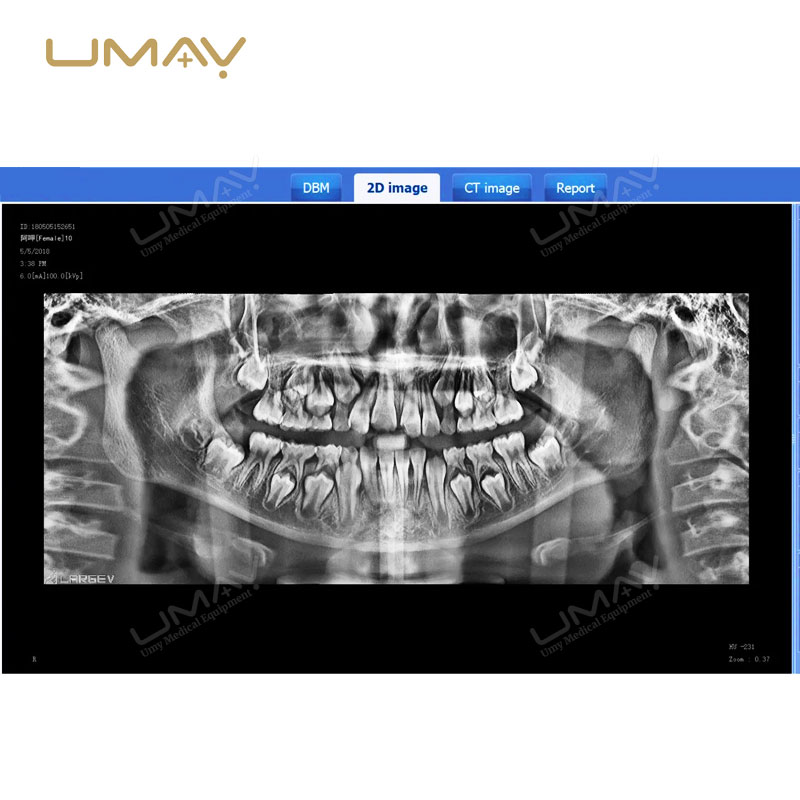

AI Multi-Layer Panoramic Scan
Utilizes multi-layer slice imaging with Auto Focus AI to select optimal regions, perform image fusion, and automatically match three selectable dental arch forms.
Ultra-High Resolution Endo Mode
Provides ultra-high resolution imaging at 70 um (FOV 3.4 x 3.4 cm) combined with 360-degree full scanning for precise endodontic and root canal evaluations.
High-Precision Cephalometric Imaging
Dual-level collimation adjustment significantly reduces radiation dose while delivering high-grayscale, high-resolution cephalometric images for orthodontics and maxillofacial surgeries.
Integrated Model Scan Function
Enables easy conversion of traditional plaster or silicone dental models into digital models using a specialized model tray.
Technical Specifications
| System Specification | CBCT 3D Pro Series Parameters |
|---|---|
| Product Models | Smart CBCT, Wise CBCT, Honor CBCT, Dream CBCT |
| Available FOVs | Smart (12 x 8 cm), Wise (12 x 10 cm), Honor (15 x 10.5 cm), Dream (17 x 11 cm), Endo (3.4 x 3.4 cm) |
| 3D Voxel Resolution | From 70 um to 420 um (Model dependent) |
| Scan Time (Exposure) | CBCT: 20s (8.75s exposure) | PANO: 17s | CEPH: 12s | ENDO: 12s |
| Reconstruction Time | Less than 60 seconds |
| X-Ray Tube Focal Spot | 0.5 mm (IEC 60336) |
| Tube Voltage & Current | Voltage: 60-90 kV (1 kV adjustable) | Current: 2-10 mA (1 mA adjustable) |
| Gray Scale | 16-bit (65,536 Gray levels) |
| System Weight | Without Ceph: 220 kg (485 lbs) | With Ceph: 260 kg (573 lbs) |
| Power Supply | Voltage: 200-240V / 90-110V, Frequency: 50/60 Hz |
- Specifications are based on the official CBCT 3D Pro series technical documentation and datasheets.
- Standard and optional configurations (such as Cephalometric arm or dedicated 3D software modules) should be verified prior to ordering.
Applications
Dental Implantology
Provides precise 3D bone density analysis, implant simulation, automated nerve tube marking, and collision detection.
Endodontics
Delivers 70 um ultra-high resolution scans for accurate root canal morphology evaluation and periapical pathology diagnosis.
Orthodontics & Maxillofacial Surgery
Features AI-driven cephalometric analysis, airway volume assessment, and 3D face-jaw registration for comprehensive surgical planning.
General Dental Diagnostics
Supports multi-implant postoperative review, tooth fracture screening, complex wisdom tooth evaluation, and pediatric dentistry.
System Configuration
The CBCT 3D Pro Series is supplied with advanced MyDentViewer AI-powered 3D imaging software as standard, supporting automated annotations and instant 2D/3D multi-planar reconstructions.
Please confirm your required model version (Smart, Wise, Honor, or Dream), cephalometric attachment option, and local regulatory requirements before placing an order.
Before Ordering
- Required order quantity and destination country.
- Preferred model configuration (Smart, Wise, Honor, or Dream) and FOV requirements.
- Inclusion of Cephalometric imaging arm and model scanning accessories.
- Local electrical supply standards and clinic spatial layout specifications.
Discover more options in our Dental Equipment range.
Request a CBCT 3D Pro Series Quote
Contact UMY Medical to discuss the CBCT 3D Pro system configurations, software modules, shipping details, and export quotation for your dental practice or hospital.
Frequently Asked Questions
What are the differences between the Smart, Wise, Honor, and Dream models?
The primary difference lies in
