Designed for ease of use and efficiency, this compact digital X-ray machine delivers exceptional imaging results with minimal radiation exposure. Its sleek, portable design allows for versatile use in both human and veterinary applications, from field operations to hospital diagnostics. The 17 x 17-inch digital flat-panel detector ensures high-quality imaging, and optional features like exposure handbrake and adjustable support bracket further enhance its functionality. Discover our full range of digital X-ray solutions.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 900W |
| kV | 40–90kV |
| mA | 1–10mA |
| X-ray Exposure Time | 0.1–2s |
| Cooling Time | Sixty times the exposure time |
| Focus Size | 0.8mm |
| Anode Heat Capacity | 7000J |
| Total Filtering | 1.8mm Al |
| Power Supply Method | Battery |
| Remote Exposure Interface | RJ11 |
| Image Processing | Optional |
| Environmental Specifications | |
| Working Environment Temperature | -10°C to +40°C |
| Physical Specifications | |
| Size | 225mm × 155mm × 263mm |
| Weight | 3.8kg |
Product Details
- Compact and Portable Design: Lightweight and space-saving structure allows convenient transportation and flexible use in hospitals, clinics, mobile healthcare services, and field diagnostic environments.
- High-Efficiency Imaging Performance: Advanced imaging technology supports fast image acquisition with reduced exposure time, improving examination efficiency and patient workflow management.
- Optional Functional Accessories: Available with optional exposure handbrake and adjustable support bracket to enhance operational flexibility and support different clinical imaging requirements.
- Integrated Intelligent Computer System: Built-in advanced computer control system enables seamless operation, efficient image processing, and smooth workflow integration for medical professionals.
- Suitable for Human and Veterinary Applications: Designed for versatile use in both human healthcare and veterinary diagnostic imaging, supporting a wide range of clinical examination needs.
- High-Resolution Digital Flat-Panel Detector: Equipped with a digital flat-panel detector that delivers clear, detailed, and high-quality diagnostic images for accurate clinical evaluation.
- Ideal for Rural and Remote Healthcare: Designed for reliable imaging performance in rural areas, community healthcare centers, and remote medical environments with limited infrastructure.
- Suitable for Field Clinic Applications: Compact and portable structure makes the system highly effective for field clinics, emergency medical services, and mobile diagnostic operations.
- Reliable Hospital Imaging Solution: Supports daily diagnostic imaging needs in hospitals and healthcare facilities with stable performance and efficient workflow management.
- Versatile Human and Veterinary Diagnostics: Suitable for both medical and veterinary examinations, providing flexible imaging solutions for diverse clinical applications.
- High-Precision Diagnostic Performance: Advanced imaging technology delivers accurate and detailed diagnostic results to support confident clinical decision-making.
- Stable Operation in Diverse Environments: Engineered for dependable performance across various working conditions, ensuring consistent imaging quality in challenging and mobile healthcare settings.
- Portable Digital X-Ray Imaging System: Designed with a compact and lightweight structure for convenient mobile imaging applications in hospitals, clinics, rehabilitation centers, and field medical environments.

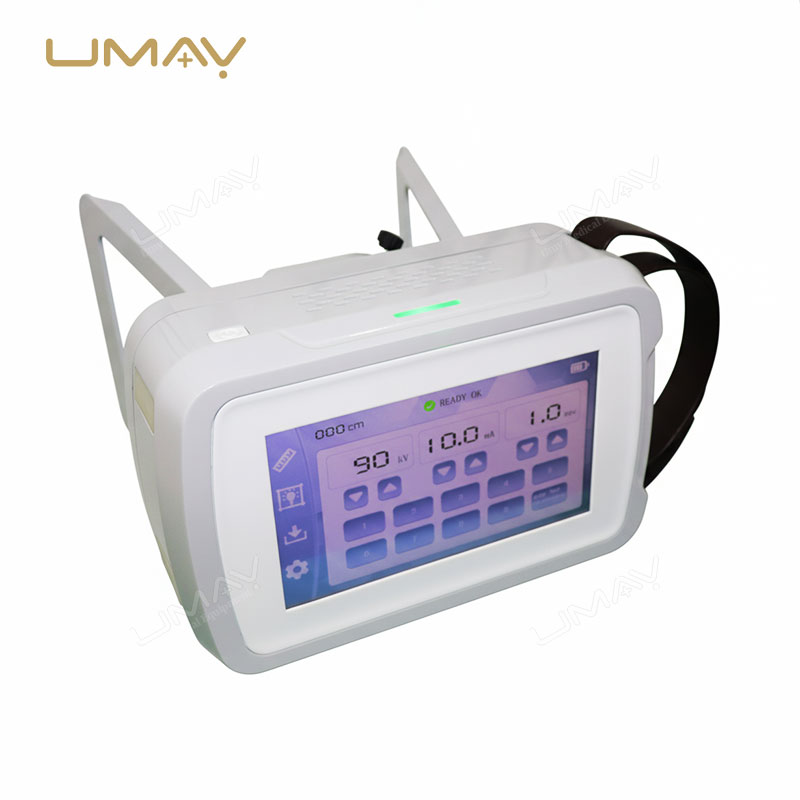

- User-Friendly Touchscreen Control Panel: Equipped with an intuitive digital display interface that allows fast parameter adjustment, simplified operation, and efficient workflow management during examinations.
- High-Precision Imaging Performance: Advanced X-ray technology delivers clear and detailed diagnostic images, supporting accurate clinical assessment and improved diagnostic confidence.
- Flexible Positioning and Easy Operation: Adjustable support structure and ergonomic design allow convenient positioning for different body areas and examination requirements.
- Efficient Low-Dose Imaging: Optimized imaging system helps reduce exposure time while maintaining excellent image quality for safer and more efficient diagnostic procedures.
- Suitable for Multiple Clinical Applications: Ideal for orthopedic examinations, rehabilitation assessment, outpatient diagnostics, veterinary imaging, and mobile healthcare services requiring portable and reliable X-ray solutions.

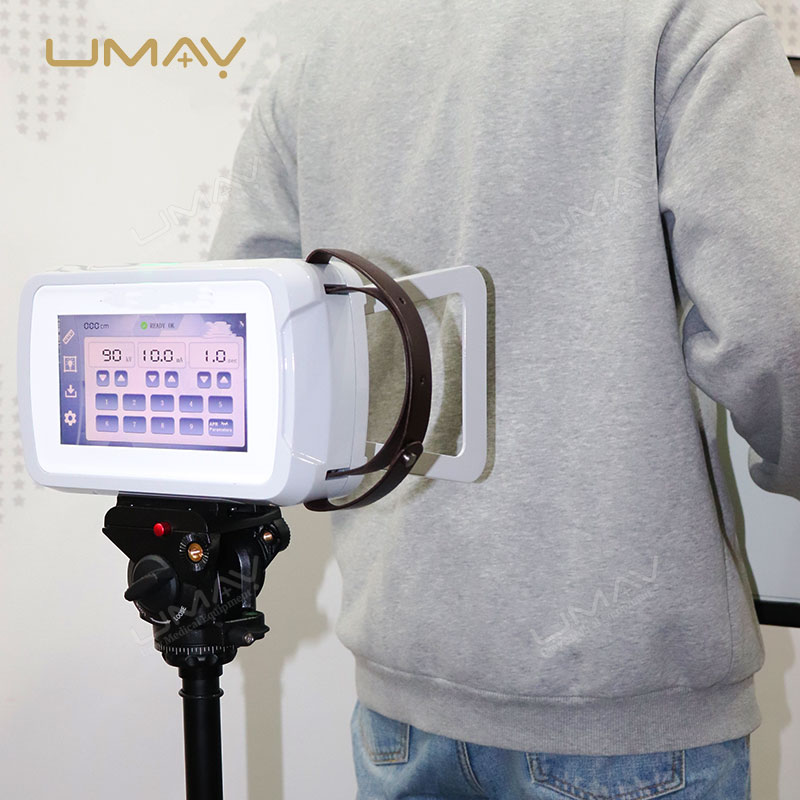

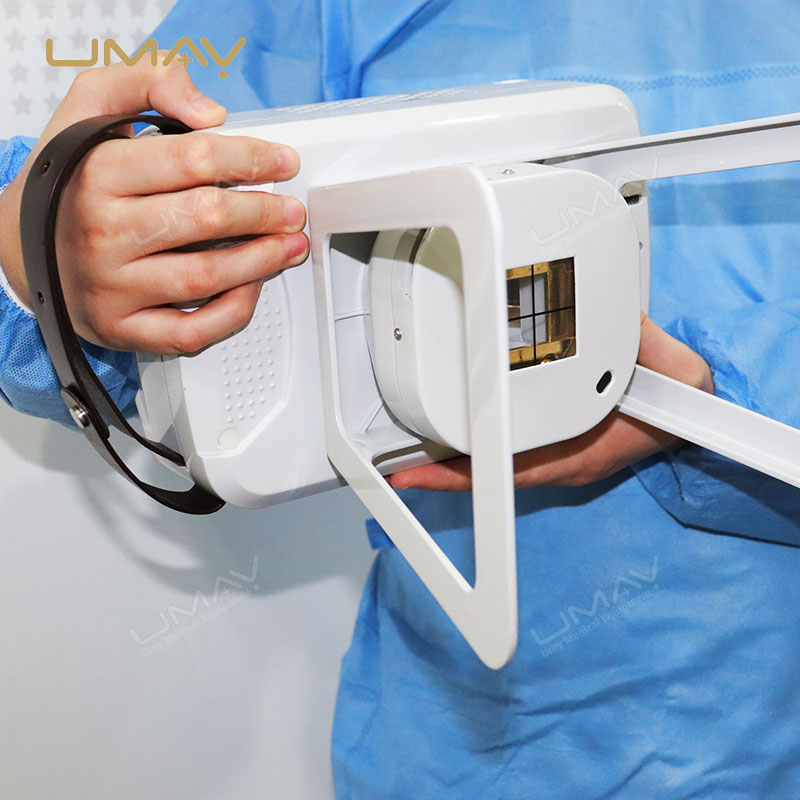

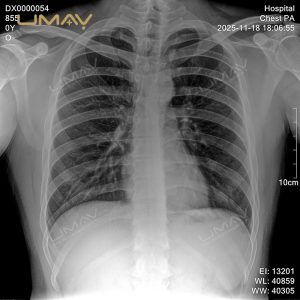

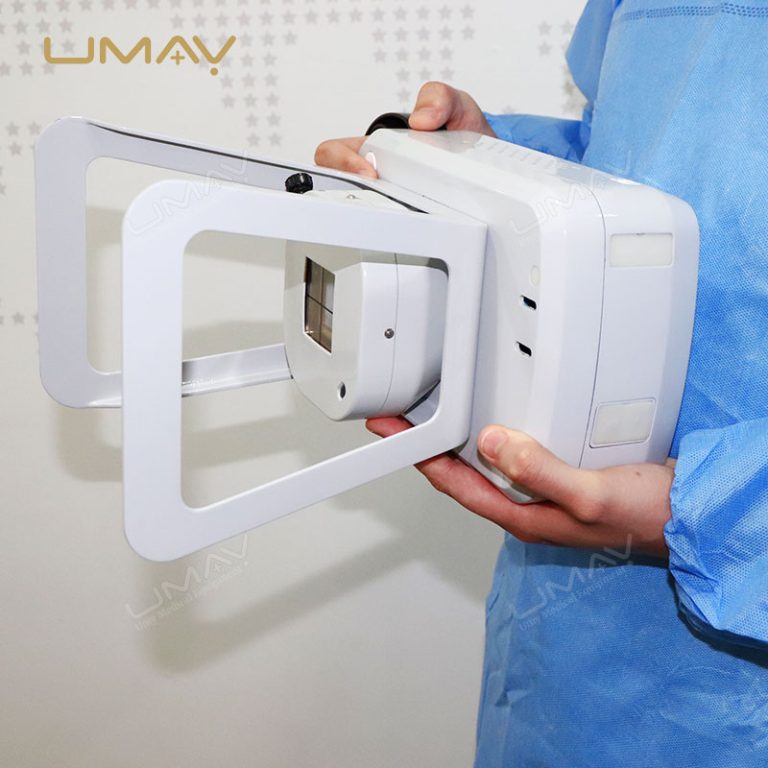

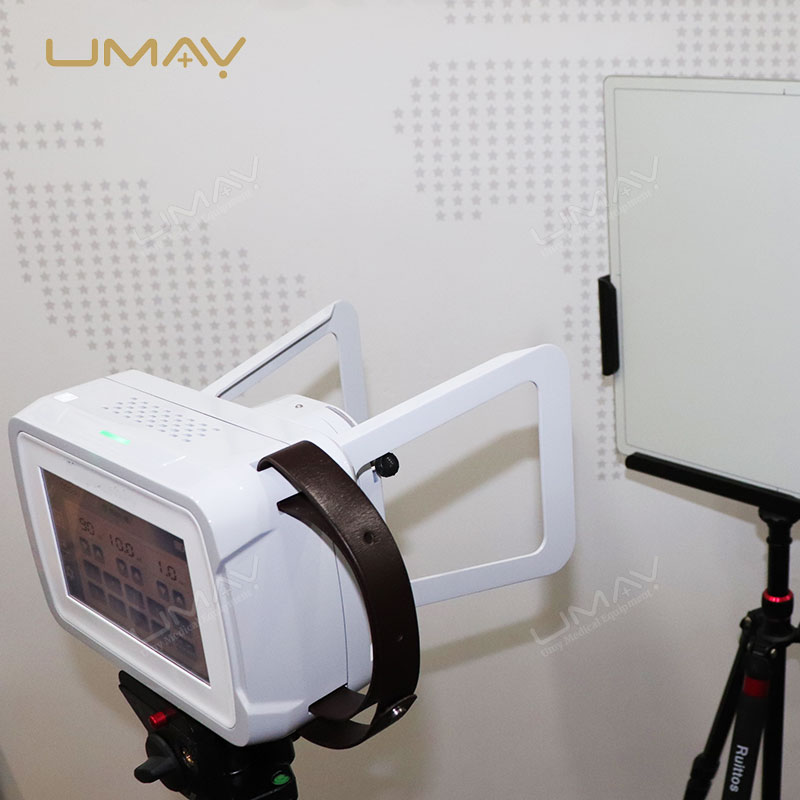

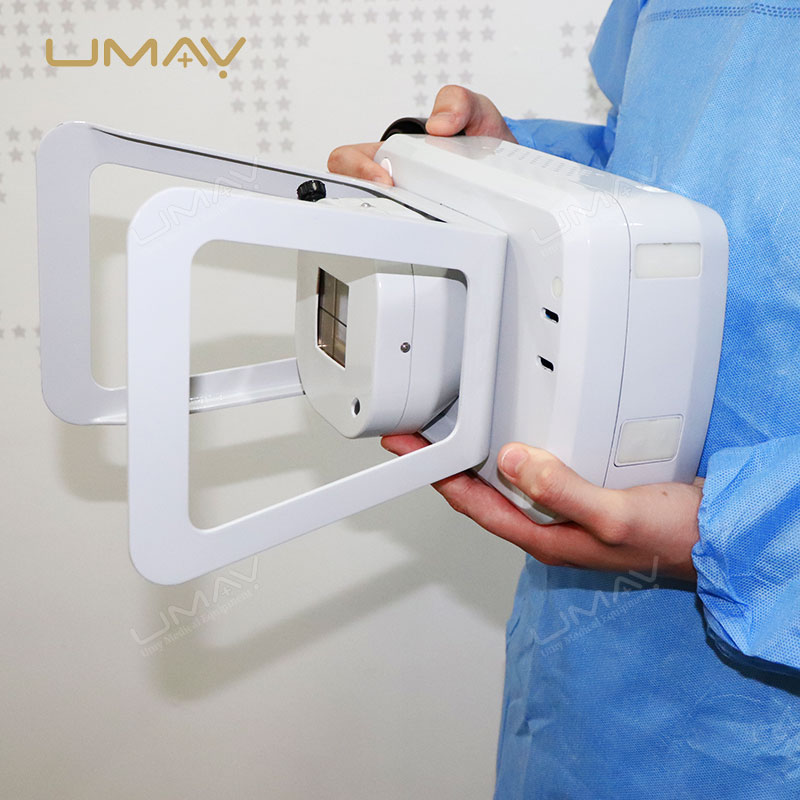

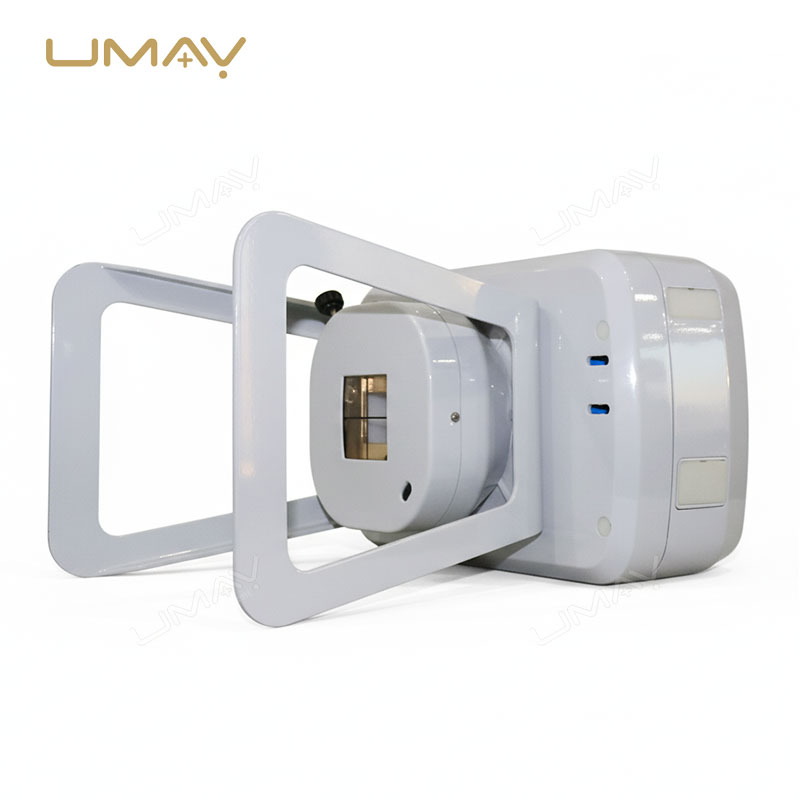

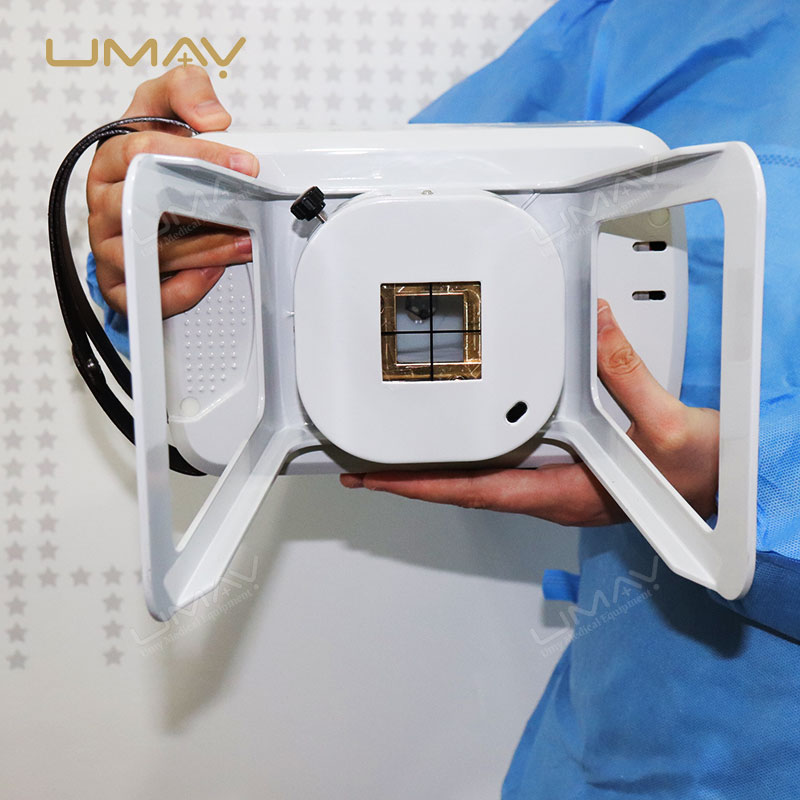

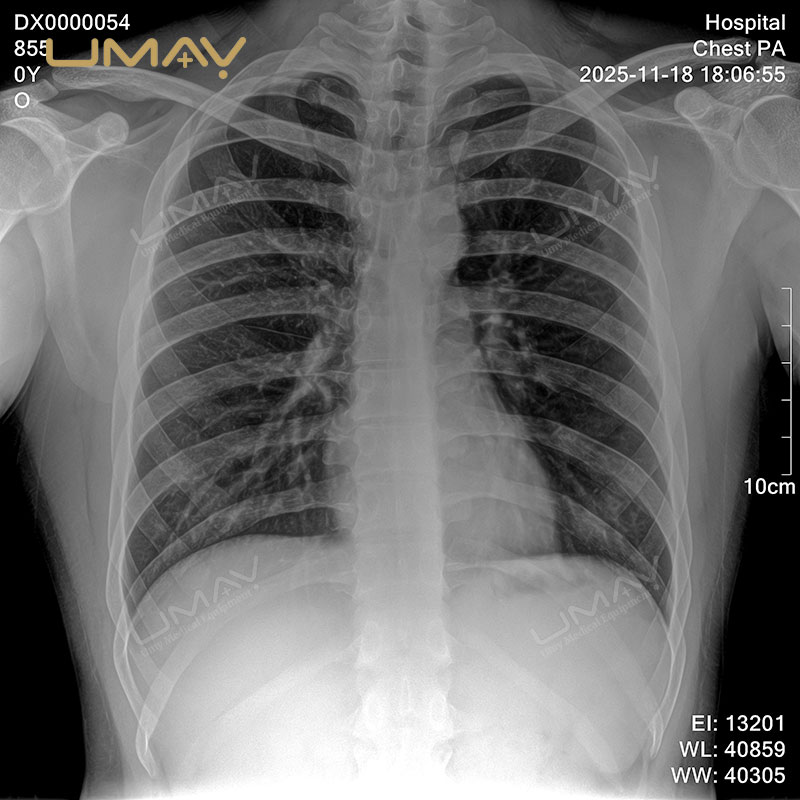

Detail Gallery
