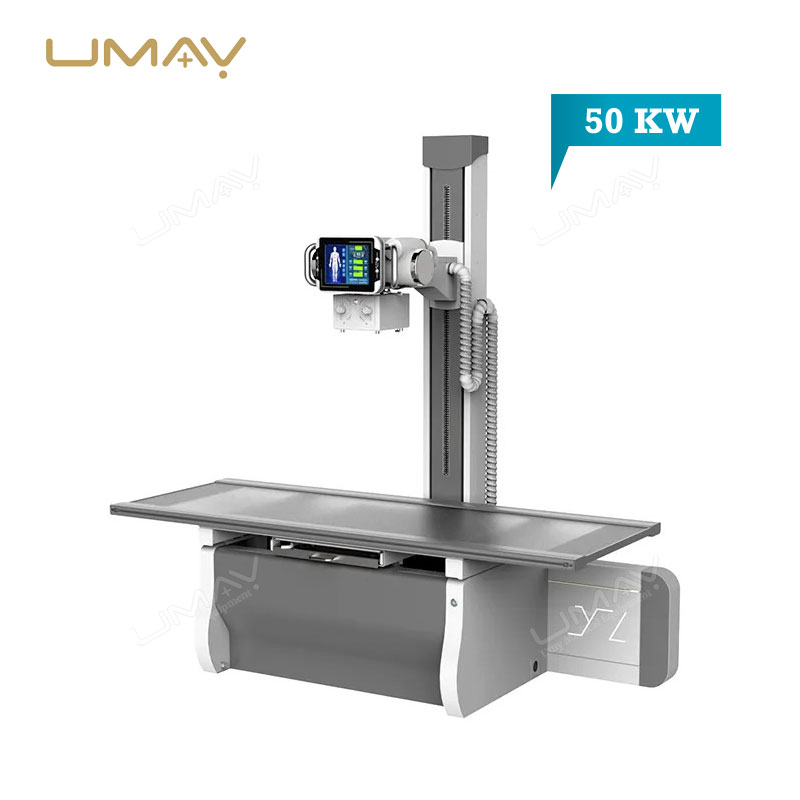

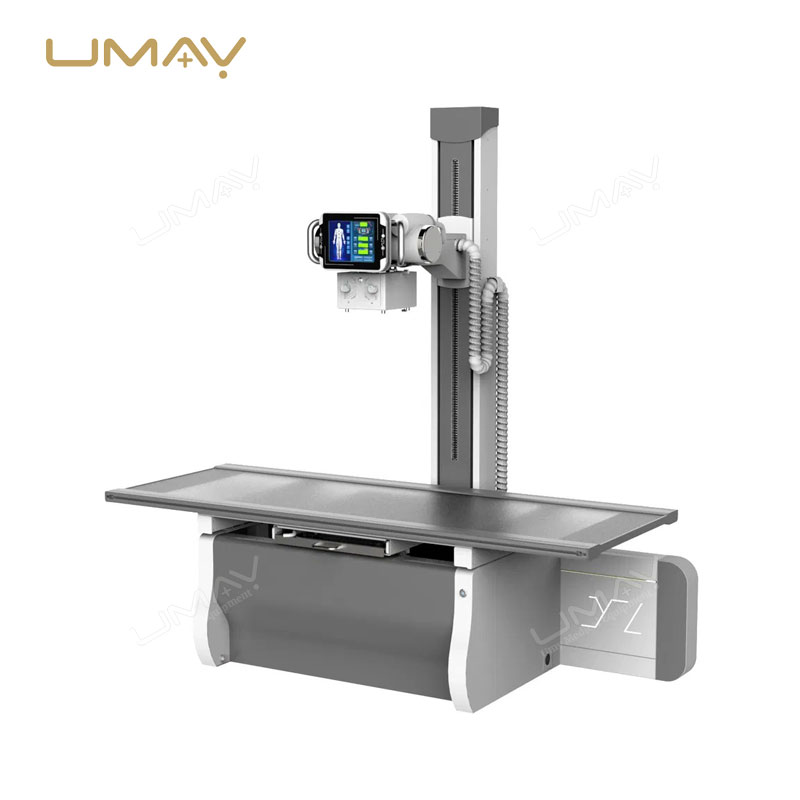

The 50kW Digital X-ray Radiography System with a Toshiba tube and flat panel detector offers high-quality imaging for a wide range of diagnostic applications. Its powerful 50kW output ensures precise, high-resolution images, ideal for detecting fractures, tumors, and other internal conditions. The advanced flat panel detector provides clear images with minimal radiation exposure, enhancing patient safety while maintaining diagnostic accuracy. The Toshiba tube ensures reliable performance and durability, making this system a trusted choice for medical facilities. Designed for efficiency, this system delivers fast, accurate results, supporting effective patient care and treatment planning.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 20kW 200mA; 50kW 500mA |
| Intermittent Mode | 100kV, 200mA, 20kW; 100kV, 500mA, 50kW |
| Power Voltage | Three-phase, five wires, 380V ± 38V |
| Tube Current | Radiography: 16mA~200mA; 16mA~630mA |
| Output Voltage | Radiography: 40-125KV, step 1kV |
| Resistance Power | < 0.5Ω |
| Output Power | 20kW; 50kW |
| Exposure Time | Radiography: 0.0025s ~ 6.4s adjustable |
| Nominal Frequency | ≥30kHz |
| Anode Speed | 2800r/min |
| Anode Heat Capacity | 140KHU |
| Focus | Small focus: 1.0mm; Large focus: 2.0mm |
| Bed Surface Dimensions (L*W*H) | 2100mm × 825mm × 650mm |
| Horizontal Moving Range | ≥250mm |
| Vertical Moving Range | ≥825mm |
| Grid Density | ≥40 lines/cm |
| Grid Ratio | 10:01 |
| Focus Distance | 100cm |
| Cassette Size | 5″x7″, 8″x10″, 10″x12″, 11″x14″, 14″x17″ |
| Transportation and Storage Conditions | |
| Ambient Temperature | -20°C ~ +70°C |
| Relative Humidity | 10% ~ 100% (including condensation) |
| Atmospheric Pressure | 50Kpa ~ 106Kpa |
| Main Technical Parameters | |
| Function | Radiography |
| X-ray Machine Maximum Output Power | Intermittent mode: 100kV, 200mA, 20kW |
| X-ray Machine Tube Current Range | 16mA ~ 200mA |
| X-ray Machine Tube Voltage Range | 40kV ~ 125kV |
| Exposure Time | 0.0025s ~ 6.4s |
| Nominal Working Frequency | ≥30kHz |
| Power Supply | Three-phase, five wires, 380V ± 38V |
| Main Configuration | |
| High Frequency High Voltage Generator | Includes control console |
| X-ray Tube Focus | Small focus: 1.0mm; Large focus: 2.0mm |
| Anode Thermal Capacity | 140KHU |
| Collimator Power Supply | AC 24V |
| Radiography Bed | Single phase 220V ± 22V, 50Hz ± 1Hz |
| X-ray Components Supporting Frame | Braking mode: Electromagnetic brake, Braking force: ≥98N |
| Button Operation Filter | N40, R10, 11, stationary type, size: 14″ x 17″ |
| Bed Size (L*W*H) | L2000mm × W760mm × H685mm |
| Vertical Moving Range | ≥825mm |
| Horizontal Moving Range | ≥250mm |
Product Details
- 50kW Digital X-Ray Radiography System: High-performance radiography solution designed for advanced medical diagnostic imaging applications.
- Powerful 50kW Output: Provides stable and efficient X-ray generation for high-resolution imaging and accurate clinical diagnosis.
- Toshiba X-Ray Tube Integration: Equipped with a reliable Toshiba tube known for durability, consistent performance, and long operational life.
- Advanced Flat Panel Detector: Delivers clear, sharp, and detailed digital images with excellent diagnostic precision.
- High-Resolution Imaging Quality: Ideal for detecting fractures, tumors, lung diseases, and various internal medical conditions.
- Low Radiation Exposure Design: Optimized imaging technology reduces patient radiation dose while maintaining superior image clarity.
- Fast Digital Image Acquisition: Enables rapid image capture and processing for improved workflow efficiency in busy clinical environments.
- Reliable Diagnostic Performance: Ensures stable imaging quality for accurate examination results and effective treatment planning.
- Versatile Clinical Applications: Suitable for chest, orthopedic, abdominal, trauma, and general radiographic examinations.
- User-Friendly Control System: Intuitive operating interface simplifies imaging procedures and enhances workflow management for healthcare professionals.
- Efficient Workflow Integration: Supports seamless digital radiography operation and improves patient throughput in hospitals and imaging centers.
- Excellent Soft Tissue and Bone Visualization: Provides enhanced anatomical detail for comprehensive diagnostic evaluation.
Detail Gallery
