Superior 14×17-Inch Wireless Cassette-Size Flat Panel Detector for Digital Radiography
The Mars 1417V is a smart, 14 x 17-inch wireless, cassette-sized flat panel detector (FPD) engineered for high-performance radiographic imaging. Built in accordance with ISO 4090 cassette standards, it easily fits into standard hospital bucky trays, making it an optimal choice for both analog-to-digital retrofitting and new DR system solutions.
Utilizing advanced direct deposition Cesium Iodide (CsI) scintillator technology and amorphous silicon (a-Si) sensors, the Mars 1417V provides enhanced image quality while reducing radiation dose. It features stable iSync+ Automatic Exposure Detection (AED), dependable dual-band wireless performance, and an extended battery life to support fast, efficient clinical workflows.
Key Features
Standard Cassette Size
Designed per ISO 4090 dimensions to easily fit into standard table and wall-stand bucky trays.
Direct Deposition CsI Technology
Equipped with CsI scintillator to deliver superior image quality and higher detective quantum efficiency (DQE) at a lower dose.
Stable iSync+ AED
Features reliable Automatic Exposure Detection (AED) for seamless integration with various X-ray generators without requiring physical cable triggering.
Dual-Band Wireless Support
Supports 2.4 GHz and 5 GHz (IEEE 802.11 a/b/g/n/ac) Wi-Fi for stable image transmission and easy sharing across rooms.
150 µm Pixel Pitch & 16-bit ADC
Features a 150 µm pixel pitch and 16-bit analog-to-digital conversion to capture rich anatomical details.
Long Battery Autonomy
Delivers up to 8 hours of battery operation to maintain continuous workflow in busy clinical environments.
Technical Specifications
| Specification | Mars 1417V Technical Data |
|---|---|
| Detector Technology | Amorphous Silicon (a-Si) |
| Scintillator | CsI (Cesium Iodide) |
| Active Area (inch) | 14 × 17 |
| Pixel Matrix | 2304 × 2800 |
| Pixel Pitch (µm) | 150 |
| Spatial Resolution (lp/mm) | 3.4 |
| AD Conversion (bit) | 16 |
| Battery Autonomy (h) | 8 |
| Wireless Standards | 2.4G and 5G, IEEE 802.11 a/b/g/n/ac |
| Trigger Mode | AED (Optional) / Software |
| Full Image Transmission Time (s) | 5 |

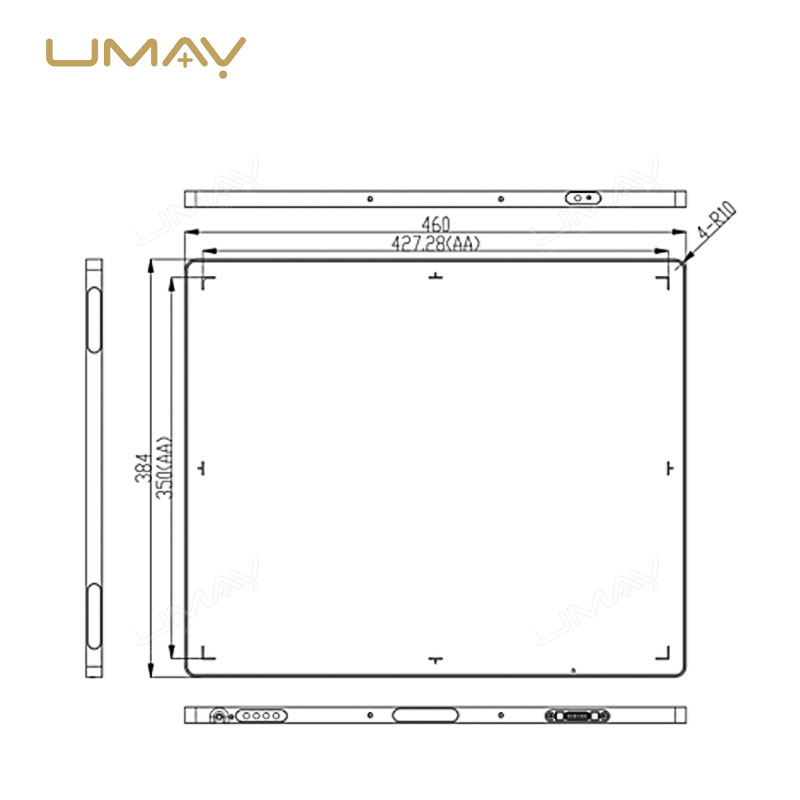

| Dimensions (mm³) | 384 × 460 × 15 |
| Weight (kg) | 3.3 |
| Static Load Resistance | 150 kg Uniformly Distributed |
| Ingress Protection | IPX1 |
| Operating Temperature (°C) | 5 – 35 |
| Storage & Transport Temperature (°C) | -20 – 55 |
| Operating Humidity (% RH) | 10 ~ 90 (Non-Condensing) |
- Specifications are based on the official technical documentation of the Mars 1417V detector.
- Verify network configurations and workstation software requirements prior to deployment.
Applications
General Digital Radiography (DR)
Ideal for routine chest, abdomen, skeletal, and trauma imaging examinations in hospital radiology departments.
Analog X-Ray Retrofitting
Provides a cost-effective upgrade path to transform existing film or CR systems into full digital workflows.
Point-of-Care & Mobile Imaging
Lightweight cassette design suits emergency rooms, ICU bedside radiography, and mobile medical vehicles.
Before Ordering
To ensure proper system compatibility and prepare an accurate export quotation, please provide:
- Required order quantity and destination country.
- Intended application: new DR system integration or analog room retrofit.
- Whether acquisition software, laptop/workstation, or spare batteries are required.
- Any local medical device regulatory or certification requirements.
Request a Mars 1417V Detector Quote
Contact UMY Medical to discuss wireless configurations, lead times, and export pricing for your digital imaging upgrade project.
Please include your required quantity and destination hospital details so our team can assist you promptly.
Frequently Asked Questions
What size is the Mars 1417V detector?
The Mars 1417V is a standard 14 x 17-inch cassette-sized flat panel detector built in compliance with ISO 4090.
Does the Mars 1417V support wireless connectivity?
Yes, it features dual-band Wi-Fi support (2.4 GHz and 5 GHz, IEEE 802.11 a/b/g/n/ac) for stable and flexible wireless image transmission.
What is AED and does this detector support it?
Yes, it features stable iSync+ Automatic Exposure Detection (AED), allowing the detector to automatically sense X-ray exposure without direct cable triggering from the generator.
