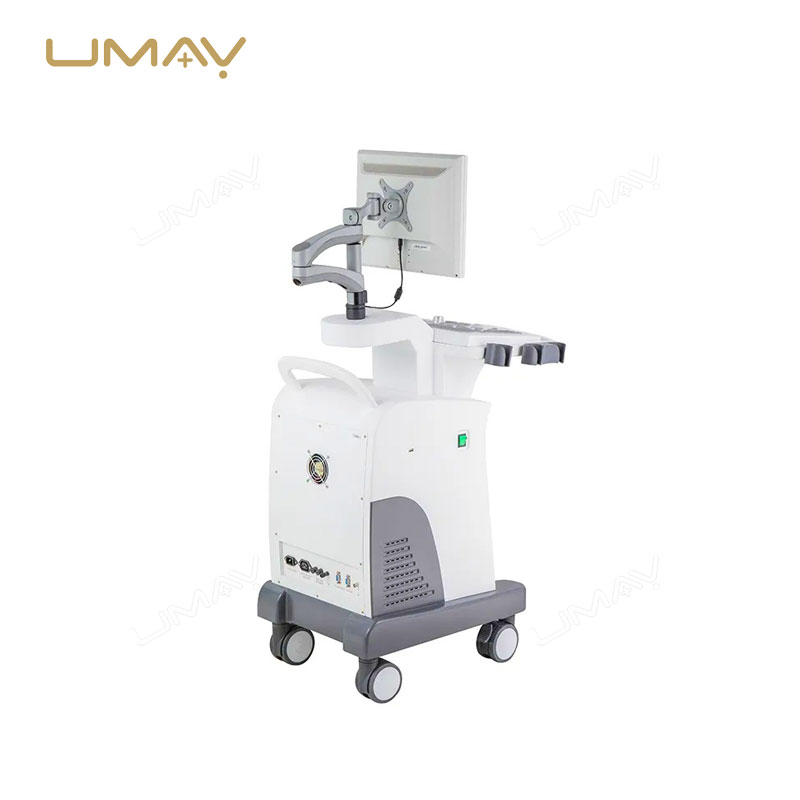

The Ultrasound Machine offers advanced diagnostic capabilities with traditional B/W ultrasound. With its convex probe, it delivers precise and high-resolution images for effective assessments in obstetrics, gynecology, and more. This machine is ideal for monitoring fetal development, detecting abnormalities, and providing real-time imaging during surgical procedures. It is an essential tool for early diagnosis of diseases such as ectopic pregnancy, fibroids, and various abdominal conditions. Enhance your diagnostic accuracy with a versatile system that adapts to multiple clinical needs.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Displaying Mode | B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, duplex, triplex, CFM, PW |
| Signal Processing | Full-digital beam forming, dynamic filter, dynamic real-time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
| Image Processing | |
| THI | Available |
| Storage | 16G |
| Power | Adjustable |
| Smoothing Function | Available |
| Edge Enhancement | Available |
| One-Key Optimization | Available |
| Image Conversion | Available |
| Wall Filter | Adjustable |
| Base Line | Adjustable |
| PRF | Adjustable |
| AIO | Auto Image Optimization |
| IZoom | Instant Full Screen Image |
| I-Image | Intelligent Optimization |
| MBF | Multi Beam Former |
| SA | Synthetic Aperture Ultrasonic Imaging |
| Iclear | Speckle Noise Reduction |
| CDF | Continuous Dynamic Focusing |
| General Measurement | Normal, MSK, ABD, OB, Pelvic, Urology, Cardiac, Small Parts, Vascular |
| Normal Measurement | Volume, V3L, STD_S, Area Trace, Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, Parallel Line, Mdist, MV, D HR, DA, D Trace |
| ABD Packages | Packages: ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate |
| OB Packages | Packages: Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI |
| Pelvic Packages | Packages: Uterus, Rt/Lt – Ovary, Rt/Lt-Follicle |
| Urology Packages | Packages: Rt/Lt – kidney measurement, Bladder, Prostate, Rt/Lt_Testicle |
| Small Parts | Packages: Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast |
| Vascular | Packages: Stenosis D, Senosis A, Intima, Arterial, Venous |
| Scanning Features | |
| Scanning Depth | ≥250mm |
| Probe Elements | 80 |
| Cine Loop | Automatically & Manually |
| Image Storage Format | BMP, JPEG, PNG, DICOM (Option) |
| MSK | Measurements: Distance, Area, Hip_Angle |
| Input/Output Ports | Ports: Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA |
| Standard Configuration | Components: Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe sockets, User’s Manual, hard disk (SSD) |
| Options | Options: 6.5Mhz Transvaginal Probe, Trolley, Printers, Biopsy Kit, Aluminum Case |
| Applicable Printers | Printers: EPSON-L130-Series, HP-LaserJet-1020, HP-LaserJet-P2035, SONY UP-D897, SONY UP-D898MD, SONY UP-X898MD |
