Wireless Probe Type Ultrasound Scanner for Cardiac and Abdominal Point-of-Care Imaging

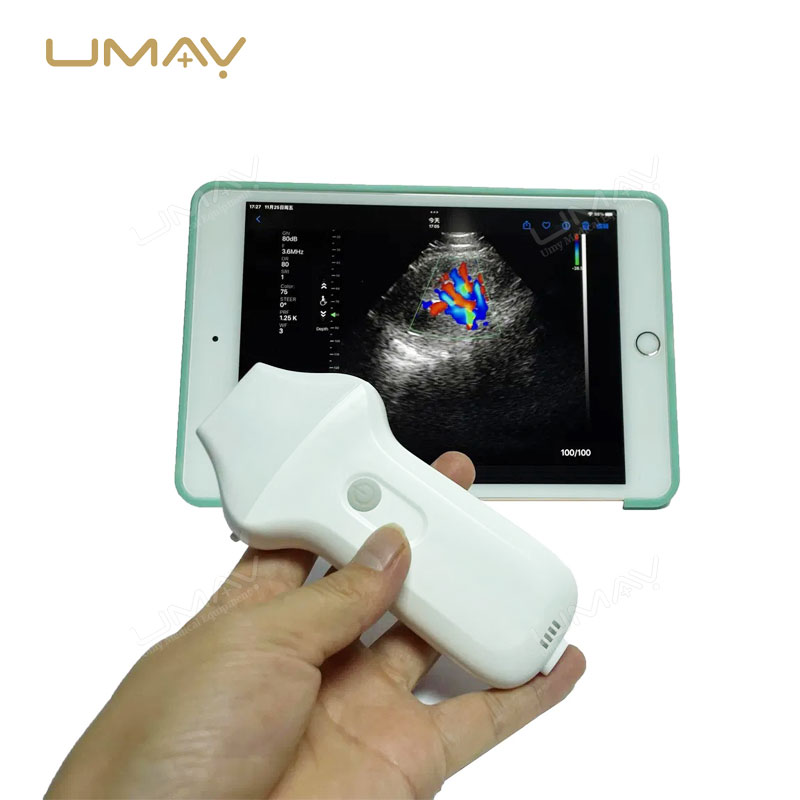

The UMUS049 Wireless Probe Type Ultrasound Scanner is a compact and versatile diagnostic imaging solution designed for point-of-care, bedside, emergency, and interventional clinical environments. By establishing a high-speed Wi-Fi connection with mobile phones, tablets, or PCs running Apple iOS, Android, or Windows operating systems, the system provides ultimate flexibility and cable-free operation.
Equipped with an advanced 128-element electronic array and 32 channels, the UMUS049 delivers high-definition imaging across multiple display modes, including B, B/M, Color Doppler, Power Doppler Imaging (PDI), and Pulse Wave (PW) Doppler.
Weighing only 120 grams, the scanner features integrated puncture assistance tools, automatic vessel measurement, wireless charging, and comprehensive measurement packages to streamline diagnostic workflows in cardiac, abdominal, and general point-of-care applications.
Key Features
Ultra-Lightweight & Compact

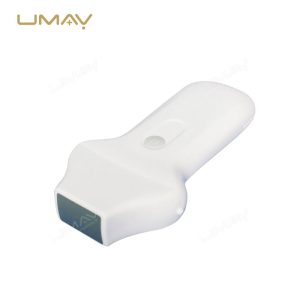

Weighing just 120g with dimensions of 135×40×25 mm, the probe offers unmatched portability for quick bedside and emergency examinations.
High-Resolution Electronic Array
Features a 128-element electronic array architecture with 32 channels and an 80° scan angle to capture detailed anatomical structures.
Comprehensive Display Modes

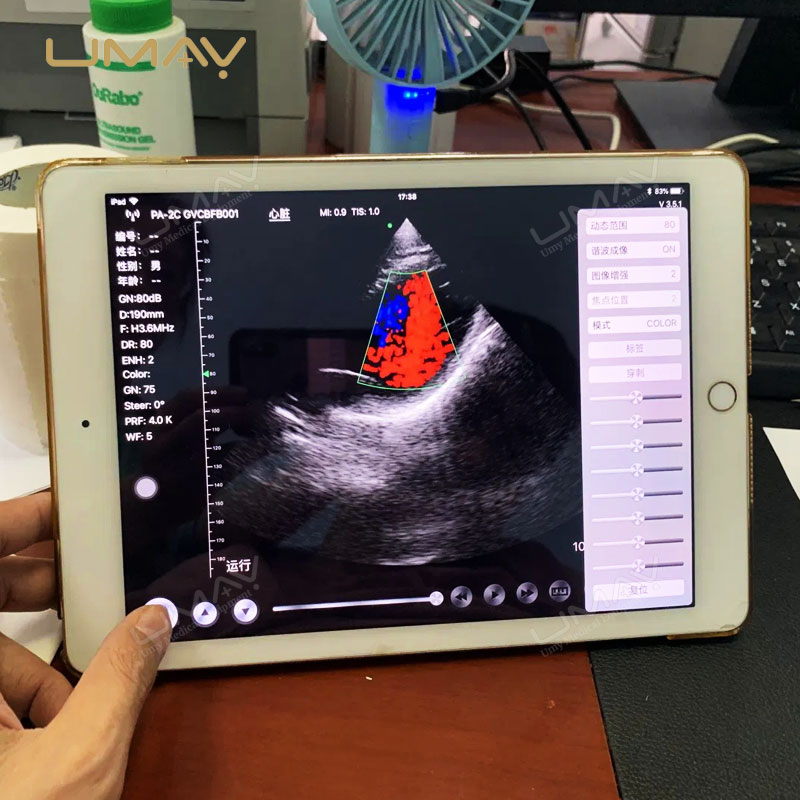

Supports versatile diagnostic imaging modes including B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulse Wave Doppler).
Multi-Platform Wireless Connectivity
Connects via 802.11g 20MHz/5G 450Mbps high-speed Wi-Fi to Apple iOS, Android, and Windows smart devices.
Dual Charging & Built-in Battery

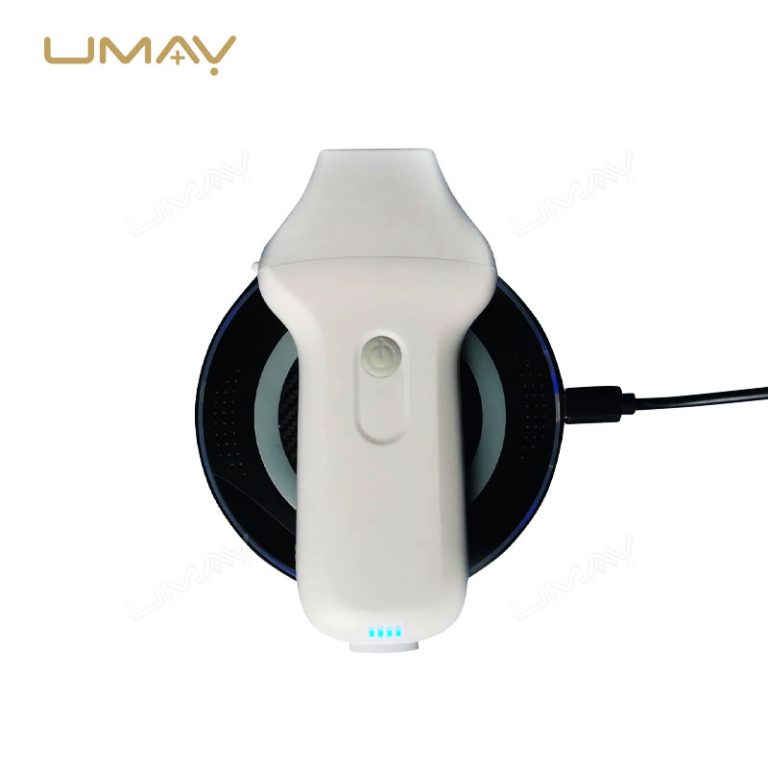

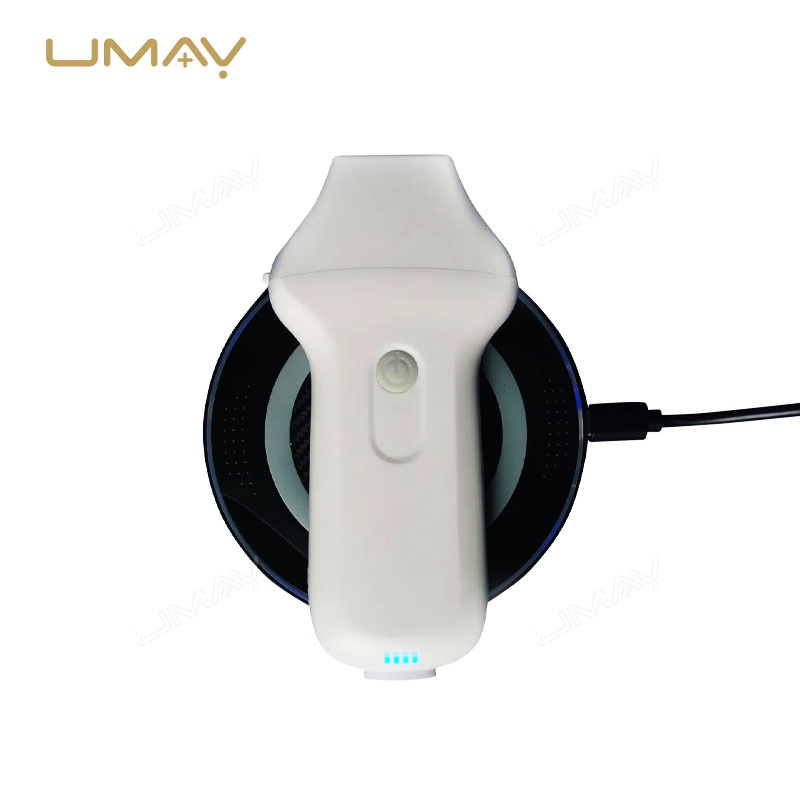

Equipped with a 1560mAh built-in battery supporting both Wireless Charging and USB charging for maximum field convenience.
Interventional Puncture Assistance
Includes in-plane puncture guide line, out-of-plane puncture guide line, and automatic blood vessel measurement capabilities.
Image Optimization and Measurement Capabilities
The UMUS049 provides a complete suite of image adjustment and measurement tools to assist clinicians in precise diagnosis and interventional guidance.
Flexible Image Adjustments
Allows real-time tuning of Gain (30dB–105dB), Dynamic Range (40 to 110), Focus, Depth (90–240mm), Harmonic imaging, Denoise, and Noise Reduction (0-1-2-3-4).
Diagnostic Measurement Tools
Built-in measurement functions include Length, Area, Angle, and specialized Obstetrics calculations.
Cineplay & Storage Management
Supports auto and manual cineplay with customizable frame playback (100 / 200 / 500 / 1000 frames), saving images and videos in JPG, PNG, MP4, and DCM formats.
Targeted Clinical Applications
Optimized presets specifically tailored for Cardiac and Abdominal ultrasound examinations.
Technical Specifications
| Specification | UMUS049 Details |
|---|---|
| Model | UMUS049 |
| Product Type | Wireless Probe Type Ultrasound Scanner |
| Scan Mode | Electronic Array |
| Elements / Channels | 128 Elements | 32 Channels |
| Frequency | 2.2 / 3.6 MHz |
| Display Depth | 90 – 240 mm |
| Scan Angle | 80° |
| Display Modes | B, B/M, Color, PDI, PW |
| Gain / Dynamic Range | Gain: 30dB–105dB | Dynamic Range: 40/50/60/70/80/90/100/110 |
| Built-in Battery | 1560 mAh (1 hour working time) |
| Charging Method | Wireless charging / USB charging |
| Wi-Fi Specification | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Apple iOS, Android, Windows |
| Image/Video Storage Format | JPG, PNG, MP4, DCM (DICOM) |
| Dimensions & Weight | 135 × 40 × 25 mm | Weight: 120g |
- Specifications are based on the supplied UMUS049 technical catalogue.
- The standard system includes the wireless probe unit, built-in rechargeable battery, charging cable, and user manual.
- Optional accessories such as tablet brackets, smart tablets, and mobile trolleys should be confirmed before ordering.
Applications
Cardiac Assessment
Provides rapid cardiac evaluation, structural screening, and blood flow monitoring at the patient’s bedside.
Abdominal Imaging
Supports clinical examination of abdominal organs, deep tissue structures, and fluid detection.
Emergency & ICU Triage
Enables rapid bedside assessment in critical care units, emergency rooms, and field emergency response.
Interventional Guidance
Assists in vascular access and interventional procedures with precise puncture guide lines and automatic vessel tracking.
System Configuration
The UMUS049 is supplied as an ultra-portable handheld probe system capable of wireless communication with personal smart devices.
Please confirm your required application setup, target smart platform (iOS, Android, or Windows), and any optional mounting brackets, display tablets, or mobile trolleys prior to placing an order.
Before Ordering
- Required quantity and destination country.
- Intended clinical focus (Cardiac, Abdomen, or General Point-of-Care).
- Preferred operating platform (iOS, Android, or Windows).
- Need for additional accessories such as display tablets, tablet brackets, or mobile trolleys.
- Destination market regulatory and tender documentation requirements.
Request a UMUS049 Wireless Ultrasound Scanner Quote
Contact UMY Medical to discuss the UMUS049 configuration, software capabilities, optional accessories, and export quotation for your facility.
Frequently Asked Questions
Which imaging display modes does the UMUS049 support?
The UMUS049 supports B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulse Wave Doppler) imaging modes.
What are the primary clinical applications for this model?
This scanner is primarily designed for Cardiac and Abdominal ultrasound examinations as well as interventional guidance.
How is the UMUS049 charged?
The scanner features a 1560mAh built-in battery that can be charged via wireless charging or a USB cable.
What file formats are supported for image and video storage?
The scanner supports storing images and videos in JPG, PNG, MP4, and DCM (DICOM) formats.
