Video Laryngoscope with Reusable Blade and 4-Inch Touch Screen for Pet Airway Management
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-VEEN-023
- Warranty: 1 Year
- Origin: China
This portable veterinary video laryngoscope combines a user-friendly touch screen with high-resolution imaging for secure intubation in pets of various sizes. Its reusable blade design reduces long-term operational costs while maintaining excellent visualization of the airway. Ideal for emergency or routine intubations, this device enhances airway access during anesthesia or critical care in veterinary settings. A related option with broader imaging utility can be found in our veterinary medical video endoscope camera set designed for full visual diagnostics. This laryngoscope is engineered for reliability and mobility in veterinary clinics and field operations.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Machine | |
| Display | 3.2″ Touchscreen, 4.5″ Touchscreen |
| Resolution Ratio | 800*480, 854*480 |
| Viewing Angle | ≥60°, ≥60° |
| Power | <2W |
| Display Rotation Angle | 0°~150°, 0°~270° (vertical, horizontal) |
| Weight | 150g, 232g |
| Camera | |
| Illuminance | ≥1000 LUX, ≥1000 LUX |
| Resolution Ratio | 800*480 px, 1280*720 px |
| Image / Video Function | |
| Image / Video Function | Yes, Yes |
| Output | Type C output |
| Memory Type | Micro SD card 16GB, automatic coverage of full record |
| Battery | |
| Battery Type | Rechargeable lithium battery |
| Capacity | 2500mAh, 3500mAh |
| Cycle Life of Battery | >1000 times, >1000 times |
| Battery Working Time | >6.5 hrs, >5 hrs |
| Charging Time | <4 hrs, <4 hrs |
| Charging Port | Type-C |
| Product | |
| Include | One Monitor + FIVE sized reusable blades |
| Accessories | USB Charger*1, USB cable*1, User Manual*1, Probe’s connector cover*5 |
| Blade Specifications | |
| Working Length | 1200 mm |
| Tip Deflection | U210° D90° L100° R100° |
| Field of View | 120° |
| Depth of Field | 3-100 mm |

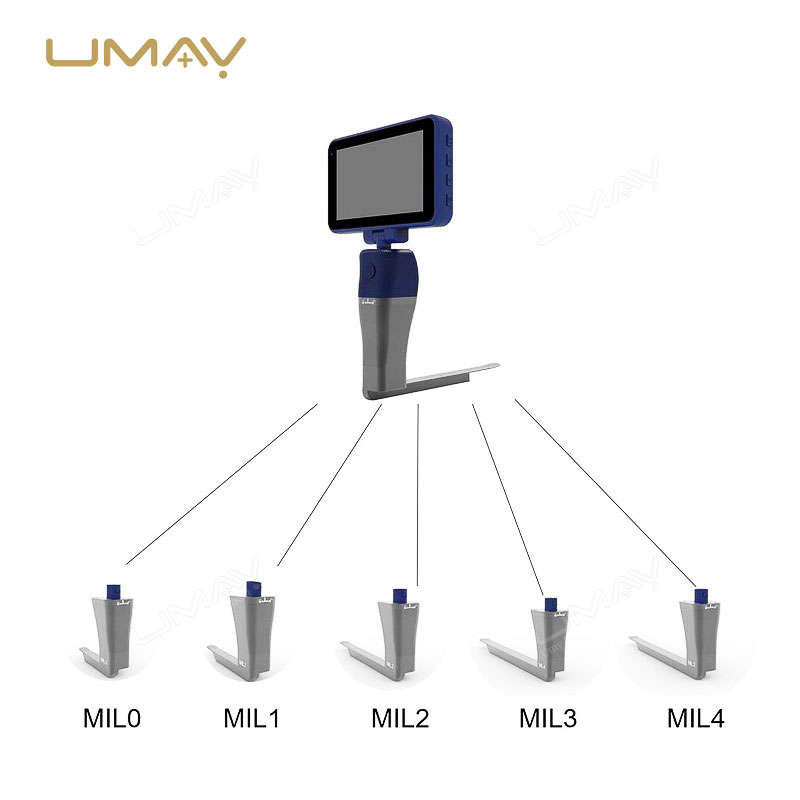

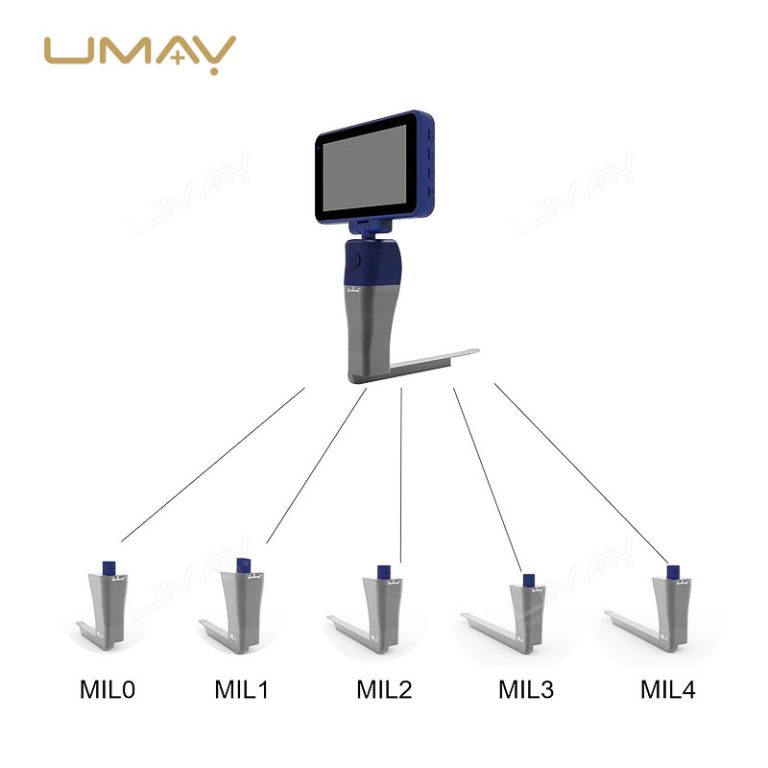

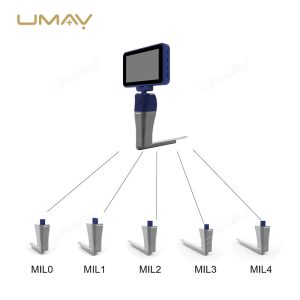

| Optional Blades | MIL0, MIL1, MIL2, MIL3, MIL4 |
| Power Adapter | |
| Input | 100-240V, 50/60Hz |
| Output | 5V2A |
