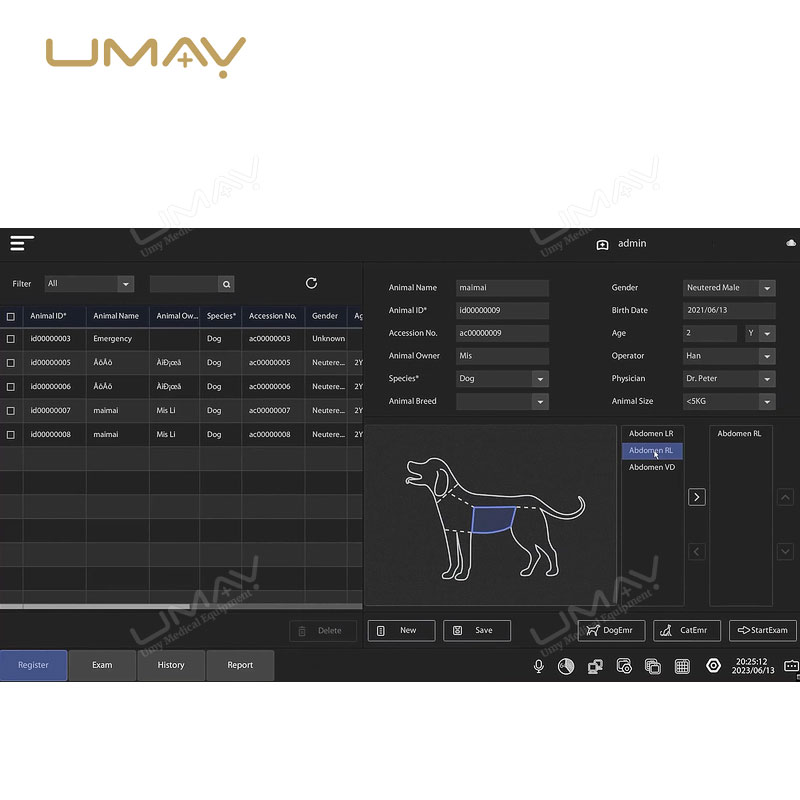

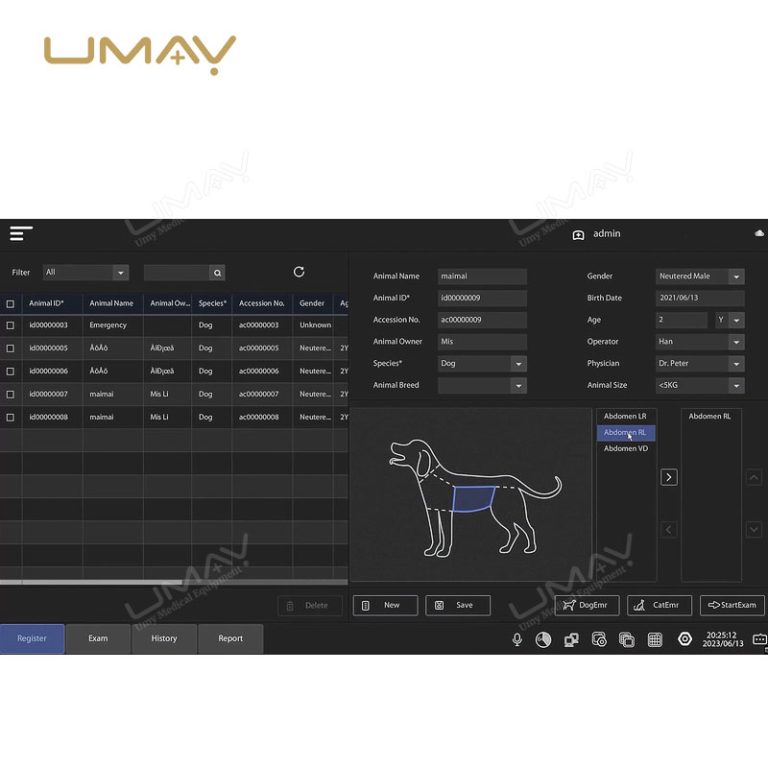

The Vetix S300 is a premium digital X-ray imaging system tailored for veterinary clinical environments. Designed with a flat panel detector and high-frequency generator, it ensures sharp image resolution and fast acquisition times for accurate diagnoses in small and large animals. Its intuitive software supports various positioning and exposure modes, improving workflow efficiency in animal hospitals. The system’s durable build and user-friendly interface make it ideal for continuous use in veterinary settings. For clinics seeking versatile imaging across species, explore our 5.0kW Digital X-ray Portable Machine for Lightweight Animal Imaging Solution.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| X-Ray Generator Specifications | |
| Constant Potential kW Ratings | 32 kW |
| kVp Range | 40 – 125 kVp |
| mAs Range | 0.1 mAs – 125 mAs |
| mA Range | 10 mA – 500 mA |
| Maximum Inverter Frequency | 460 kHz |
| Tube | |
| Model | E7239X (Canon) |
| X-Ray Tube | Type: Rotating Anode (1.0 / 2.0 mm) |
| Exposure Time | 0.001 – 0.8 sec |
| Total Filtration | ≥2.5 mmAl (70 kV) |
| Rack | |
| Table Top Type | Floating – 4 way table-top |
| Table Top Length | Standard 150 cm, Optional: 120 cm |
| Maximum Load Patient Weight | 80 kg |
| Brakes | Electromagnetic |
| Flat Panel Detector | |
| Scintillator Fluorescent Material | Csl |
| Pixel Spacing | 140 µm |
| Protection Class | IP54 |
| Preview Time | ≤2.3 s |
| Pixel Matrix | 3072 x 3072 pixels |
| Valid Data Bits | 16 bits |
Product Details
- Veterinary Digital Radiography System: Specially designed for animal diagnostic imaging, providing reliable and high-quality X-ray examinations for veterinary clinics and animal hospitals.
- High-Resolution Digital Imaging: Advanced DR imaging technology delivers clear and detailed radiographic images to support accurate diagnosis and efficient clinical evaluation.

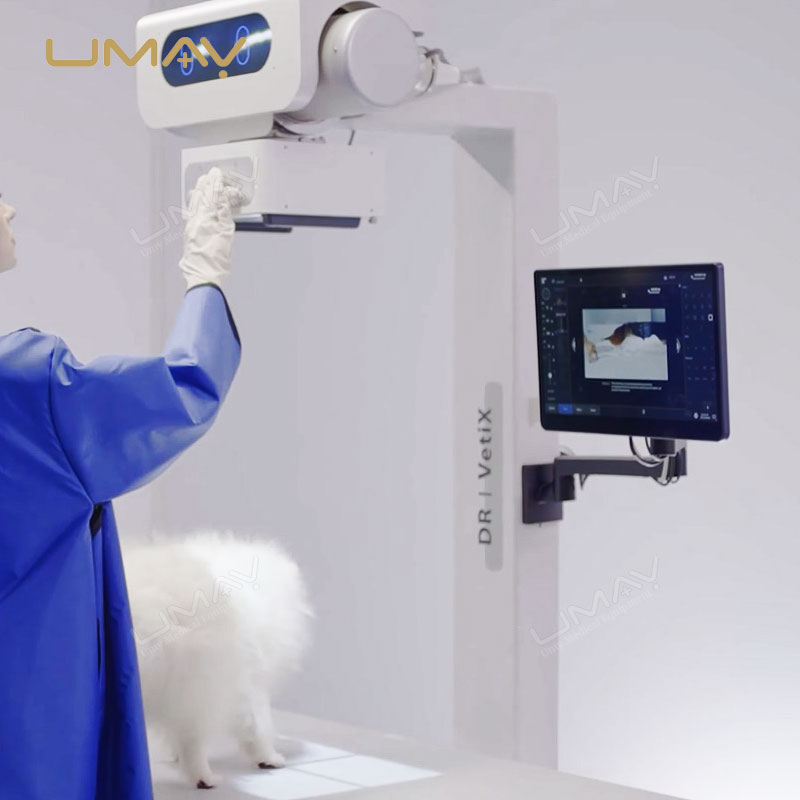

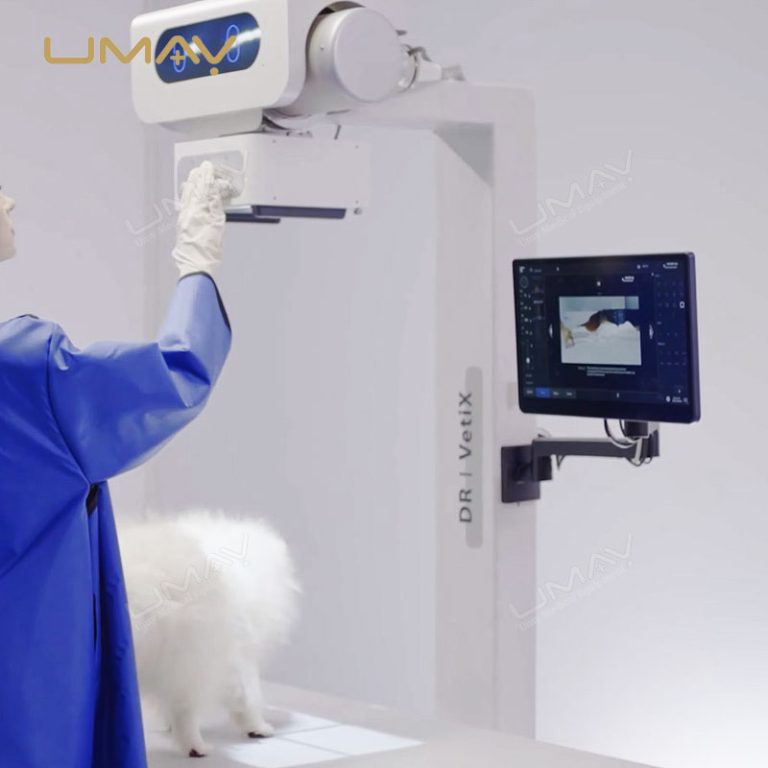

- Wall-Mounted Space-Saving Design: Compact vertical structure optimizes workspace utilization and is ideal for veterinary examination rooms with limited space.

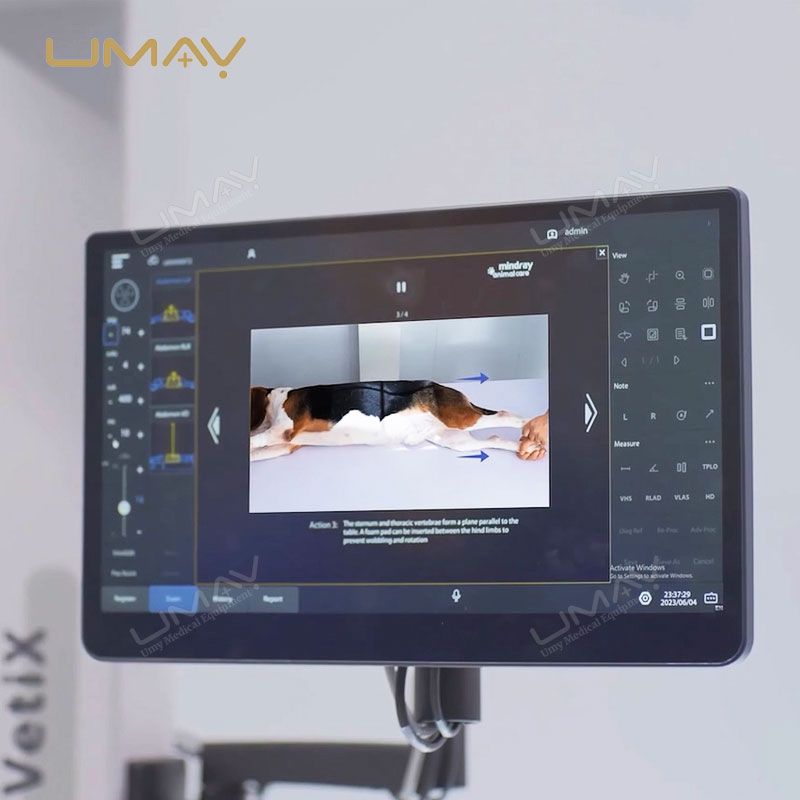

- Integrated Digital Display Workstation: Equipped with a high-definition monitor for real-time image viewing, image processing, and streamlined diagnostic workflow management.
- Efficient and User-Friendly Operation: Simplified positioning and intuitive control system improve examination efficiency and enhance daily veterinary workflow performance.
- Ideal for Small Animal Applications: Suitable for cats, dogs, and other small animals requiring orthopedic, thoracic, abdominal, and routine veterinary radiographic examinations.
- Veterinary Digital Radiography System: Designed for precise and high-quality X-ray imaging in veterinary clinics, supporting efficient diagnostic workflows for small and medium-sized animals.
- High-Resolution Digital Display: Equipped with a clear HD monitor for real-time image viewing, post-processing, and accurate clinical assessment.

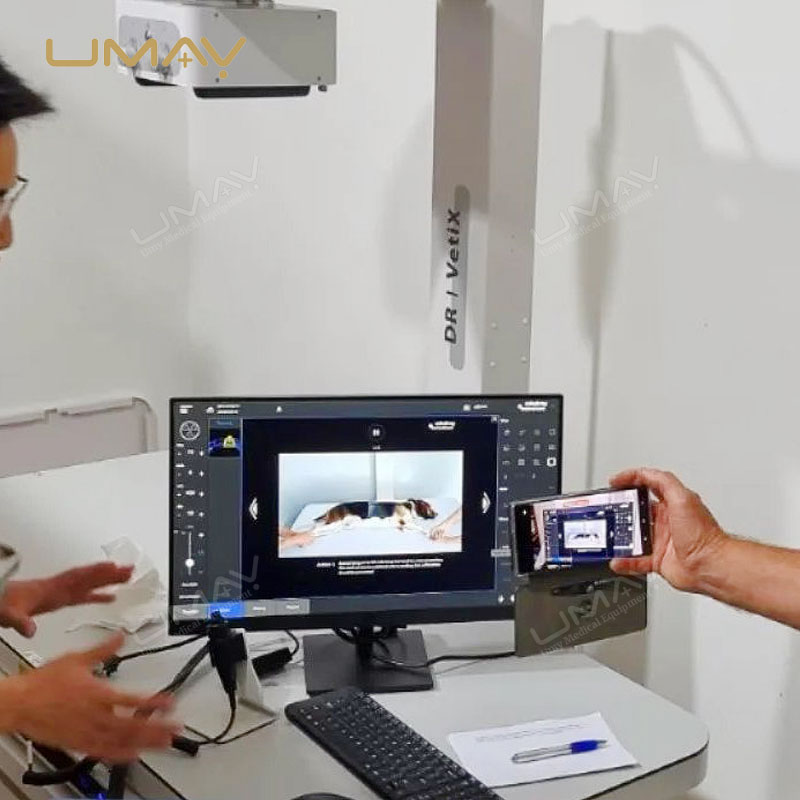

- Remote Image Access and Sharing: Allows veterinarians to capture and review images on mobile devices or cameras, supporting telemedicine and collaborative diagnosis.
- Wall-Mounted Space-Saving Design: Vertical DR setup optimizes examination room space while maintaining flexibility for positioning animals.
- User-Friendly Operation: Intuitive interface and easy control system simplify workflow, reduce operator effort, and improve examination efficiency.
- Ideal for Small Animal Applications: Suitable for cats, dogs, and other companion animals, providing reliable imaging for orthopedic, thoracic, abdominal, and routine veterinary examinations.
- Veterinary Digital Radiography Table: Designed for small to medium-sized animals, providing high-quality digital X-ray imaging for veterinary clinics and hospitals.
- High-Resolution Imaging System: Equipped with advanced DR technology for clear and detailed radiographs, supporting accurate diagnosis and treatment planning.

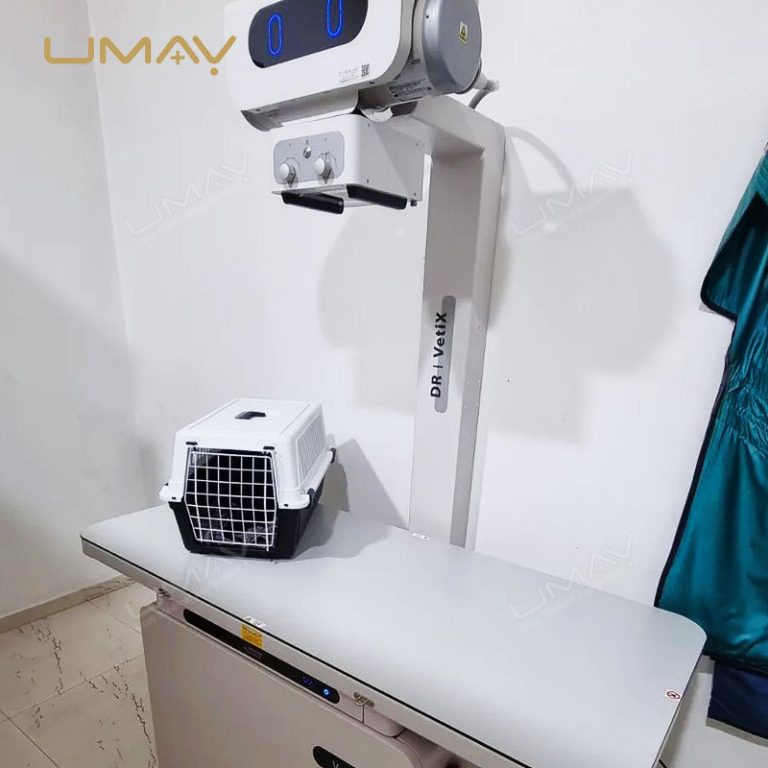

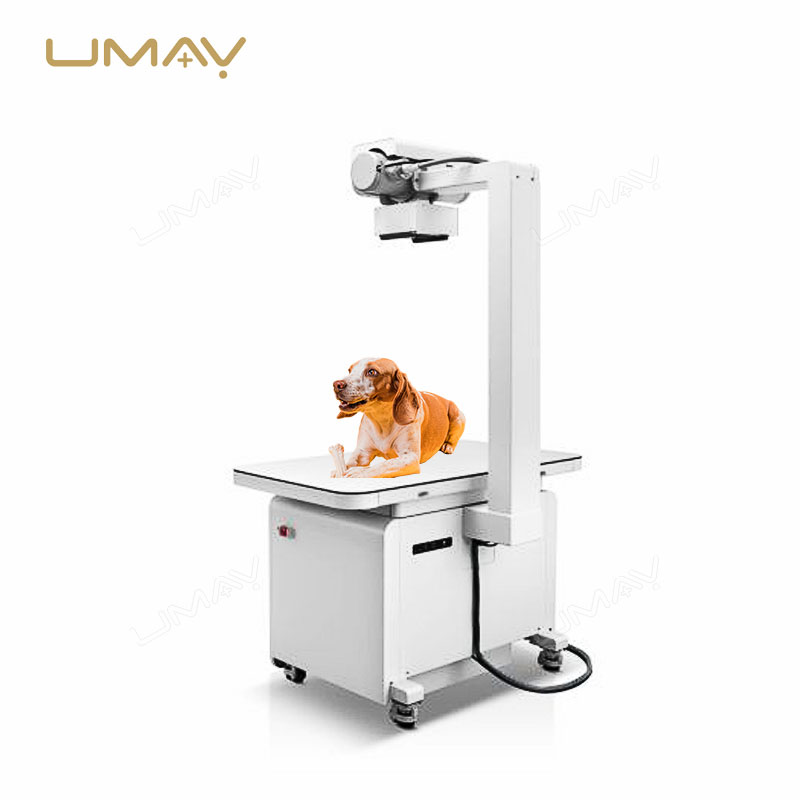

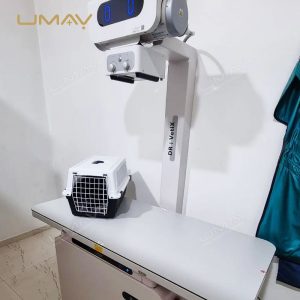

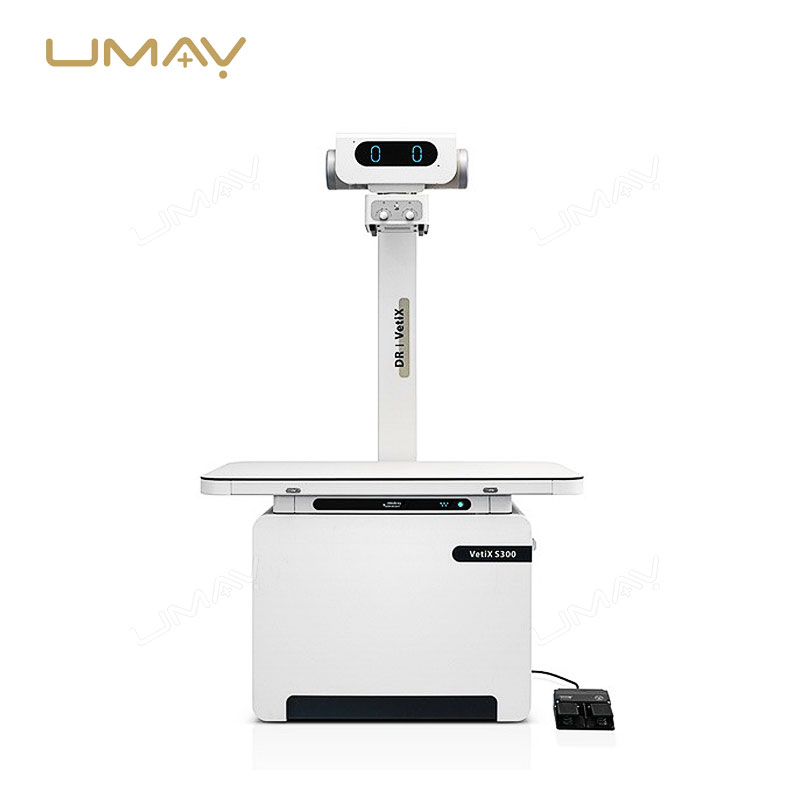

- Integrated Table and Vertical DR Column: Combines a sturdy examination table with a vertical DR setup for versatile positioning and efficient workflow.
- Compact and Space-Saving Design: Optimized for clinic and hospital environments, allowing easy positioning of animals while maximizing room efficiency.
- User-Friendly Operation: Simple controls and adjustable table height facilitate smooth examinations and improved operator convenience.
- Ideal for Small Animal Applications: Suitable for dogs, cats, and other companion animals, supporting orthopedic, thoracic, abdominal, and routine veterinary X-ray procedures.
