Pluto Series Digital Intraoral Sensor for Advanced Dental Imaging

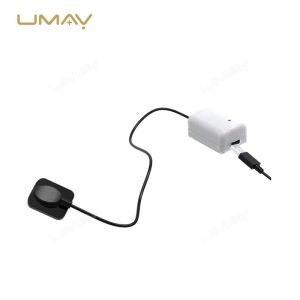

The Pluto Series Digital Intraoral Sensor (including Pluto 0001X, Pluto 0002X, and Pluto 0015X) is engineered with advanced APS CMOS sensor technology and an ultra-sensitive direct deposition CsI scintillator. Designed for modern dental practices, it features smart AED (Automatic Exposure Detection) mode, slim ergonomic profiles with smooth edges, and a durable IP68 rating for soak disinfection.
Compatible with various X-ray machines and supporting standard TWAIN protocols, the Pluto series delivers exceptional spatial resolution up to 25 lp/mm and a 16-bit ADC grayscale output for crystal-clear intraoral diagnostics.
Key Features
Advanced APS CMOS Technology
Equipped with state-of-the-art APS CMOS sensors to ensure high sensitivity, low noise, and superior diagnostic image quality.
Direct Growth CsI Scintillator
Utilizes an ultra-sensitive direct deposition CsI:Tl scintillator to maximize X-ray absorption and sharpness.
Smart AED Trigger Mode
Automatic Exposure Detection (AED) mode ensures seamless synchronization with a wide variety of dental X-ray generators without manual triggering.
Ergonomic & Slim Design

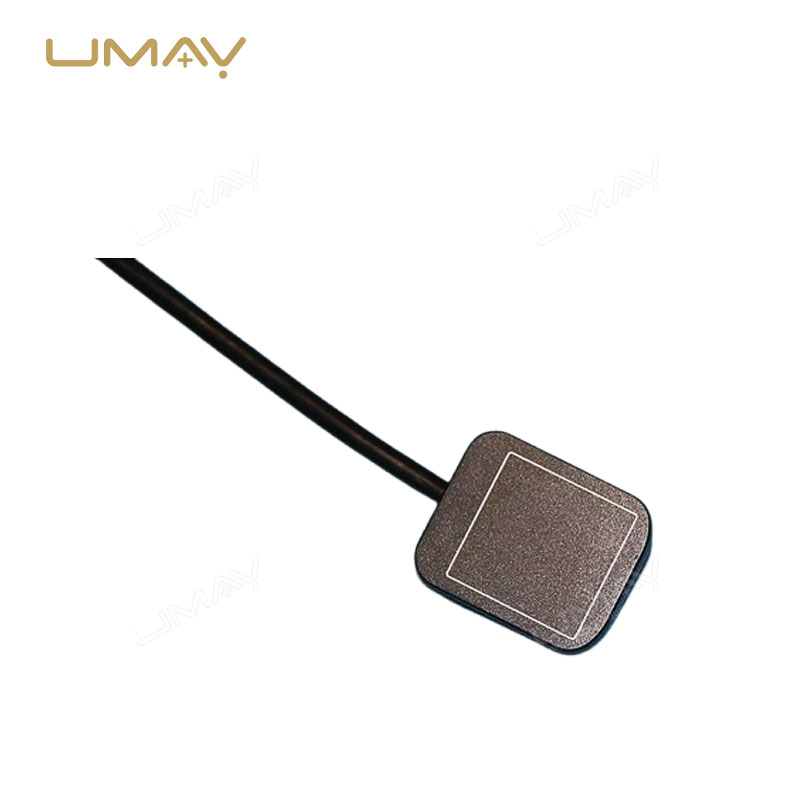

Features a slim 4.5 mm profile with smooth, rounded edges to maximize patient comfort during intraoral placement.
IP68 Soak Disinfection Rating
Certified with an IP68 waterproof rating for reliable soak disinfection and long-lasting clinical durability.
High Resolution & Gray Scale
Delivers an exceptional spatial resolution of 25 lp/mm combined with 16-bit ADC output for precise periodontal and endodontic visualization.
Technical Specifications
| Technical Parameter | Pluto 0001X | Pluto 0015X | Pluto 0002X |
|---|---|---|---|
| Dimensions (mm) | 25.03 x 38.53 x 4.5 | 29.2 x 43.5 x 4.5 | 31.62 x 45.0 x 4.5 |
| Active Area (mm) | 20 x 30 | 24 x 33 | 26 x 36 |
| Effective Pixels | 1.0 M (1000 x 1500) | 1.89 M (1200 x 1650) | 2.34 M (1300 x 1800) |
| Sensor Type | APS CMOS | ||
| Scintillator | CsI:Tl | ||
| Pixel Pitch | 20 um | ||
| Spatial Resolution | 25 lp/mm | ||
| ADC Gray Scale | 16 bit | ||
| Trigger Mode | Smart AED | ||
| Ingress Protection | IP68 for soak disinfection | ||
| Cable Length | 3 meters | ||
| Interface & Protocols | USB 2.0 connection, TWAIN protocol supported | ||
| Operating System | Windows 7 and above (32/64 bit) | ||
- Specifications are subject to change without notice.

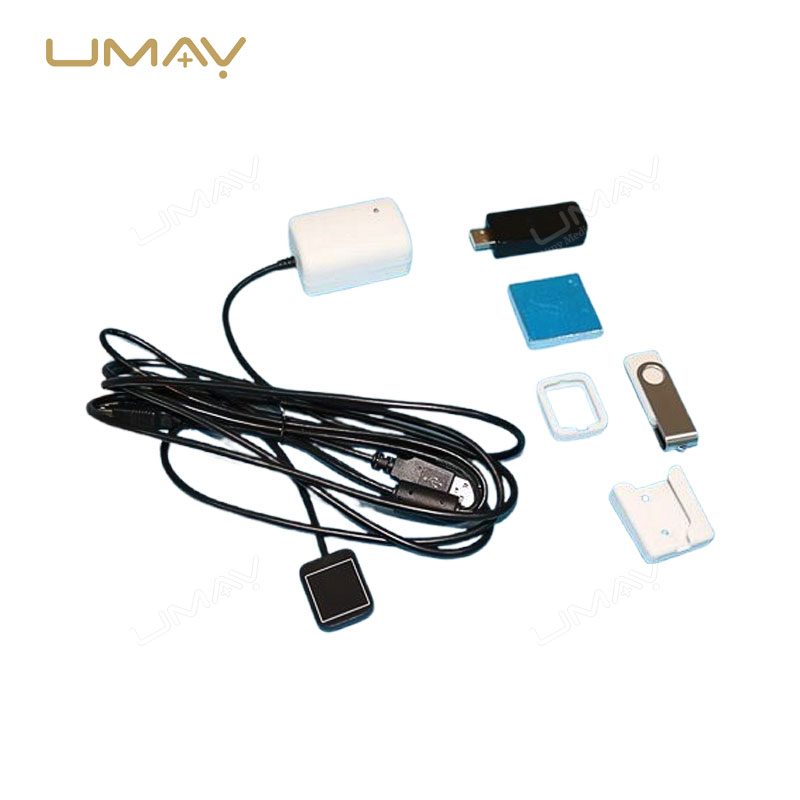

- Standard package includes the digital intraoral sensor, 3m USB cable, software package, and protective accessories.
Applications
General Dental Examinations
Provides rapid, high-definition intraoral radiographs for routine checkups and caries detection.
Endodontic Diagnostics
High spatial resolution (25 lp/mm) ensures precise visualization of root canals and periapical structures.
Periodontal Assessments
Delivers clear contrast and 16-bit grayscale depth for detailed bone loss and periodontal ligament evaluation.
System Configuration

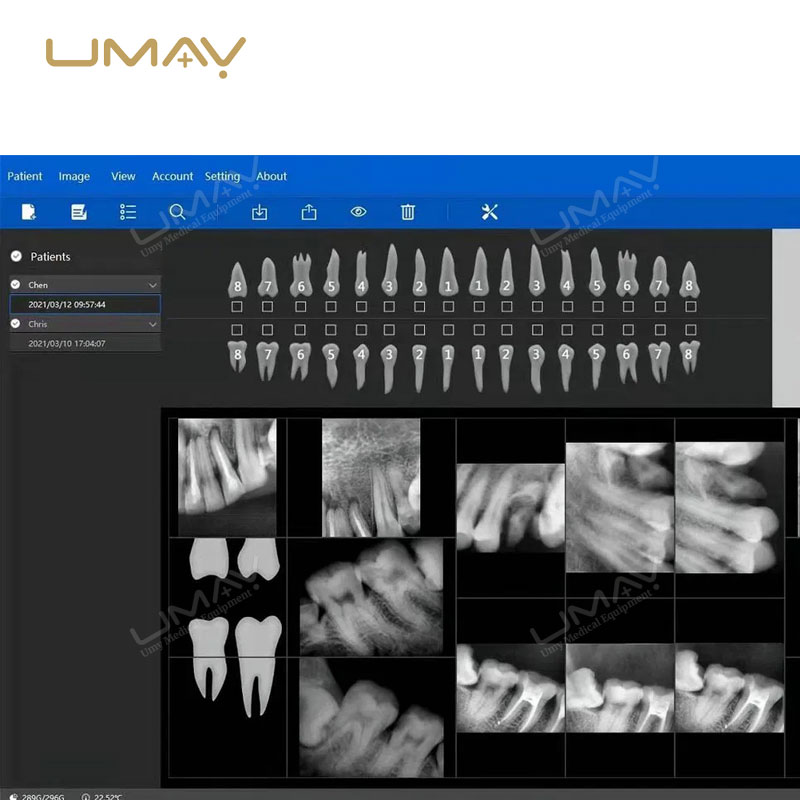

The Pluto Series digital intraoral sensor is supplied with a 3-meter USB 2.0 cable, TWAIN protocol support, and comprehensive dental imaging software compatible with Windows systems.
Please select your required sensor size model (Pluto 0001X, Pluto 0015X, or Pluto 0002X) based on your clinical patient demographic prior to ordering.
Before Ordering
- Required order quantity and destination country.
- Model selection: Pluto 0001X, Pluto 0015X, or Pluto 0002X.
- Computer operating system requirements (Windows 7 or above, 32/64 bit).
Request a Pluto Series Sensor Quote
Contact UMY Medical to discuss model configurations, bulk export pricing, and delivery options for your dental clinic.
Frequently Asked Questions
What are the size options available in the Pluto series?
The series includes Pluto 0001X (Size 1, active area 20×30 mm), Pluto 0015X (active area 24×33 mm), and Pluto 0002X (Size 2, active area 26×36 mm).
Is the sensor compatible with all X-ray machines?
Yes, the Pluto series features smart AED trigger mode, making it compatible with a wide range of DC and AC dental X-ray machines.
What is the waterproof rating for disinfection?
The sensors carry an IP68 rating specifically designed for safe soak disinfection.
Does it support third-party imaging software?
Yes, the system supports standard TWAIN protocols for seamless integration with major dental practice management software.
