Infant Incubator with Integrated Temperature, Humidity and SpO2 Monitoring
The UMIFIB005 is a microprocessor-controlled infant incubator designed to provide a controlled thermal environment for neonatal care. The system combines air temperature and baby skin temperature control with humidity management, oxygen concentration control, SpO2 monitoring and infant weight measurement in one integrated platform.
An 8-inch color LCD touch screen displays operating parameters and trend information, including set temperature, air temperature, skin temperature, humidity, oxygen concentration, SpO2 and heating power. Multiple monitoring and alarm functions support routine observation of incubator operating conditions.

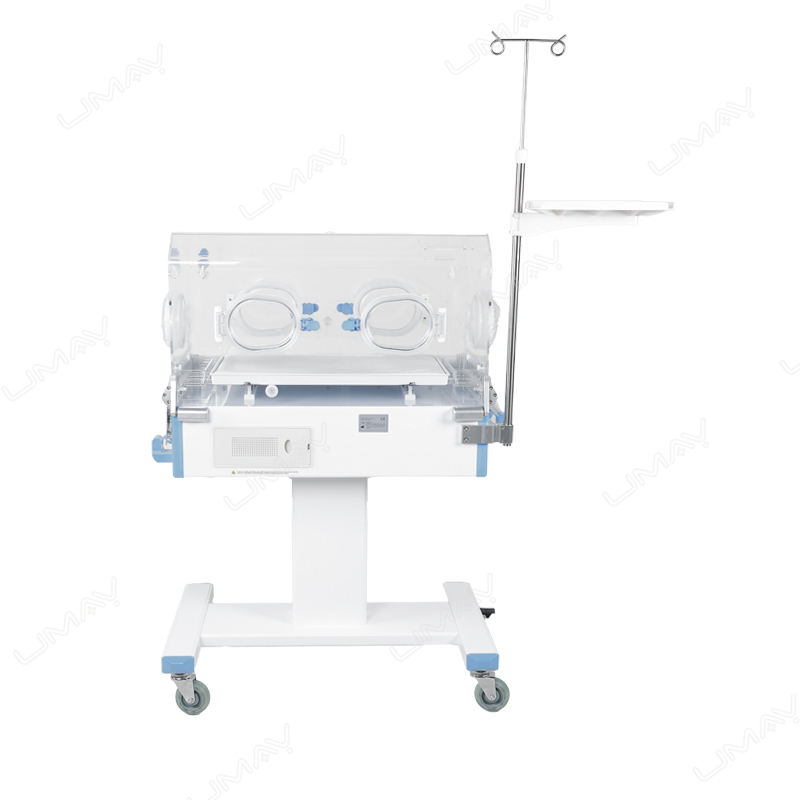

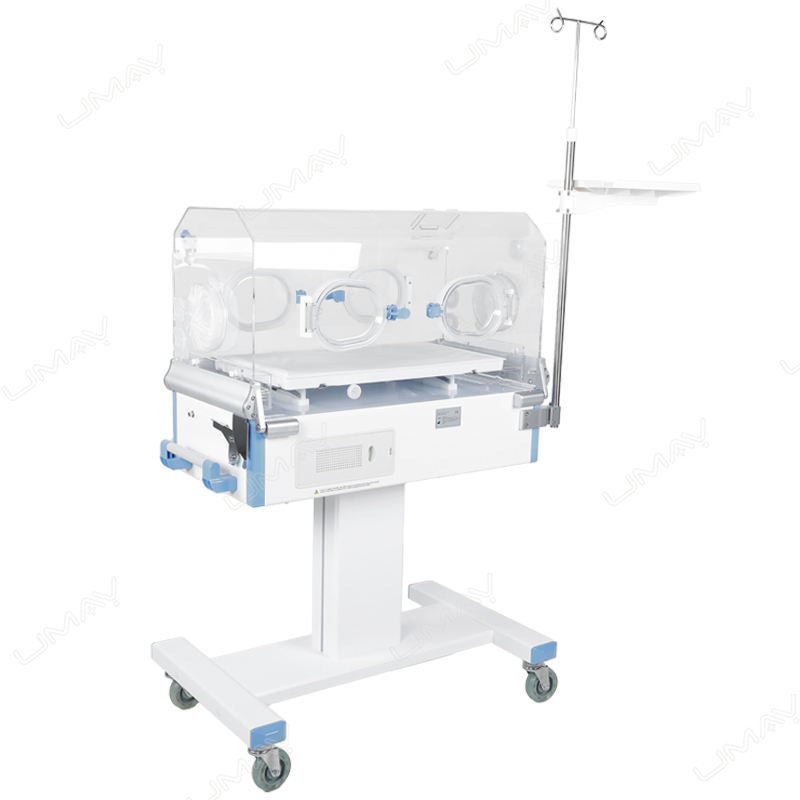

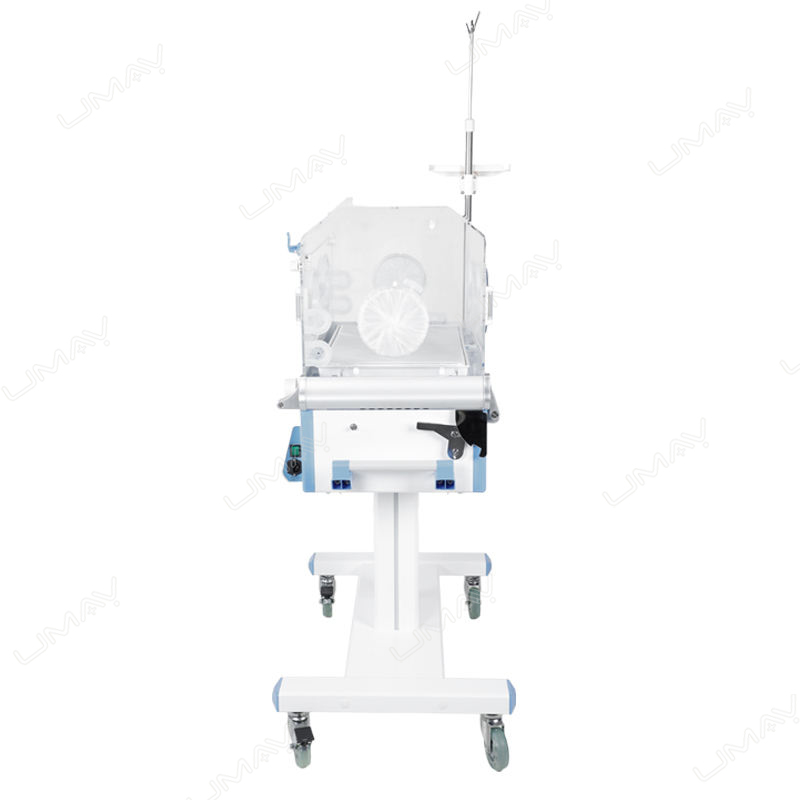

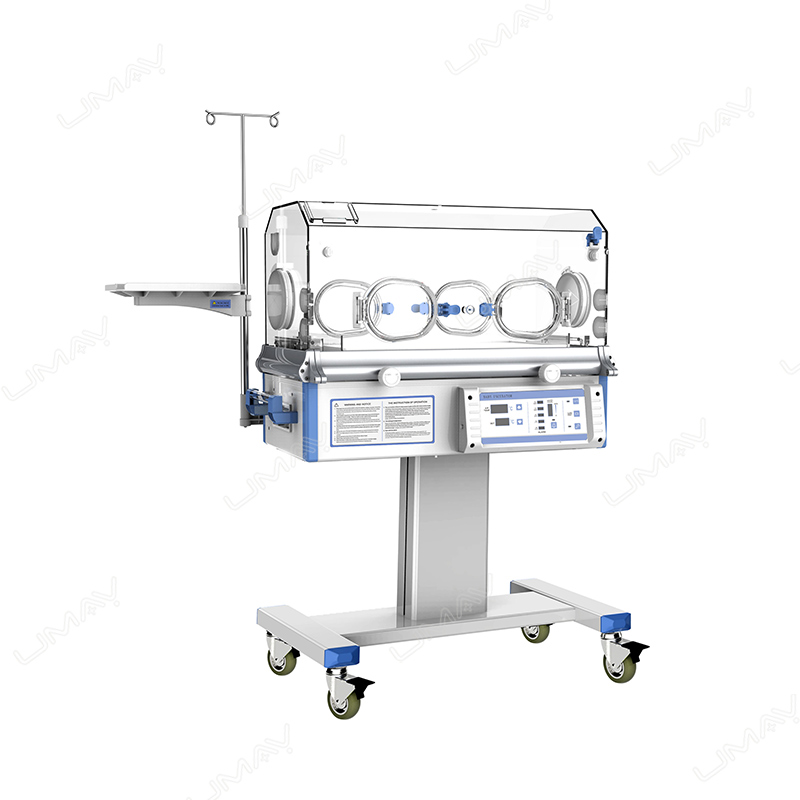

The incubator also incorporates a double-wall transparent hood, four operating windows, two iris ports, adjustable infant-bed inclination and an integrated sensor module to support access, observation and routine neonatal-care workflows.
Key Features
8-Inch Color Touch Screen
The 8-inch color LCD touch screen provides centralized display and operation of temperature, humidity, oxygen concentration, SpO2, pulse rate and other system parameters.
Air and Skin Temperature Control
Dual temperature-control modes allow operation according to incubator air temperature or baby skin temperature, depending on the selected care protocol.
Integrated Humidity Control
The built-in humidity-control system provides an adjustable humidity range from 30% to 95% RH according to the listed configuration.
Oxygen Concentration Control
Integrated oxygen concentration control supports adjustment from 20% to 60%, with continuous concentration display and alarm monitoring.
SpO2 and Pulse Monitoring
The integrated monitoring system provides SpO2 and pulse-rate measurement for continuous physiological observation during incubator use.
Built-In Infant Weighing System
The integrated baby scale supports infant weight measurement up to 12 kg with the specified weighing resolution.
Multiple Safety Alarms
Audible and visual alarms provide warnings for abnormal operating conditions, while independent over-temperature protection provides an additional safety layer.
Double-Wall Hood Design
The transparent double-wall hood incorporates four operating windows and two iris ports to support infant access while maintaining the controlled incubator environment.
Typical Applications
The UMIFIB005 is designed for neonatal-care environments requiring controlled temperature, humidity and oxygen management together with integrated physiological monitoring.
- Neonatal intensive care units.
- Hospital newborn departments.
- Premature and low-birth-weight infant thermal care.
- Neonatal observation requiring temperature and SpO2 monitoring.
- Clinical environments requiring controlled humidity and oxygen concentration inside an infant incubator.
Final clinical use, alarm limits and operating parameters should follow hospital protocols and the supplied product documentation.
Temperature and Environmental Control
The UMIFIB005 uses microprocessor-based control for incubator temperature, humidity and oxygen concentration. Air and skin control modes allow the operator to select the appropriate temperature-control method according to the required neonatal-care workflow.
| Air Temperature Control Range | 25°C to 37°C |
|---|---|
| Air Temperature Override Range | 37.1°C to 38°C |
| Skin Temperature Control Range | 32°C to 37°C |
| Skin Temperature Override Range | 37.1°C to 38°C |
| Skin Temperature Sensor Accuracy | ±0.2°C |
| Temperature Fluctuation | ±0.5°C |
| Mattress Temperature Uniformity | ≤0.8°C |
| Humidity Control Range | 30% to 95% RH |
| Humidity Display Range | 0% to 99% RH |
| Oxygen Concentration Control Range | 20% to 60% |
| Oxygen Display Range | 0% to 100% |
| Oxygen Concentration Alarm Deviation | ±5% |
Physiological Monitoring
SpO2 Measurement
The integrated SpO2 monitoring system provides oxygen-saturation measurement across the specified 0% to 100% range.
Pulse Rate Monitoring
Pulse rate can be monitored across the specified range of 0 to 250 beats per minute.
Infant Weight Measurement
The integrated weighing system supports infants weighing up to 12 kg and allows weight information to be reviewed during routine care.
Historical Data and Trends
The touch-screen interface supports historical data viewing and graphical trend display for selected operating and monitoring parameters.
| SpO2 Measurement Range | 0% to 100% |
|---|---|
| SpO2 Accuracy | ±3% |
| Pulse Rate Range | 0 to 250 bpm |
| Pulse Rate Accuracy | ±3 bpm |
| Baby Scale Capacity | ≤12 kg |
| Listed Scale Resolution | ±1 g |
Safety and Alarm System
The UMIFIB005 incorporates multiple safety-monitoring functions to provide warnings when operating conditions move outside the configured range.
Triple Over-Temperature Protection
Multiple over-temperature protection mechanisms are incorporated, including a separate temperature cut-off device.
Audible and Visual Alarms
The incubator provides sound and visual alarm indications for specified operating and system-failure conditions.
Automatic Self-Test
System self-testing functions support routine verification of key incubator operating functions.
Integrated Sensor Module
The embedded sensor module combines environmental sensing functions within the incubator control system for centralized monitoring.
Technical Specifications
| Model | UMIFIB005 |
|---|---|
| Product Type | Infant Incubator |
| Display | 8-Inch Color LCD Touch Screen |
| Temperature Control Modes | Air Mode / Baby Skin Mode |
| Air Temperature Control | 25°C to 37°C |
| Air Temperature Override | 37.1°C to 38°C |
| Skin Temperature Control | 32°C to 37°C |
| Skin Temperature Override | 37.1°C to 38°C |
| Humidity Control | 30% to 95% RH |
| Oxygen Concentration Control | 20% to 60% |
| SpO2 Measurement | 0% to 100% |
| Pulse Rate Measurement | 0 to 250 bpm |
| Infant Weighing Capacity | ≤12 kg |
| Warm-Up Time | <30 Minutes |
| Internal Noise Level | <55 dB(A) |
| Infant Bed Tilt Angle | ±12° |
| Mattress Size | 65 × 37 cm |
| Water Trough Capacity | 1000 mL |
| Transparent Hood | Double-Wall Design |
| Operating Windows | 4 |
| Iris Ports | 2 |
| Power Supply | AC 110 / 220 V, 50 / 60 Hz |
| Power Input | 650 VA |
| Recommended Ambient Temperature | 20°C to 30°C |
| Recommended Relative Humidity | 30% to 75% |
| Recommended Air Velocity | <0.3 m/s |
Incubator Structure and Access
Double-Wall Transparent Hood
The transparent hood uses a double-wall structure to provide visibility of the infant while supporting the controlled internal environment.
Four Operating Windows
Four operating windows allow clinical staff to access the infant during routine care without opening the entire hood.
Two Iris Ports
Two iris ports provide additional access for tubing, cables and other neonatal-care connections.
Adjustable Infant Bed
The infant bed can be tilted within a specified range of ±12° to support different positioning requirements.
Standard Configuration and Options
| Main Body | Transparent Hood, Control System, Infant Bed and Water Trough |
|---|---|
| I.V. Pole | Standard |
| Mattress | Standard |
| Drawers | Standard |
| Castors | Standard |
| Tray | Standard |
| Oxygen Inlet | Standard |
| LED Phototherapy Unit | Optional |
| Electronic Elevator | Optional |
| Air & Oxygen Blender | Optional |
Before Ordering
Please confirm the intended neonatal-care application, monitoring requirements and optional accessories before ordering the UMIFIB005 infant incubator.
- Required quantity.
- Destination country.
- Required power supply and plug configuration.
- Required humidity-control configuration.
- Required oxygen-control configuration.
- SpO2 and infant weighing requirements.
- Whether LED phototherapy is required.
- Whether an electronic elevator is required.
- Whether an air and oxygen blender is required.
- Any tender or technical documentation requirements.
- Required shipping and packing terms.
Final specifications and optional functions should be confirmed before quotation because the supplied configuration may vary according to project requirements.
Request an Infant Incubator Quote
Contact UMY Medical for configuration confirmation, optional-function selection, quantity pricing, export quotation and project support for the UMIFIB005 infant incubator.
Send Your Requirements
Please provide the required quantity, destination country, neonatal-care requirements, monitoring functions, optional accessories and any project or tender specifications.
Frequently Asked Questions
What temperature-control modes does the UMIFIB005 support?
The incubator supports both air temperature control and baby skin temperature control modes.
Does the UMIFIB005 include SpO2 monitoring?
Yes. The listed configuration includes integrated SpO2 and pulse-rate monitoring.
Can humidity and oxygen concentration be controlled?
Yes. The listed configuration includes humidity control from 30% to 95% RH and oxygen concentration control from 20% to 60%.
What optional functions are available?
Optional functions include an LED phototherapy unit, electronic elevator, and air and oxygen blender. Final availability should be confirmed before quotation.
