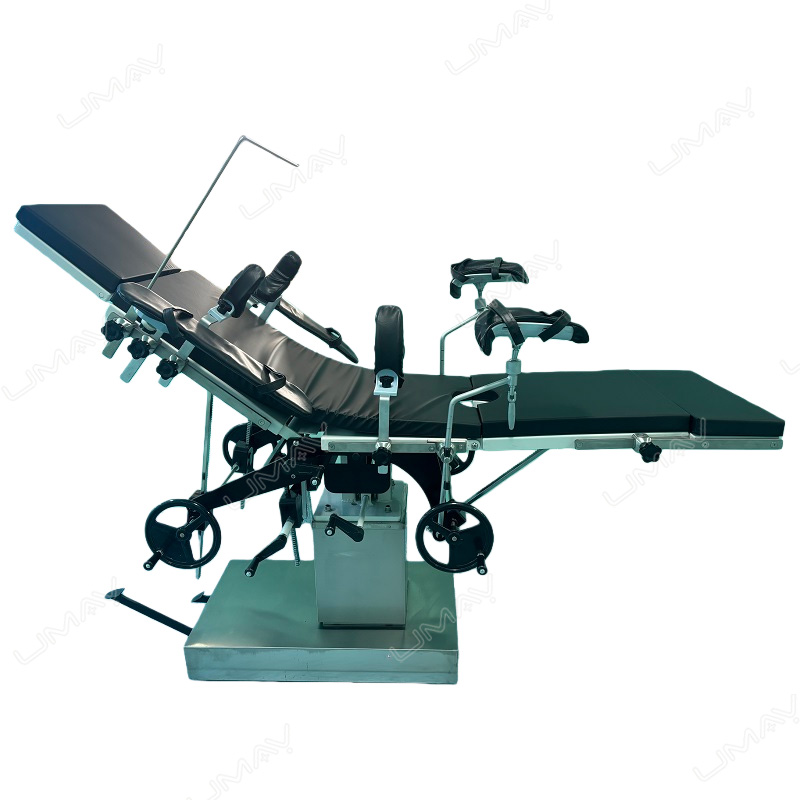

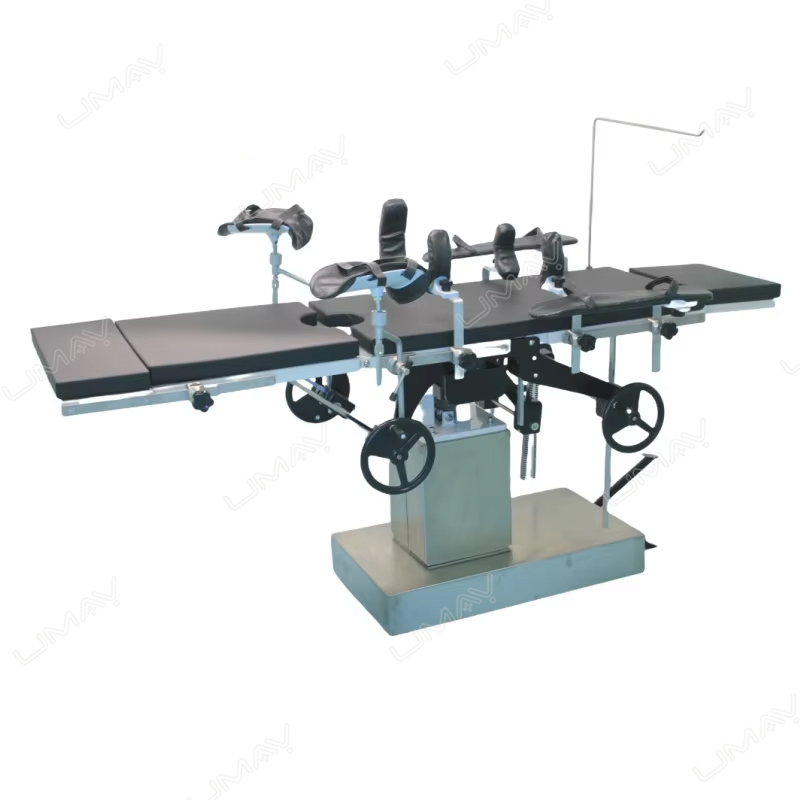

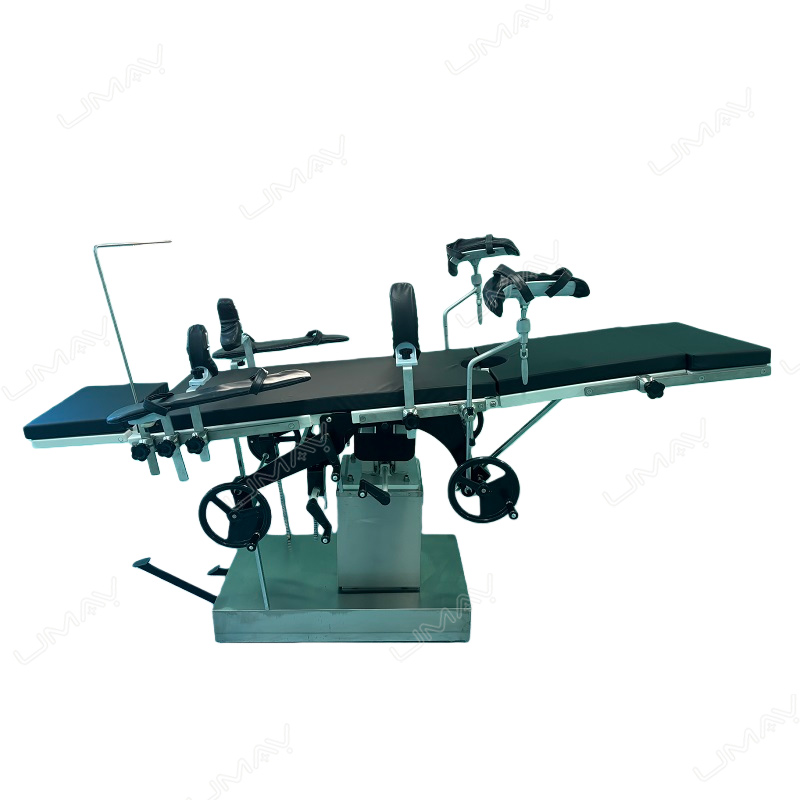

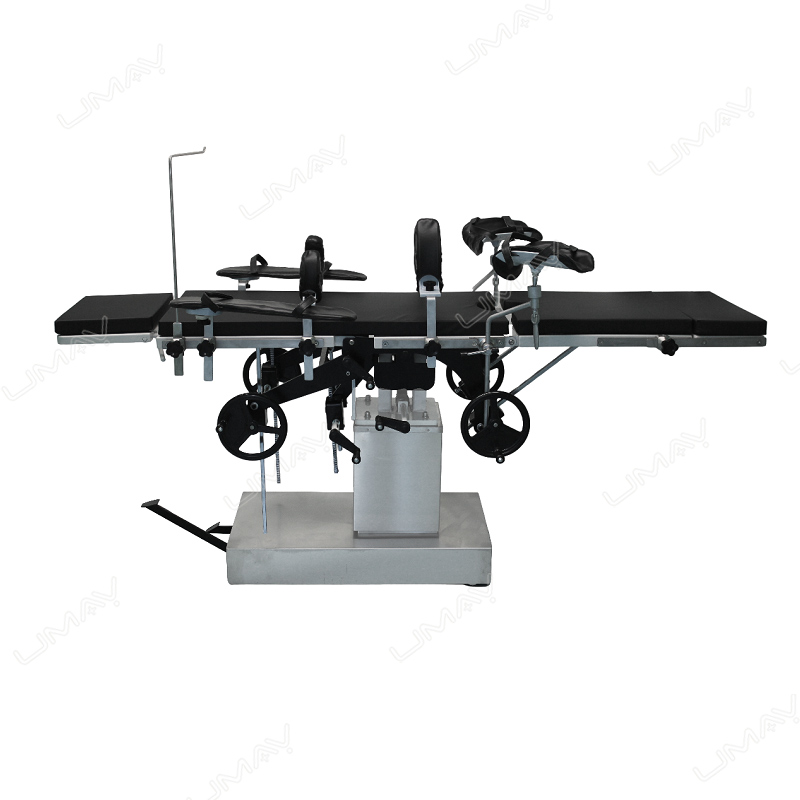

Mechanical Operating Table with Hydraulic Height Adjustment
The UMETOC013 is a manually controlled mechanical operating table designed for patient positioning during a range of surgical procedures. Table height is adjusted through a foot-operated hydraulic lifting system, while forward and backward tilt, lateral tilt, back section adjustment and leg section positioning are controlled through hand-operated mechanical mechanisms.
The table is equipped with an integrated lumbar bridge, slow-rebound sponge mattress, stainless steel column and base cover, and a mobile base with foot-operated braking. Its segmented tabletop provides multiple positioning options without requiring electrically powered table adjustment.
With a tabletop size of 2000 ± 20 mm × 480 ± 20 mm and a height range from 780 ± 20 mm to 1000 ± 20 mm, the UMETOC013 provides a practical positioning platform for hospital operating-room applications.
Key Features
Foot-Operated Hydraulic Lifting
Table height is adjusted through a foot-operated hydraulic system with a specified lifting stroke of at least 220 mm.
Manual Multi-Directional Positioning
Forward and backward tilt, left and right lateral tilt, back section movement and leg section lowering are controlled through hand-operated mechanical adjustment mechanisms.
Integrated Lumbar Bridge
A built-in lumbar bridge provides a specified lifting stroke of at least 120 mm ± 10 mm for procedures requiring additional waist or lumbar elevation.
Adjustable Head and Back Sections
The detachable head section and independently adjustable back section support multiple patient-positioning requirements during surgical procedures.
Slow-Rebound Mattress
The segmented tabletop uses slow-rebound sponge designed to conform to the patient and help distribute pressure during positioning.
Stainless Steel Column and Base Cover
The column and base cover use stainless steel with a matte surface treatment. A cold-rolled carbon steel version with powder coating is also available as an option.
Mobile Base with Foot Brake
The base supports table movement when repositioning is required and can be secured using the integrated foot-operated braking mechanism.
Mechanical Positioning System
Key tabletop adjustments use manual worm-gear and rack-and-pinion mechanisms for controlled mechanical positioning.
Typical Applications
The UMETOC013 is designed for operating-room applications requiring manual tabletop positioning and hydraulic height adjustment.
- General surgical patient positioning.
- Procedures requiring forward, backward or lateral tabletop tilt.
- Procedures requiring independent head, back or leg section adjustment.
- Gallbladder, kidney and related procedures requiring lumbar bridge elevation.
- Operating-room applications where manual mechanical positioning is preferred.
Final table configuration and accessories should be confirmed according to the intended surgical procedure and hospital requirements.
Adjustment and Positioning System
The UMETOC013 combines hydraulic height adjustment with manual mechanical control of the main tabletop sections. Foot-operated and hand-operated controls allow the table to be configured for different patient-positioning requirements.
| Height Adjustment | Foot-Operated Hydraulic |
|---|---|
| Height Adjustment Stroke | ≥ 220 mm |
| Forward Tilt | ≥ 15° ± 2° |
| Backward Tilt | ≥ 30° ± 2° |
| Left Lateral Tilt | ≥ 20° ± 2° |
| Right Lateral Tilt | ≥ 20° ± 2° |
| Head Section Up | ≥ 45° ± 2° |
| Head Section Down | ≥ 90° ± 2° |
| Head Section | Detachable |
| Back Section Up | ≥ 75° ± 2° |
| Back Section Down | ≥ 20° ± 2° |
| Leg Section Down | ≥ 90° ± 2° |
| Lumbar Bridge Stroke | ≥ 120 mm ± 10 mm |
Technical Specifications
| Model | UMETOC013 |
|---|---|
| Product Type | Mechanical Operating Table |
| Tabletop Dimensions | 2000 ± 20 mm × 480 ± 20 mm |
| Minimum Table Height | 780 ± 20 mm |
| Maximum Table Height | 1000 ± 20 mm |
| Height Adjustment Stroke | ≥ 220 mm |
| Forward Tilt | ≥ 15° ± 2° |
| Backward Tilt | ≥ 30° ± 2° |
| Left / Right Lateral Tilt | ≥ 20° ± 2° |
| Head Section Adjustment | Up ≥ 45° ± 2° / Down ≥ 90° ± 2° |
| Back Section Adjustment | Up ≥ 75° ± 2° / Down ≥ 20° ± 2° |
| Leg Section Adjustment | Down ≥ 90° ± 2° |
| Lumbar Bridge Stroke | ≥ 120 mm ± 10 mm |
| Height Control | Foot-Operated Hydraulic System |
| Positioning Control | Manual Mechanical Adjustment |
| Mechanical Adjustment | Worm-Gear and Rack-and-Pinion Mechanisms |
| Column and Base Cover | Stainless Steel with Matte Surface Treatment |
| Optional Construction | Cold-Rolled Carbon Steel with Powder Coating |
| Mattress | Slow-Rebound Sponge |
| Base Mobility | Mobile and Fixed Functions |
| Brake | Foot-Operated Braking |
Table Construction and Mobility
Stainless Steel Surface Components
The column and base cover use stainless steel with a matte surface treatment suitable for routine operating-room cleaning and disinfection.
Slow-Rebound Tabletop Mattress
The slow-rebound sponge mattress conforms to the patient and helps distribute pressure across the supported body area during positioning.
Built-In Lumbar Support
The integrated lumbar bridge provides controlled elevation for procedures requiring additional waist or lumbar positioning.
Mobile and Fixed Base
The base provides mobile and fixed functions, allowing the operating table to be repositioned and secured using the foot-operated brake.
Before Ordering
Please confirm the intended surgical application and project requirements before ordering the UMETOC013 mechanical operating table.
- Required surgical applications.
- Required tabletop accessories.
- Required quantity.
- Destination country.
- Preferred stainless steel or optional powder-coated construction.
- Mattress or accessory requirements.
- Any tender or technical documentation requirements.
- Required shipping and packing terms.
Final configuration should be confirmed before quotation, particularly where project specifications require specific accessories or construction options.
Request a Mechanical Operating Table Quote
Contact UMY Medical for configuration confirmation, accessory selection, quantity pricing, export quotation and project support for the UMETOC013 mechanical operating table.
Send Your Requirements
Please provide the required quantity, destination country, intended surgical applications, accessory requirements and any project or tender specifications.
Frequently Asked Questions
Is the UMETOC013 an electric operating table?
No. Table height is adjusted through a foot-operated hydraulic system, while the main tabletop positioning functions use manual mechanical controls.
What is the height adjustment range?
The specified minimum tabletop height is 780 ± 20 mm and the maximum height is 1000 ± 20 mm, with a lifting stroke of at least 220 mm.
Does the operating table include a lumbar bridge?
Yes. The UMETOC013 includes an integrated lumbar bridge with a specified lifting stroke of at least 120 mm ± 10 mm.
What information should I provide before requesting a quotation?
Please provide the intended surgical applications, required accessories, quantity, destination country and any hospital, project or tender specifications so the final configuration can be confirmed.
