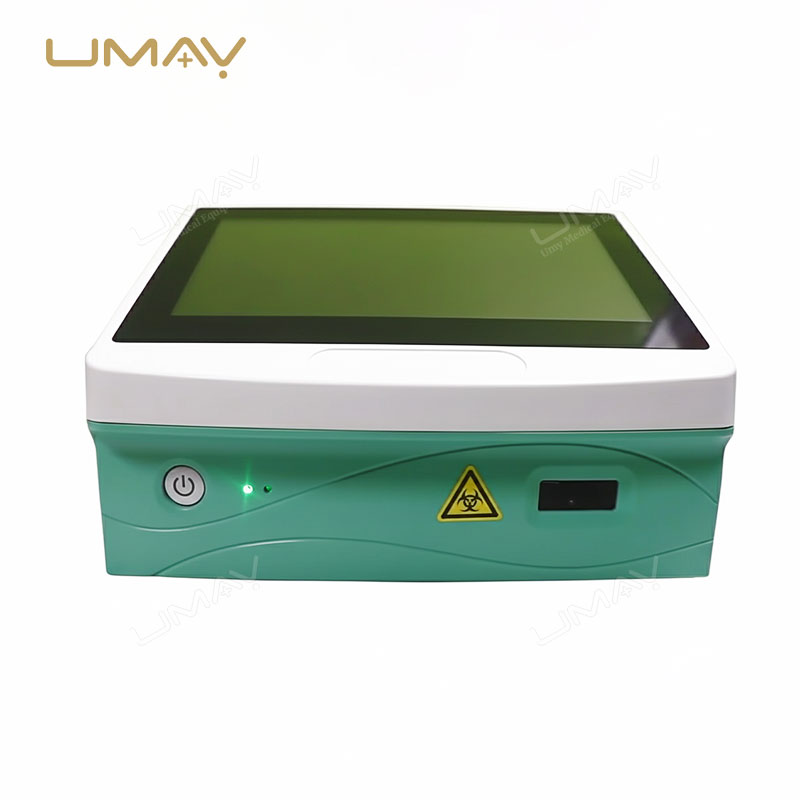

Veterinary Immunofluorescence Quantitative Analyzer UMH-IF10 for Precise Diagnostics
The UMH-IF10 Immunofluorescence Quantitative Analyzer is engineered to provide veterinarians, animal hospitals, and clinics with rapid, quantitative diagnostic results. Utilizing advanced time-resolved immunochromatography technology with a wide linear range, high sensitivity, and specificity, the system ensures accurate quantification of biomarker concentrations.

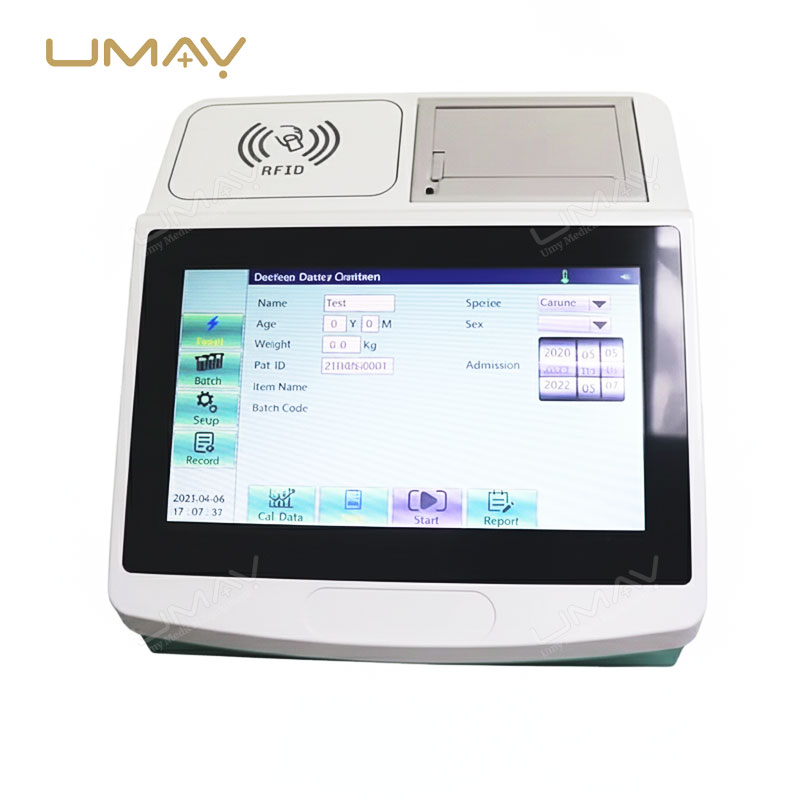

Equipped with a 7-inch color touch screen, unlimited history cloud storage, and an optional lithium battery for portable testing anywhere, the analyzer streamlines workflow and enhances diagnostic efficiency.
Supported by multi-item detection in 5 to 15 minutes, built-in thermal printing, and flexible report generation options (A4, thermal, or digital picture reports), the UMH-IF10 integrates seamlessly into modern veterinary practices.
Key Features
Time-Resolved Fluorescence Technology
Leverages advanced time-resolved methodology providing a wider linear range, superior sensitivity, and high specificity for quantitative results.
Unlimited Cloud Data Storage
Features secure history cloud storage to protect diagnostic records from data loss, complete with LIS/HIS and Wi-Fi connectivity.
Optional Lithium Battery Mobility
Supports flexible standalone operation with an optional lithium battery for anytime, anywhere veterinary point-of-care testing.
Fast Multi-Item Detection
Completes quantitative assays across multiple clinical test items rapidly within 5 to 15 minutes.
Maintenance-Free Design
A robust dry instrument architecture requiring no routine fluid maintenance or manual quality control calibration.
Versatile Reporting Options

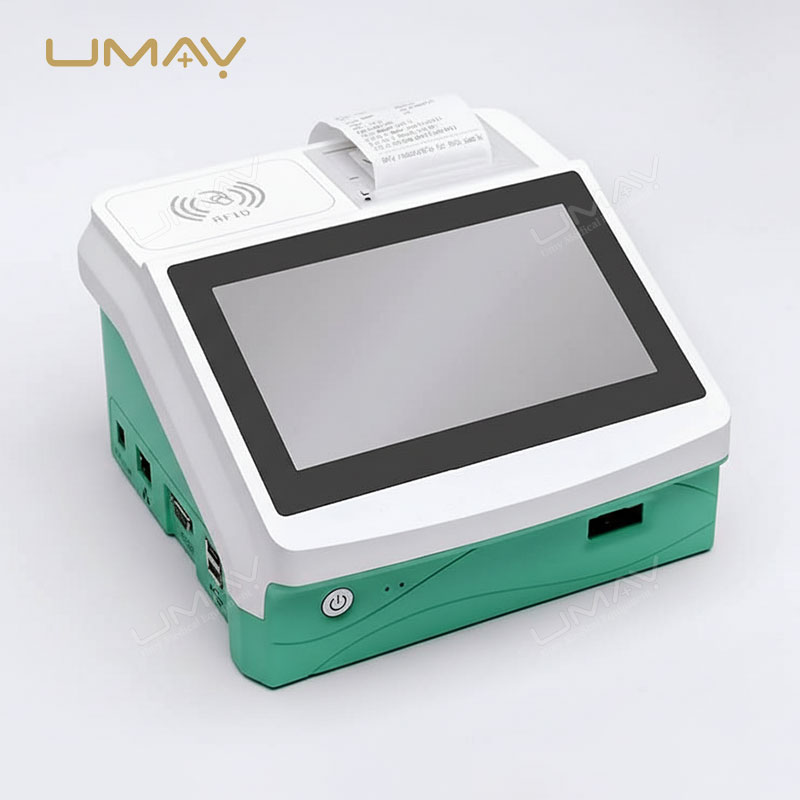

Generates professional interpretation via built-in miniature thermal printer, A4 report forms, or JPG picture exports.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-IF10 Immunofluorescence Quantitative Analyzer |
| Assay Method | Lateral Flow Chromatography (Immunofluorescence), Time-resolved method |
| Excitation Light Source | LED |
| Display Screen | 7-inch color touch screen |
| Printing Mode & Reports | Built-in miniature thermal printer; Supports A4 report form printing |
| Net Weight & Dimensions | 1.65 Kg | 210 mm × 210 mm × 130 mm |
| Working Environment | Temperature: +15-35°C, 10%-85% RH, 70-100 kPa |
| Power Supply | 100V-240V, 50-60 Hz, 40 VA (Optional lithium battery available) |

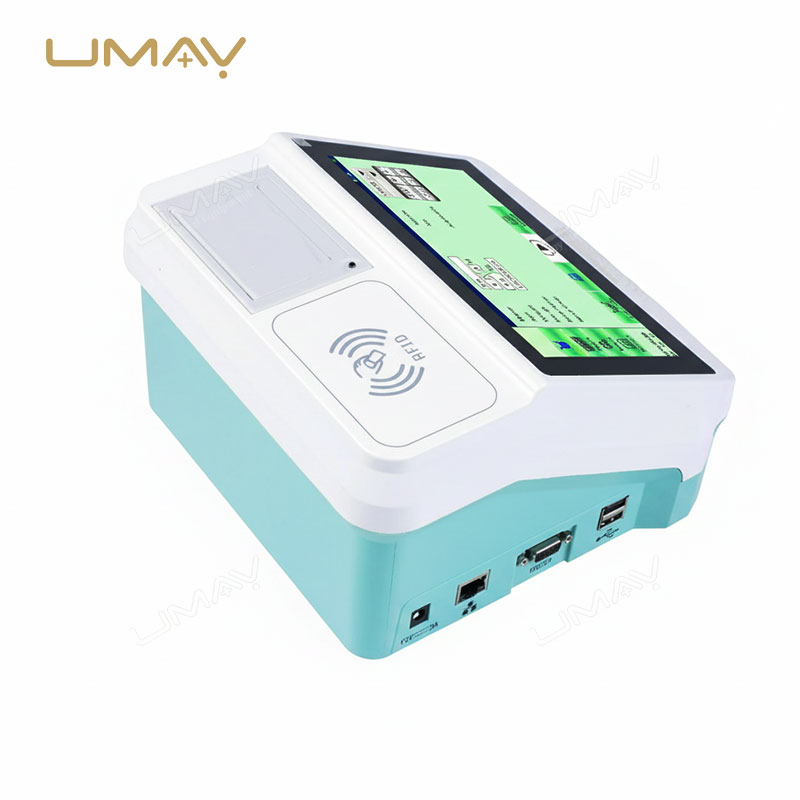

| Connectivity & Languages | WIFI, USB, RS232, Network interface; Multi-language support (Chinese, English, French, Russian, Spanish, Polish, Ukrainian, etc.) |
- Specifications are based on official technical datasheets for the UMH-IF10 Immunofluorescence Analyzer.

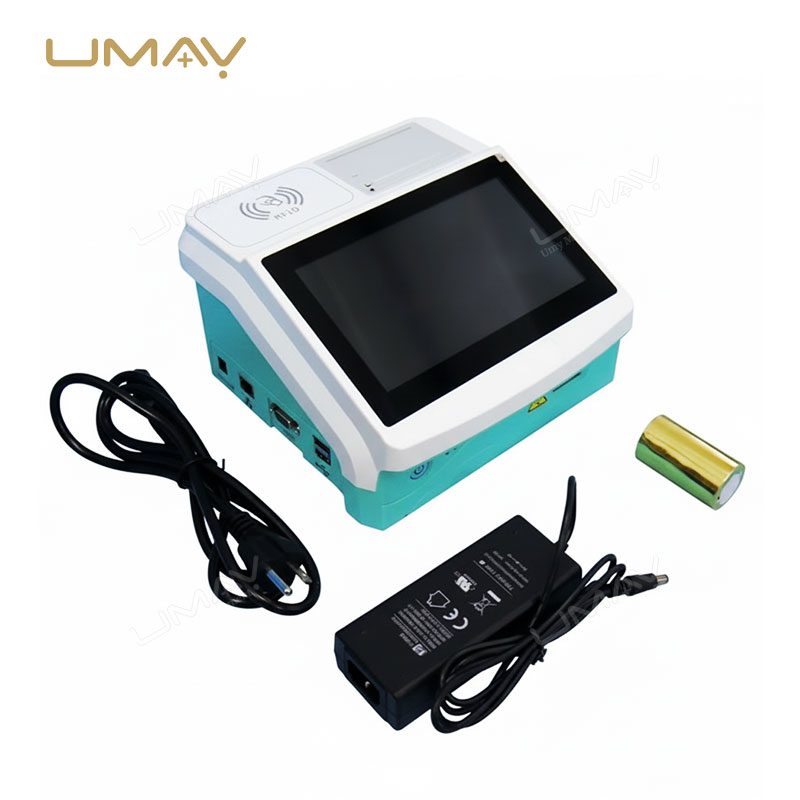

- Standard configuration includes the main analyzer unit, power adapter, built-in printer, and operation manual.
- Supports nearly 30 quantitative veterinary test items covering inflammation, infectious diseases, hormones, and organ markers.
Applications
Infectious Disease Screening
Enables rapid quantitative antigen and antibody testing for canine and feline viral infections (CPV, CDV, FPV, FCV, FHV, etc.).
Inflammation & Organ Biomarkers
Evaluates critical health markers including C-Reactive Protein (CCRP), Serum Amyloid A (FSAA), pancreatic lipase (cPL/fPL), and SDMA kidney function.
Reproductive Hormone & Endocrine Monitoring
Accurately measures progesterone (PROG), thyroid hormones (T4, TSH, Cortisol), and cardiac markers (NT-proBNP).
System Configuration

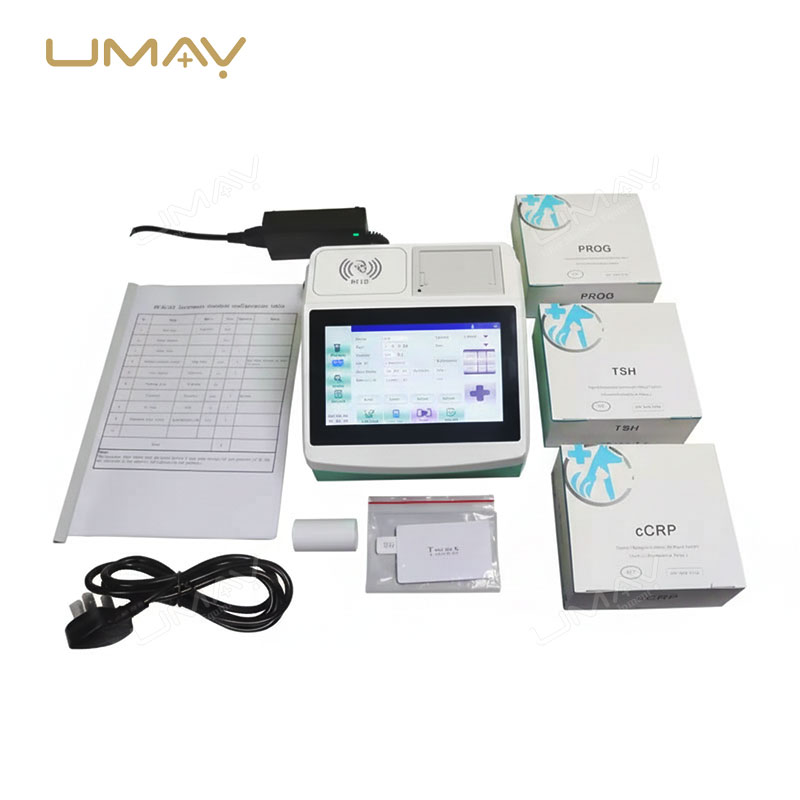

The UMH-IF10 Immunofluorescence Quantitative Analyzer is supplied complete with the main analytical console, power cable, built-in thermal paper roll, cloud registration guide, and user documentation.
Please confirm your required test card assay panels (Inflammation, Infectious Diseases, Hormones, Organ Markers) prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Specific quantitative test kit reagent panels required (CCRP, FSAA, PROG, T4, SDMA, CPV/CDV Ab, etc.).
- Optional battery module or multi-language software requirements.
Request an Immunofluorescence Analyzer Quote
Contact UMY Medical to discuss system configurations, test kit pricing, and export delivery for your veterinary clinic or hospital.
Frequently Asked Questions
What test parameters can the UMH-IF10 analyze?
It supports nearly 30 veterinary test items covering inflammation markers, infectious disease antigens/antibodies, reproductive hormones (PROG), thyroid functions (T4, TSH), and renal/cardiac markers.
How long does a test take to complete?
Quantitative test results are delivered rapidly within 5 to 15 minutes depending on the specific assay item.
Does the analyzer require routine maintenance or calibration?
No, it is a dry, maintenance-free instrument that requires no fluid tubing maintenance or manual quality control calibration.
Can the unit operate on battery power?
Yes, it features an optional lithium battery module to support flexible, portable testing anywhere.
