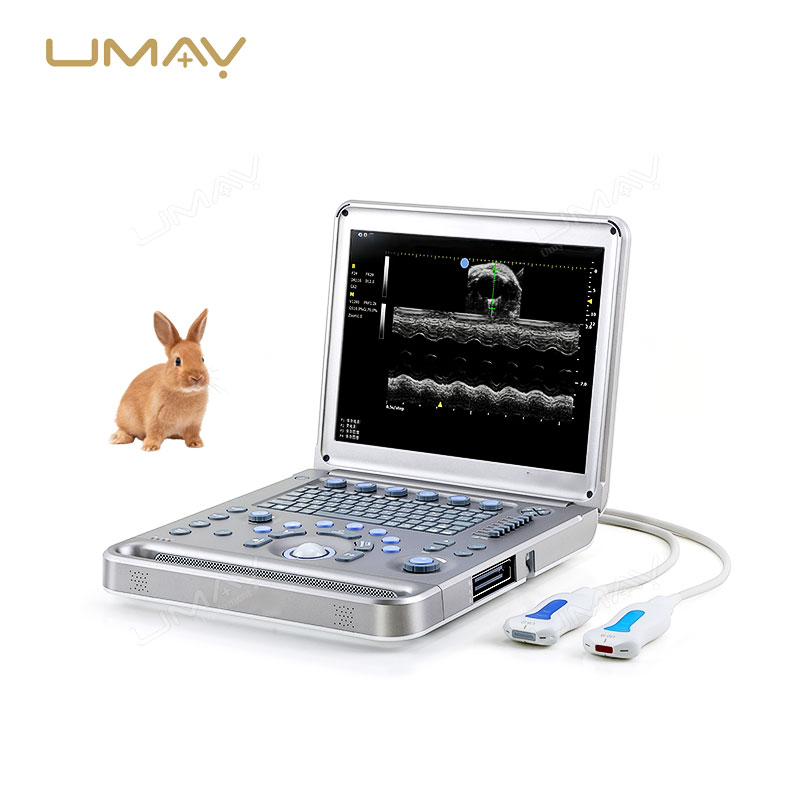

The portable veterinary ultra-high frequency ultrasound scanner delivers high-resolution imaging with a wireless probe system, providing veterinarians with mobility and convenience for on-site diagnostics. Featuring a 30 MHz probe, this device captures detailed images of small animals such as mice, including blood vessels, organs, and tissues. Equipped with Doppler imaging capabilities, it enhances diagnostics in fields such as cardiology and embryology. Its real-time operation facilitates quick assessments and ongoing monitoring for animal health. For a comprehensive imaging system, consider our Wireless Veterinary Ultrasound System.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| System Host | |

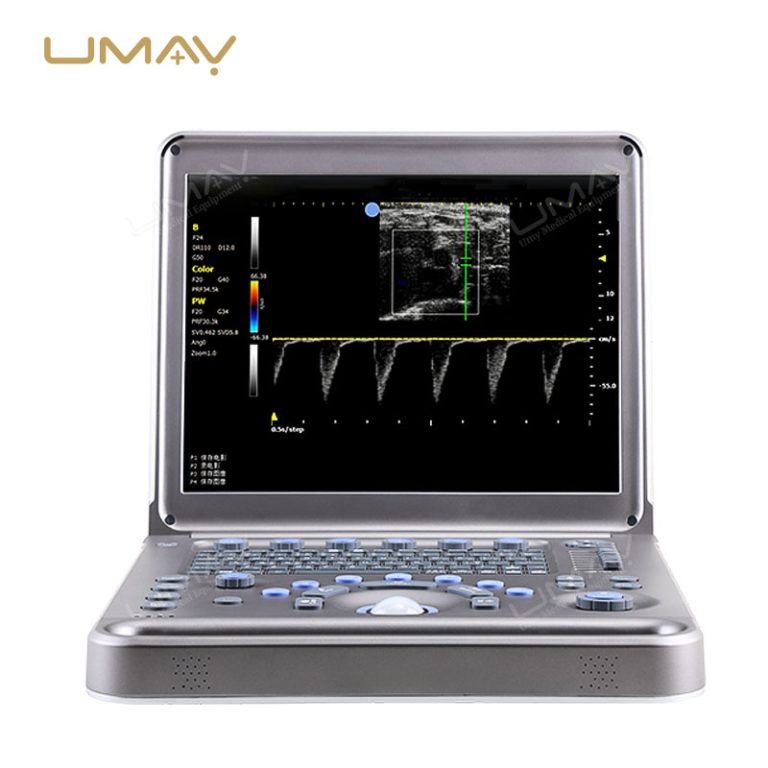

| Main Console | Ultra-high frequency small animal ultrasound imaging system (UMYPUHF001) |
| Software | Skyline Ultrasound Imaging Software V1.0.5 |
| Imaging Modes | |
| B-Mode | 2D grayscale imaging for tissue structure, annular displacement, distance/thickness/area measurements |
| M-Mode | Motion mode for cardiac and vascular movement analysis; supports cardiac measurements (EF, FS, SV, CO, PV, Peak E/A, Peak E’/A’) |
| C-Mode | Color Doppler imaging for directional blood flow detection; adjustable velocity and color mapping |
| PW-Mode | Spectral Doppler imaging for blood flow velocity measurement |
| TVI/TVD Modes | Tissue Doppler imaging for quantitative analysis of local myocardial motion |
| AUTO Optimization | One-click image optimization |
| Probes | |
| Probe Model UM38-22K3 | Center Frequency: 30 MHz (suitable for mice and rats) |
| Probe Model UM22-8K3 | Center Frequency: 15 MHz (suitable for large rats and rabbits) |
| Animal Applications | |

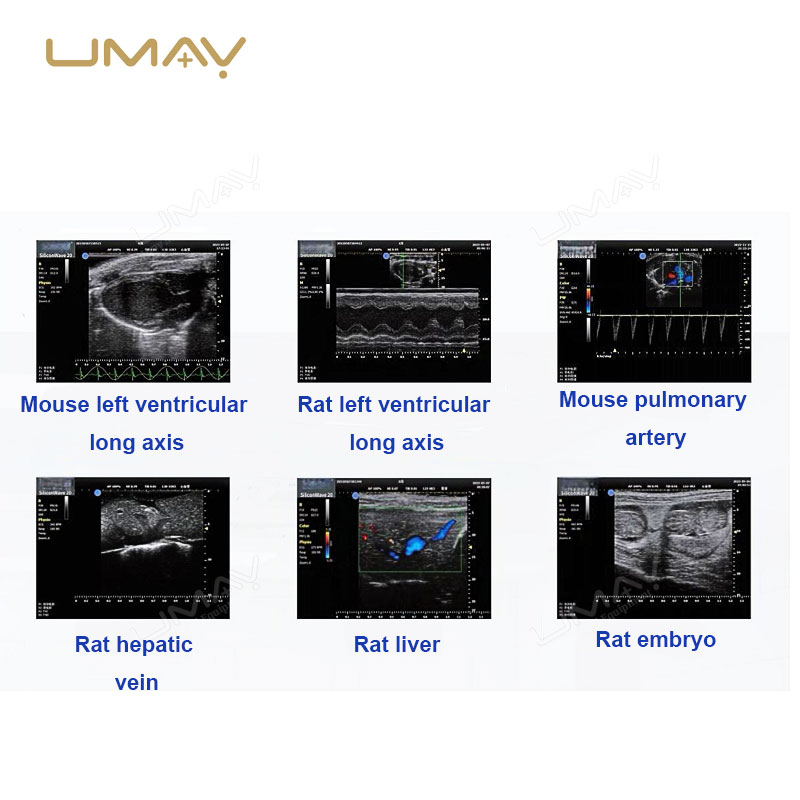

| Mice | Cardiovascular imaging, abdominal organs, lymph nodes, vascular imaging, tumor imaging (<13 mm), epidermal imaging, embryology |
| Rats | Cardiovascular imaging, embryology, abdominal imaging, vascular imaging, tumor imaging |
| Rabbits | Abdominal imaging, vascular imaging, ocular imaging |
| Measurement Packages | |
| Standard Package | Measurement package for small and large rodents, rabbits, and other experimental animals |
| Accessories | |

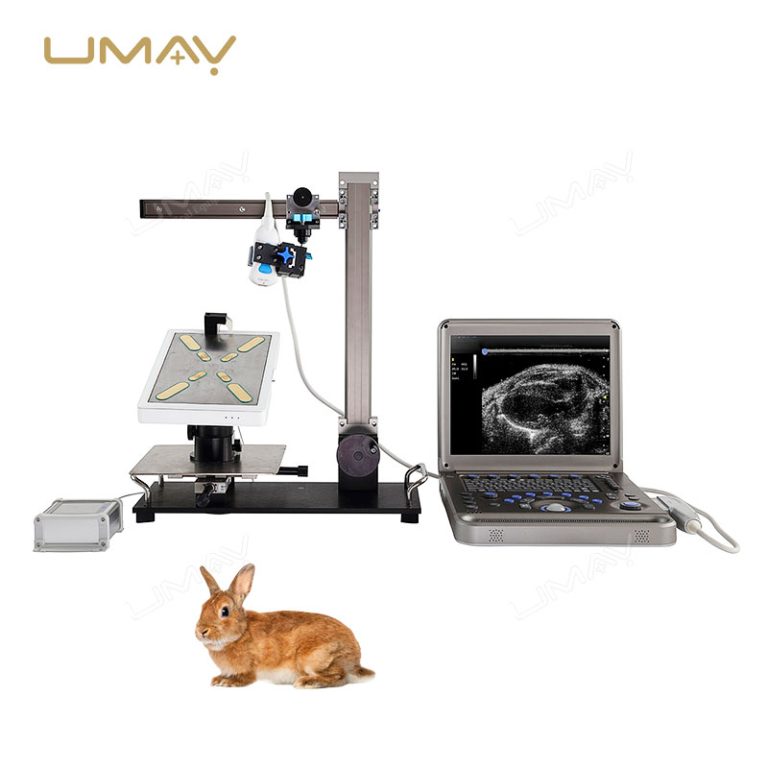

| Advanced Bracket Platform | Model H20; adjustable for mouse board and probe positioning |

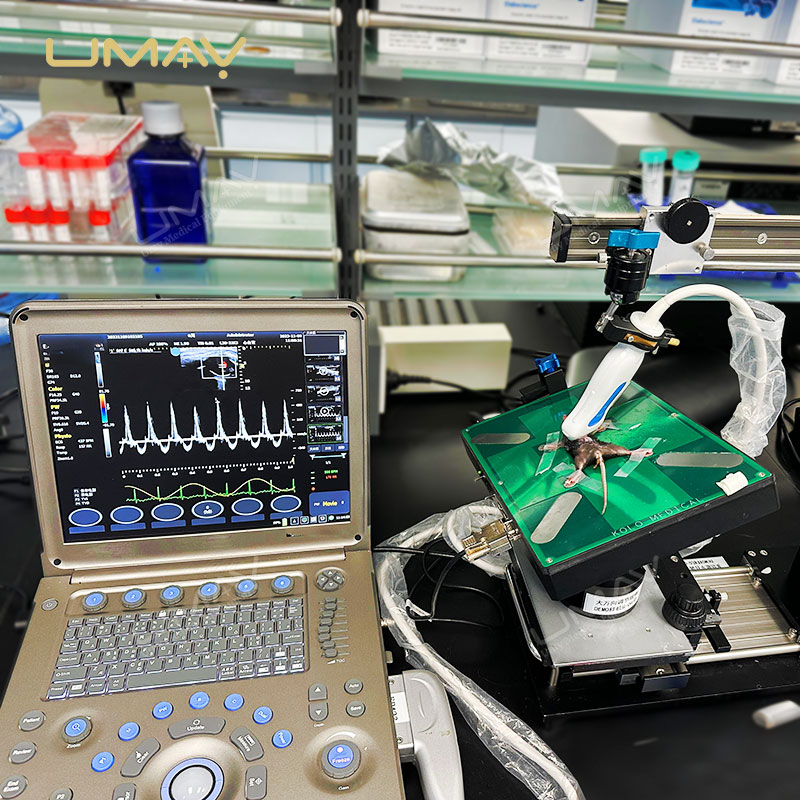

| Mouse/Rat Board | Model P60; includes ECG, respiration, and heating modules |
| Mobile Trolley | Dedicated system trolley for mobility |
| Offline Workstation | WS01 with workstation software and Ukey-WSK01 |
| Power Cable | Included |
| Standard Documentation | Included |
