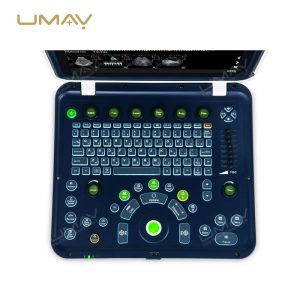

Color Doppler Compact Ultrasound System for Advanced Clinical Imaging
The UMUS089 Color Doppler Ultrasound Imaging System delivers a powerhouse combination of features to meet the demands of clinical medical imaging applications. Designed with high cost performance and ease of operation in mind, the system features a thin, lightweight profile and dual active transducer ports that enable seamless transducer switching at your fingertips.
Powered by an embedded Windows 7 operating system, 4GB memory, and a 128GB SSD, the UMUS089 ensures smooth system operation and fast response times.
Equipped with advanced imaging technologies such as tissue adaptive imaging, adaptive speckle reduction, and auto optimization, it offers reliable diagnostic performance for multi-specialty clinical environments.
Key Features
Dual Active Transducer Ports
Features dual active probe ports allowing users to switch transducers seamlessly during examinations.
Advanced Imaging Technologies
Incorporates tissue adaptive imaging, SRI (Adaptive Speckle Reduction Imaging), auto optimization, and digital multi-beam forming.
15.6-Inch High-Resolution Display
Equipped with a 15.6-inch high-resolution LED monitor and built-in stereo speakers for clear visualization.
Portable & Lightweight Design
Weighs only 4 kg with compact dimensions of 378 mm × 350 mm × 56 mm, ensuring high mobility.
Rechargeable Battery Operation
Features a built-in 5600mAh rechargeable battery with a battery level indicator on the main screen for mobile clinical use.
Multi-Language Support
Operating software supports Chinese, English, Russian, Spanish, Portuguese, French, and Indonesian.
Imaging Modes and Performance
The UMUS089 supports multiple imaging mode combinations and advanced Doppler functions to deliver detailed anatomical and blood flow analysis.
Comprehensive Imaging Modes
Supports B, dual-B, 4B, M-mode, Color Doppler, PDI, and PW Doppler imaging modes.
Flexible Mode Combinations
Includes side-by-side display, B/C dual live, B+PW duplex, and B/C + PW triplex imaging combinations.
Adaptive Doppler Optimization
Features adaptive Doppler imaging and auto Doppler trace for streamlined vascular and cardiac evaluations.
User-Friendly Interface
Equipped with interactive back-lighting, user-defined keys, 6 shortcut menu knobs, and 8-stage TGC sliders.
Technical Specifications
| Specification | UMUS089 Details |
|---|---|
| Model | UMUS089 |
| Product Type | Color Doppler Compact Ultrasound System |
| Operating System | Embedded Windows 7 |
| Memory & Storage | 4GB Memory | 128GB SSD |
| Monitor | 15.6-inch high-resolution LED monitor |
| Transducer Ports | Dual active transducer ports |
| Dimensions & Weight | 378 mm × 350 mm × 56 mm | Net Weight: 4 kg |
| Battery Capacity | 5600mAh rechargeable battery (charges fully in approx. 4 hours) |
| I/O Ports | VGA, USB 2.0 (two), HDMI (optional) |
| Power Requirements | Voltage 100-240V~, Frequency 50/60 Hz |
- Specifications are based on the supplied UMUS089 technical datasheet.
- Optional accessories include DICOM connectivity, 3D software, needle guide bracket kits, simple trolley, and HDMI to BNC boxes.
- Standard packaging includes aluminum box or carton options.
Transducer Options
| Probe Model | Center Frequency | Frequency Range | Probe Type | Clinical Applicability |
|---|---|---|---|---|
| 3.5C8060G-3 | 3.5 MHz | 2.0-6.0 MHz | Convex (R=60) | ABD / OB / GYN / Superficial |
| 7.5L8040G-3 | 7.5 MHz | 5.0-12.0 MHz | Linear (L=40) | Superficial / Small Parts |
| 6.5C8010G-3 | 6.5 MHz | 4.5-10.0 MHz | Trans-vaginal (R=10) | OB / GYN |
| 3.5C8020G-3 | 3.5 MHz | 2.5-6.0 MHz | Micro-convex (R=20) | Cardiac / Small Organ |
| 6.5C8015G-3 | 6.5 MHz | 4.5-10.0 MHz | Micro-convex (R=15) | Cardiac / Small Organ |
| 7.5C8020G-3 | 7.5 MHz | 5.5-12.0 MHz | Micro-convex (R=20) | Cardiac / Small Organ |
| 6.5L8064G-3 / 6.0L8064G-3 | 6.0 – 6.5 MHz | 5.0-10.0 MHz | Linear (L=64) | Animal Rectal |
Applications
Abdominal & General Imaging
Supports deep tissue and abdominal organ assessments using convex transducers.
Obstetrics & Gynecology
Provides specialized trans-vaginal and convex probe options for comprehensive OB/GYN examinations.
Cardiology & Small Organs
Enables cardiac evaluations and small organ scans with dedicated micro-convex and linear probes.
Point-of-Care & Mobile Clinics
Lightweight design and built-in battery make it ideal for bedside triage, emergency rooms, and mobile medical services.
System Configuration
The UMUS089 is supplied as a compact color Doppler ultrasound system with dual active transducer ports and comprehensive software packages.
Please confirm your required transducer selections, trolley or mounting options, and DICOM software requirements prior to ordering.
Before Ordering
- Required quantity and destination country.
- Intended clinical applications and transducer selections.
- Optional accessories such as a simple trolley, 3D software, or DICOM interface.
- Destination market regulatory and tender documentation requirements.
Discover more options in our Portable Ultrasound Machine range.
Request a UMUS089 Ultrasound System Quote
Contact UMY Medical to discuss the UMUS089 configuration, transducer options, optional accessories, and export quotation for your facility.
Frequently Asked Questions
How many transducer ports does the UMUS089 have?
The system features dual active transducer ports, allowing seamless switching between two connected probes.
What is the battery life and charging time?
It features a 5600mAh rechargeable battery that charges fully in approximately 4 hours, complete with a battery level indicator on the main screen.
What operating system does the UMUS089 use?
The system runs on an embedded Windows 7 operating system with 4GB memory and a 128GB SSD for fast response.
What imaging modes are available?
Available modes include B, dual-B, 4B, M-mode, Color Doppler, PDI, and PW Doppler with various split-screen combinations.
