Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Display & Imaging | |
| Display Size | 15 Inch LCD screen |
| Display Mode | B, B+B, B+M, M, 4B |
| Working Frequency | 2.0MHz ~ 10MHz |
| Scanning Range | Convex array 60° ~ 150° |
| Image Gray-Scale | 256 levels |
| Scanning Line Number | 512 lines/frame |
| Frame Rate | 30 frames/second |
| Digital Scanning Conversion | 512 × 512 × 8 bits |
| Image Processing | |
| Amplification Factor | 1.0, 1.2, 1.5, 2.0 |
| Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| Image Processing Functions | 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement, pseudo color processing |
| Measurement Functions | |
| Conventional Measurements | Distance, perimeter, area, volume |
| Obstetric Measurement | Gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc. |
| Report Function | Auto make report |
| Built-In Battery Capacity | Can work more than 5 hours |
| Connectivity | |
| Memory | USB flash disk large volume image storage |
| Output Interface | USB port, video |
| Physical Specifications | |
| Total Weight | 4 Kg (with battery) |
| Overall Size | 362 mm × 340 mm × 60 mm |
| Configuration | |
| Standard Configuration | One host, one convex probe, one aluminum trunk, one instruction |
| Optional Accessories | Transvaginal, linear, micro-convex probe; Biopsy; Trolley; Printer |

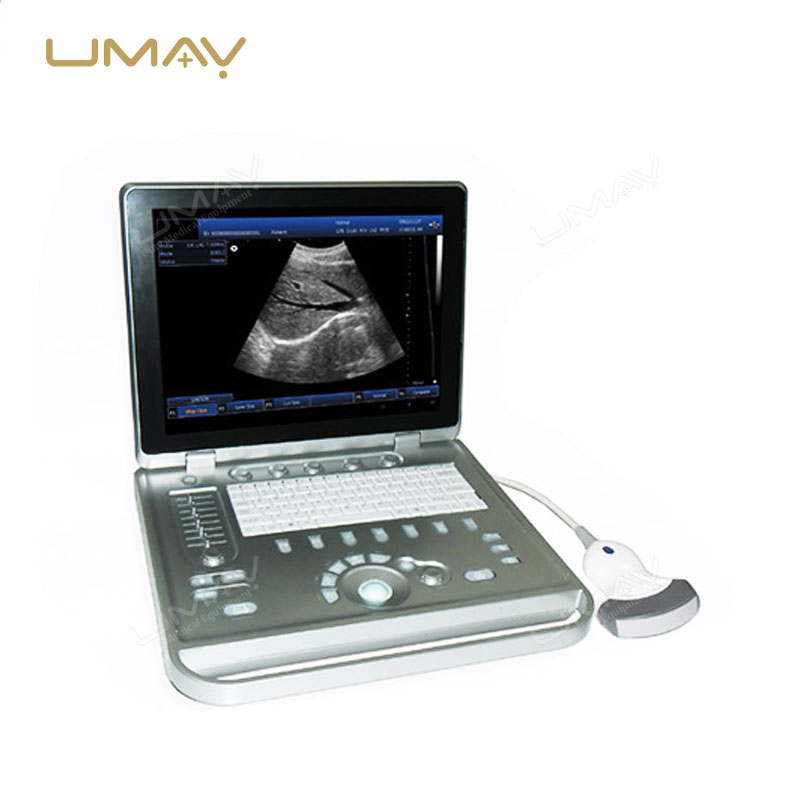

Product Details

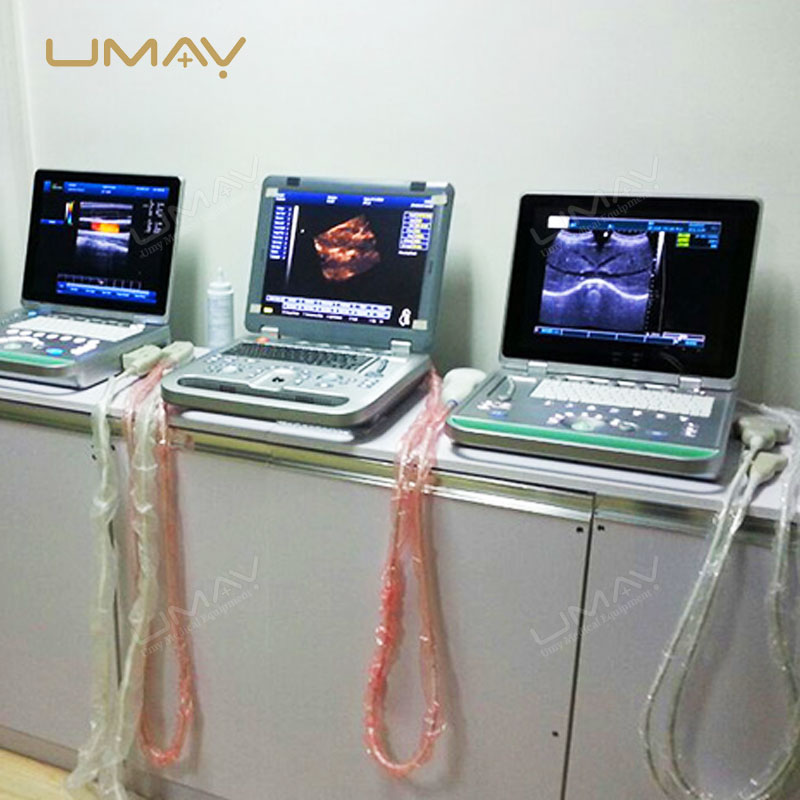

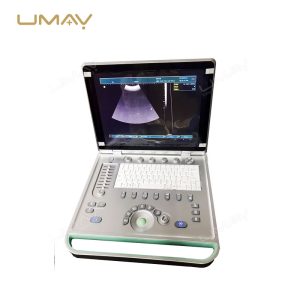

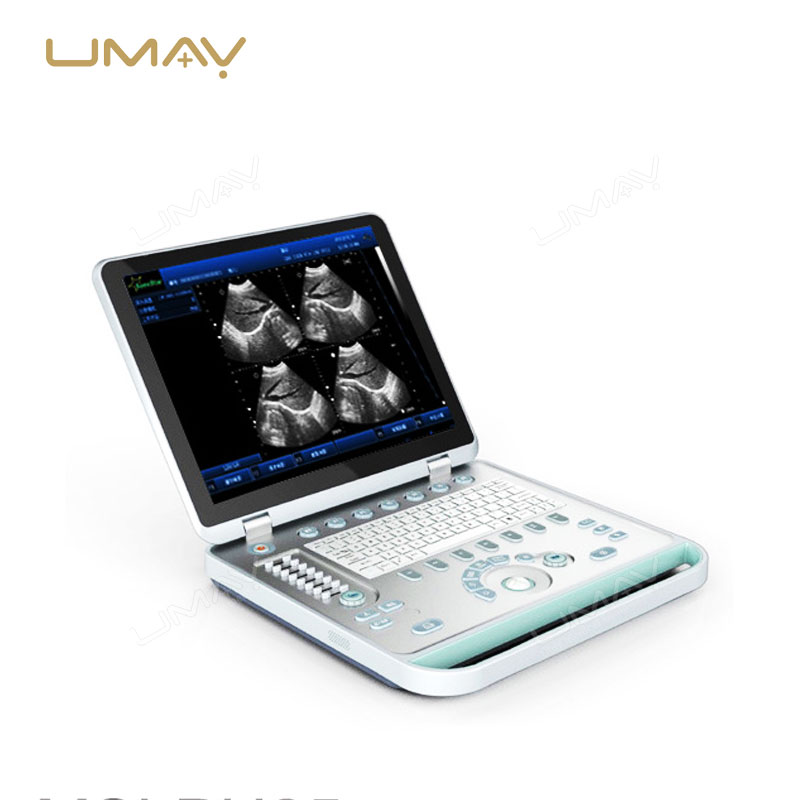

Detail Gallery
