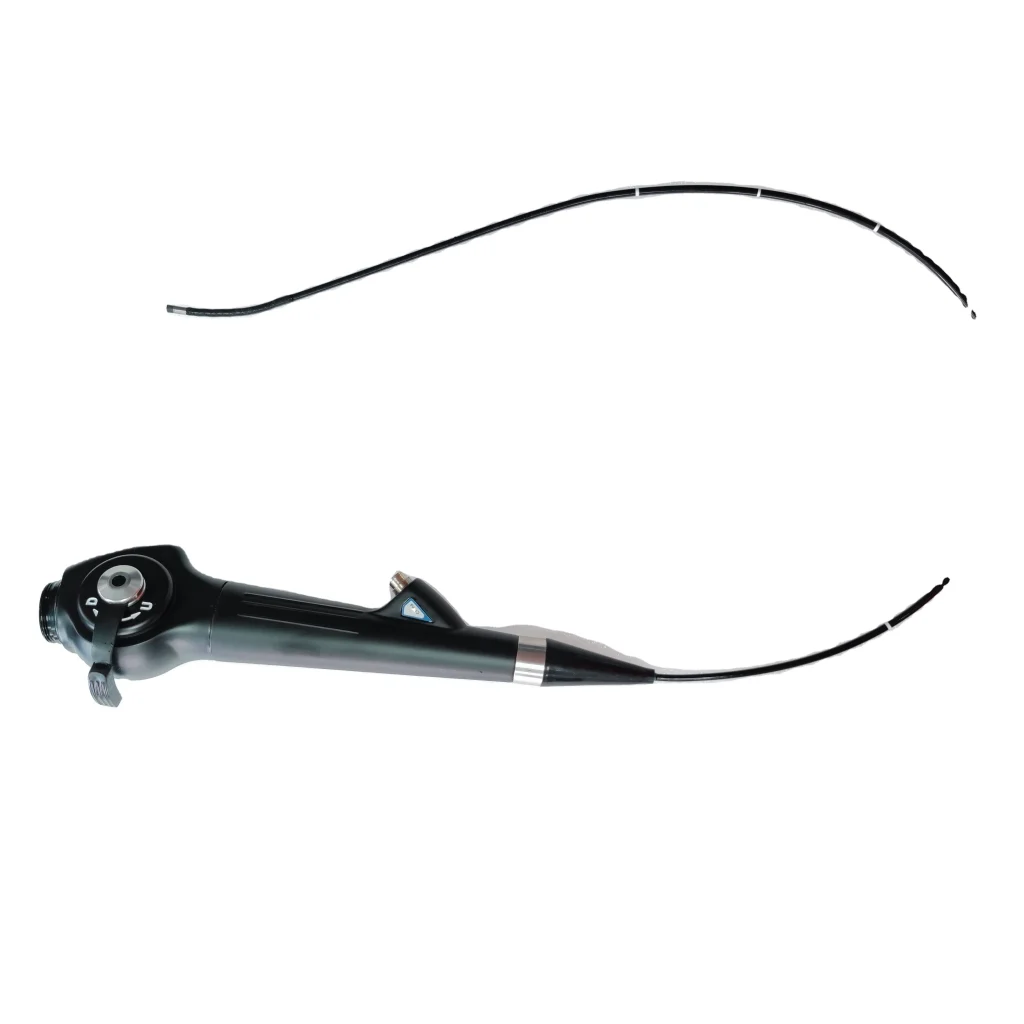

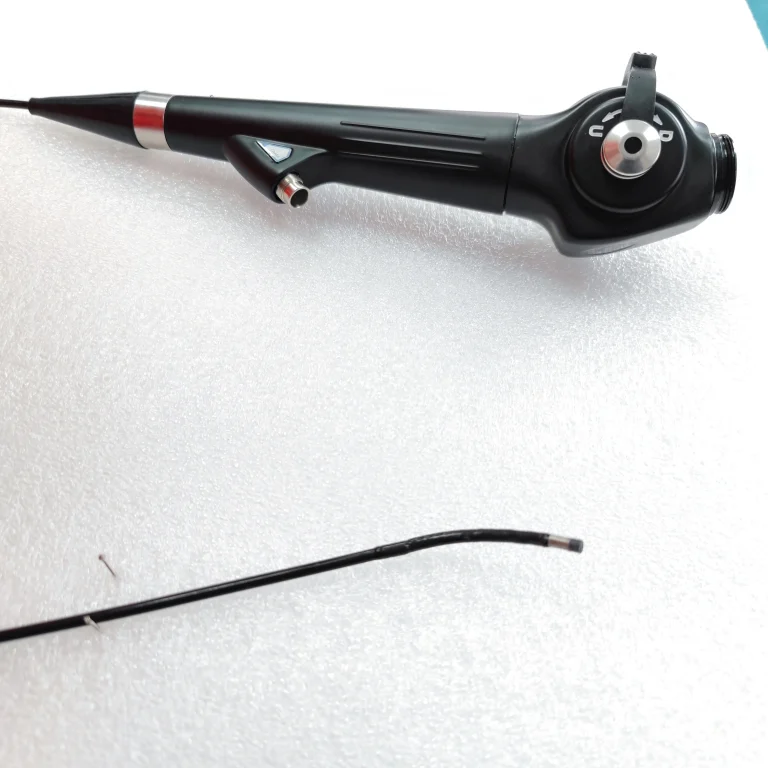

Handheld Video Endoscope for Human and Veterinary Use Budget-Friendly

This budget-friendly handheld flexible video endoscope is designed for both human and veterinary use, providing high-quality imaging for a variety of diagnostic procedures. The flexible design ensures easy maneuverability, making it suitable for examinations of the gastrointestinal, respiratory, and urological systems in both humans and animals. Its compact size makes it ideal for use in clinics, emergency care, and mobile veterinary practices. Despite its affordability, the endoscope delivers clear, real-time visuals, enhancing diagnostic accuracy and efficiency. Upgrade your diagnostic capabilities with this versatile, cost-effective video endoscope.

SKU: UMY-VEEN-010 Categories: , ,
Properties: Endoscope
Type: Endoscope
Instrument classification: Class I
Warranty: 1 Year
After-sale Service: Online technical support
Monitor: 3.5″TFT LCD, high resolution
Controls: brightness adjusting, internal image processing;snapshot; video
Lithium battery: working time ≥1.5H
Camera pixel count: 300000 pixels (1/10″ color CMOS)
Field of view(FOV): 90° ± 10°
Depth of field(DOF): 3 mm~50 mm
View direction: forward
Articulation: U180°D130°
Working length: 300mm—-600mm
Waterproof: IP67 (cable and holder)

Product Details

Budget-Friendly Portable Handheld Flexible Video Endoscope for Human and Veterinary Use

Main Specifications:Probe
Outer diameter
forward view
φ5.8mm with working channel:2.2mmm
φ4.8mm with working channel:1.5mmm
φ3.8mm with working channel:0.6mmm
φ2.8mm without working channel
Camera
pixel count
300000 pixels (1/10″ color CMOS)
analysis
10.5 lp/mm (at 7mm)
Optic system
field of view(FOV)
90° ± 10°
depth of field(DOF)
3mm~50mm
view direction
forward
Articulation
UP 180 degree
Down 130 degree
illumination adjustable
>10000 Lux of illumination with Fiber
Insertion tube covering
polyurethane (match medical standard)
Working length
300mm—-600mm
Waterproof
IP67 (cable and holder)
Working Temperature
5~40°C
Atmosphere Pressure
700hpa~1060hpa

Budget-Friendly Portable Handheld Flexible Video Endoscope for Human and Veterinary Use

Base
Monitor
3.5″TFT LCD, high resolution
Controls
brightness adjusting, internal image processing;snapshot;video recording
Power supply
DC (battery)
lithium battery :working time ≥1.5H
charging time: 8~10 H
Memory card
TF card 2 G (provided) , Max 16G (option)
Memory volume
JPEG : 60KB; 4 hours’ video recording: 1G
USB2.0
for transfer data to PC
Budget-Friendly Portable Handheld Flexible Video Endoscope for Human and Veterinary Use
MOQ

1

Warranty

1 Year

Origin

China
