The Mobile New Digital Medical X-ray Radiography Machine is designed to provide high-quality, versatile imaging for a variety of medical applications. This advanced system ensures precise diagnostic images, essential for conditions such as fractures, infections, and respiratory diseases. Its mobile design allows for easy transportation within healthcare facilities or for use in field settings, enhancing workflow flexibility. With digital technology, the machine provides faster image acquisition with reduced radiation exposure, ensuring patient safety. Ideal for hospitals, clinics, and mobile medical units, it supports efficient, reliable diagnostic imaging for improved patient care.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Technology | a-SI with direct deposition CsI |
| Active Area (inch) | 17 × 17 |
| Active Matrix (pixels) | 3072 × 3072 |
| ADC (bits) | 16 |
| Pixel Pitch (μm) | 139 |
| Spatial Resolution (lp/mm) | 3.6 |
| Typical DQE @ 0lp (2.5uGy @ RQA5) | 0.69 |
| Fast Preview Time (sec) | 3 |
| Final Image Time (sec) | 5 |
| Dimensions (mm³) | 460 × 460 × 15 |
| Weight (kg) | 4.6 |
| WIFI | IEEE802.11 a/b/g/n/ac |
| X-Ray Generator Specifications | |
| Power Supply | AC 220V/110V ±10% 50/60Hz |
| Power (kW) | 5.3 |
| kVp | 40 – 125 |
| mA | 10 – 100 |
| mAs | 0.1 – 100 |
| Minimum Exposure Time (ms) | 1 – 1000 |
| Ripple | < 5% |
| Focal Spot Sizes (mm) | 0.6 / 1.8 |
| Target Angle | 15° |
| Anode Heat Storage (kJ) | 30 |
| Collimator Specifications | |
| Field Adjustment | Manual control knobs to adjust X-ray field |
| Maximum Field Size | 43 × 43 @ 100cm SID |
| Minimum Inherent Filtration (mm Al @ 75 kV) | 1 |
| Laser | Dual-Laser |
| Light Source On Time (sec) | 30 |
| Bluetooth | Yes |
| System Specifications | |
| Weight (kg) | 15 |
| Dimensions (mm³) | 251 × 228 × 367 |
Product Details
- Mobile Digital Medical X-Ray Radiography Machine: Advanced mobile imaging system designed for high-quality diagnostic radiography across various clinical environments.
- High-Resolution Digital Imaging: Produces clear, detailed X-ray images for accurate diagnosis and treatment planning.
- Advanced Digital Radiography Technology: Delivers rapid image acquisition and instant image processing for enhanced clinical efficiency.
- Mobile and Flexible Design: Easily transported between departments, patient rooms, and healthcare facilities for convenient imaging access.
- Ideal for Bedside Examinations: Supports imaging in intensive care units, emergency rooms, operating theaters, and inpatient wards.
- Fast Image Acquisition: Provides immediate image availability to support timely diagnosis and clinical decision-making.
- Reduced Radiation Exposure: Optimized digital imaging technology minimizes patient dose while maintaining excellent image quality.
- Versatile Clinical Applications: Suitable for orthopedic, respiratory, trauma, abdominal, and general radiographic examinations.
- Enhanced Fracture Detection: Offers detailed visualization of bones and joints for accurate orthopedic assessments.
- Supports Respiratory Diagnostics: Delivers high-quality chest imaging for evaluating lung diseases and thoracic conditions.
- Reliable Emergency Imaging Solution: Enables rapid diagnostic evaluations in urgent and critical care situations.
- User-Friendly Operating Interface: Simplifies system control, examination setup, and image management for healthcare professionals.

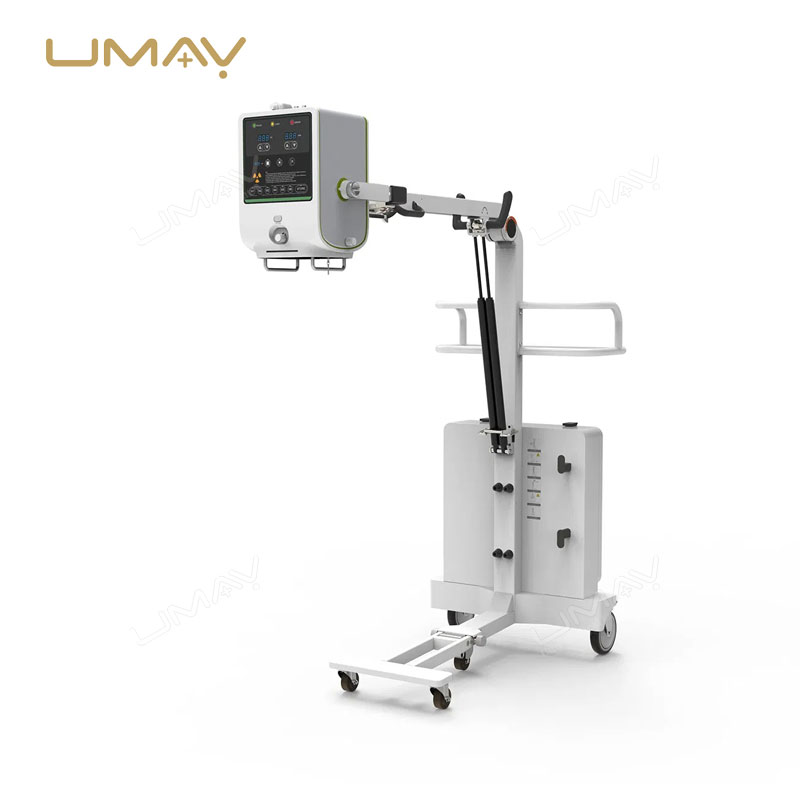

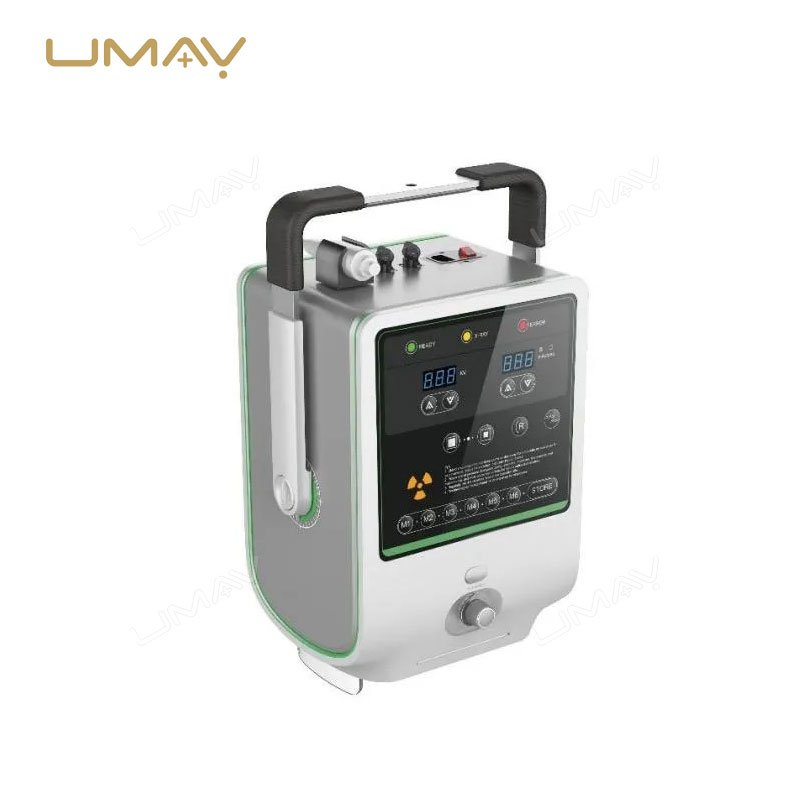

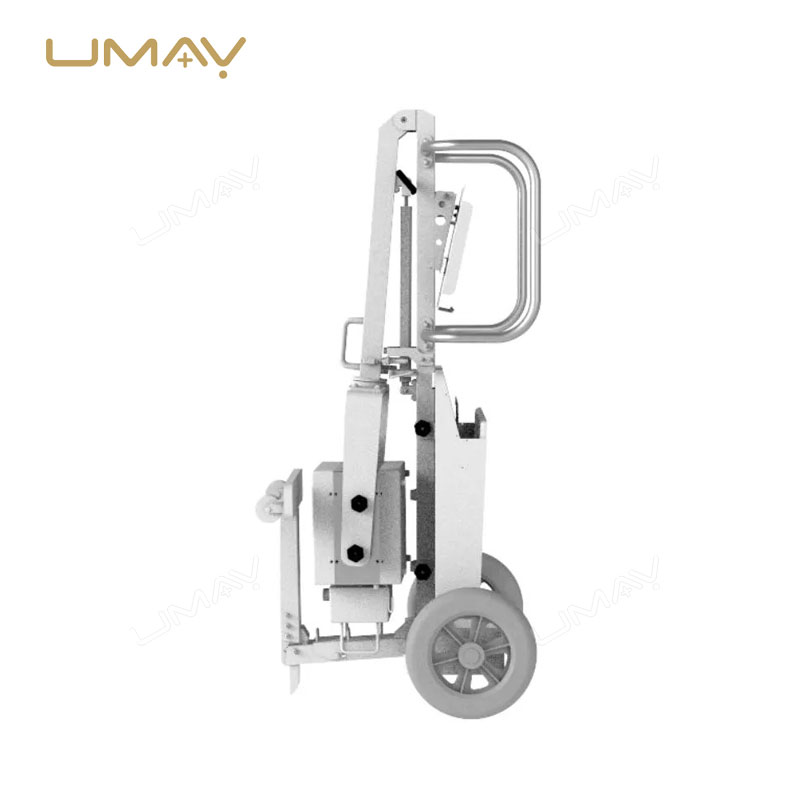

Detail Gallery
