Automated External Defibrillator UMH-5S for Emergency Resuscitation
The UMH-5S Automated External Defibrillator is engineered to provide bystanders and medical responders with an intuitive, highly reliable device for sudden cardiac arrest intervention. Utilizing advanced biphasic truncated exponential waveform technology and adjustable energy levels, the system ensures optimal defibrillation efficacy for both adult and pediatric patients.
Equipped with comprehensive voice prompts, color LED step indicators, a loud speaker for noisy public environments, and one-button operation, the UMH-5S streamlines the rescue workflow.
Supported by built-in Bluetooth data communication, memory storage for up to 1,800 event records, IPX55 water and dust resistance, and automatic self-tests, the UMH-5S integrates seamlessly into public safety and emergency medical program.
Key Features
Selectable Adult & Child Modes
Easily switch between adult mode (150J, 150J, 200J) and child mode (50J, 50J, 75J) to protect pediatric patients.
Biphasic Truncated Exponential Waveform
Delivers optimized defibrillation energy with high first-shock success rates while minimizing myocardial damage.
Comprehensive Voice & LED Guidance
Features color LED indicators for each step, written instructions, and loud voice prompts designed for high-noise public areas.
Bluetooth Data Transmission & Memory
Supports wireless data transfer via Bluetooth and stores up to 1,800 event records or 65 hours of ECG waveform data.
Automatic Self-Test System
Performs automated daily, weekly, and monthly self-tests to ensure the device is constantly rescue-ready.
Rugged & Portable Design
Built with IPX55 water and dust resistance and supplied with a durable carry case allowing operation directly inside the bag.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-5S Automated External Defibrillator (AED) |
| Waveform | Biphasic Truncated Exponential (BTE) |
| Energy Sequence | Adult Mode: 150J, 150J, 200J | Child Mode: 50J, 50J, 75J |
| Charge Time | Less than 6 seconds to 150J; Less than 10 seconds to 200J (New battery at 25°C) |
| Self-Test Function | Automated Daily, Weekly, and Monthly self-tests |
| Data Storage & Transfer | Stores 1,800 events (upgradable to 65 hours); Bluetooth wireless communication |
| Power Supply | Non-rechargeable Li-MnO2 battery (12V, 2800mAh) |
| Water & Dust Resistance | IPX55 rated housing and protection |
| Dimensions & Weight | 300 mm (L) × 240 mm (W) × 80 mm (D) | 1.9 kg (4.2 lbs) with battery |
- Specifications are based on official technical datasheets for the UMH-5S Automated External Defibrillator.
- Standard configuration includes the AED main unit, non-rechargeable battery pack, disposable electrode pads, and carry case.
- Dual language options and adjustable sound volume (5 levels) can be configured by the end user.
Applications
Public Access Places
Ideal for airports, railway stations, shopping malls, schools, corporate offices, and sports complexes.
Emergency Medical Services
Suited for police cruisers, ambulances, fire departments, and first responder field kits.
Clinics & Healthcare Facilities
Provides reliable secondary emergency backup defibrillation across hospital wards and outpatient clinics.
System Configuration
The UMH-5S Automated External Defibrillator is supplied complete with the main AED unit, long-life lithium battery pack, adult/child disposable electrode pads, reflective carry case with first aid pocket, and user manual.
Please confirm your required default language pack and regional regulatory compliance standards prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Preferred language pack selection (supports 2 selectable languages).
- Accessory requirements (spare electrode pads, wall cabinets, or AED signs).
Request an AED UMH-5S Quote
Contact UMY Medical to discuss system configurations, bulk pricing, and export delivery for your organization or public safety project.
Frequently Asked Questions
What energy levels does the UMH-5S AED provide?
It offers selectable energy sequences: 150J, 150J, 200J for adults, and 50J, 50J, 75J for child mode.
How often does the AED perform self-tests?
The device performs automated self-tests on a daily, weekly, and monthly basis to ensure full operational readiness.
Can rescue data be transferred to a computer?
Yes, the AED features built-in Bluetooth data communication and software support for reviewing ECG waveforms and event log.
Does the unit need to be removed from its bag during use?

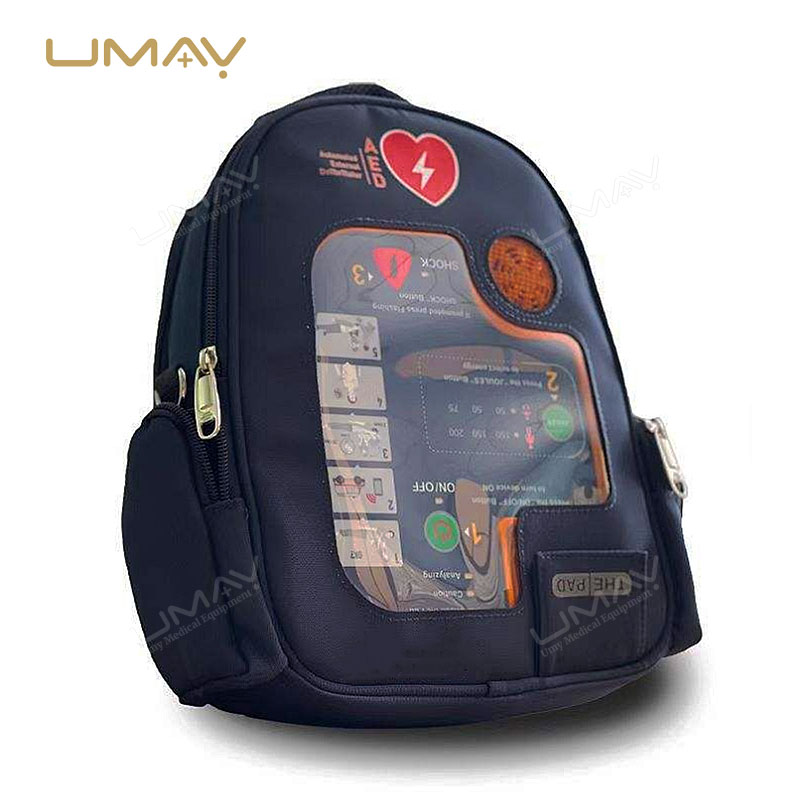

No, the carry case features a transparent panel and thoughtful design allowing the AED to be operated directly while inside its protective bag.
