Handheld Multi Parameter Patient Monitor With 7 Inch Display ECG NIBP SpO2 for Hospital Use
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-PM-002
- Warranty: 1 Year
- Origin: China
This portable multi-parameter patient monitor combines lightweight portability with full-spectrum vital sign monitoring, making it one of the most practical bedside solutions for hospitals and procurement-focused clinical facilities. At just 950g with a built-in carry handle, it supports ECG NIBP SpO2 monitoring across adult, child, and neonatal patient groups with dedicated parameter ranges and overvoltage protection per mode. A universal AC 100–240V input paired with an internal 2000mAh lithium battery ensures uninterrupted clinical use across diverse global power environments.
Clinically comprehensive and cost-effective:

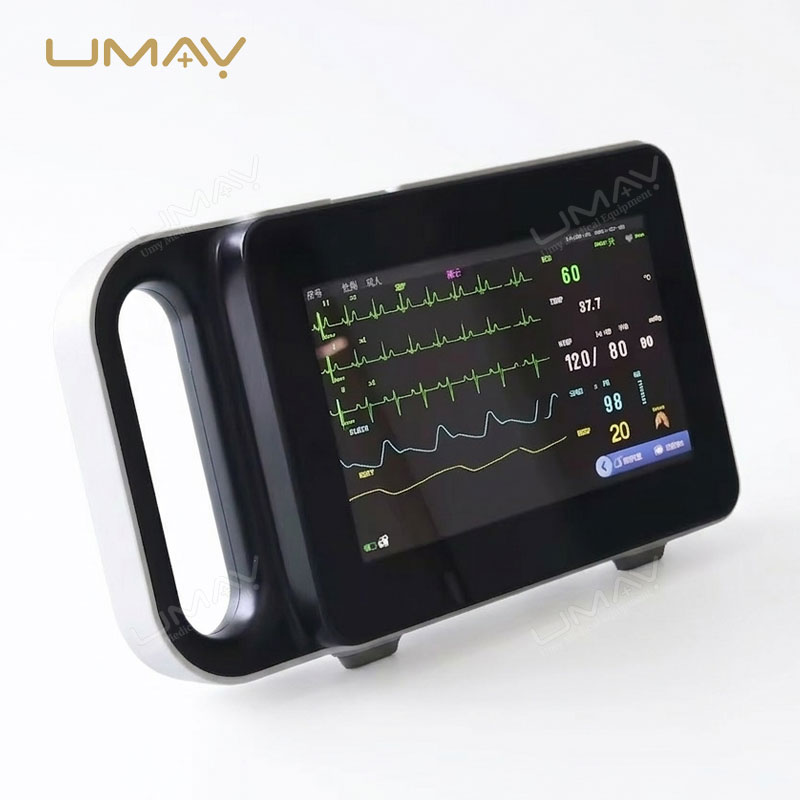

The 7-inch color LCD provides clear simultaneous display of waveforms and vital parameters under variable ward and theatre lighting. NIBP overvoltage protection across adult, child, and neonatal modes reduces clinical risk and protects patient safety during pressure measurement cycles.
Scalable for advanced clinical needs:
Neonatal adult bedside vital signs monitoring is fully supported with accurate SpO2, respiration, and temperature measurement across all patient groups. Optional EtCO2 and wired WiFi modules enable facilities to expand diagnostic and connectivity capabilities as clinical program requirements grow.
Pair this monitor with our Biphasic Defibrillator Monitor With Voice Prompts ECG And Optional Advanced Features For Human Medical Use for a complete emergency and monitoring solution. This portable multi-parameter patient monitor delivers institutional-grade performance with the value and versatility procurement teams require.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Information | |

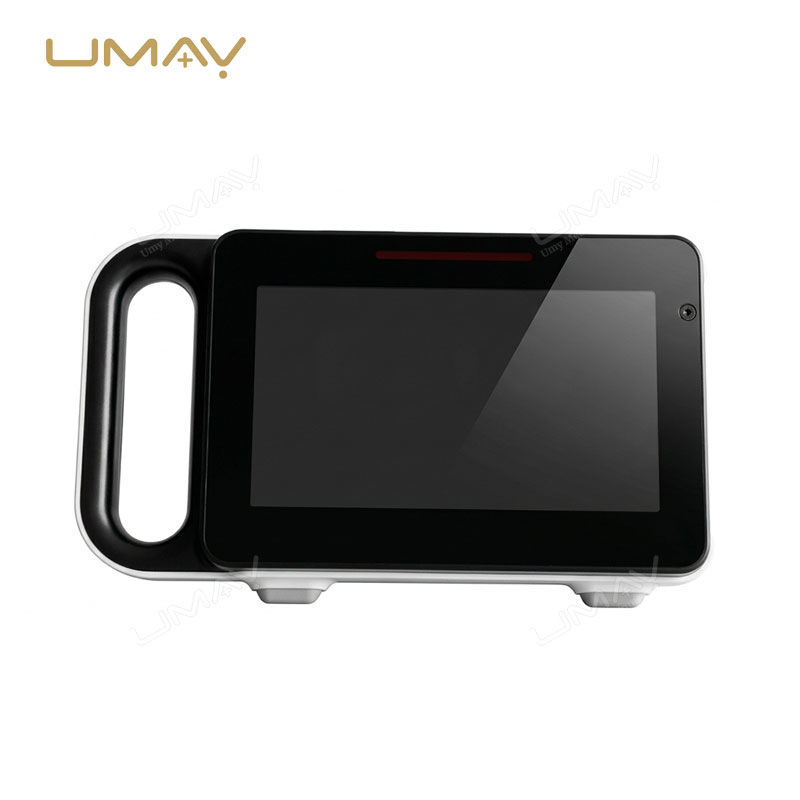

| Display | 7-inch color LCD display |
| Application Range | Adult, children, and newborn patients; suitable for surgery, post-anaesthetic recovery, and post-operation. |
| ECG | |
| Gain | X0.25, X0.5, X1, X2, Auto |
| Timebaseline Selection | 12.5mm/s, 25mm/s, 50mm/s |
| Sensitivity | >200uV (peak-to-peak) |
| Bandwidth (Diagnostic) | 0.05 ~ 130Hz |
| Bandwidth (Monitoring) | 0.5 ~ 40Hz |
| Bandwidth (Operation) | 1 ~ 20Hz |
| Common Mode Rejection Ratio | Diagnostic >90dB; Custody >100dB; Operation >100dB |
| NIBP | |
| Adult Pressure Range | Systolic 40~270mmHg; Diastolic 10~210mmHg; Average 20~230mmHg |
| Children Pressure Range | Systolic 40~200mmHg; Diastolic 10~150mmHg; Average 20~165mmHg |
| Neonatal Pressure Range | Systolic 40~135mmHg; Diastolic 10~95mmHg; Average 20~110mmHg |
| Static Pressure Range | 0 ~ 300mmHg |
| Accuracy | Average error 5mmHg; Standard deviation 8mmHg |
| SpO2 & Pulse Rate | |
| SpO2 Measuring Range | 0 ~ 100% (Resolution 1%) |
| SpO2 Accuracy | ±4% (within 70% to 100% range) |
| Pulse Rate Range | 25 ~ 250bpm |
| Pulse Rate Accuracy | ±3bpm |
| Refresh Time | 1s |
| Heart Rate | |
| Adult Range | 15 to 300 bpm |
| Newborn/Child Range | 15 to 350 bpm |
| Accuracy | ± 1% or ± 1 bpm (whichever is larger) |
| Accessories | |
| Standard Accessories | ECG lead line, Cuff, SpO2 sensor, TEMP probe, Lithium-ion battery, Power cable, Operator’s manual |
| Optional Accessories | Etco2, Wired Wifi |
| Power | |
| Input | AC 100~240V AC, 50/60Hz |
| Maximum Input Power | 70VA |
| Fuse Specification | 2AL 16V |
| Battery Type | Internal lithium battery, d.c 7.4V |
| Battery Capacity | Not less than 2000 mAh |
| Working Method | Continuous work |
| Physical Specifications | |
| Product Size | 246.5 * 146.4 * 50.7mm |
| Product Weight | 950g |
Feature list for UMY-PM-002

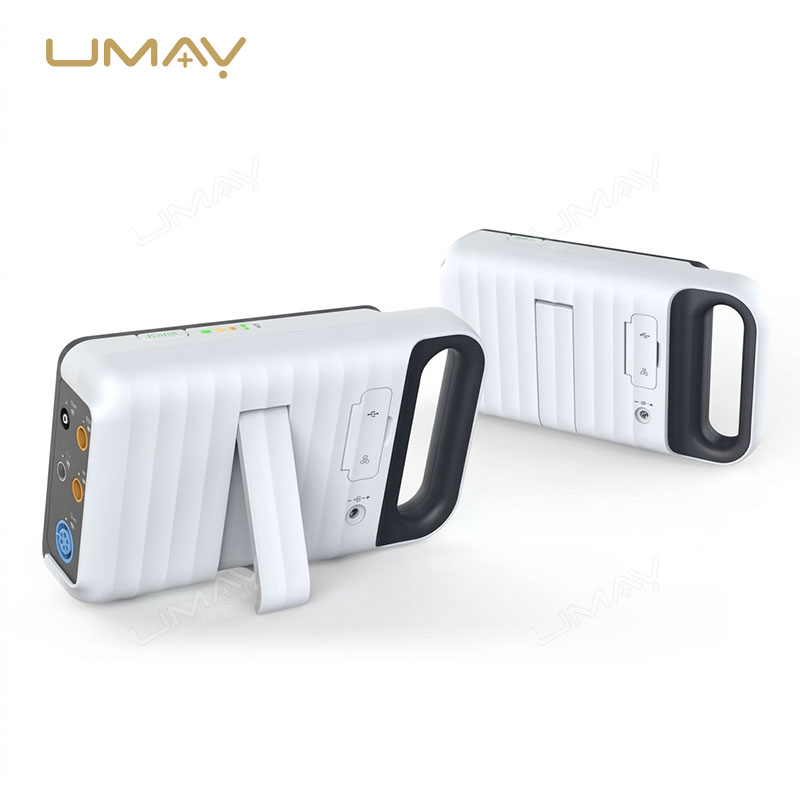

* Compact 950g Handheld Design With Built-In Carry Handle for Easy Deployment
* Full Multi-Parameter Monitoring: ECG, NIBP, SpO2, Respiration and Temperature
* Dedicated Adult Child and Neonatal NIBP Modes With Overvoltage Safety Protection
* Universal AC 100–240V Input With 2000mAh Internal Lithium Battery Backup
* Optional EtCO2 and Wired WiFi for Expandable Clinical Functionality
Application
Well suited for general hospitals, day surgery centers, emergency departments, ICUs, and ambulatory care settings across global markets. Particularly valuable for procurement teams seeking a portable, battery-backed multi-parameter monitor with neonatal and adult coverage, optional connectivity, and clinical-grade alarm management for diverse inpatient and procedural environments.
Q1: What nurse call or central station connectivity options are available for integrating this monitor into existing hospital network infrastructure?
A1: Central station connectivity options including wired WiFi integration are available as an optional module, with network compatibility confirmable with the technical team based on the facility’s existing infrastructure.
Q2: What materials and construction standards are used in the handheld housing to ensure durability and safe patient-side operation across high-frequency clinical use?
A2: The housing is constructed from clinical-grade impact-resistant materials with an IPX1-rated sealed enclosure designed to protect internal monitoring components under continuous ward and perioperative handling conditions.
Q3: What is the standard lead time for international hospital procurement orders and is installation and clinical training support included?
A3: Standard lead time is 3 to 7 business days with technical documentation and clinical training support provided, and facilities may also consider the Precision Infusion Pump With Voice Alarm System And Dual CPU For Fluid Management as a complementary bedside clinical tool.
