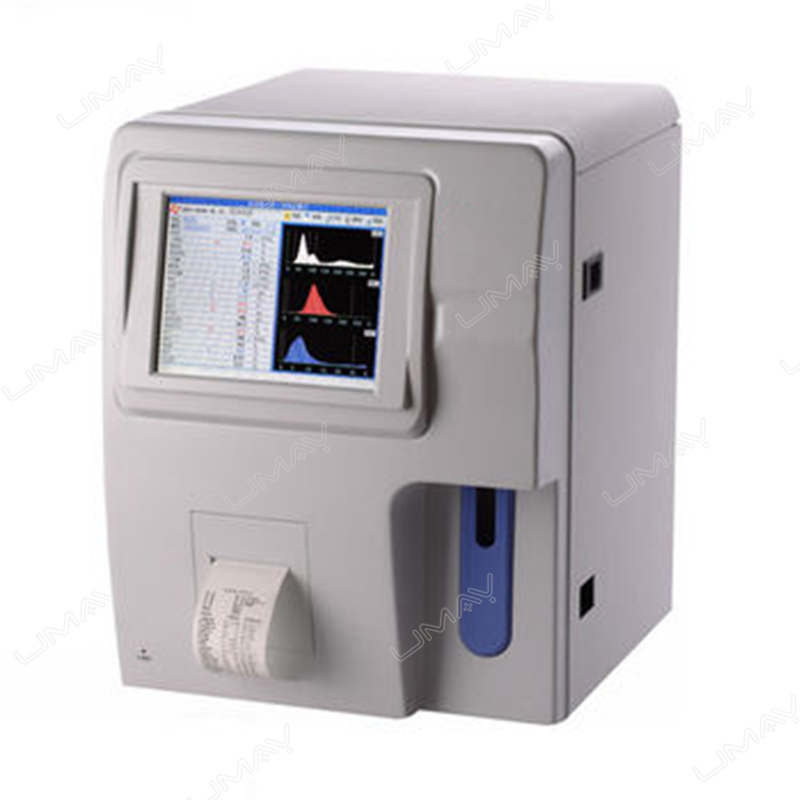

Full-Auto Hematology Analyzer for 3-Part CBC Testing
The UMALZ007 Full-Auto Hematology Analyzer provides
3-part white blood cell differentiation together with comprehensive
hematology parameter analysis for routine CBC testing.
The system uses electrical resistance technology for WBC, RBC and PLT
counting, together with the SFT (Sodium Lauryl Sulfate) method for
hemoglobin determination. Its double-chamber design and automated workflow
support routine testing requirements in hospitals, diagnostic centers
and clinical laboratories.

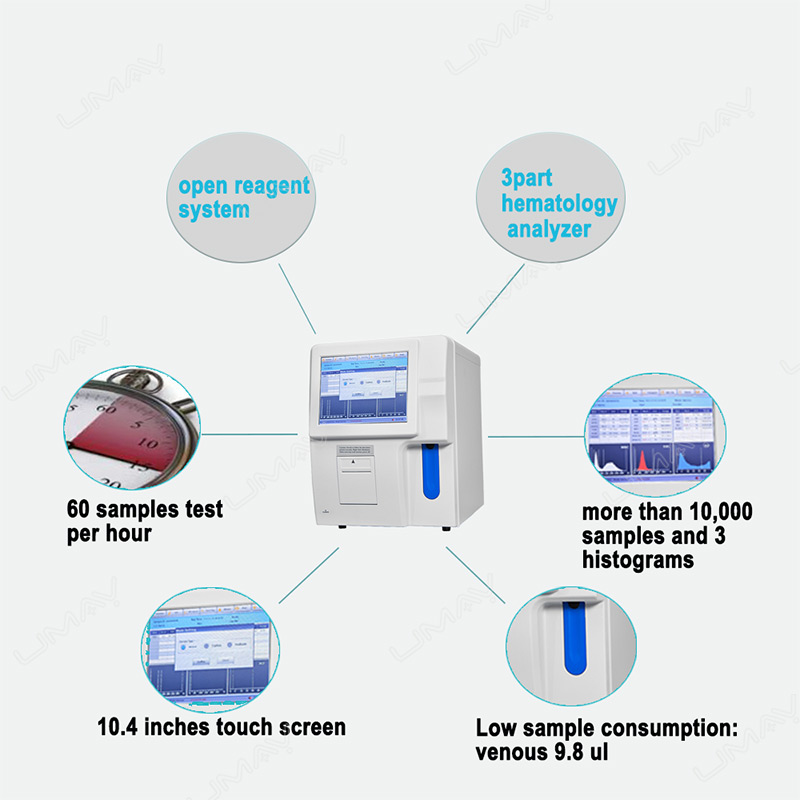

Key Features of the UMALZ007 Hematology Analyzer
3-Part WBC Differentiation
Provides 3-part white blood cell differentiation, 24 hematology
parameters and three histograms.
Up to 70 Samples per Hour
High-speed double-channel counting supports a testing throughput
of up to 70 samples per hour.
Automated Sample Processing
Automated diluting, mixing, rinsing and probe cleaning reduce
manual operating steps during routine testing.
10.4-Inch Touch Screen
The touch interface supports intuitive operation and is compatible
with an external USB mouse and keyboard.
Open Reagent System
Supports open reagent systems, with a closed reagent system
available as an optional configuration.
LIS Connectivity
Supports LIS connectivity, external barcode scanners, an internal
thermal printer and optional external printer connection.

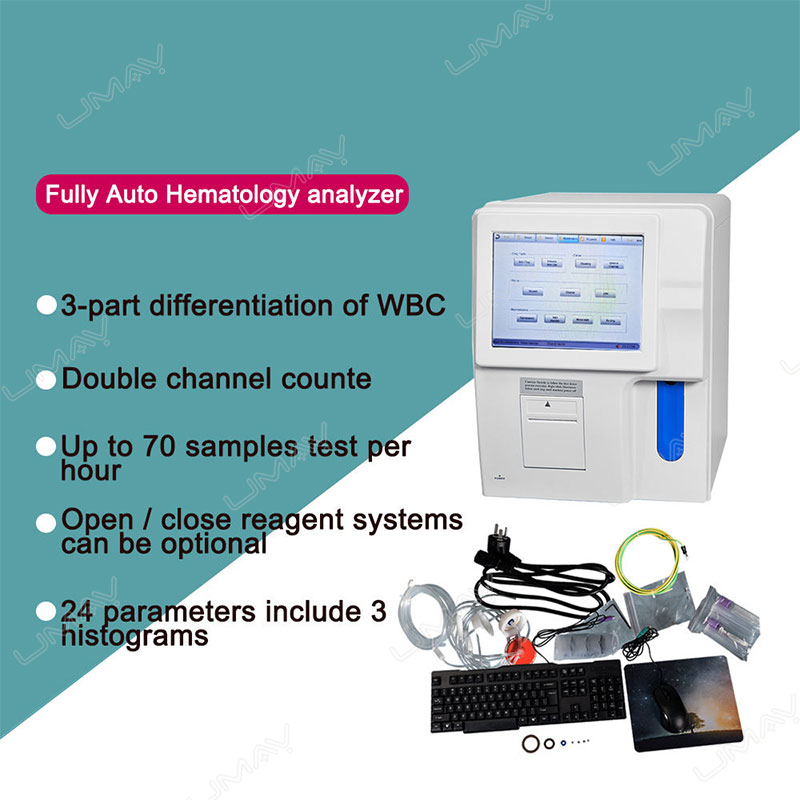

Measurement Principles and Testing Performance
| WBC Differentiation | 3-part differentiation |
| Parameters | 24 parameters |
| Histograms | 3 histograms |
| Throughput | Up to 70 samples/hour |
| WBC / RBC / PLT Principle | Electrical resistance method |
| Hemoglobin Method | SFT (Sodium Lauryl Sulfate) method |
| Display | 10.4-inch touch screen |
Automated Workflow and Maintenance
The UMALZ007 integrates automated processing and maintenance functions
to simplify routine hematology testing and reduce manual intervention.
Data Management and Laboratory Connectivity
The analyzer supports connectivity and data-management functions required
for integration into routine clinical laboratory workflows.
- LIS connectivity
- External barcode scanner support
- Built-in thermal-sensitive printer
- Optional external printer support
- External USB mouse and keyboard support
- Multi-language interface including English, French, Spanish, Portuguese and Russian
Request a Quote for UMALZ007
Contact UMY Medical for product specifications, reagent system options,
configuration details and quotation information for the UMALZ007
Full-Auto Hematology Analyzer.
