Portable Video Cystoscope System for Flexible Urology Diagnostics
The Portable Video Cystoscope System is engineered to provide urology practitioners with high-performance imaging and flexible maneuverability during clinical evaluations of the lower urinary tract. Featuring an integrated 5-inch LCD monitor and flexible articulation, the system ensures accurate diagnosis and therapeutic capability for bladder and urethral conditions.
Equipped with dual video output options—including direct video-out for larger external displays and USB connection for computer integration—the system streamlines clinical workflow and enhances diagnostic accuracy.
Supported by versatile working channel options and ergonomic handling, the portable video cystoscope integrates seamlessly into modern hospitals and outpatient urology clinics.
Key Features
Integrated 5-Inch LCD Display
Compact mounted monitor provides clear, immediate real-time viewing during bedside or clinic procedures.
Versatile Video Output Options
Supports video-out connection to larger external monitors and USB connection directly to a computer for flexible image viewing.
Wide Bending Angle Capabilities
Features smooth angulation control with 160° upward and 130° downward deflection for easy navigation through anatomical structures.
Optimized Working Channel
Features a 2.2mm clamp aperture to support endoscopic tools and diagnostic accessories during therapeutic procedures.
Slim Outer Diameter
5.0mm insertion tube and distal-end diameter ensure patient comfort and ease of insertion.
Wide View Field & Depth
Delivers a 120° field of view with a 2-50mm depth of field for clear, broad anatomical inspection.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| View of Field | 120° |
| Diameter of Distal-End | Φ 5.0 mm |
| Outer Diameter of Insert Tube | Φ 5.0 mm |
| Depth of View | 2 – 50 mm |
| Bending Angle | Up 160° / Down 130° |
| Clamp Aperture (Working Channel) | 2.2 mm |
| Working Length | 380 mm |
| Display Screen | 5-inch LCD |
| Output Connectivity | Video-out to external big screen, USB connection to computer |
- Specifications are based on the technical datasheet for the Portable Video Cystoscope System.
- Standard configuration includes the main flexible video cystoscope, 5-inch LCD monitor, power supply, and connection cables.
- Supports external output to computers or high-definition clinical displays.
Applications
Lower Urinary System Diagnostics
Provides high-resolution visualization for routine cystoscopy, urethral evaluations, and bladder mucosal inspections.
Bedside & Outpatient Procedures
Compact portable design allows rapid deployment in outpatient clinics, ward rounds, and emergency point-of-care settings.
Interventional Urology
2.2mm working channel enables biopsy sampling, stone retrieval, and minor therapeutic interventions.

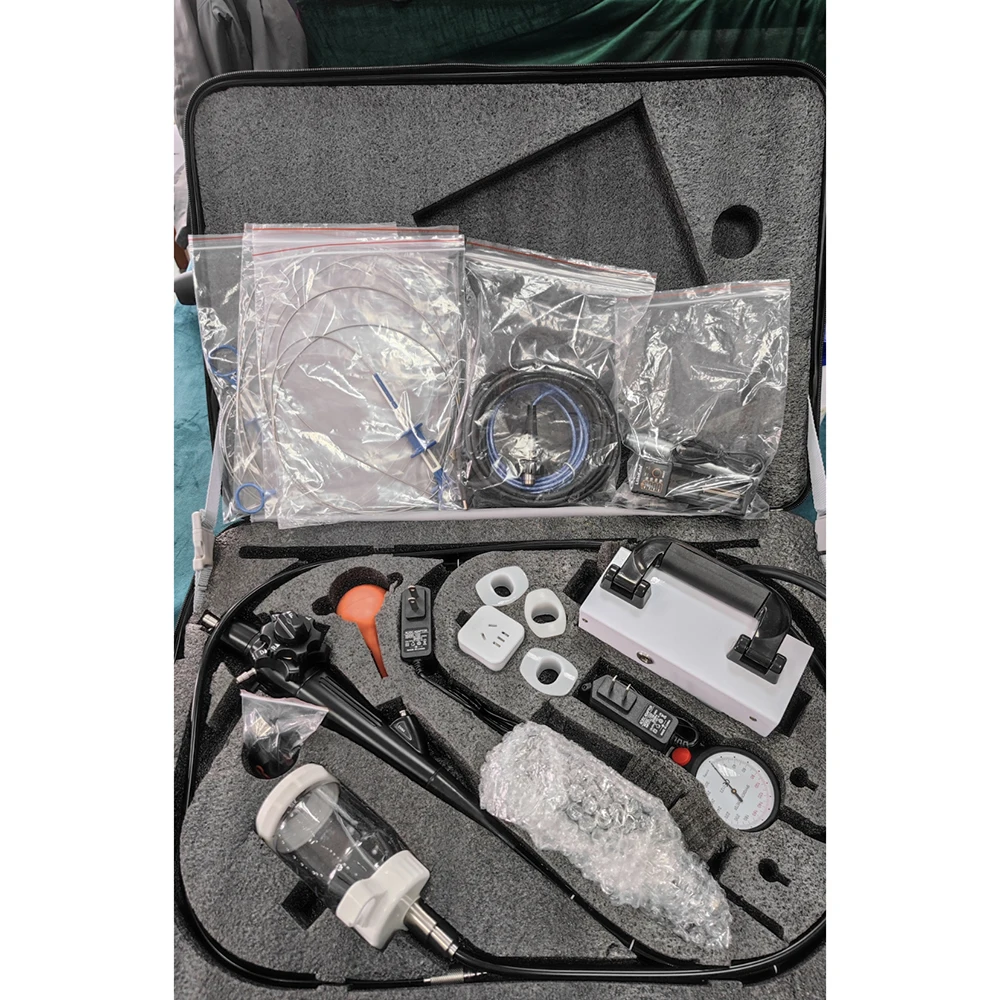

System Configuration
The Portable Video Cystoscope System is supplied complete with the flexible insertion tube unit, integrated 5-inch LCD screen, power unit, and standard USB/video connection cables.
Please confirm your required display setups and power connectivity standards prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Clinical application requirements (standalone display vs. external monitor/computer setup).
- Local electrical voltage and plug standards.
Request a Portable Video Cystoscope Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
Can the cystoscope connect to a larger display or computer?
Yes, the system supports video-out to connect to external big screens as well as direct USB connection to a computer.
What is the working length and tube diameter of this scope?
The insertion tube has an outer diameter of 5.0 mm and a working length of 380 mm.
What is the clamp aperture size for surgical tools?
The clamp aperture (working channel) inner diameter is 2.2 mm.
What are the bending capabilities of the scope tip?
The scope features articulation of 160° upwards and 130° downwards.
