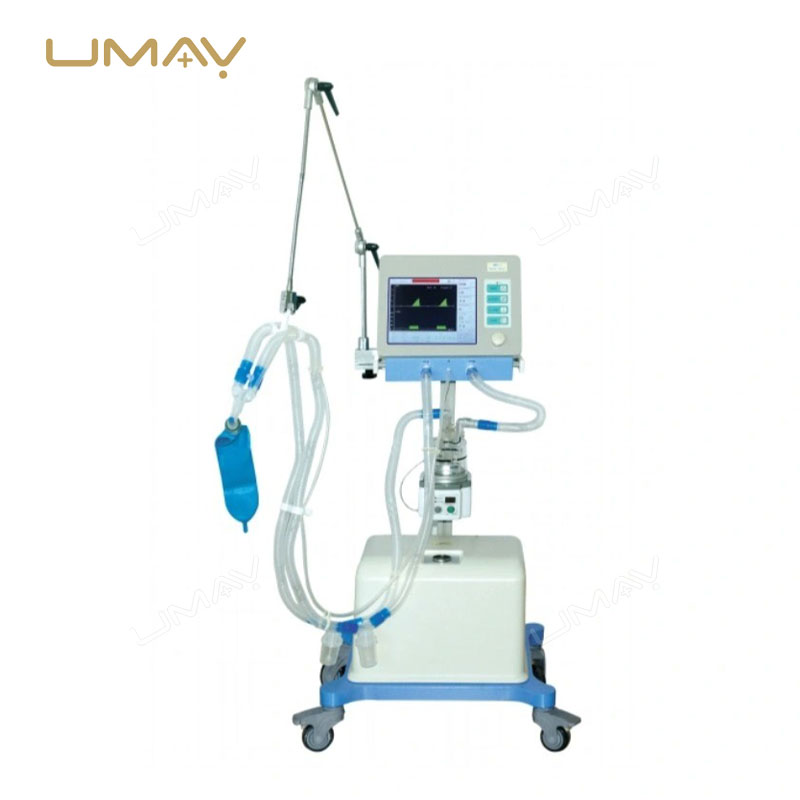

Advanced Pneumatically Driven ICU Ventilator for Critical Care
The UMHV001 ICU Ventilator is designed to support patient respiratory management across intensive care units (ICU), emergency departments, operating rooms, and general internal medicine wards. Built with a computer-controlled pneumatically driven mechanism, the system combines flexible ventilation modes with intuitive parameter control to deliver precise respiratory support for critical care applications.
Equipped with a 10.4-inch TFT color display and classic knob-and-key operation, the UMHV001 provides continuous visualization of pressure-time (P-t) and flow-time (F-t) waveforms alongside essential ventilation metrics. Integrated alarm settings and safety thresholds further assist clinical staff in maintaining safe patient ventilation.
Key Features
Versatile Ventilation Modes
Supports a wide array of ventilation modes including A/C, A/C+SIGH, SIMV, SIMV+PSV, PCV, PSV, MMV, and PEEP for diverse patient treatment requirements.
10.4″ TFT Color Display
Clear 10.4-inch color screen offers real-time visualization of monitoring waveforms and operational parameters.
Computer-Controlled Pneumatic Drive
Combines robust pneumatic driving force with precise computer control for stable gas delivery and accurate parameter adjustments.
Comprehensive Waveform & Monitoring
Displays real-time P-t (pressure-time) and F-t (flow-time) waveforms along with parameters like Tidal Volume, Peak Pressure, PEEP, and O2 Concentration.
Full Oxygen Concentration Adjustment
Allows precise adjustable oxygen concentration setting from 21% to 100% to cater to varied clinical oxygenation needs.
Integrated Safety & Apnea Alarms
Features customizable alarm parameters for tidal volume, pressure limits, oxygen level, and dynamic apnea detection ranging from 3 to 12 seconds.
Ventilation Modes & Control Features
The UMHV001 provides clinicians with multiple ventilation strategies and extensive adjustment ranges to match specific clinical protocols and patient conditions.
Controlled & Assisted Modes
Features Assist/Control (A/C), SIGH function, Synchronized Intermittent Mandatory Ventilation (SIMV), and Pressure Control Ventilation (PCV).
Spontaneous & Pressure Support
Includes Pressure Support Ventilation (PSV), Mandatory Minute Ventilation (MMV), and SIMV+PSV modes to support patient weaning and spontaneous breathing efforts.
Wide Tidal Volume & Frequency Range
Delivers adjustable tidal volumes from 50 to 1500 ml and breath frequencies from 2 to 60 bpm to cover various adult and pediatric therapy demands.
Waveform & Flow Dynamics
Offers choice of Square and Deceleration ventilation waveforms, configurable Inspiration Plateau (0–50%), and I:E ratios from 3:1 to 1:3.
Ventilator Parameters and Specifications
The UMHV001 technical documentation specifies the following core operational ranges and monitoring parameters.
| Parameter / Setting | Specification Limit Range |
|---|---|
| Drive & Control Mode | Computer Controlled Pneumatically Driven |
| Tidal Volume | 50 – 1500 ml |
| Breath Frequency | 2 – 60 bpm |
| I:E Ratio Range | 3:1 – 1:3 |
| Inspiration Plateau | 0 – 50% |
| PEEP Pressure | 0 – 20 cmH2O |
| Trigger Sensitivity | -0.1 – 2.0 kPa, OFF |
| Oxygen Concentration | 21% – 100% Adjustable |
| PSV Pressure Range | 0 – 3.5 kPa |
| Minute Volume (MV) Range | 0.5 – 40.0 L/min |
| Ventilation Waveforms | Square wave, Deceleration wave |
Technical Specifications
| Specification | UMHV001 Details |
|---|---|
| Model | UMHV001 |
| Product Type | ICU Ventilator |
| Display Screen | 10.4″ TFT Color Screen |
| User Interface | Knob and Key operation |
| Monitoring Waveforms | Pressure-time (P-t), Flow-time (F-t) |
| Monitored Parameters | Tidal Volume, Breath Frequency, I:E Ratio, PEEP, Ppeak, MV, Oxygen Concentration, Pmean |
| Alarm Systems | Tidal Volume, Breath Frequency, Peak Pressure, PEEP Upper, O2 Concentration, MV Upper |
| Apnea Alarm Setting | 3 – 12 Seconds |
| Clinical Application | Emergency, ICU, Operation Room, Internal Medicine Wards |
- Specifications are based on the standard UMHV001 technical parameter documentation.
- Please verify complete gas connection requirements and power supply compatibility prior to order confirmation.
- Standard and optional accessories (such as humidifiers, trolley stands, and breathing circuits) should be confirmed with sales representatives.
- Laboratories and medical facilities should evaluate applicable clinical protocols and destination-market regulatory requirements.
Applications
Intensive Care Units (ICU)
Provides essential mechanical ventilation support for patients with acute respiratory failure or post-operative recovery needs.
Emergency Departments
Enables rapid deployment and stabilization of patients requiring acute airway and breathing assistance.
Operating Rooms
Supports post-anesthesia recovery or extended mechanical ventilation during procedure workflows.
Internal Medicine Wards
Serves general clinical departments requiring continuous or intermittent mechanical respiratory management.
System Configuration
The UMHV001 is described as a computer-controlled, pneumatically driven ICU ventilator equipped with a 10.4-inch TFT color display, multi-mode ventilation capabilities, and continuous waveform monitoring.

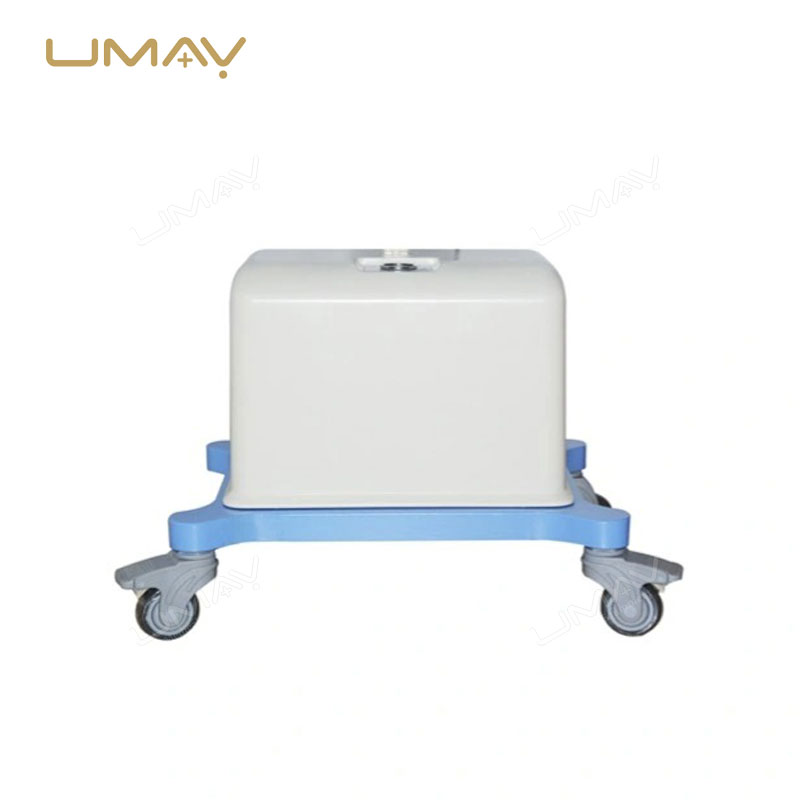

Please confirm the full scope of supply before ordering. In particular, confirm whether standard or optional accessories—such as the medical trolley stand, air compressor, humidifier, breathing circuits, patient masks, and support arm—are included in the selected quotation.
Buyers requiring specific ventilation parameters, specialized alarm thresholds, or custom interface options should request technical specifications before order placement.
Before Ordering
To confirm the appropriate UMHV001 configuration and prepare an accurate quotation, please provide the following information:
- Required quantity and destination country.
- Intended application: ICU, emergency department, operating room, or general ward.
- Required accessories (humidifier, trolley stand, patient circuits, masks, support arms).
- Mains power supply, voltage, and plug configuration requirements.
- Gas source specifications (oxygen/air wall supply or compressor).
- Language requirements for control panel overlay and user manuals.
- Required training, technical support, and warranty information.
- Any local medical device registration, regulatory, or tender documentation requirements.
Request a UMHV001 ICU Ventilator Quote
Contact UMY Medical to discuss the UMHV001 configuration, ventilation functions, optional accessories and export quotation for your hospital.
Please include your required quantity, destination country and intended application. If you have specific technical or clinical requirements, our team can review them before preparing a quotation.
Frequently Asked Questions
What ventilation modes are available on the UMHV001?
The UMHV001 supports multiple modes including A/C, A/C+SIGH, SIMV, SIMV+PSV, PCV, PSV, MMV, and PEEP to cater to various clinical requirements.
What is the screen size and display type of the UMHV001 ventilator?
It features a 10.4-inch TFT color screen that displays real-time parameters and P-t / F-t monitoring waveforms clearly.
What is the adjustable oxygen concentration range?
The oxygen concentration on the UMHV001 can be continuously adjusted between 21% and 100%.
Does the UMHV001 ventilator include an apnea alarm?
Yes, it includes a safety Apnea Alarm setting with an adjustable time window of 3 to 12 seconds.
