UMY-EN-057 AI Capsule Endoscopy System for Small Bowel Imaging

The UMY-EN-057 AI Capsule Endoscopy System is designed for small bowel imaging using a compact swallowable capsule, portable image recording
and AI-assisted reading software.

The capsule provides 512 × 512-pixel imaging, a wide 172° viewing angle, adaptive 2–10 fps image capture and up to
12 hours of working time, supporting extended visualization throughout a small bowel capsule endoscopy examination.

Integrated smart reading functions help reduce redundant images and organize potentially relevant findings, allowing healthcare professionals to review
large capsule endoscopy image sets more efficiently.

Key Features

• AI-assisted capsule endoscopy platform for small bowel imaging
• 512 × 512-pixel image resolution
• Adaptive 2–10 frames per second image acquisition
• 172° ultra-wide viewing angle
• 0–50 mm depth of field
• 4 LED illumination system
• Up to 12 hours capsule working time
• Compact capsule approximately 25.4 × 11 mm
• Capsule weight approximately 3 g
• AI-assisted SmartScan image processing
• SmartView accelerated review mode
• SmartFinding-assisted abnormality review
• Portable recorder with real-time image viewing

High-Definition Small Bowel Imaging

The UMY-EN-057 uses a high-definition image sensor with a resolution of 512 × 512 pixels.

Combined with a 172° field of view and 0–50 mm depth of field, the capsule is designed to provide
broad visualization of the gastrointestinal lumen during small bowel examination.

Four integrated LED light sources provide illumination for image acquisition as the capsule travels naturally through the digestive tract.

Adaptive 2–10 fps Image Acquisition

The capsule supports an adaptive frame rate from
2 to 10 frames per second.

Adaptive image acquisition allows the system to adjust the sampling frequency according to capsule movement, helping balance image coverage with operating time
during the examination.

Up to 12 Hours of Capsule Operation

The capsule provides up to 12 hours of working time, supporting extended image acquisition during small bowel transit.

The extended operating duration is useful for examinations where a longer gastrointestinal transit period may be required.

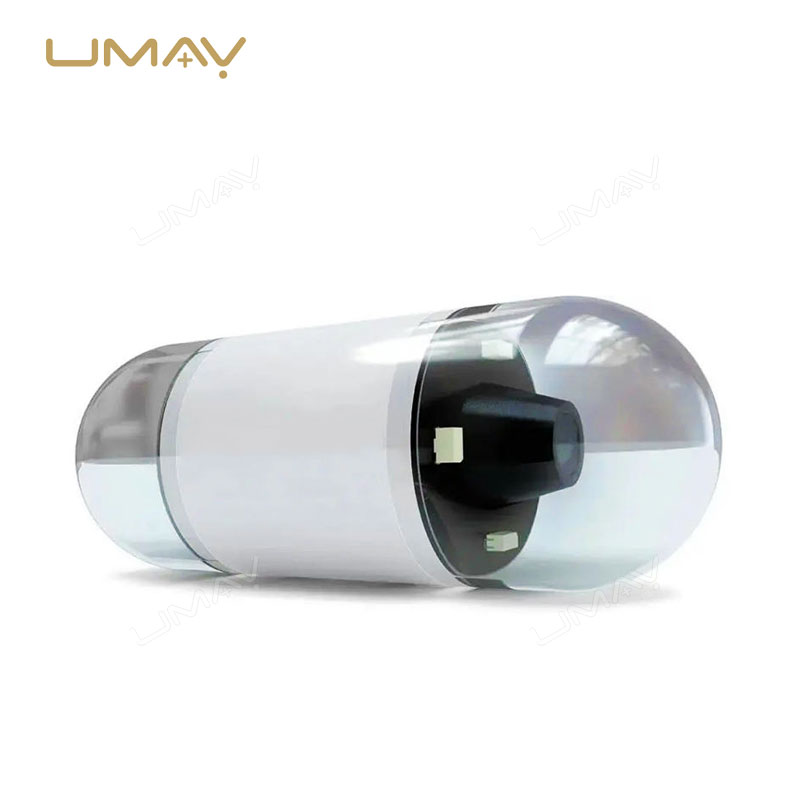

Compact Capsule Design

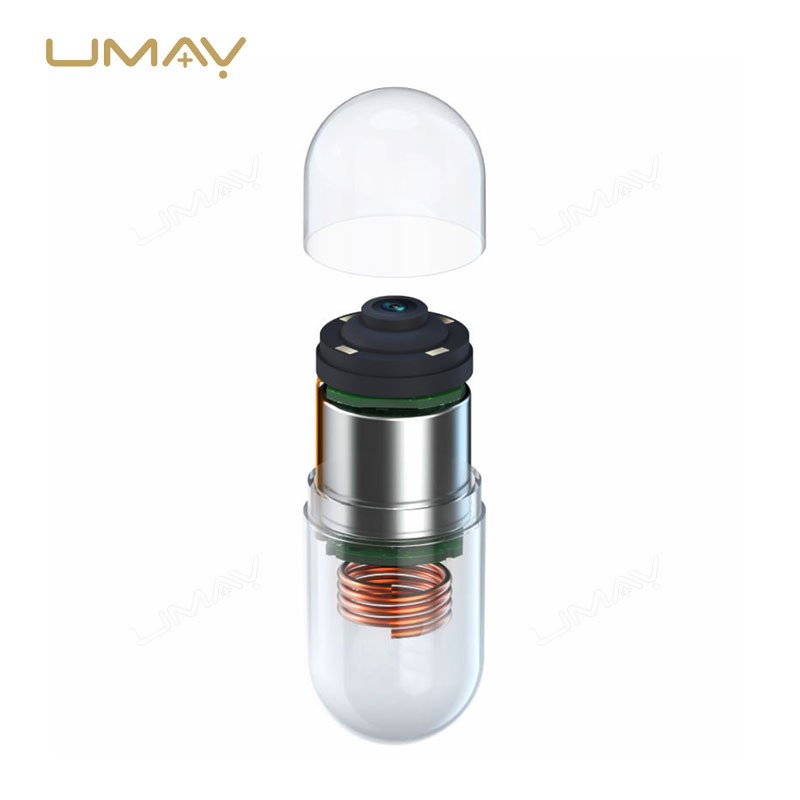

The imaging capsule integrates the image sensor, optical system, LED illumination, transmitter and battery into a compact swallowable housing.

AI-Assisted Smart Reading Software

Capsule endoscopy can generate a large number of images during a single examination.
The UMY-EN-057 platform incorporates AI-assisted image processing functions designed to support more efficient review.

The smart reading workflow includes three main functions:
SmartScan, SmartView and SmartFinding.

SmartScan

SmartScan processes the original capsule image data and can remove up to 90% of redundant images.

The software can also identify and tag up to 16 types of potential abnormalities, helping organize images
for subsequent review.

AI-generated markings are intended to assist image review and do not replace
professional clinical interpretation.

SmartView

SmartView displays images selected through SmartScan rather than requiring
the operator to review every captured frame sequentially.

This allows users to navigate through the capsule endoscopy study more efficiently
while retaining access to the complete examination data when further review is required.

SmartFinding

SmartFinding organizes selected images according to visual characteristics
and predictive analysis, helping users locate and review images associated with
potential abnormalities.

Final interpretation of capsule endoscopy findings should always be performed
by qualified healthcare professionals.

For additional endoscopy configurations, including conventional camera-based
systems and flexible or rigid endoscopes, explore our

Endoscope Equipment

range.

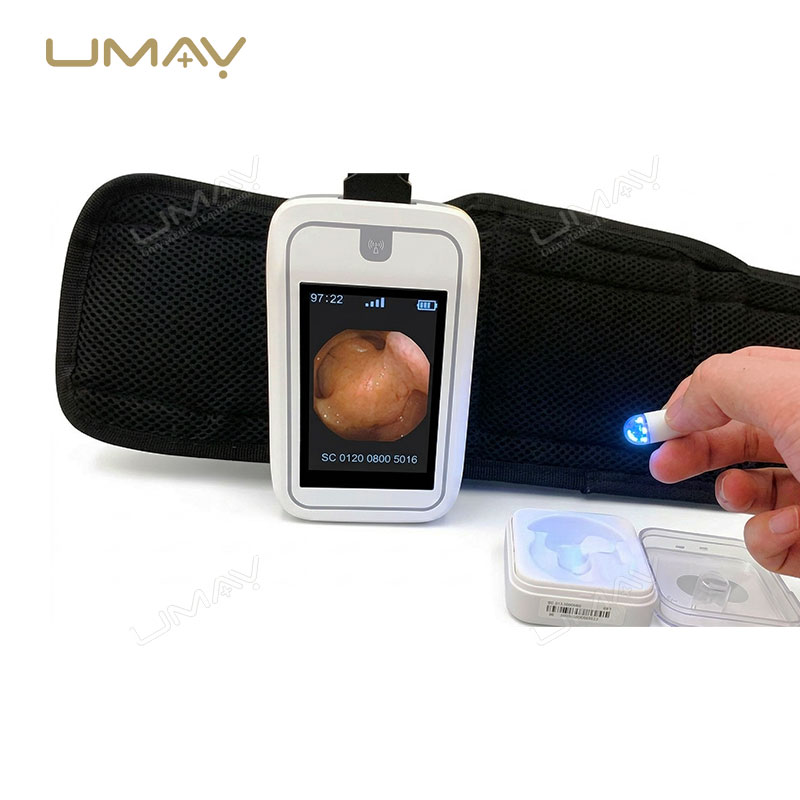

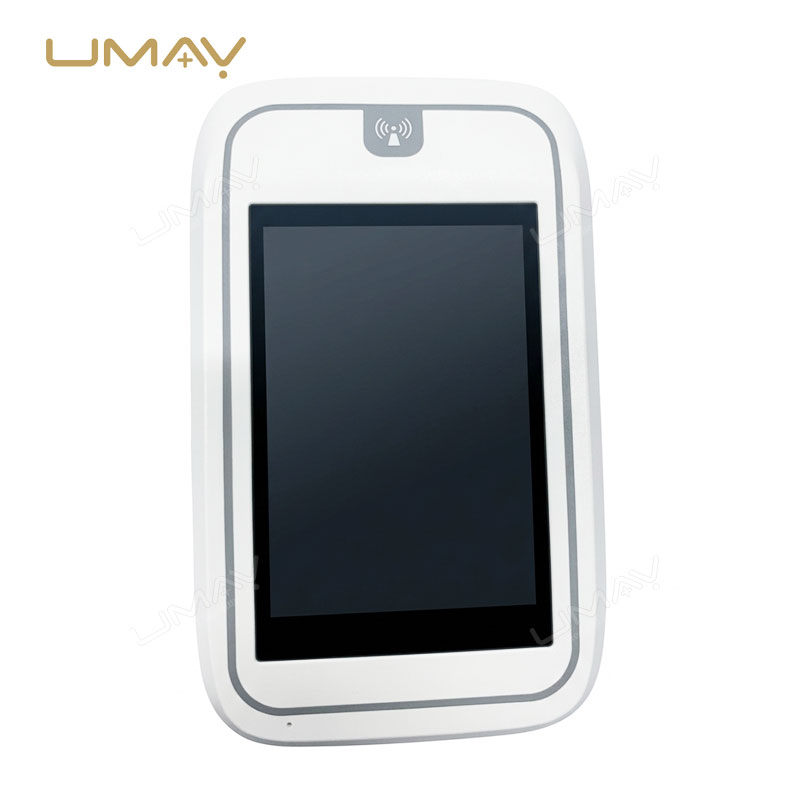

Portable Image Recorder

Images transmitted by the capsule are collected by a portable recording system
worn by the patient during the examination.

The recorder platform supports device pairing and real-time image viewing,
helping medical staff confirm image transmission during examination preparation
and monitoring.

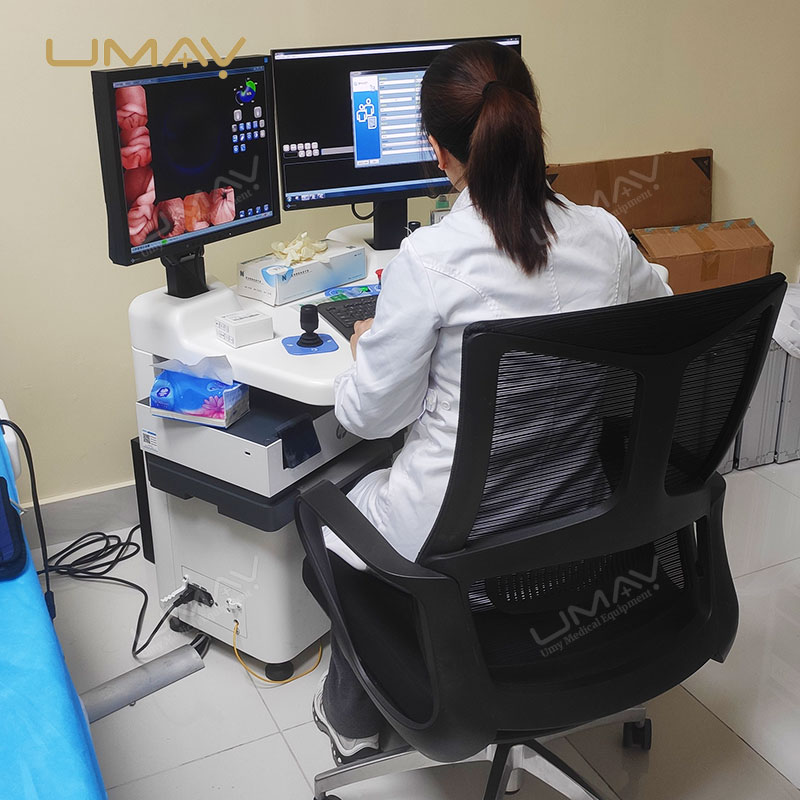

Fast Data Transfer and Review

After examination data is collected, the recorded images can be transferred
to the reading workstation for review.

The system is designed to simplify the transition from image acquisition
to AI-assisted reading and clinical interpretation.

Typical Capsule Endoscopy Workflow

1. Patient Preparation:
   Prepare the patient according to the healthcare facility’s capsule endoscopy protocol.
2. Recorder Preparation:
   Fit the recording system and confirm communication between the capsule and recorder.
3. Capsule Ingestion:
   The patient swallows the imaging capsule.
4. Image Acquisition:
   Images are transmitted to the portable recorder as the capsule passes naturally
   through the gastrointestinal tract.
5. Data Transfer:
   Examination data is transferred to the reading workstation.
6. AI-Assisted Review:
   SmartScan, SmartView and SmartFinding assist healthcare professionals in reviewing
   and organizing captured images.
7. Clinical Interpretation:
   The examination is reviewed and interpreted by qualified healthcare professionals.

Technical Specifications

Typical Applications

• Small bowel capsule endoscopy
• Gastroenterology departments
• Digestive disease centers
• Endoscopy departments
• Hospitals and specialist clinics

Related Endoscopy Equipment

For healthcare facilities building a broader endoscopy workflow,
UMY Medical also supplies conventional endoscopy camera systems,
endoscope equipment and related medical imaging platforms.

Before Ordering

Please provide the intended clinical application and destination market so
the available system configuration and technical documentation can be confirmed
before quotation.

• Required quantity
• Intended small bowel capsule endoscopy application
• Required capsule quantity
• Required recorder configuration
• Required reading workstation / software configuration
• Required disposable accessories
• Software language requirements
• Required technical or regulatory documentation
• Destination country

Request UMY-EN-057 Capsule Endoscopy System Quotation

Contact UMY Medical for system configuration, technical specifications,
capsule requirements and quotation.

Email UMY Medical

WhatsApp UMY Medical

FAQ

What is the UMY-EN-057 capsule endoscopy system used for?

The UMY-EN-057 is designed for capsule endoscopy imaging of the small bowel
using a swallowable imaging capsule and portable recording system.

What is the image resolution of the capsule?

The capsule provides 512 × 512-pixel imaging.

How long does the capsule operate?

The specified capsule working time is up to 12 hours.

What does the AI-assisted reading software do?

The system provides SmartScan, SmartView and SmartFinding functions to help
reduce redundant images, organize potentially relevant frames and support
more efficient capsule endoscopy review.

Does AI replace physician interpretation?

No. AI-assisted image processing is intended to support the review workflow.
Final interpretation and clinical decisions should be made by qualified
healthcare professionals.
