Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power Supply | |
| Input Voltage | 100-240VAC, 50/60Hz |
| Output Voltage | DC12V |
| Output Current | 4A |
| Charge and Discharge Management System | |
| Rechargeable Battery Capacity | 5200mAh |
| Charging Completion Time | ≤4 hours |
| Battery Working Time | ≥3.5 hours |
| Power Display | 0~100% |
| Display Module | |
| Resolution | 1024(H)×600(V) |
| Visible Area | 153.6mm (H)×90mm (V) |
| Range of View | Full view |
| Main Unit Performance | |
| Operation Mode | B mode |
| Display Screen | 7” LCD |
| Operation Interface | English interface |
| USB Socket | Supports upgrades via USB storage and image export |
| Continued Operation Time (Adapter Power Supply) | ≥8 hours |
| Power Consumption | ≤10VA |
| Probe Performance | |
| Number of Probes | 1 piece |
| Probe Type | Linear probe |
| Number of Elements | 80 |
| Number of Channels | 16 |
| Acoustic Operation Frequency | 7.5MHz |
| Graphic Performance | |
| Max Detection Depth | ≥50mm |
| Resolution | Circumferential ≤1.0mm (depth ≤50mm), Axial ≤1.0mm (depth ≤50mm) |
| Dead Zone | ≤2.0mm |
| Geometry Offset Tolerance | Circumferential ≤10%, Axial ≤5% |
| Needle Holder (Puncture Frame) | |
| Material | Medical grade material |
| Needle Types | 18G in-plane, 18G out-of-plane, 21G in-plane, 21G out-of-plane, 20G radial |
| Biological Properties | Non-sterile state, one-time use after sterilization by the end user |

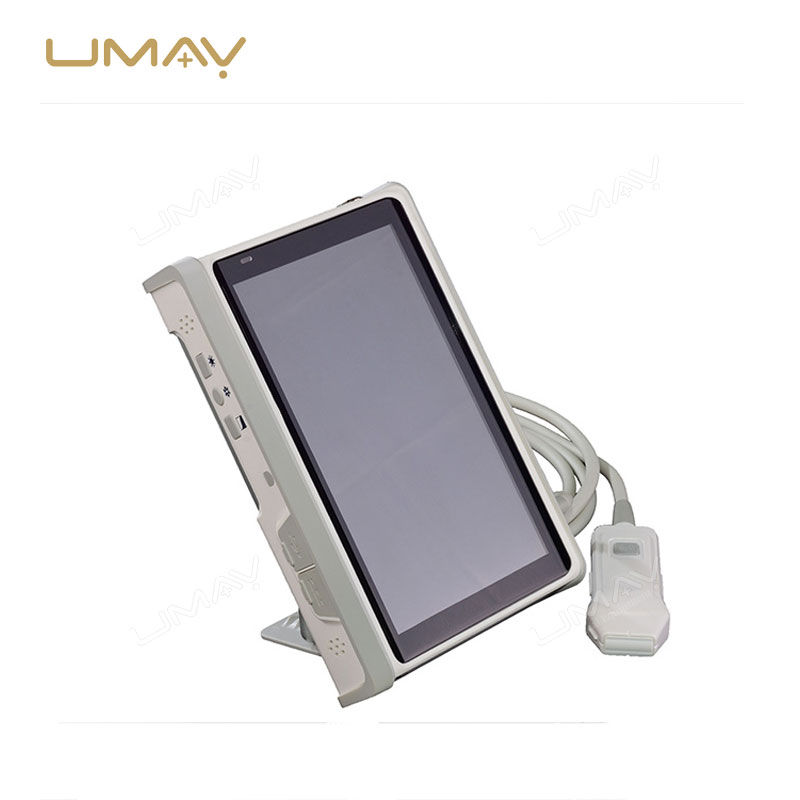

Product Details
