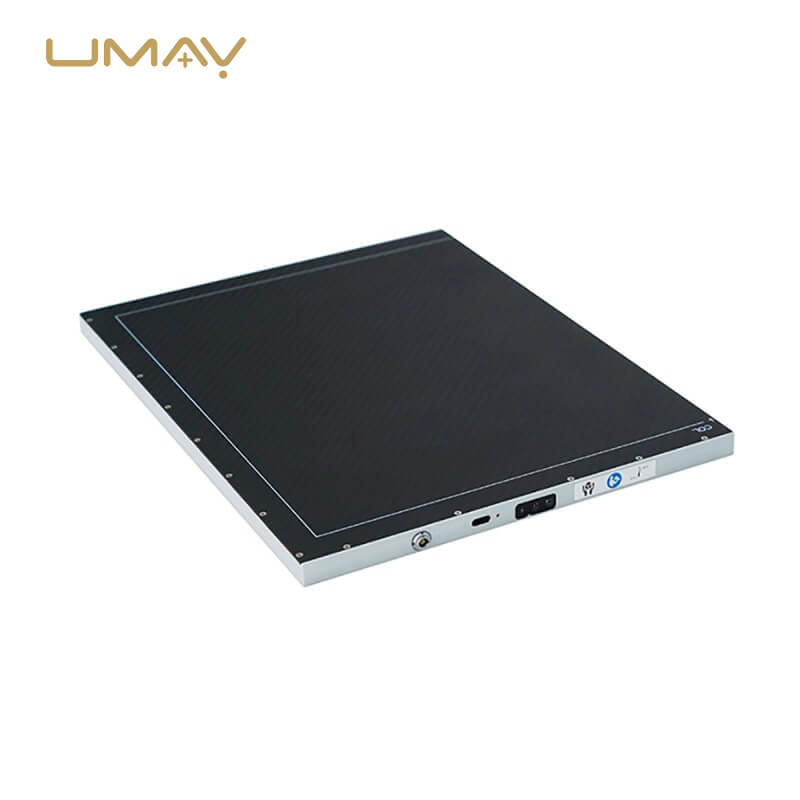

Cassette Size Amorphous Silicon Mammography Detector for Digital Retrofitting
The Mammo 1012C is a digital flat panel detector utilizing advanced amorphous silicon (a-Si) TFT sensor technology and a high-efficiency Cesium Iodide (CsI) scintillator. Designed with a compact cassette-size outline, it is engineered specifically to help hospitals and clinics retrofit existing analog mammography systems into high-performance full-field digital mammography (FFDM) systems.
The detector provides a reliable Automatic Exposure Detection (AED) function via a specialized sensor to trigger the flat panel upon receiving X-rays, while also maintaining full compatibility with the existing Automatic Exposure Control (AEC) functions of legacy analog mammography machines.
Key Features
Cassette-Size Compact Design
Built with a compact outline and standard cassette dimensions to allow straightforward, seamless integration into legacy analog mammography bucky trays.
Reliable AED Function
Equipped with a specialized sensor for reliable X-ray detection to automatically activate the flat panel detector during exposure.
Legacy AEC Compatibility
Fully compatible with the existing AEC (Automatic Exposure Control) modules of older analog mammography units.
High-Resolution CsI Technology
Combines an amorphous silicon sensor with a high-performance CsI scintillator and an 85 µm fine pixel pitch to deliver sharp, high-contrast breast imaging.
Dedicated FFDM Support
Designed exclusively for Full-Field Digital Mammography (FFDM) applications to support modern diagnostic screening workflows.
GigE Data Interface
Provides a stable and high-speed GigE data interface for rapid image transfer and processing.
Technical Specifications
| Specification | Mammo 1012C Data |
|---|---|
| Detector Technology | Amorphous Silicon (a-Si) |
| Scintillator | CsI (Cesium Iodide) |
| Active Area (mm) | 235 × 290 |
| Pixel Matrix | 2762 × 3408 |
| Pixel Pitch (µm) | 85 |
| Spatial Resolution (lp/mm) | 6 |
| AD Conversion (bit) | 16 |
| Dynamic Range (dB) | > 76 |
| Chest Wall Distance (mm) | ≤ 3 |
| Data Interface | GigE |
| Trigger Mode | Software / AED |
| Dimensions (mm³) | 327 × 254.5 × 14 |
| Weight (kg) | 1.3 |
| Power Dissipation (W) | ≤ 18 |
| Operating Temperature (°C) | 10 – 40 |
| Storage & Transport Temperature with Package (°C) | -10 – 55 |
| Operating Humidity (% RH) | 10 – 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH) | 10 – 95 (Non-Condensing) |
- Specifications are based on official technical documentation for the Mammo 1012C detector.
- Verify compatibility with your specific analog mammography machine model and bucky tray dimensions prior to ordering.
Applications
Analog-to-Digital Retrofitting
Transforms older analog film-screen mammography systems into modern digital units without requiring a complete machine replacement.
Full-Field Digital Mammography (FFDM)
Optimized specifically for dedicated screening and diagnostic FFDM clinical imaging environments.
Hospitals and Diagnostic Centers
Enables cost-effective upgrades for radiology departments seeking digital workflow integration and improved image archiving.
Before Ordering
To ensure proper integration and prepare an accurate quotation for the Mammo 1012C detector, please provide the following details:
- Required order quantity and destination country.
- Make and model of your existing analog mammography system for compatibility checking.
- Whether software workstation integration or technical accessories are required.
- Local regulatory documentation or certification requirements.
Request a Mammo 1012C Detector Quote
Contact UMY Medical to discuss compatibility, integration support, lead times, and export pricing for your digital upgrade project.
Please include your required quantity and destination hospital details so our engineering and sales team can assist you effectively.
Frequently Asked Questions
What is the primary use of the Mammo 1012C detector?
The Mammo 1012C is designed specifically as a cassette-size digital flat panel detector to retrofit traditional analog mammography systems into full-field digital mammography (FFDM) systems.
Does the detector support AED functionality?
Yes, it features a reliable AED (Automatic Exposure Detection) function using a specialized sensor to trigger the panel upon detecting X-rays, while also supporting old analog AEC modules.
What are the key imaging specifications of the Mammo 1012C?
It features an active area of 235 x 290 mm, an 85 µm pixel pitch, a spatial resolution of 6 lp/mm, and a CsI scintillator for high-contrast digital breast imaging.
