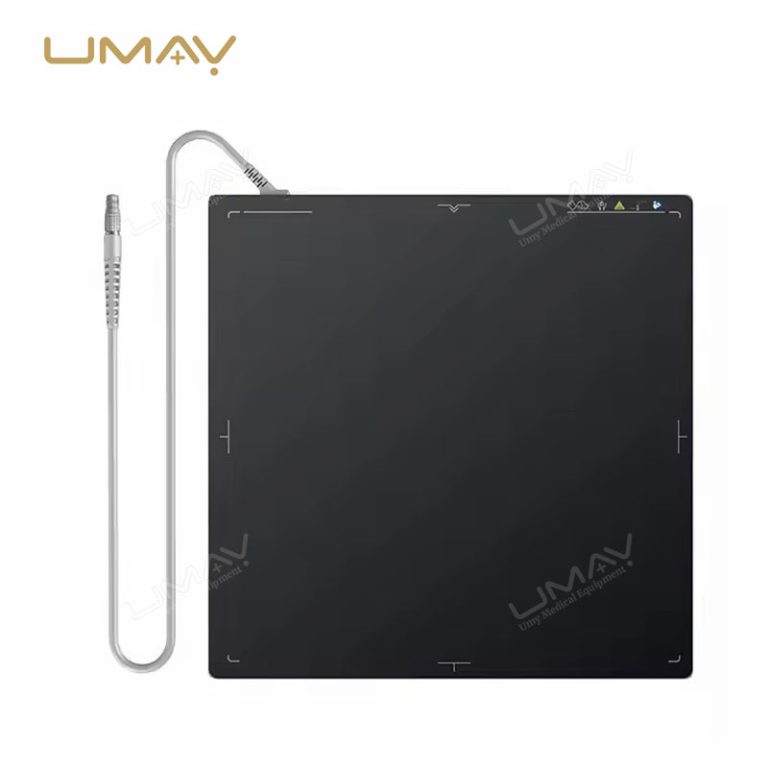

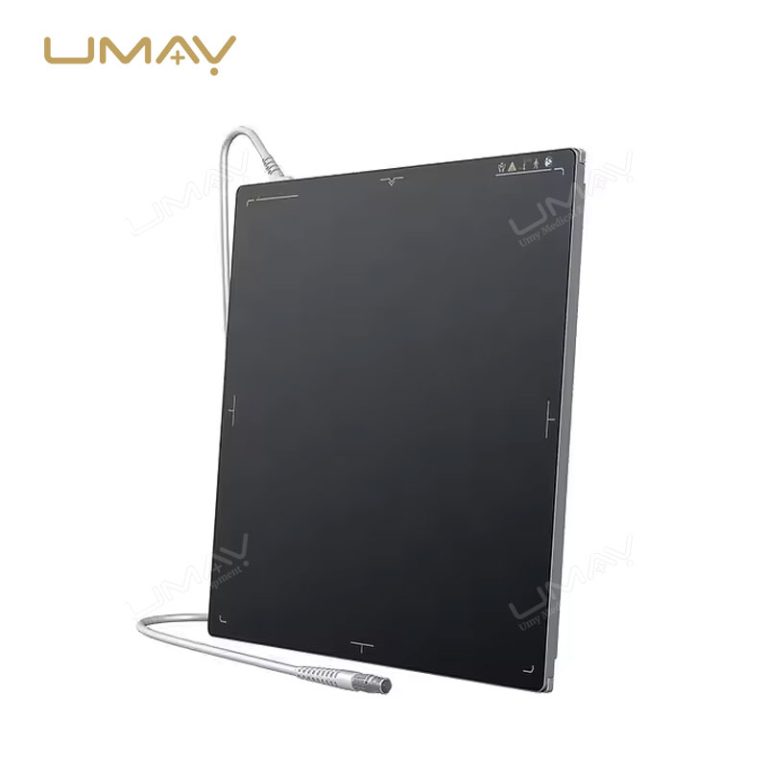

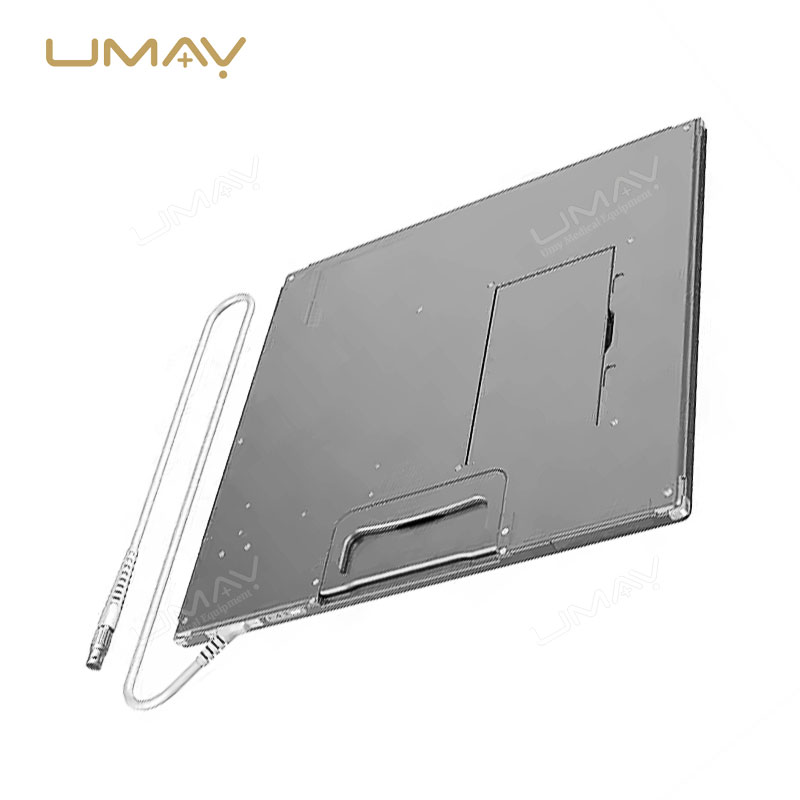

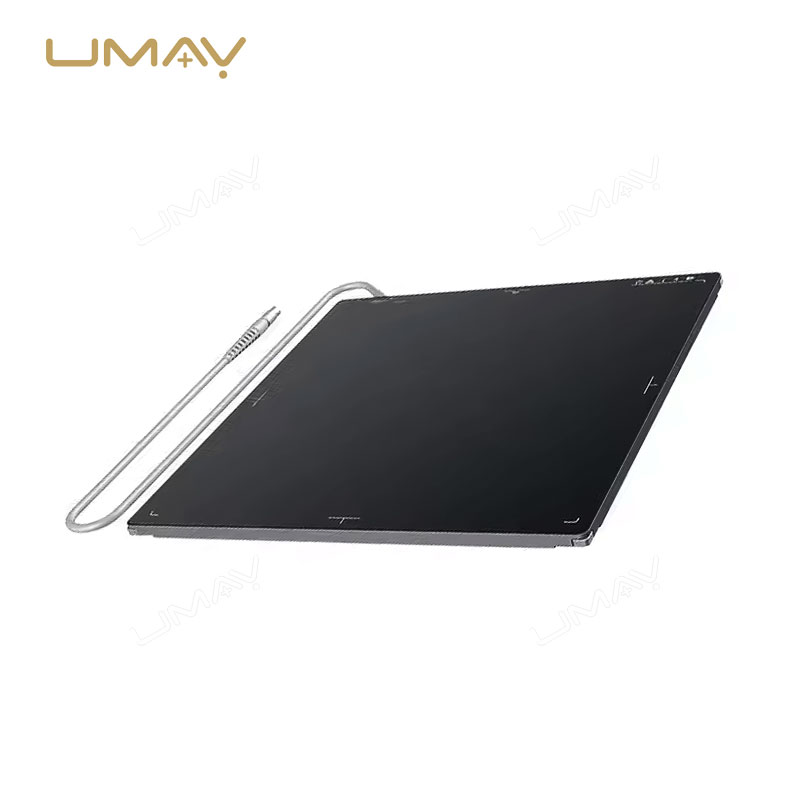

1717 Wired Flat Panel Detector for Human and Veterinary DR Imaging Systems
SKU: UMY-XM-071
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-071
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric

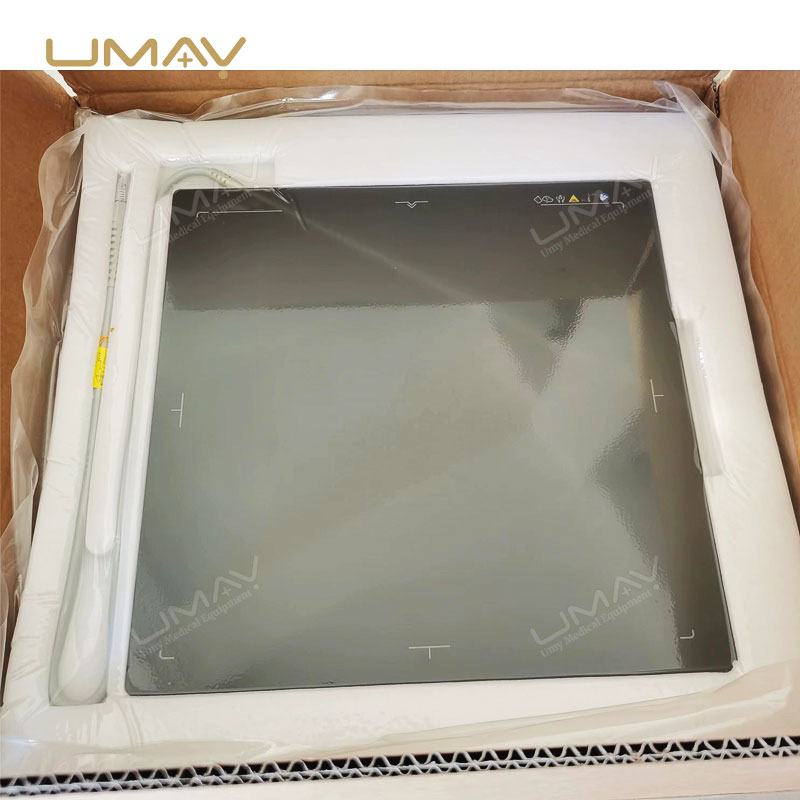

- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

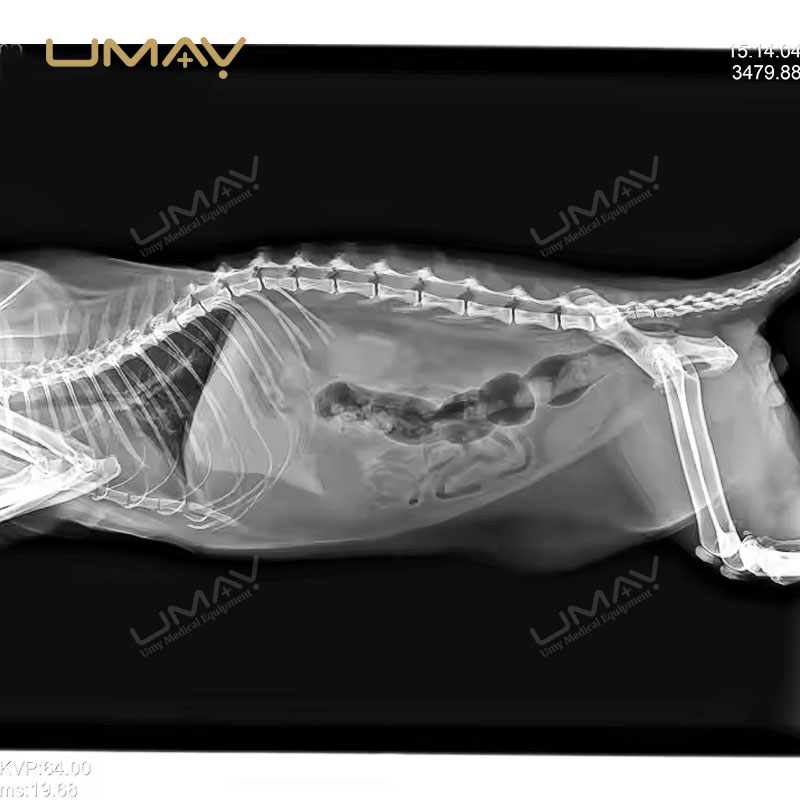

The 1717X wired flat panel detector offers high-resolution imaging with exceptional consistency for both human diagnostics and veterinary applications. Featuring a cassette-size form factor and fast image acquisition, this detector ensures seamless integration into a variety of digital radiography systems. Its compatibility with advanced DR setups supports streamlined workflow in clinical and animal healthcare environments. If you’re upgrading imaging infrastructure, consider our digital wireless DR flat panel detector for accurate detail medical imaging to complement your system. This detector is ideal for use in orthopedics, emergency diagnostics, and animal radiology.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.4 lp/mm |
| AD Conversion | 16 bit |
| Data Transmission | GigE |
| Trigger & Imaging | |
| Trigger Mode | AED (Optional) / Software / Prep |
| Preview Image Time | 3 seconds |
| Full Image Time | 5 seconds |
| Physical Specifications | |
| Dimensions | 460 × 460 × 15 mm |
| Weight | 4 kg |
| Power Dissipation | 30 W |
| Environmental Conditions | |
| Operating Temperature | 5 ~ 35 °C |
| Storage & Transport Temperature with Package | -20 ~ 55 °C |
| Operating Humidity | 30 ~ 80% (Non-Condensing) |
| Storage & Transport Humidity with Package | 5 ~ 95% (Non-Condensing) |
