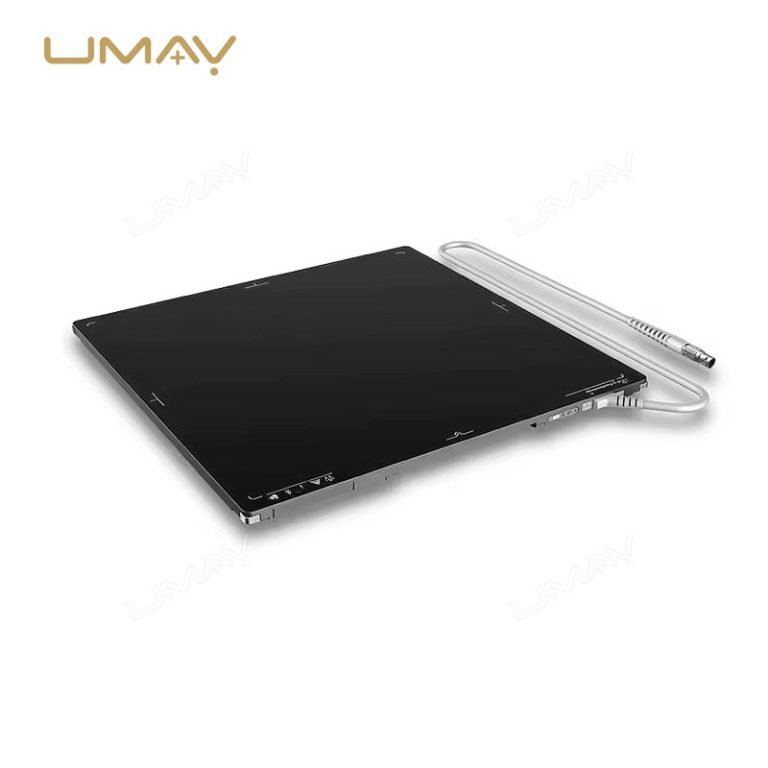

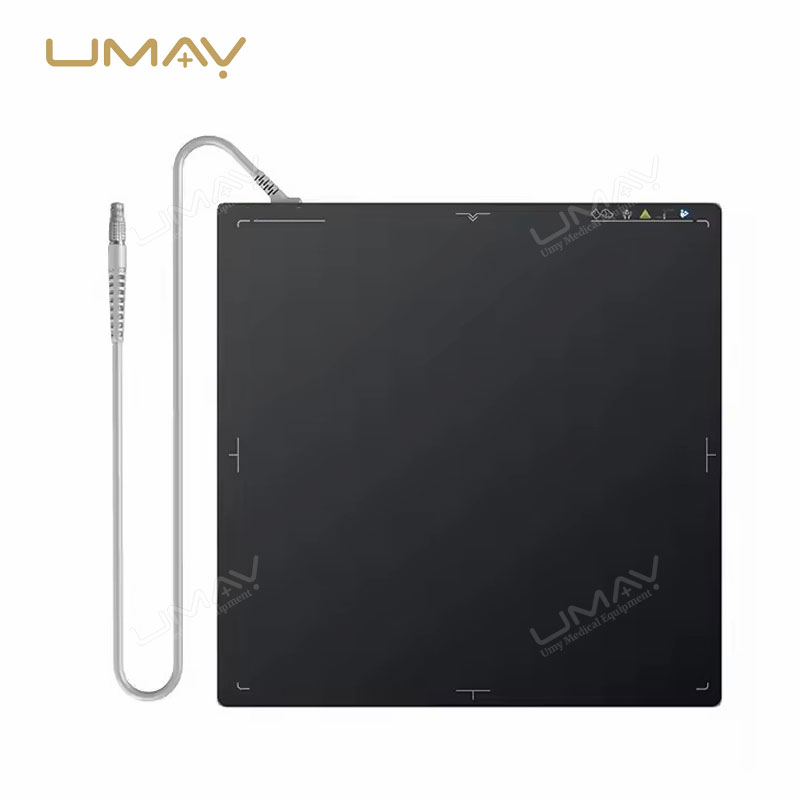

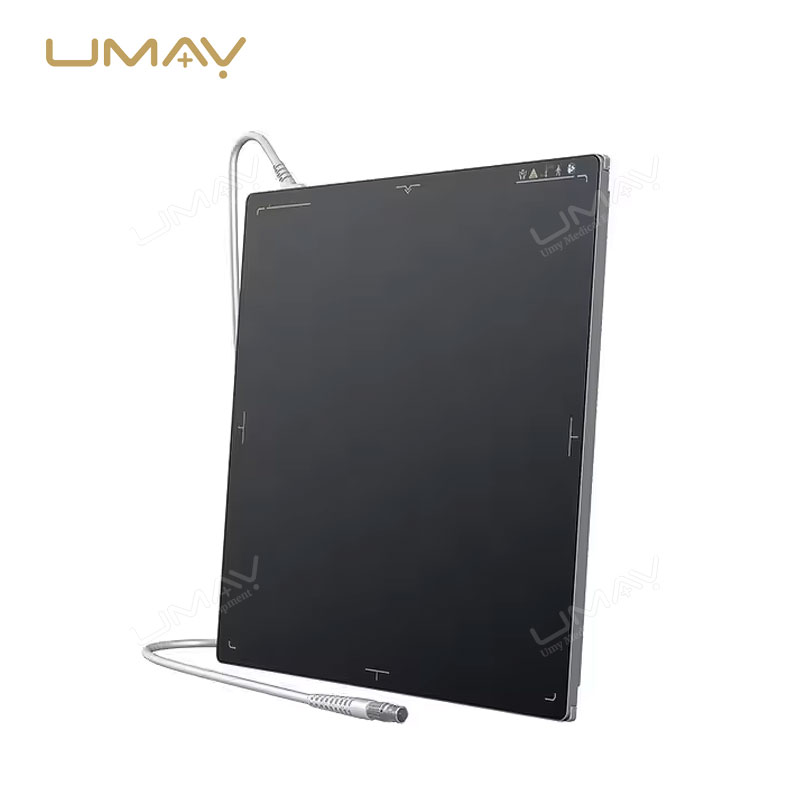

Mercu 1717V3 Digital Dynamic Flat Panel Detector for X‑ray Real‑time Imaging
The Mercu 1717V3 Digital Dynamic Flat Panel Detector is an amorphous‑silicon (a‑Si) FPD developed by iRay Technology for real‑time X‑ray imaging. Equipped with direct‑deposition CsI scintillator and proven radiation‑hardened sensor design, it achieves excellent low‑dose image quality. With flexible multi‑mode high frame‑rate output, switchable gain and optional ROI function, this detector fits fluoroscopic X‑ray systems for general radiography, fluoroscopy and CBCT workflows in gastrointestinal and urology clinical scenarios.
Key Features
Excellent Low‑Dose Imaging Performance
Extremely low clinical dose at high DQE; first‑frame lag less than 2.5%.
Radiation‑Hardened a‑Si Sensor & CsI Scintillator
Proven radiation‑resistant amorphous silicon sensor with direct‑deposition CsI scintillator for stable long‑term operation.
Multi‑Mode High Frame‑Rate Output
5 fps under full 1×1 resolution; 20 fps under 2×2 binning; maximum 30 fps under 3×3 binning.
Adjustable Imaging Parameters
Support switchable gain setting and optional ROI (Region of Interest) function for flexible clinical adaptation.
Large 17×17‑inch Active Imaging Area
Large‑format detection area for broad‑coverage X‑ray radiography and dynamic fluoroscopy.
High‑Precision Digital Conversion & GigE Interface
16‑bit ADC ensures rich grayscale detail; GigE data interface for stable high‑speed data transmission.
Compact Light‑Weight Mechanical Design
Thin‑body structure, approx. 4 kg weight, easy for system integration and equipment retrofitting.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Detector Technology | Amorphous Silicon (a‑Si) |
| Scintillator | Direct‑deposition CsI |
| Active Imaging Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.6 lp/mm |
| AD Conversion | 16‑bit ADC |
| Frame Rate | 5 fps (1×1); 20 fps (2×2); 30 fps (3×3) |
| Data Interface | GigE |
| Overall Dimension | 460 × 460 × 16 mm |
| Weight | ≈ 4 kg |
| Power Dissipation | ≤ 25 W |
| Operating Temperature | 10 ~ 40 ℃ |
| Operating Humidity (Non‑Condensing) | 10 ~ 95 % RH |
- Specifications are based on the official technical datasheets for the Mercu 1717V3 Flat Panel Detector.
- Standard configuration includes flat‑panel detector unit and GigE data cable.
- X‑ray generator, workstation software and host system need to be equipped separately for complete imaging workflow.
Applications
General Digital Radiography
Static radiographic imaging after integration into digital X‑ray systems.
Fluoroscopy Real‑Time Imaging
High‑frame‑rate dynamic fluoroscopy examination for interventional clinical workflows.
CBCT System Integration
Suitable for CBCT equipment integration to meet multi‑mode imaging requirements.
Gastroenterology & Urology Examination
Clinical imaging support for gastrointestinal and urology diagnostic procedures.
System Configuration
The Mercu 1717V3 digital dynamic flat‑panel detector is supplied complete with detector main unit and GigE data transmission cable. X‑ray generator, image processing workstation, control software and other system components are sold separately. Please confirm system integration requirements, interface matching and installation environment before placing an order.
Before Ordering
- Required order quantity and destination country.
- Confirm host system compatibility for GigE interface and software integration.
- Verify installation space and environmental temperature & humidity conditions.
Request a Mercu 1717V3 Flat Panel Detector Quote
Contact UMY Medical to discuss system integration, pricing, and export delivery for your hospital or equipment‑manufacturing project.
Frequently Asked Questions
What is the maximum frame rate of Mercu 1717V3?
5 fps at full 1×1 resolution; 20 fps under 2×2 binning; up to 30 fps under 3×3 binning.
What scintillator does this detector adopt?
It uses direct‑deposition CsI scintillator matched with radiation‑hardened amorphous‑silicon sensor.
What data interface does Mercu 1717V3 use?
GigE interface for high‑speed image data transmission.
What clinical scenarios is this detector suitable for?
It can be integrated for general radiography, fluoroscopy and CBCT, mainly for gastrointestinal and urology diagnostic imaging.
